By Diamond Audio

14 - 23 Harley Davidson® Street Glide 4-Speaker System - DA1423SGSP3R

$3,229.99
$3,229.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DA1423SGSP3R
$3,229.99
$3,229.99

Elevate Your Ride with the Ultimate 2014-2023 Street Glide Audio Evolution

Introducing the Diamond Audio DA1423SGSP3R , a precision-engineered, four-speaker flagship sound pack purpose-built for 2014–2023 Harley-Davidson Street Glide models. This comprehensive system is the ultimate cockpit and rear-stage transformation, designed for the modern rider who demands high-definition source control, immersive surround sound, and surgical clarity at 80+ MPH.

The command center of this system is the MSHD14 Plug-N-Play Digital Media Receiver , which replaces the restrictive factory head unit with a high-voltage pre-amp signal path and modern smartphone connectivity. Providing the muscle is the Micro V2 Series 4-Channel Class D amplifier , a masterpiece of efficiency providing massive headroom for both the fairing and saddlebag lids while maintaining a compact, heat-dissipating footprint optimized for fairing integration.

Acoustic excellence is delivered through the all-new Motorsports HXM Black Series  speakers, featuring a 6.5" front stage and a matching 6x9" rear lid conversion. Re-engineered with cutting-edge carbon fiber cones  and oversized high-output tweeters, these speakers provide louder, cleaner, and more detailed sound—specifically tuned to cut through intense wind and road noise. With the included MSPWHR OFC Power Harness , MSRCA2 signal kit , and specialized integration software, the DA1423SGSP3R  ensures the cleanest signal path and the ultimate high-performance audio experience.

  • Complete Source Overhaul:  Features the MSHD14 head unit for full digital media control and superior signal processing over the OEM radio.
  • High-Velocity Definition:  Carbon fiber cone technology ensures the music remains detailed and impactful even at high highway speeds.
  • Full-Stage Surround:  4-channel configuration delivers a truly immersive audio experience for both rider and passenger.
  • Pure Signal Path:  100% Oxygen-Free Copper (OFC) wiring and direct RCA integration eliminate signal noise and maximize amplifier efficiency.


Specifications

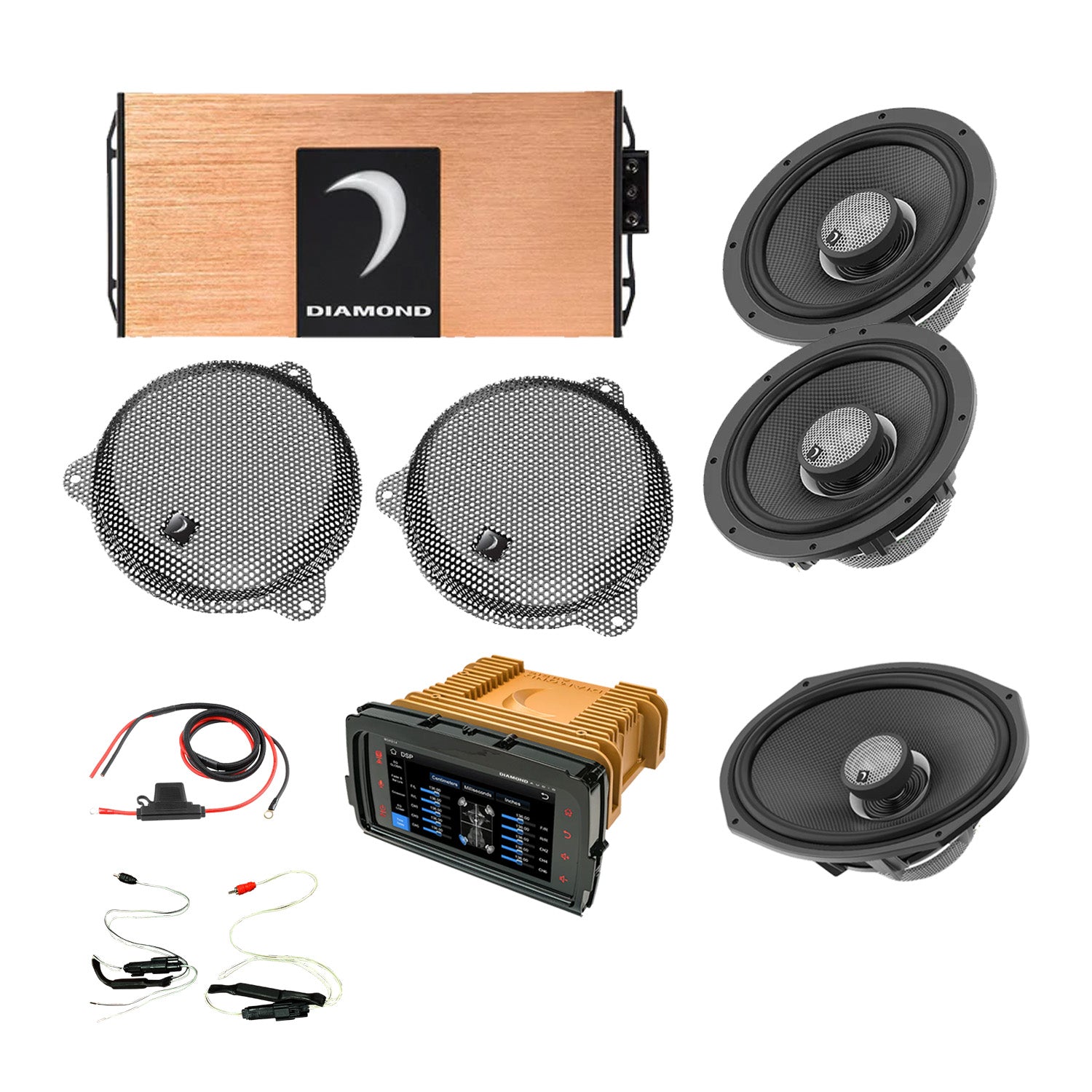

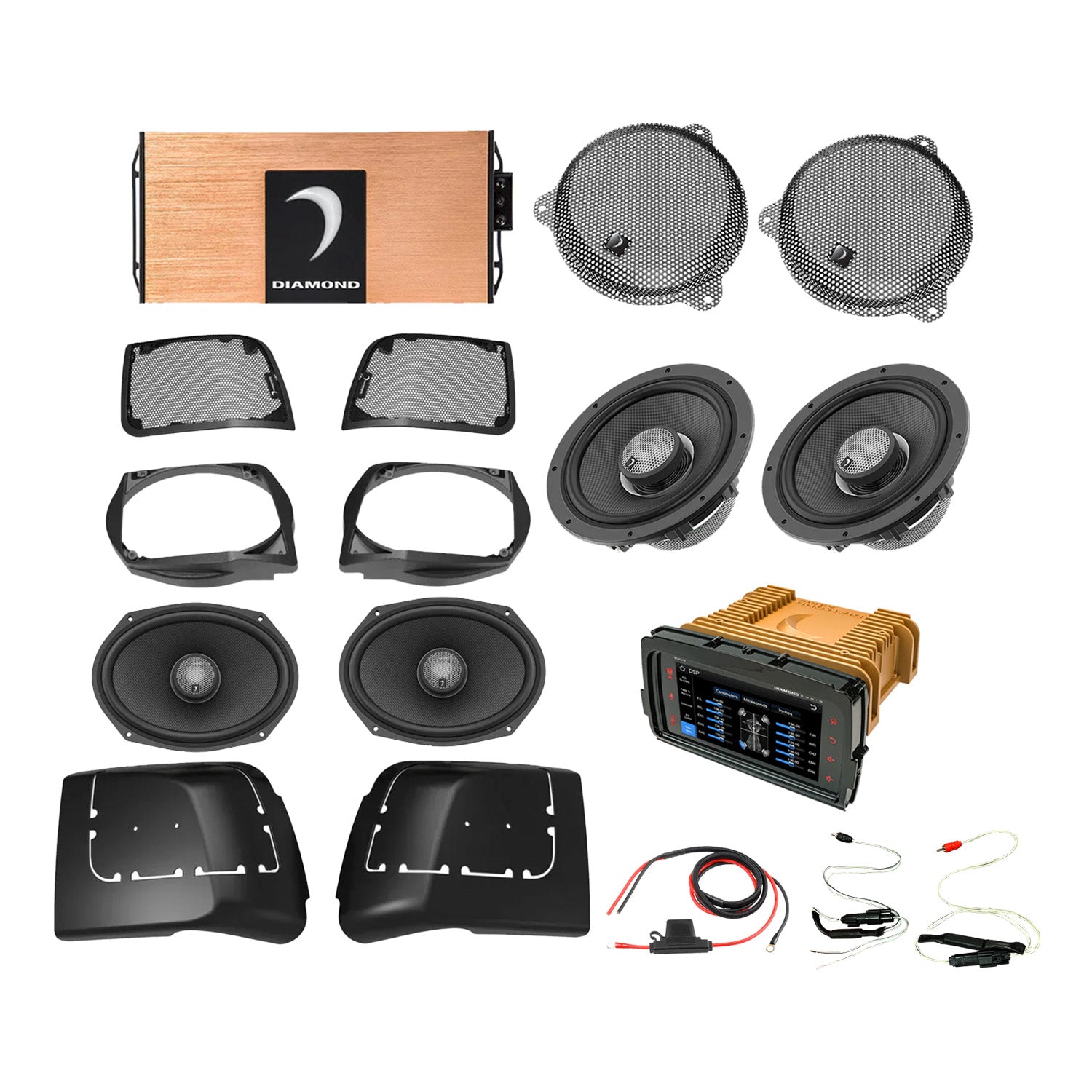

Core Components

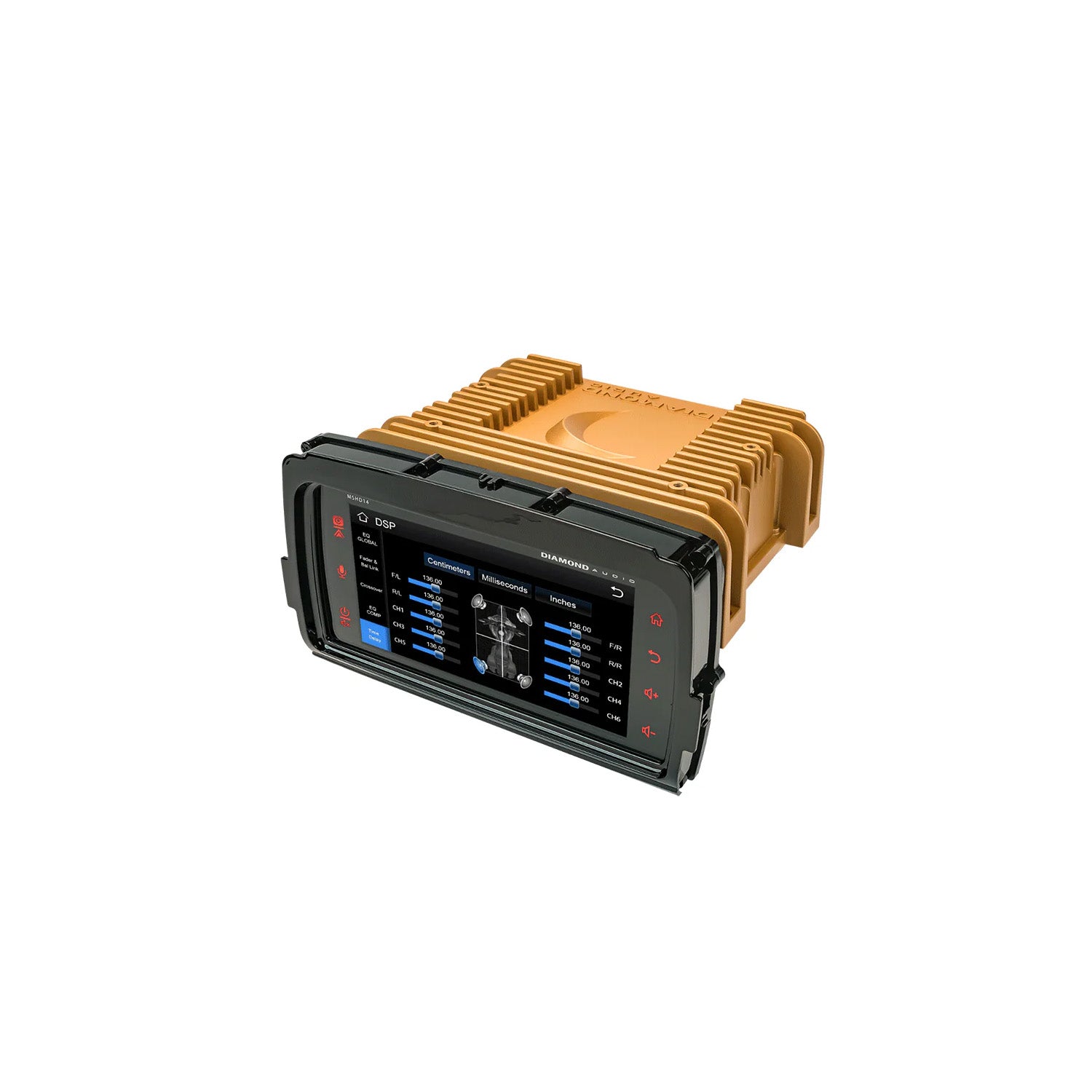

  • MSHD14 Receiver: 2014-2023 Harley-Davidson® Plug-N-Play Digital Media Receiver.
  • MICRO4V2 Amplifier: 4-Channel Full Range Class D high-efficiency power plant.

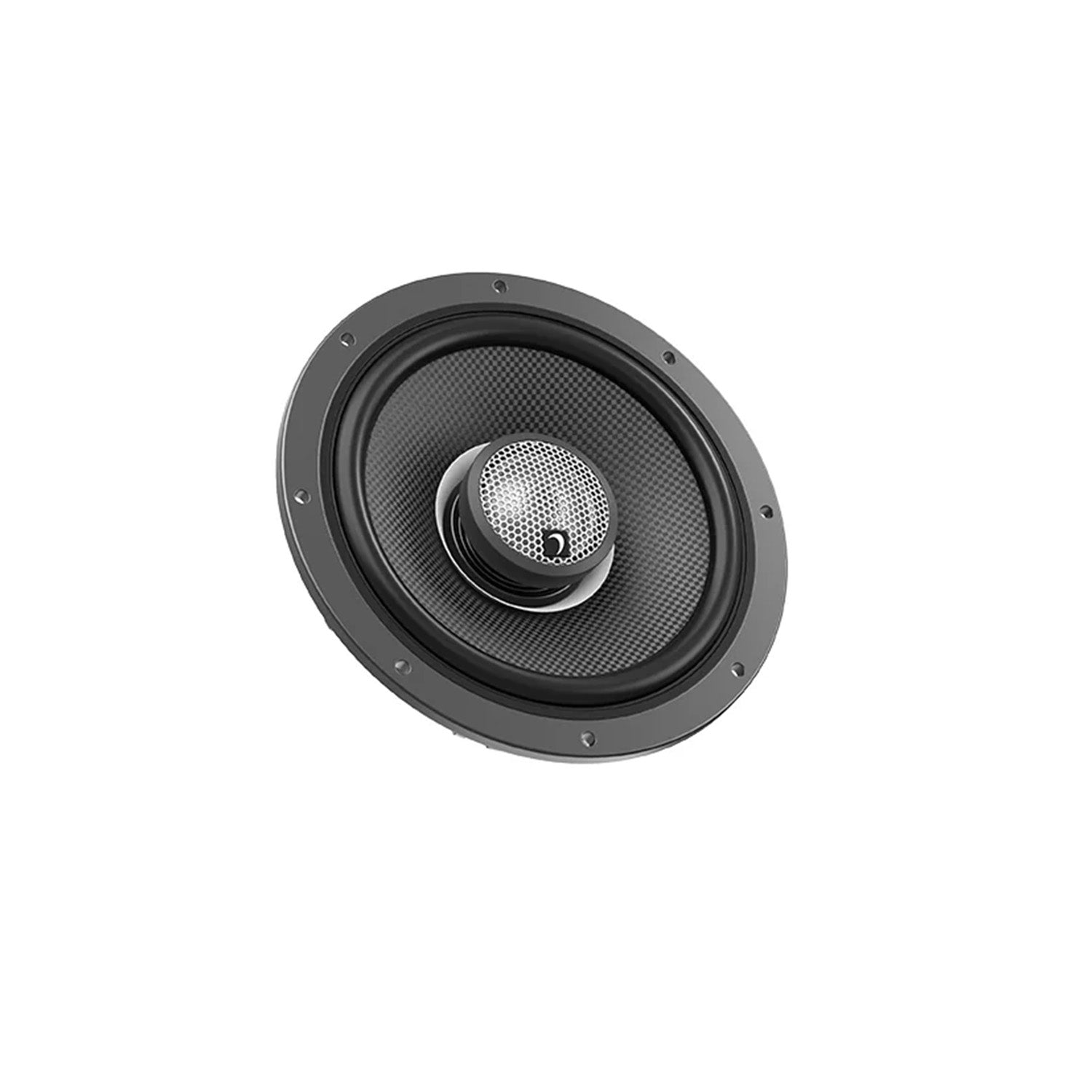

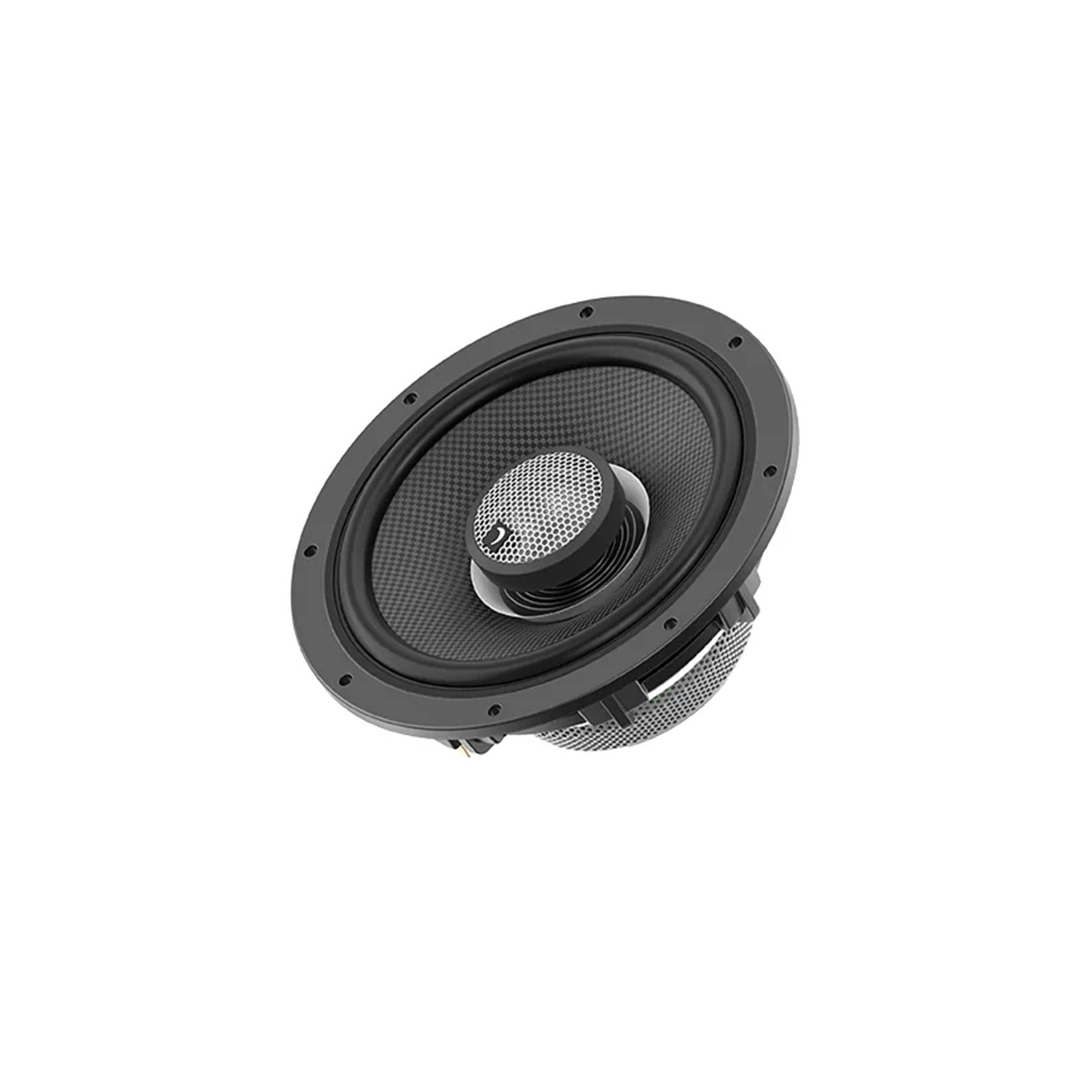

  • HXM65F2BK Speakers: 6.5" High-Performance Marine Coaxial (Black Series) Fairing Speakers.

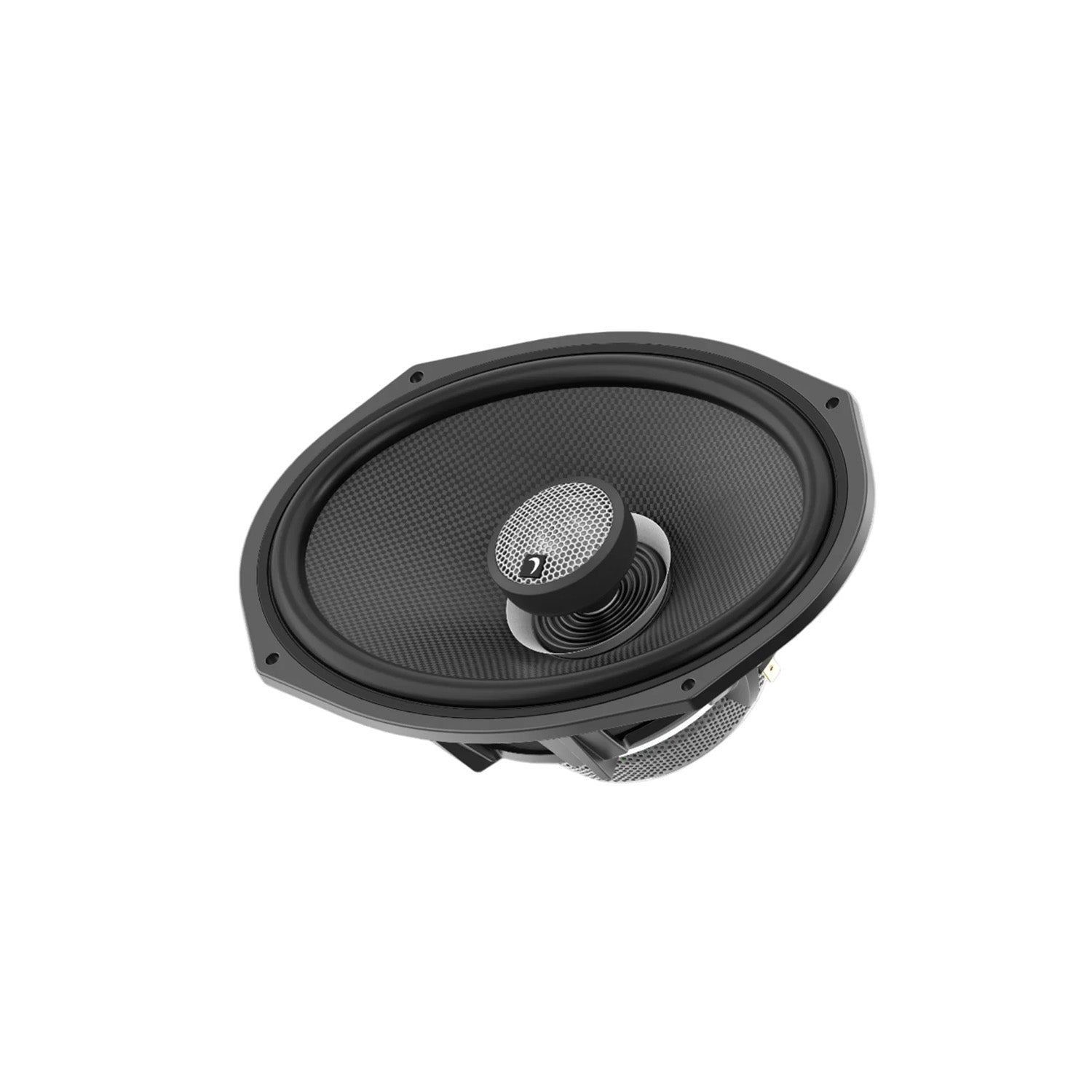

  • MSHXM69F2BKLK: Top-Quality 6x9" Speaker Lid Kit with HXM Black Series Coaxial Speakers.

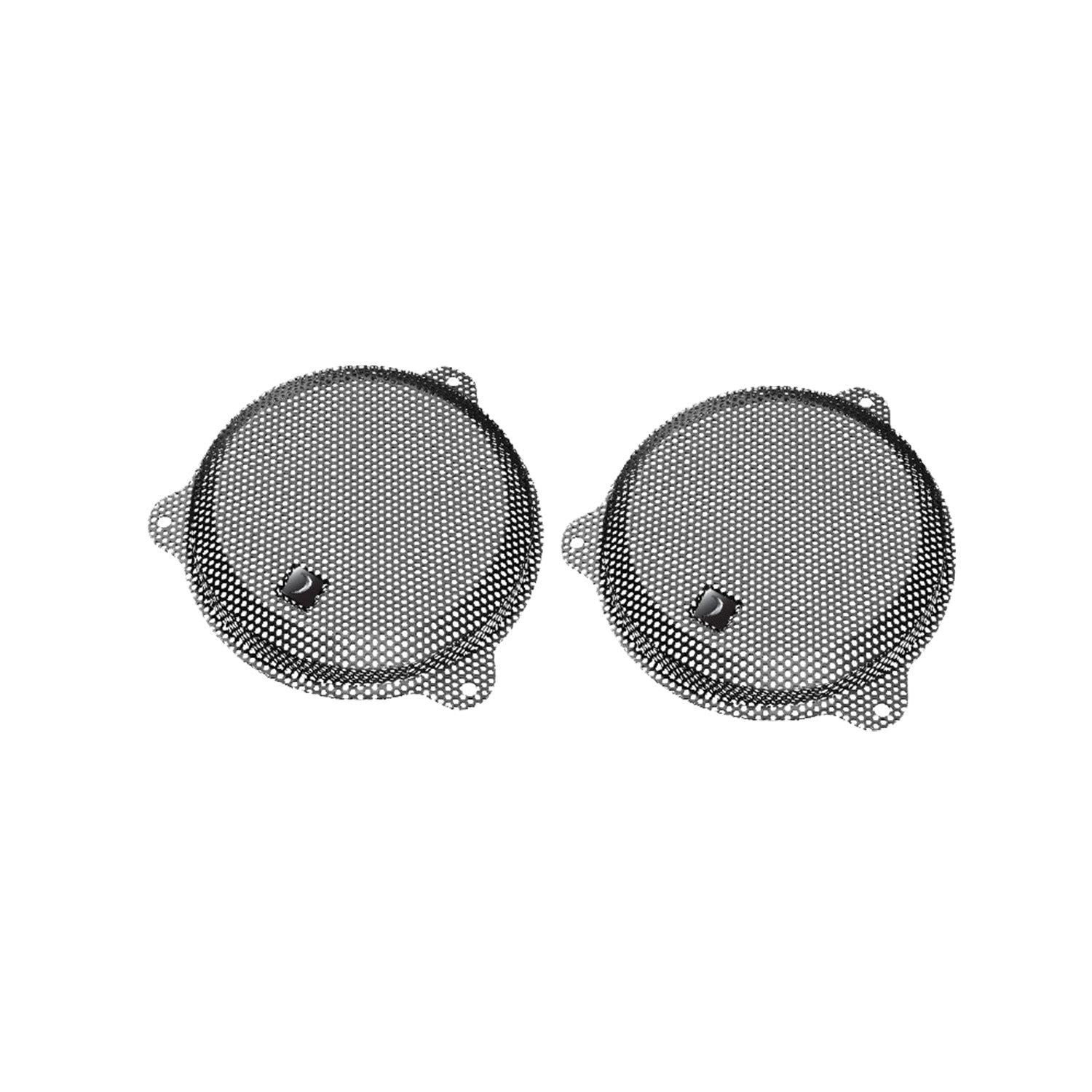

  • DHDSG Grilles: 2014-2023 Harley Street Glide Replacement Fairing Grills (Pair).
  • MSPWHR Harness: MOTORSPORT Power/Ground Remote Harness Kit (100% OFC).

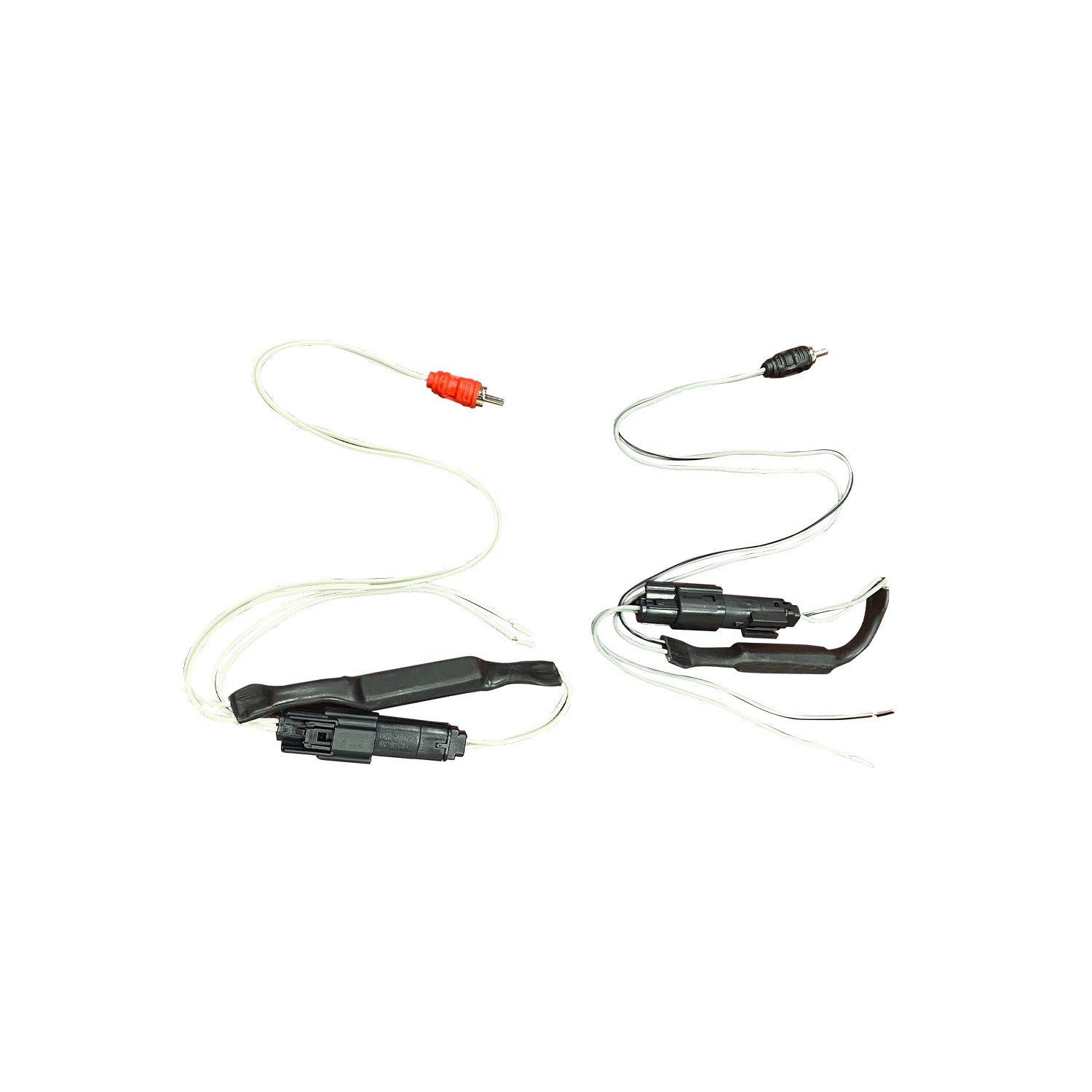

  • MSRCA2 Harness: MOTORSPORT 2-CH Line Output Direct RCA Harness Kit.
  • Integration Software: '14-'23 HD Street Glide specific digital integration software.

Technical Performance

  • System Power Output: 125W RMS per channel / 500W Total RMS.
  • Driver Technology: Motorsports HXM Black Series featuring high-modulus Carbon Fiber cones.
  • Source Unit: High-Definition Digital Media Receiver with high-voltage RCA pre-outs.
  • Amplifier Topology: High-efficiency Class D Full Range with advanced thermal management.
  • System Impedance: 2Ω (Optimized for maximum current delivery and SPL).
  • Tweeter Design: Bridge-mounted High-Output PEI Dome for superior high-frequency extension.
  • Environmental Protection: IP65 Certified waterproof and UV-resistant motor assemblies.
  • Wiring Grade: 100% Oxygen-Free Copper (OFC) for zero signal loss and maximum conductivity.

Compatibility

  • Platform: 2014–2023 Harley-Davidson Street Glide (FLHX / FLHXS).
  • Fitment: Direct-fit OEM replacement; 100% Plug-and-Play installation with lid kit integration.
