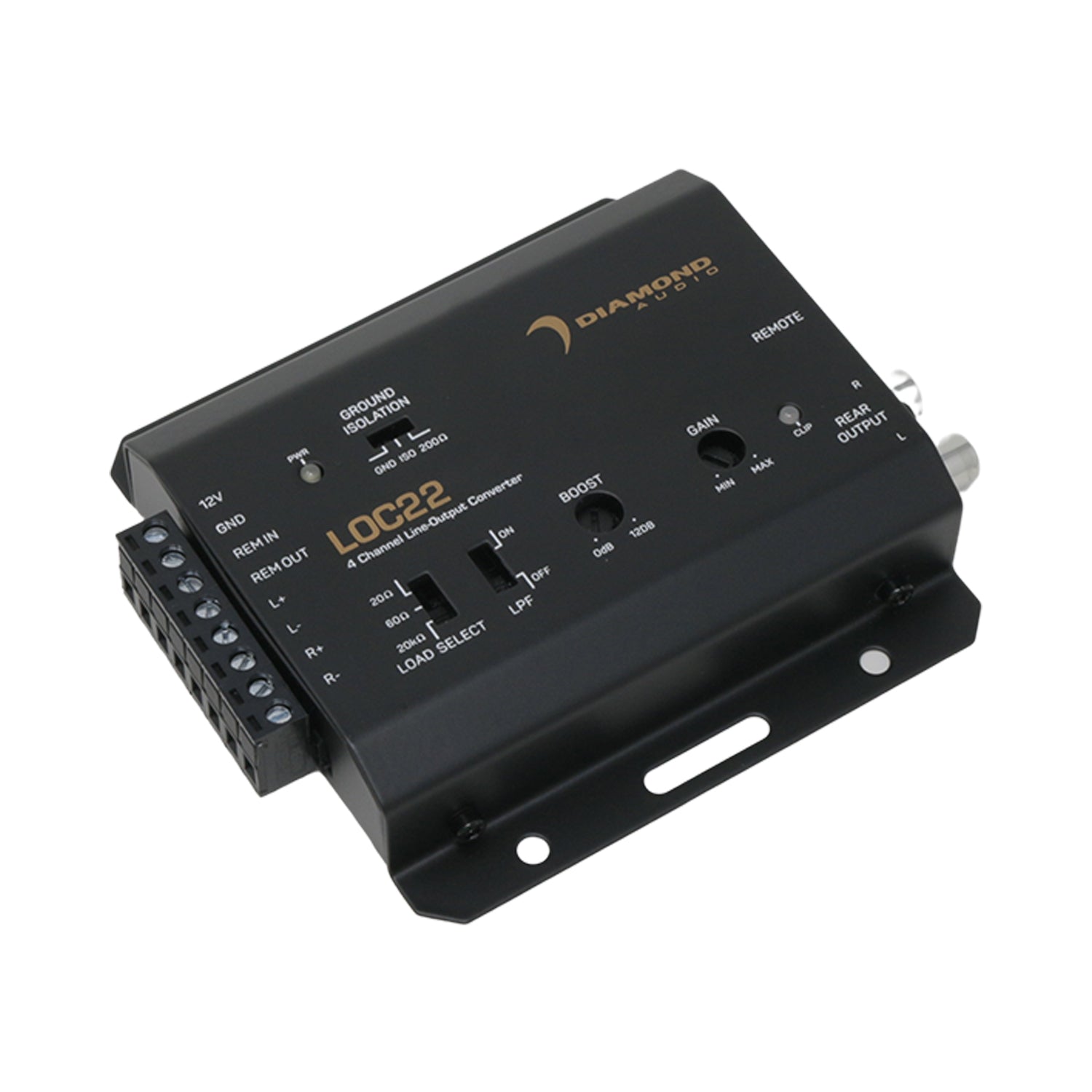

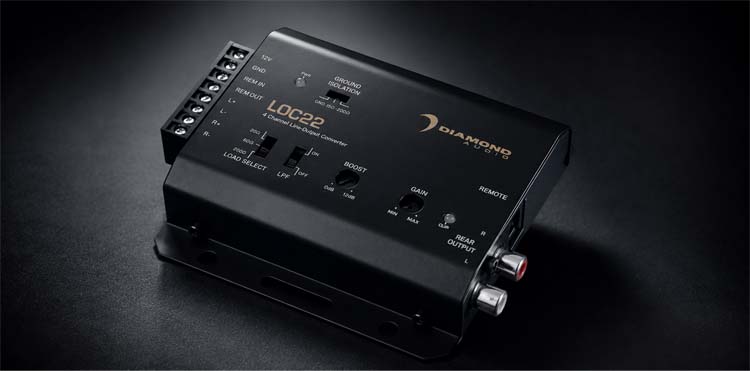

2-Channel LOC Series Line-Output Converter (2 In/2 Out) - LOC22

$54.99
$54.99
Brand: Diamond Audio
SKU: LOC22

Seamless OEM Audio Integration

Diamond Audio line-output converters seamlessly connect factory systems with premium amplifiers. They convert OEM signals into ultra-clean RCA outputs, preserving rich dynamic range without any unwanted distortion.

Smart Compatibility, Flawless Performance

Featuring intelligent load selection, these durable converters ensure broad vehicle compatibility. They eliminate factory system errors while providing precise tuning controls for elite, cost-effective audio upgrades.

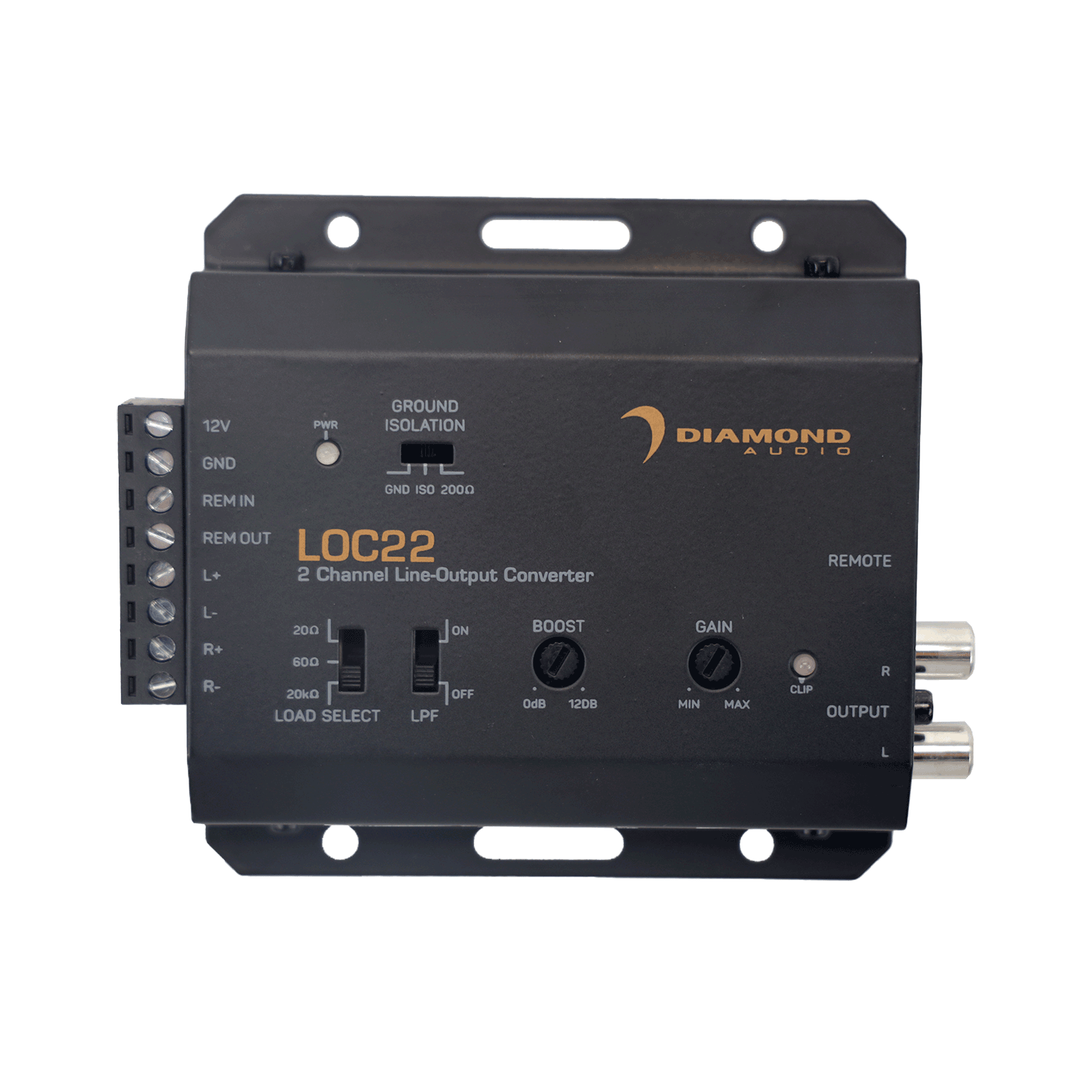

2-Channel (2 In/2 Out) Line-Output Converter

LOC SERIES LINE OUTPUT CONVERTERS

The LOC Series Line Output Converters from Diamond Audio are engineered to provide seamless integration between factory audio systems and aftermarket amplifiers. Designed for modern vehicles with OEM radios, LOC Series converters transform speaker-level signals into clean, high-quality RCA outputs, making them an essential component for any professional car audio upgrade.

Built to deliver strong, consistent signal, Diamond Audio LOC converters offer high output voltage to maximize amplifier performance while preserving sound clarity and dynamic range. Each model features precision output controls that allow installers to fine-tune signal levels for optimal system balance and noise-free operation.

A key advantage of the LOC Series is the intelligent load select feature, which ensures broad compatibility with factory systems while preventing unwanted noise, distortion, or OEM system errors caused by improper impedance loading. This makes installation faster, more reliable, and vehicle-safe across a wide range of applications.

Available in multiple channel configurations, the Diamond Audio LOC Series is ideal for everything from simple amplifier additions to complex multi-amp systems. When clean signal transfer, flexibility, and dependable OEM integration matter most, LOC Series Line Output Converters deliver professional-grade performance every time.



Specifications

  • 2-Channel (2 IN / 2 OUT) Line-Output Converter
  • Ideal Interface for Adding an Aftermarket Amplifier
  • Single Dial,Precision Matched, Stereo & Level Gain Adjustment
  • Up to 40 Volts RMS High Level Input Sensitivity

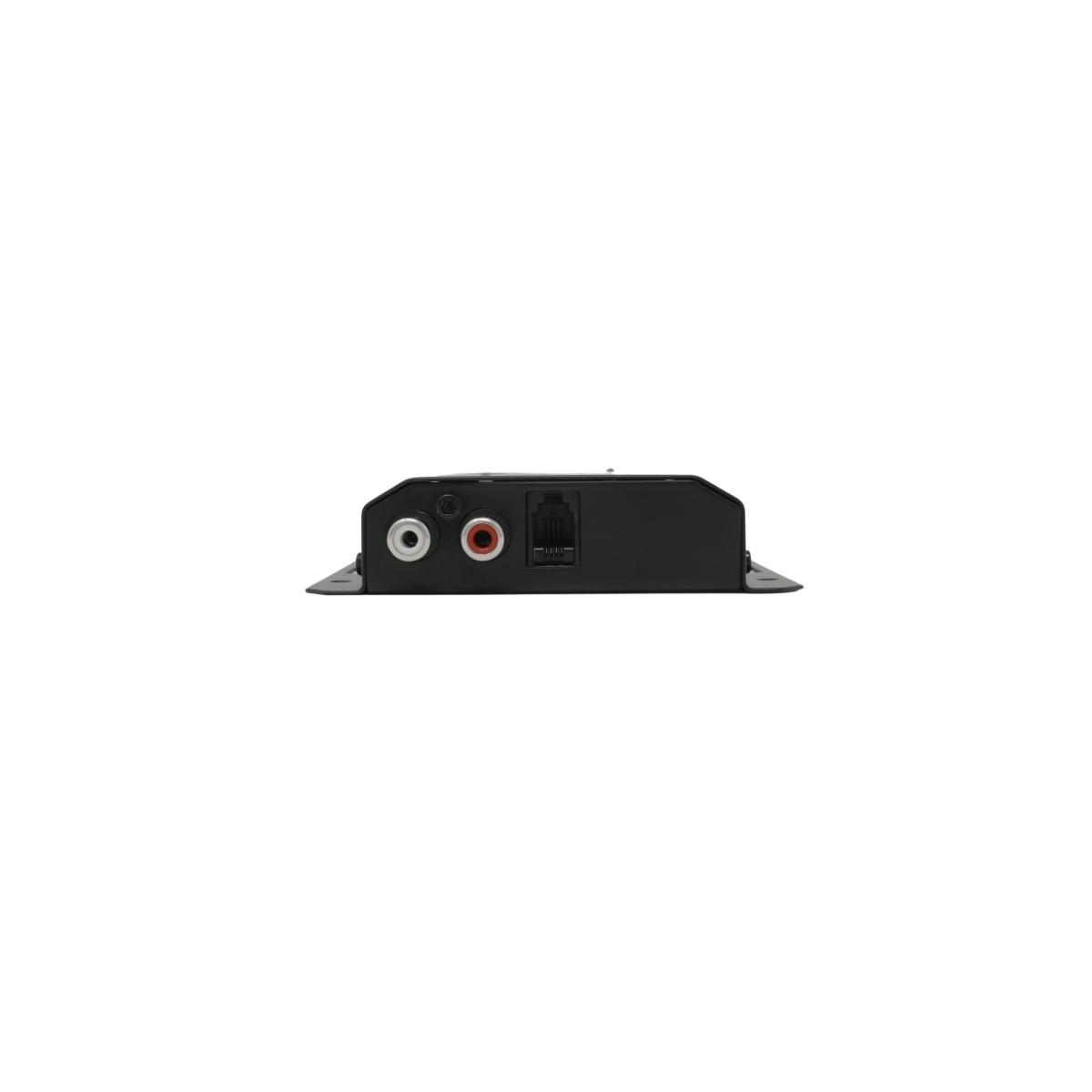

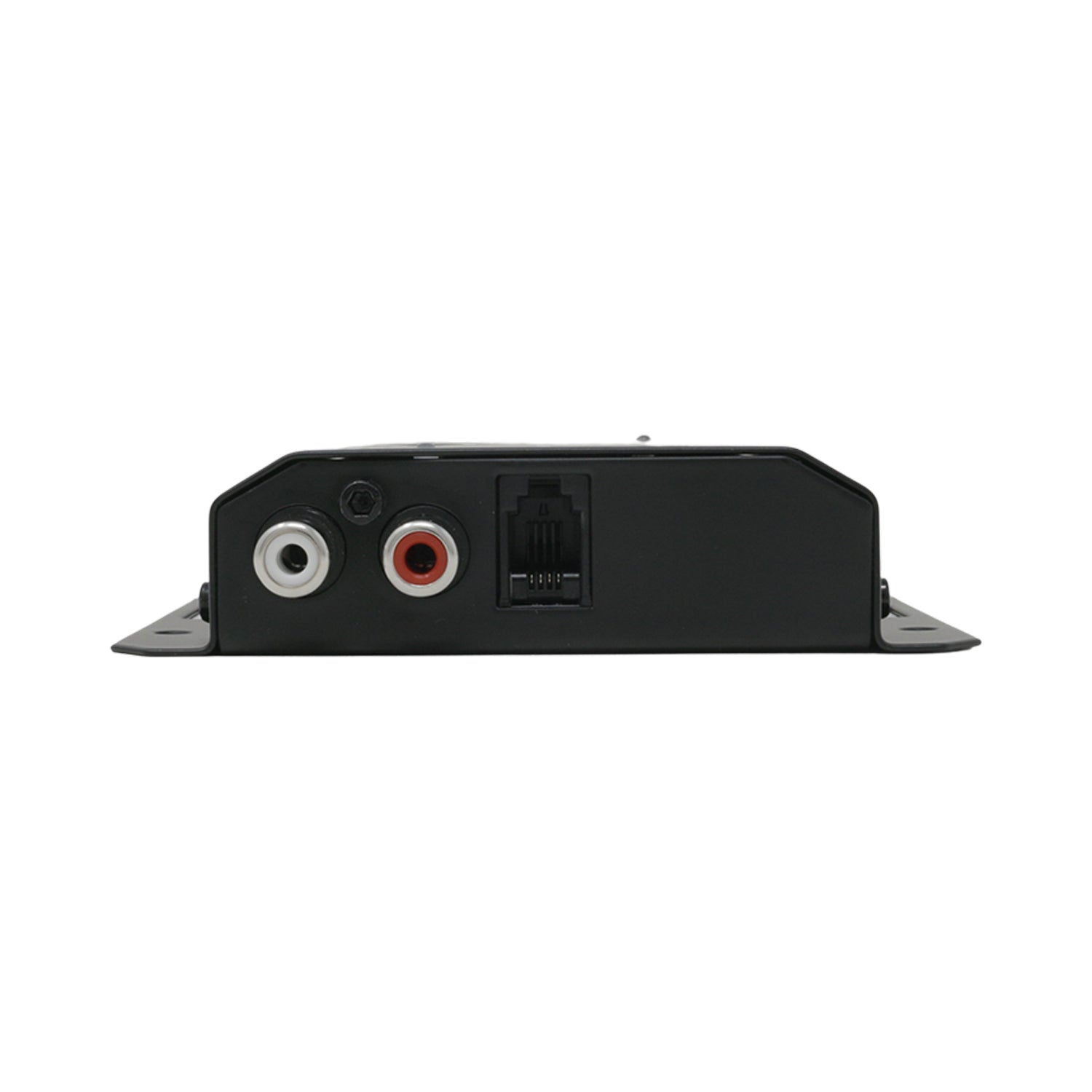

  • Up to 9.5 Volts RMS Low-level RCA Output
  • Selectable 20Ω / 60Ω / 20KΩ Load Input Impedance
  • Selectable GND / ISO / 200Ω Ground Isolation
  • Bass Boost: 0-12dB
  • Dimensions: 4.53" x 3.86" x 0.94" / 115.1 x 98 x 24 mm

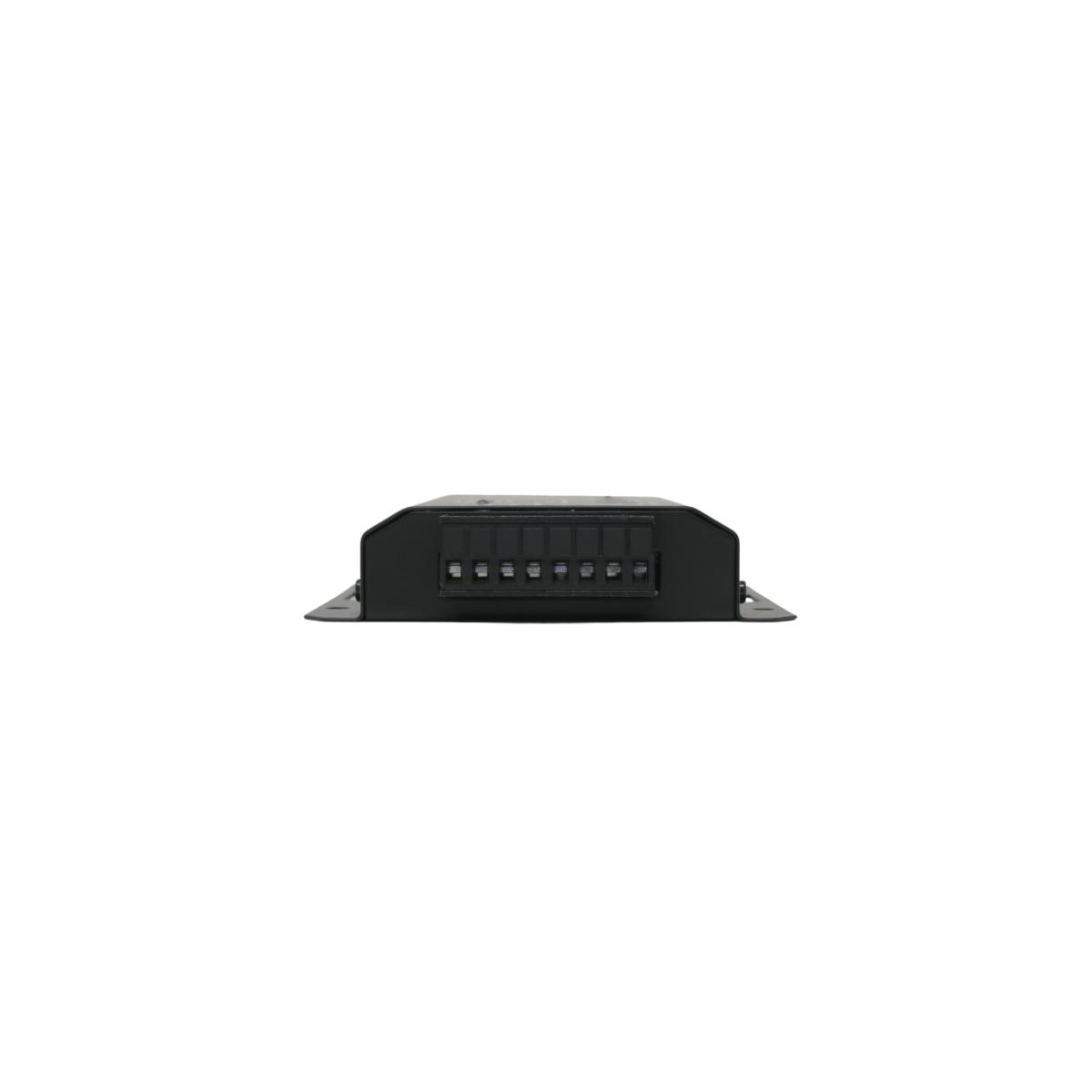

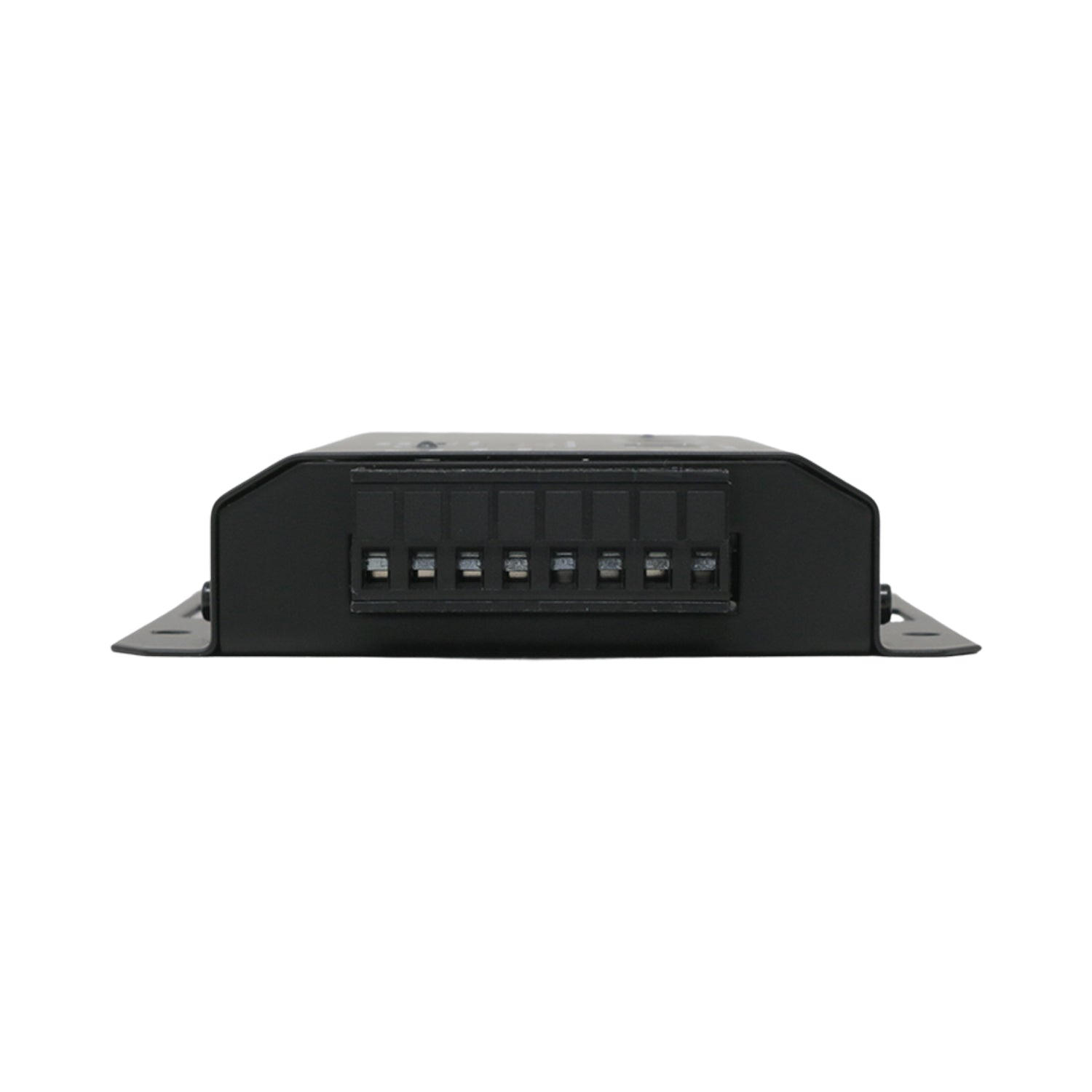

  • Removable Quick Connect with Screw Type Terminal

Specifications

Brand

Diamond audio

Type

Line output converter

Converter - Frequently Asked Questions

Q1: What are Diamond Audio Converters designed for?
A: They are designed to integrate aftermarket amplifiers with factory audio systems without replacing the factory head unit.

Q2: How do they work?
A: They convert high-level speaker signals into low-level RCA signals, allowing aftermarket amplifiers to work with factory radios.

Q3: Can they reduce signal noise and distortion?
A: Yes. They are engineered for clean signal transfer, low distortion, and improved noise rejection.

Q4: Are they suitable for different audio systems?
A: Yes. Different channel configurations support everything from subwoofer upgrades to multi-channel amplified systems.

Q5: Why choose Diamond Audio Converters?
A: They offer clean signal conversion, flexible system integration, compact installation, and reliable performance for OEM audio upgrades.
