By Diamond Audio

DMD102 - DMD Series 10" Dual Voice Coil Subwoofer (2Ω)

Weight: 15.0 lb
$169.99
$169.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DMD102
DMD Series Dual 10" 2Ω Door Buster Deal - - Diamond Audio
$169.99
$169.99

The Smart Choice!

Introducing the perfect entry-level option for those seeking economical value and reliable performance. Elevate your audio experience without breaking the bank!

Value Meets Performance!

The DMD Series is engineered for optimal value, featuring a higher-density NBR half-roll surround to ensure greater linear performance. Experience exceptional audio without compromising on quality!

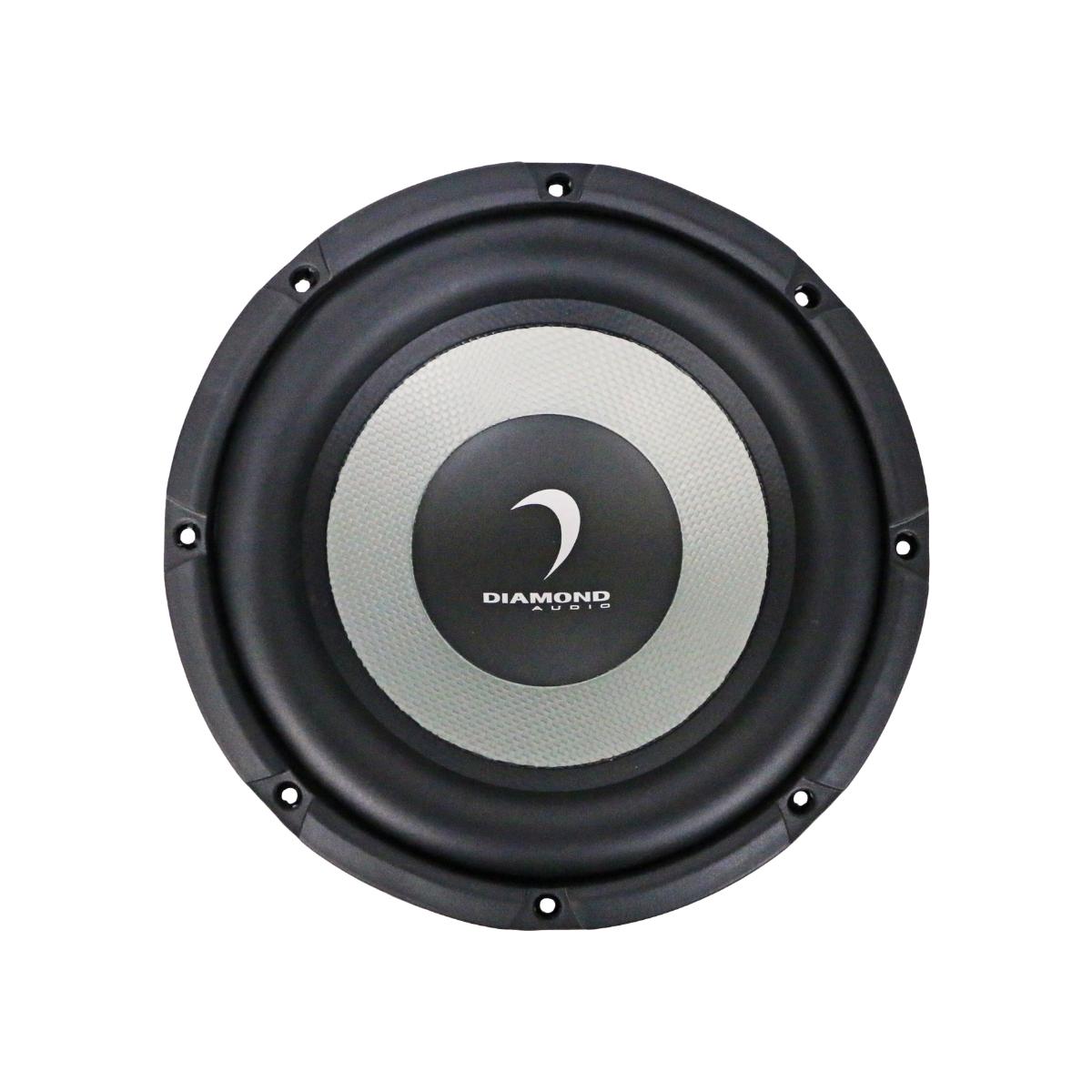

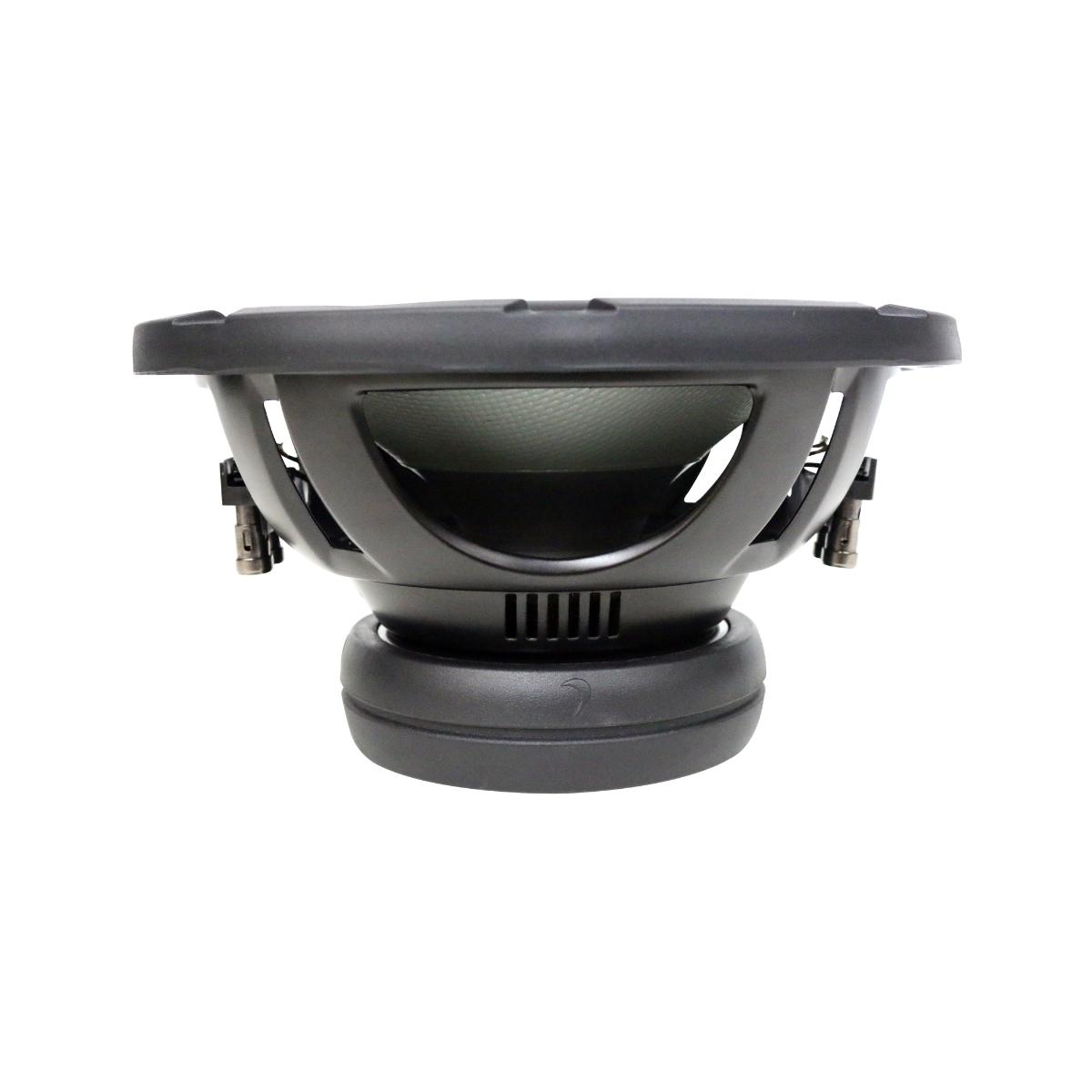

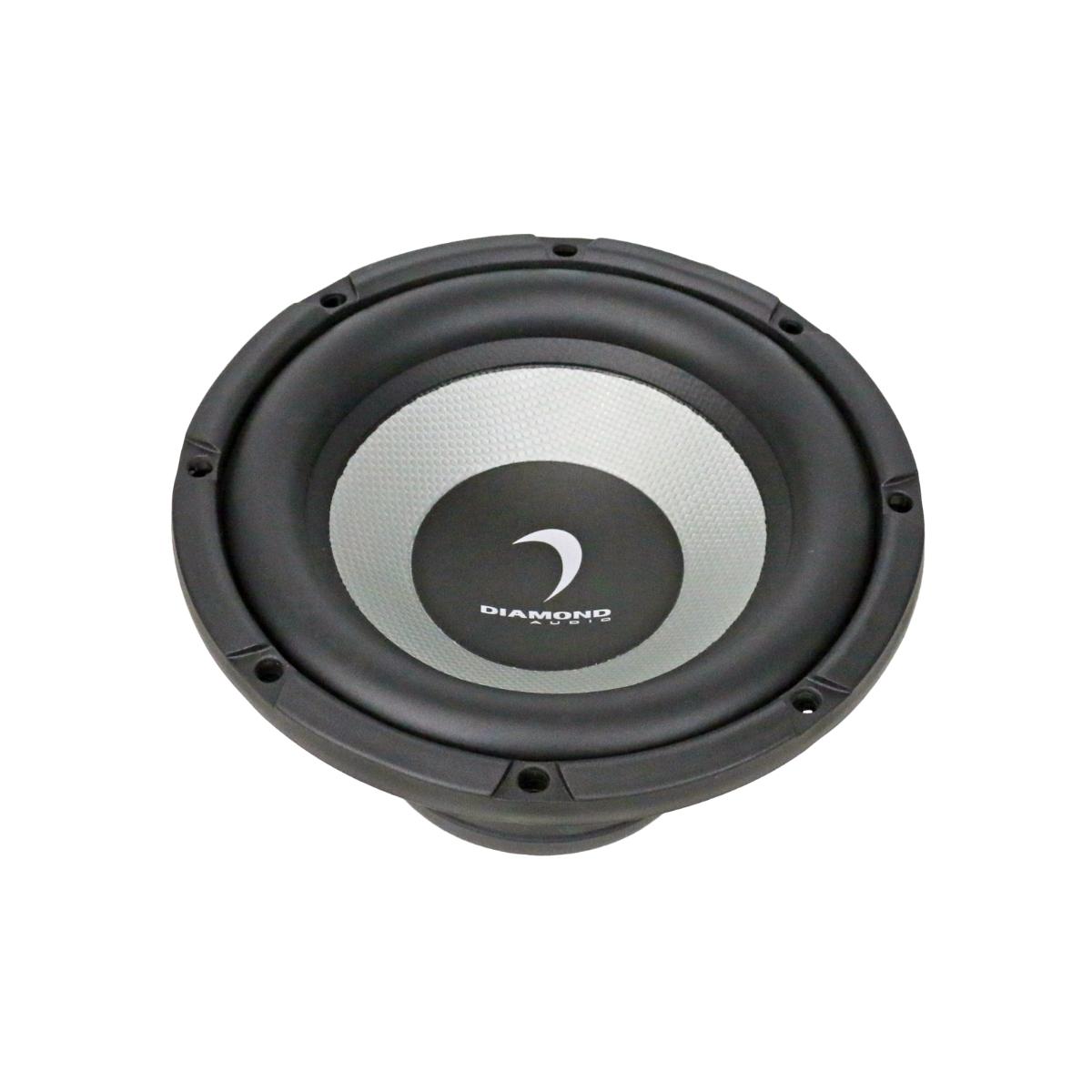

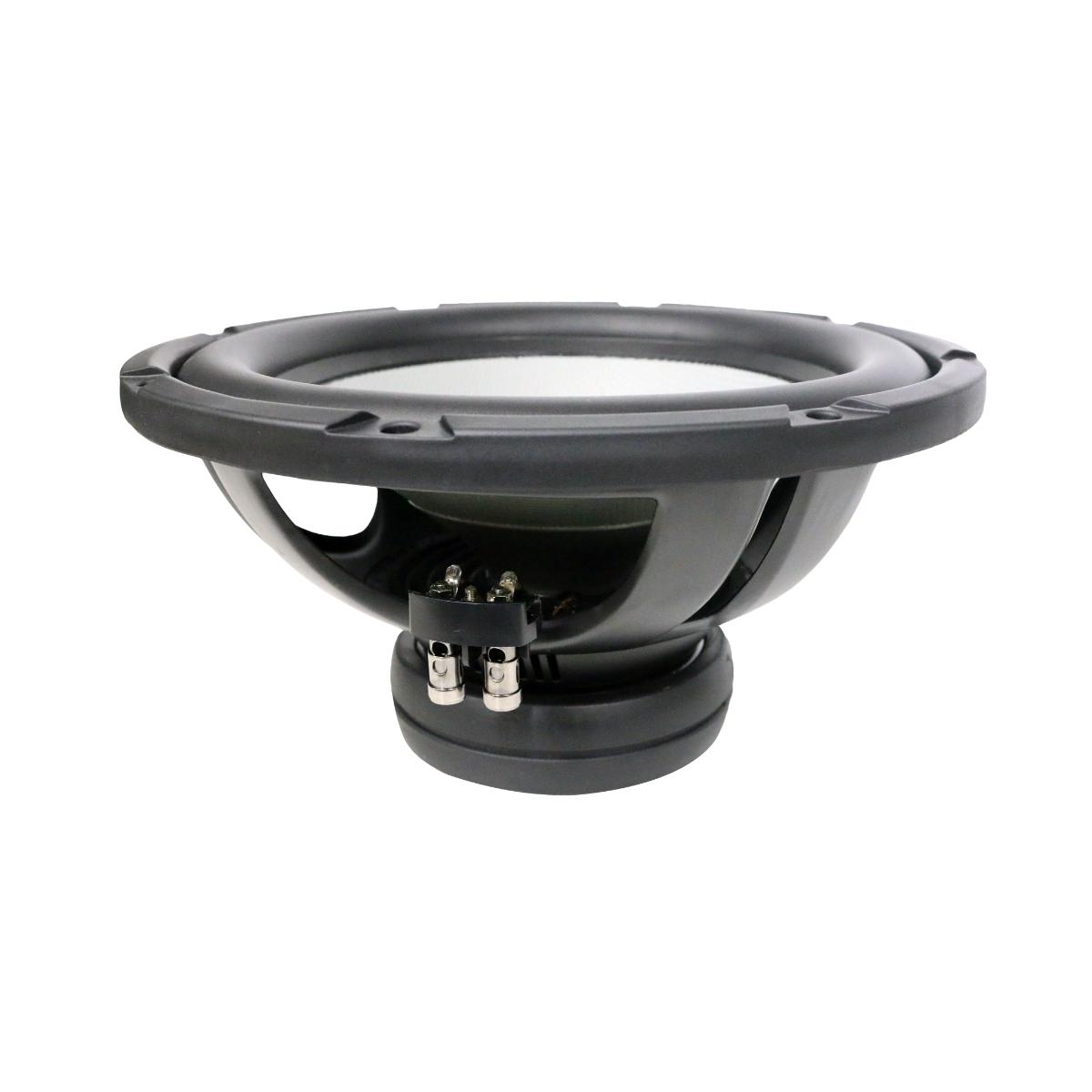

DMD102 - DMD Series 10" Dual Voice Coil Subwoofer

Upgrade your system with the Diamond Audio DMD102 DMD Series 10” Dual Voice Coil Subwoofer, engineered to deliver dependable bass performance at an exceptional value. Designed as an ideal entry-level car audio subwoofer, the DMD102 combines innovative engineering with durable construction to provide tight, balanced low-frequency response for everyday listening.

Developed through continuous research and development, the DMD Series incorporates chemically treated voice coils and a cross-flow basket frame design to improve thermal heat dissipation. This advanced cooling approach allows the 10-inch subwoofer to handle power more efficiently while maintaining consistent performance during extended play.

The DMD102 features a high-density NBR half-roll surround, promoting improved linear excursion and greater control over cone movement. Combined with a Klippel® DA optimized motor and suspension symmetry, this design ensures clean, accurate bass reproduction with reduced distortion and enhanced tonal balance.

With its dual voice coil configuration, the DMD102 offers flexible wiring options for amplifier matching, making it a versatile solution for custom car audio installations.

For drivers seeking reliable 10-inch bass, efficient thermal management, and outstanding performance at an affordable price, the Diamond Audio DMD102 delivers the perfect blend of value, durability, and impactful low-end sound.



Specifications

THIELE/SMALL PARAMETERS

  • Power: 200W RMS/400W MAX
  • SPL(dB): 84
  • Re(Ω): 6.70
  • Qms: 6.0
  • Qes: 0.68
  • Qts: 0.61
  • Fs(Hz): 36.0
  • Vas(L): 23.6
  • Cms(mm/N): 0.13
  • Mms(g): 150
  • Sd(cm²): 0.050
  • BL(T*M): 16.6
  • Xmax(mm): 8.1

DIMENSIONS

  • Diameter: 10.55" (267.9mm)
  • Mounting Diameter: 9.12" (231.5mm)
  • Mounting Depth: 5.18" (131.5mm)
  • Magnet Diameter: 5.57" (141.4mm)

ENCLOSURES

SEALED

  • Vb (ft3): 0.45
  • F3 (Hz): 54
  • QTC: .70
  • Pe (W): 200

VENTED

  • Vb (ft3): 1.25
  • Fb(Hz): 36
  • F3(Hz): 31
  • Port (Diameter x Length): 3" (76.2mm) x 10" (254mm)
  • Pe (W): 200

FEATURES

  • Black Polypropylene Fiber Weave Cone
  • High Grade Rolled Edged 4 Leg Black Powder Coat Stamped Frame
  • Oversized Black Chrome Push Terminals
  • Black Spider With Woven Tinsel Leads
  • Black PVC Wrap Around Mounting Gasket
  • Vented Pole Piece For Cooler Operation
  • Klippel Optimized Motor And Suspension Symmetry

Specifications

  • Nominal-impedance-ohms

    2Ω

Brand

Diamond audio

Type

Subwoofer
