By Diamond Audio

DMD104 - DMD Series 10" Dual Voice Coil Subwoofer (4Ω)

Weight: 15.0 lb
Regular price $169.99
Regular price Sale price $169.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DMD104
Regular price $169.99
Regular price Sale price $169.99

The Smart Choice!

Introducing the perfect entry-level option for those seeking economical value and reliable performance. Elevate your audio experience without breaking the bank!

Value Meets Performance!

The DMD Series is engineered for optimal value, featuring a higher-density NBR half-roll surround to ensure greater linear performance. Experience exceptional audio without compromising on quality!

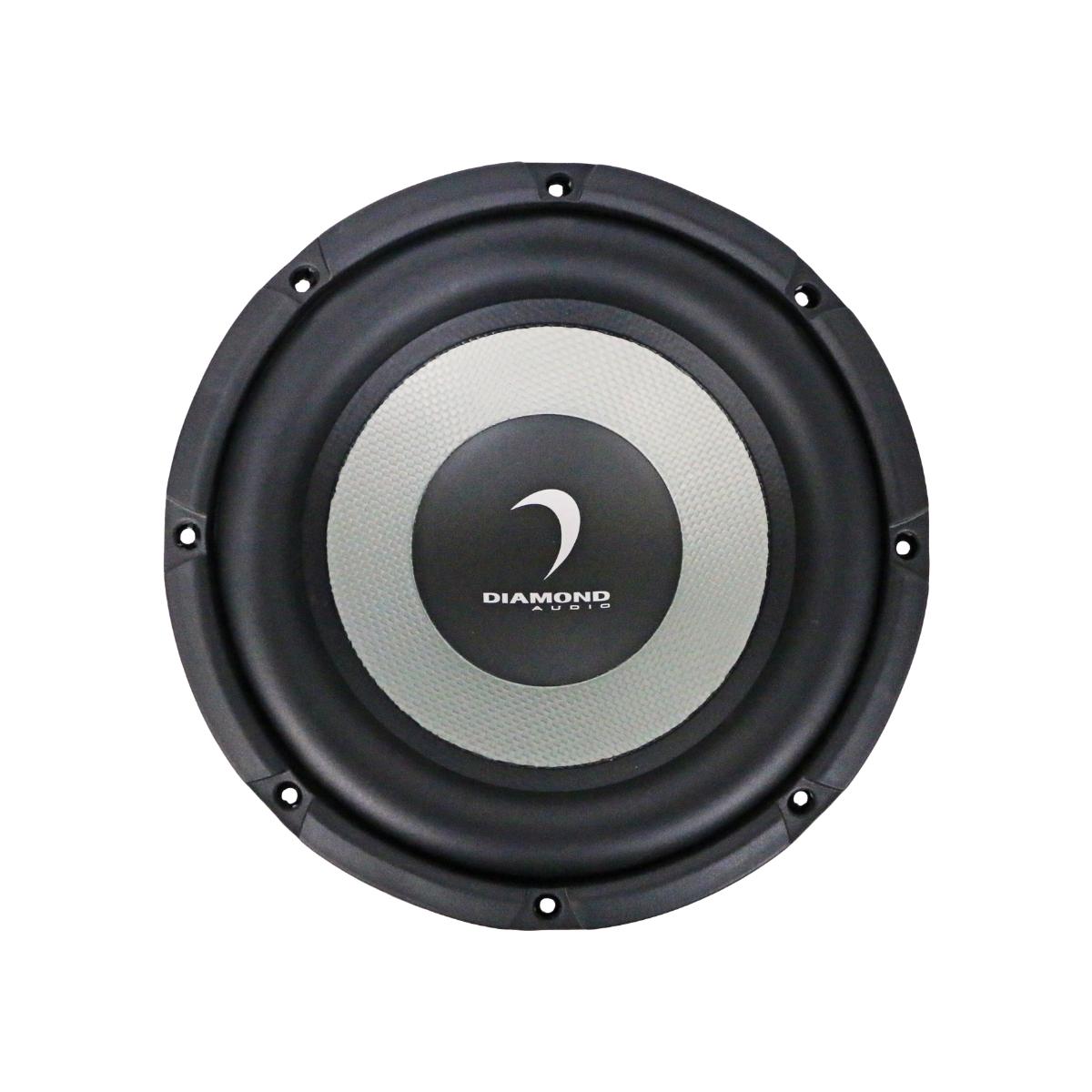

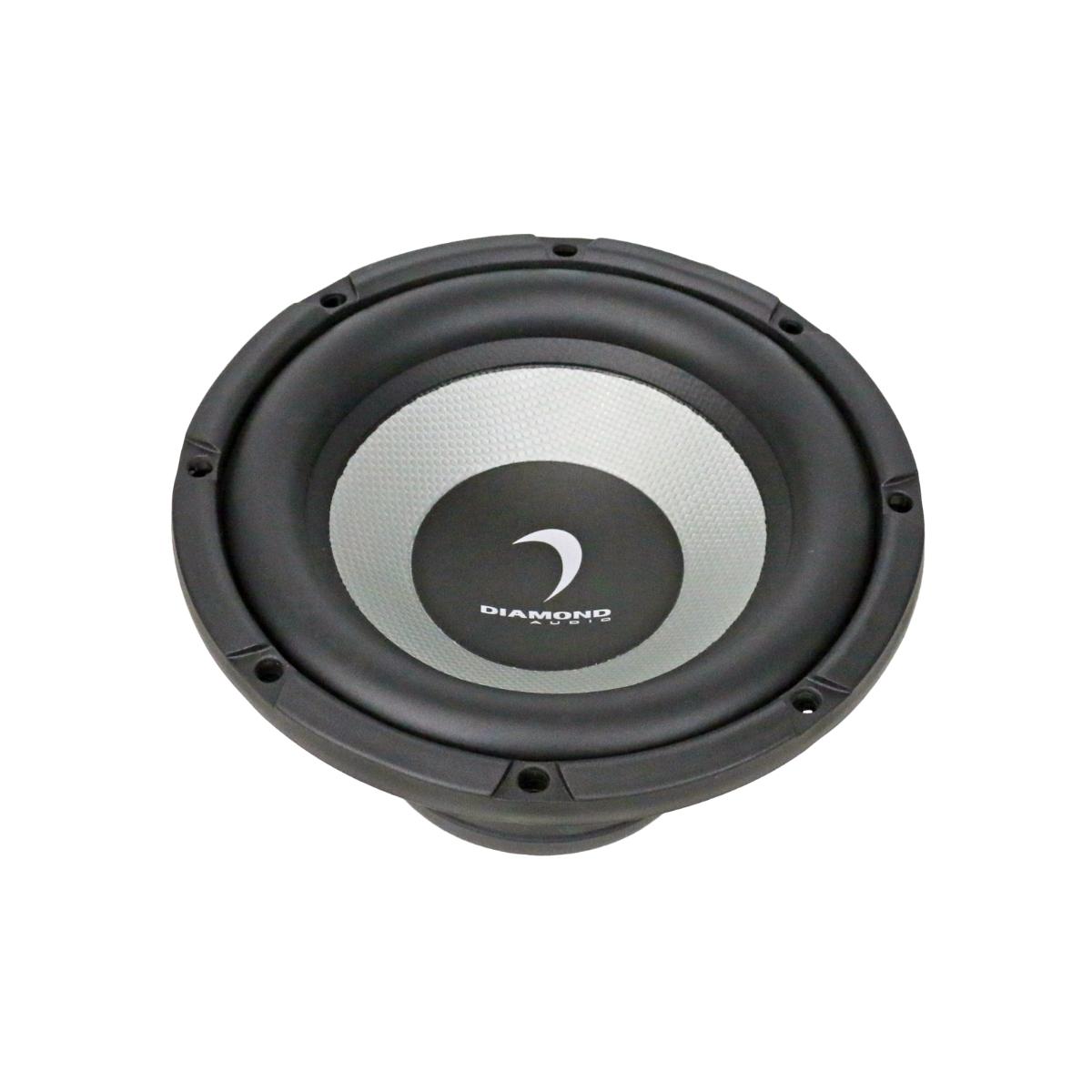

DMD104 - DMD Series 10" Dual Voice Coil Subwoofer (4Ω)

Upgrade your audio system with the Diamond Audio DMD104 DMD Series 10” 4Ω Dual Voice Coil Subwoofer, designed to deliver reliable performance and impressive bass at an exceptional value. As part of Diamond Audio’s trusted DMD Series, the DMD104 is the perfect entry-level car audio subwoofer for enthusiasts seeking strong low-frequency output without stretching their budget.

Built through continuous research and development, the DMD104 features chemically treated voice coils and a cross-flow basket frame design to enhance thermal heat dissipation. This improved cooling capability allows the subwoofer to handle power efficiently while maintaining consistent, distortion-free performance during extended listening sessions.

Engineered for durability and linear control, the DMD104 incorporates a high-density NBR half-roll surround to promote smooth cone movement and accurate bass reproduction. Paired with a Klippel® DA optimized motor and suspension system, this 10-inch subwoofer delivers tight, balanced bass notes with improved symmetry and reduced distortion.

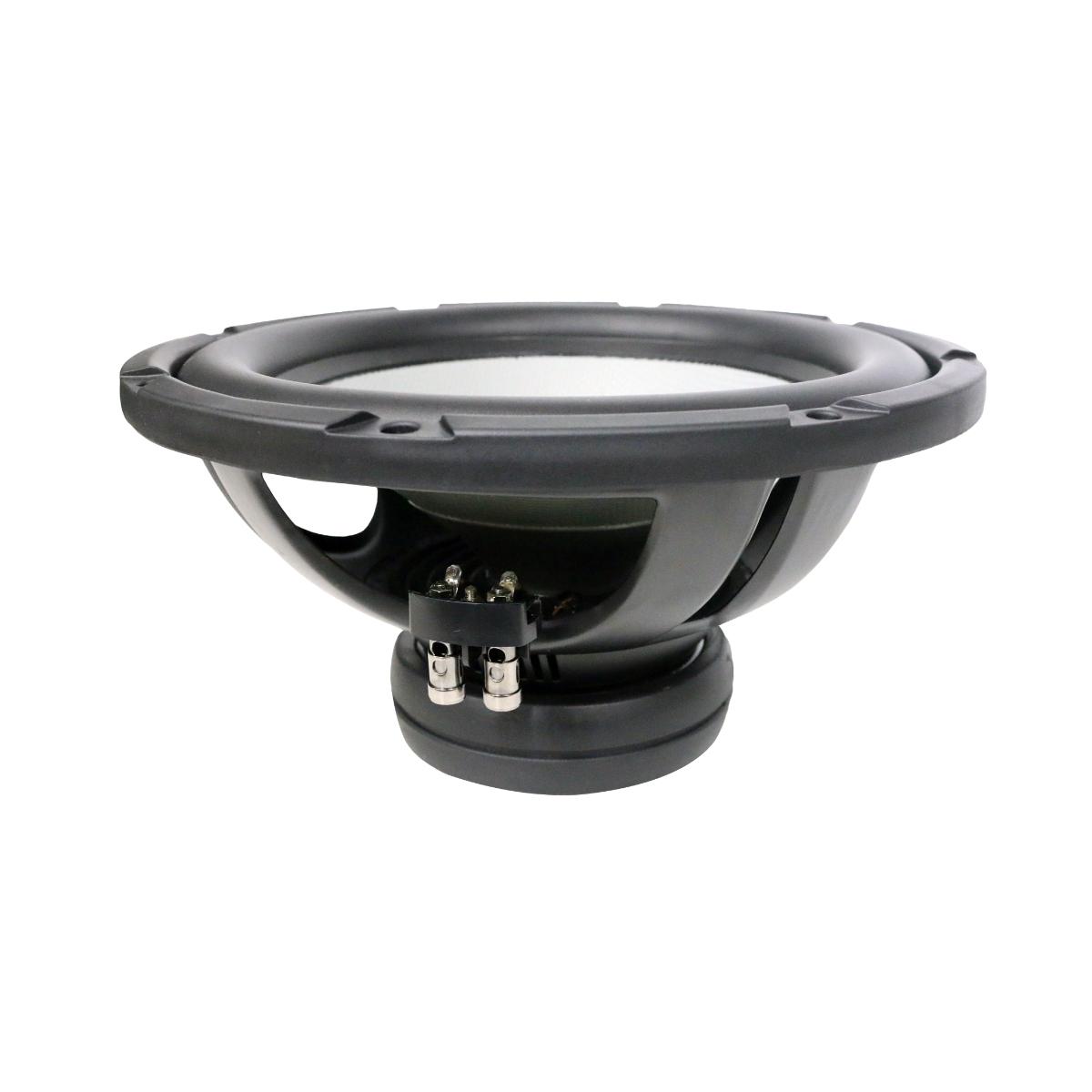

The 4-ohm dual voice coil configuration offers flexible wiring options, making it easy to integrate into a wide range of amplifier setups and custom car audio builds.

For drivers seeking dependable 10-inch bass, strong thermal management, and outstanding value, the Diamond Audio DMD104 provides powerful, clean low-end performance at an affordable price.



Specifications

THIELE/SMALL PARAMETERS

  • Power: 200W RMS/400W MAX
  • SPL(dB): 83.8
  • Re(Ω): 3.85
  • Qms: 4.5
  • Qes: 0.62
  • Qts: 0.55
  • Fs(Hz): 33
  • Vas(L): 26.5
  • Cms(mm/N): 0.18
  • Mms(g): 131
  • Sd(cm²): 0.0325
  • BL(T*M): 13.0
  • Xmax(mm): 8.1

DIMENSIONS

  • Diameter: 10.55" (267.9mm)
  • Mounting Diameter: 9.12" (231.5)
  • Mounting Depth: 5.18" (131.5mm)
  • Magnet Diameter: 5.57" (141.4mm)

ENCLOSURES

SEALED

  • Vb (ft3): 0.45
  • F3 (Hz): 54
  • QTC: .70
  • Pe (W): 200

VENTED

  • Vb (ft3): 1.25
  • Fb(Hz): 36
  • F3(Hz): 31
  • Port (Diameter x Length): 3" (76.2mm) x 10"(254mm)
  • Pe (W): 200

FEATURES

  • Black Polypropylene Fiber Weave Cone
  • High Grade Rolled Edged 4 Leg Black Powder Coat Stamped Frame
  • Oversized Black Chrome Push Terminals
  • Black Spider With Woven Tinsel Leads
  • Black PVC Wrap Around Mounting Gasket

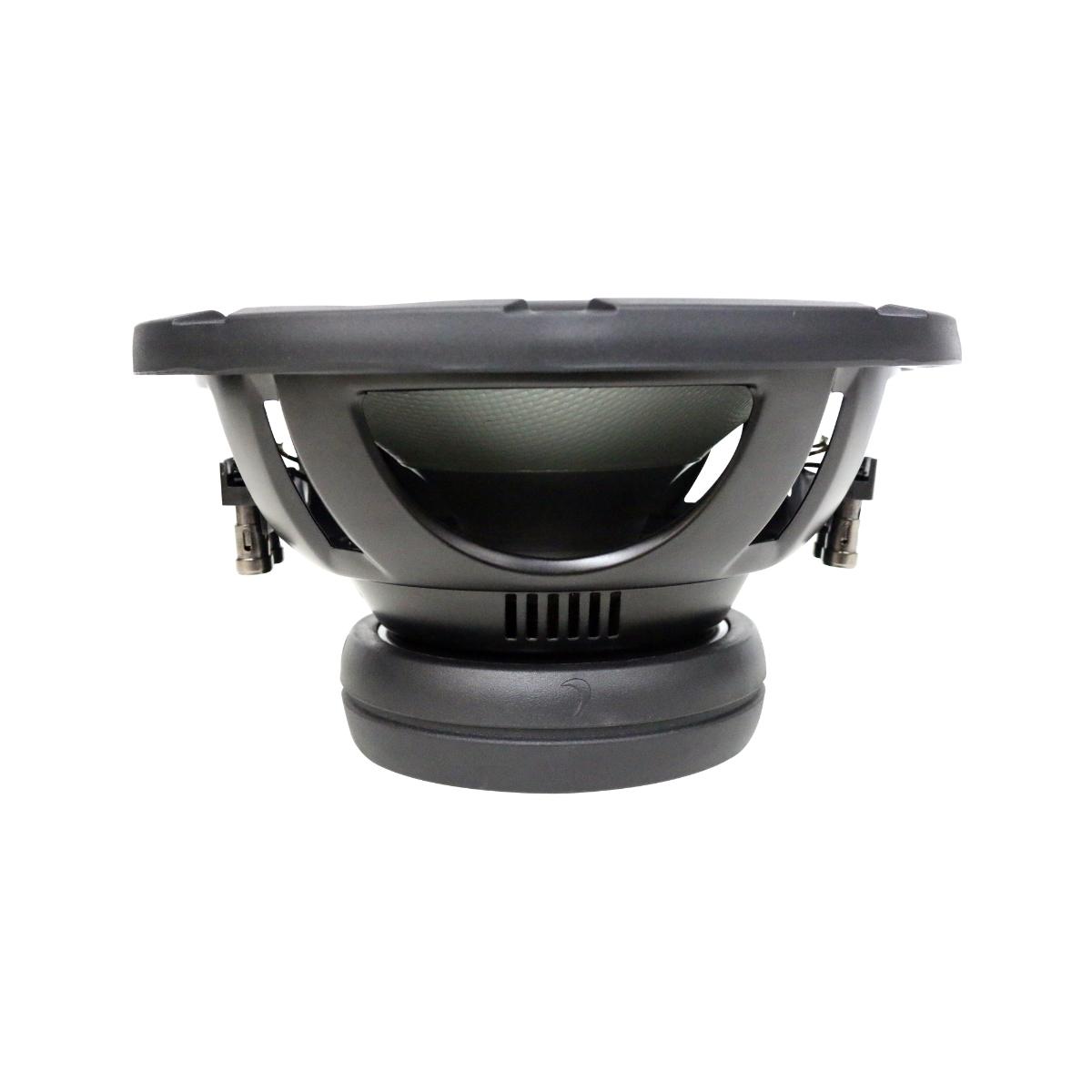

  • Vented Pole Piece For Cooler Operation
  • Klippel Optimized Motor And Suspension Symmetry
