By Diamond Audio

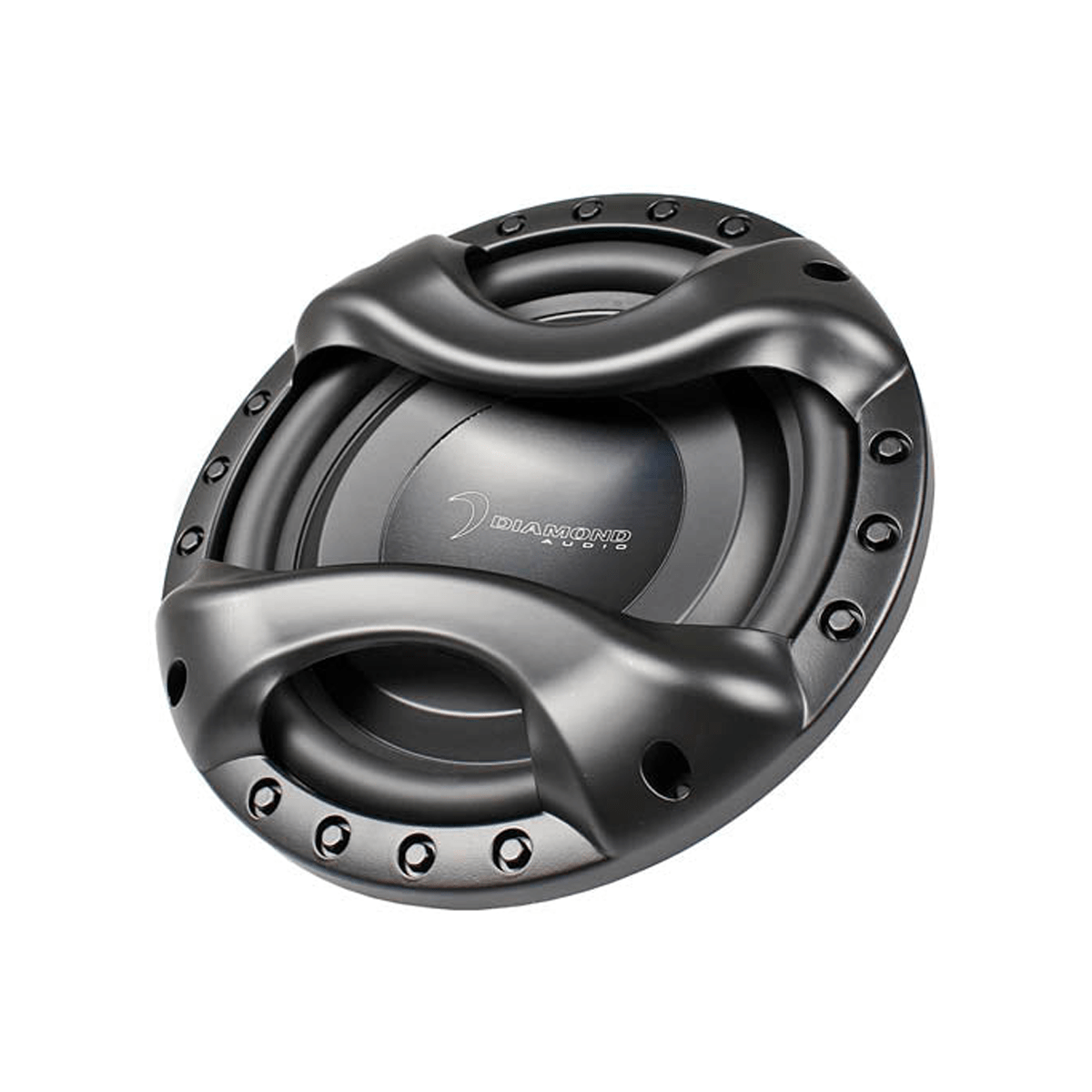

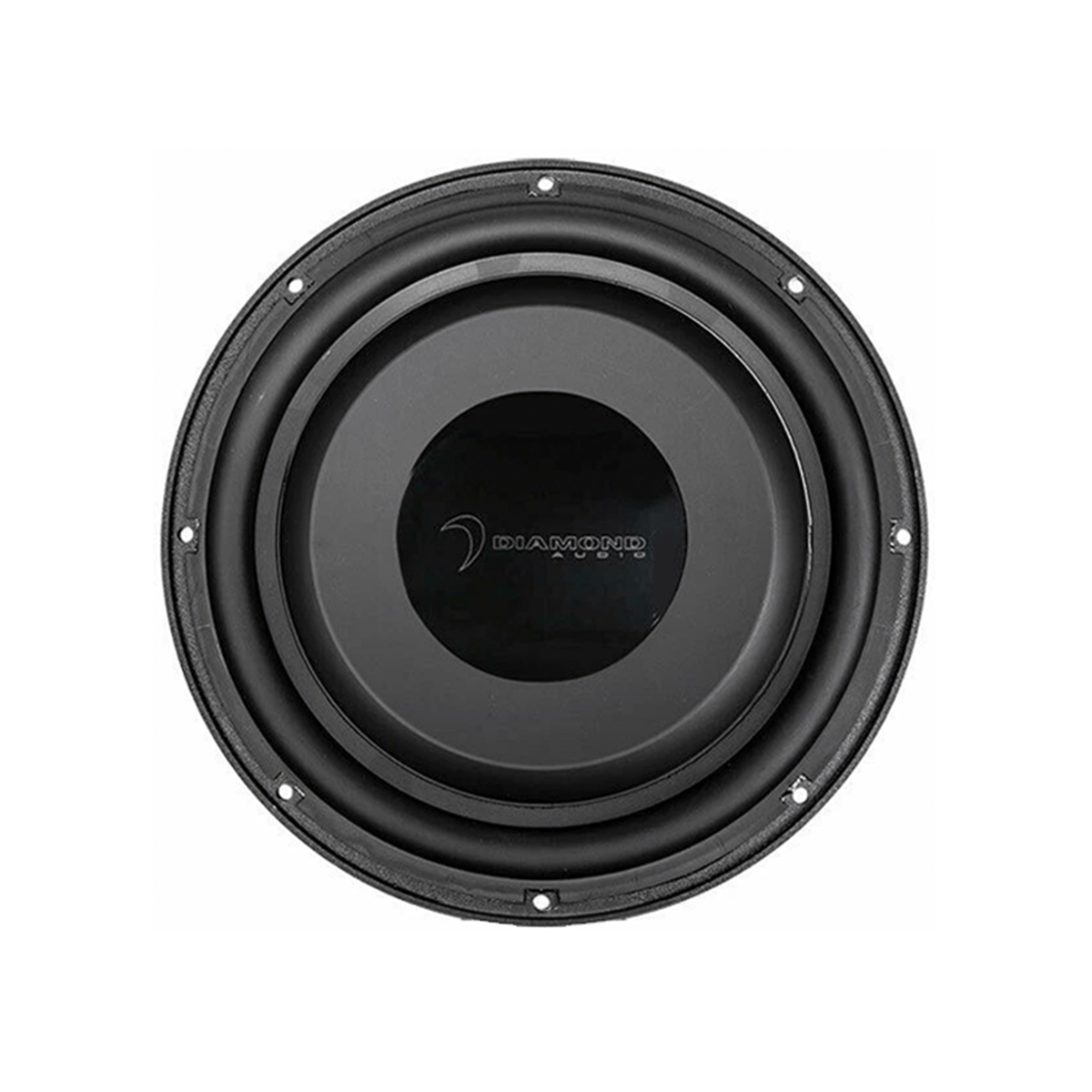

DMD104SH - DMD Series 10" Shallow Dual Voice Coil Subwoofer (4Ω)

Weight: 0.0 lb
$219.99
$219.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DMD104SH
DMD104SH - DMD Series 10" Shallow Dual Voice Coil Subwoofer (4Ω) - DMD104SH - Diamond Audio
$219.99
$219.99

Big Bass, Zero Bulk!

Solve your space limitations with an ultra-shallow profile that performs just like a full-size subwoofer. Keep your cargo space without sacrificing powerful audio performance.

Engineered for Efficiency!

Designed to excel in compact sealed enclosures, the DMD Series delivers optimum bass response where others won't fit. Experience massive sound with a minimal footprint.

DMD104SH - DMD Series 10" Shallow Dual Voice Coil Subwoofer (4Ω)

Look no further if you are seeking a solution when challenged with space limitations for adding bass to your car audio system. The Diamond DMD shallow series subwoofers measure in with only 3 inches of depth and perform best in sealed enclosures performing just like a conventional full-size subwoofer but taking up less space. For optimum bass response, we recommend using two DMD shallow subwoofers in a narrow 1 cubic foot enclosure.

Specifications

THIELE/SMALL PARAMETERS

  • Power: 250W RMS/500W MAX
  • SPL(dB): 85.2
  • Re(Ω): 6.0
  • Qms: 8.0
  • Qes: 0.84
  • Qts: 0.77
  • Fs(Hz): 48.5
  • Vas(L): 15.8
  • Cms(mm/N): 0.086
  • Mms(g): 125.0
  • Sd(cm²): 0.0359
  • BL(T*M): 16.4
  • Xmax(mm): 8.8

DIMENSIONS

  • Diameter: 10.87" (276.0mm)
  • Mounting Diameter: 9.13" (232.0mm)
  • Mounting Depth: 3.0" (76.0mm)
  • Magnet Diameter: 5.69" (144.5mm)

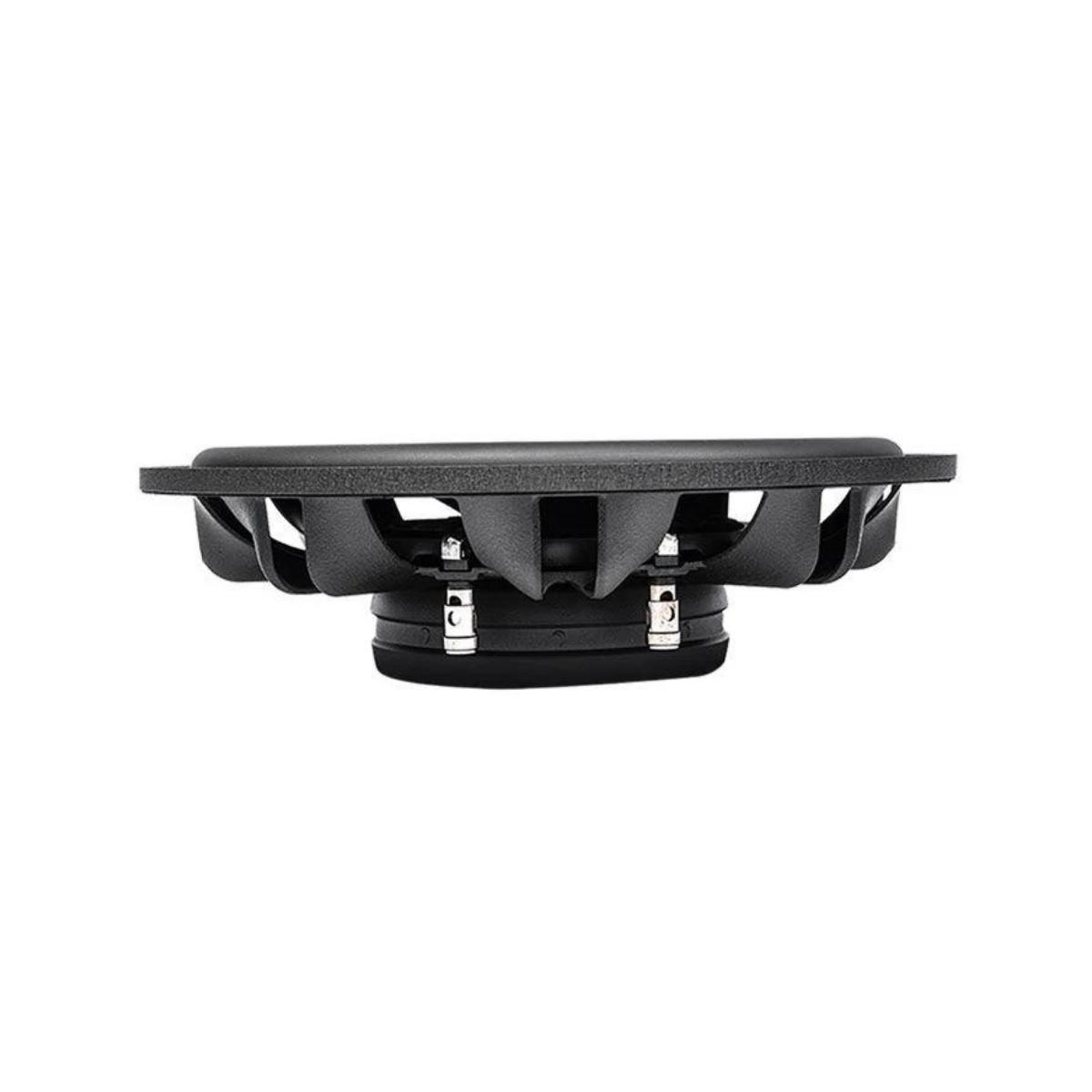

  • Extremely shallow mounting depth of 3 inches.

ENCLOSURES

SEALED

  • Vb (ft3): 0.45
  • F3 (Hz): 60
  • QTC: 88
  • Pe (W): 250

VENTED

  • Vb (ft3): 1.00
  • Fb(Hz): 44
  • F3(Hz): 37
  • Port (Diameter x Length): 3.54"(89.916mm) x 10"(254mm)
  • Pe (W):

FEATURES

  • Aluminum Heatsink Dust Cap And High Strength Paper Cone
  • Die Cast Shallow Frame For Slim Mount
  • Oversized Push Terminals
  • Black Spider With Woven Tinsel Leads
  • Black ABS Wrap Around Mounting Gasket
  • Vented Pole For Cooler Operation
  • Klippel Optimized Motor And Suspension Symmetry

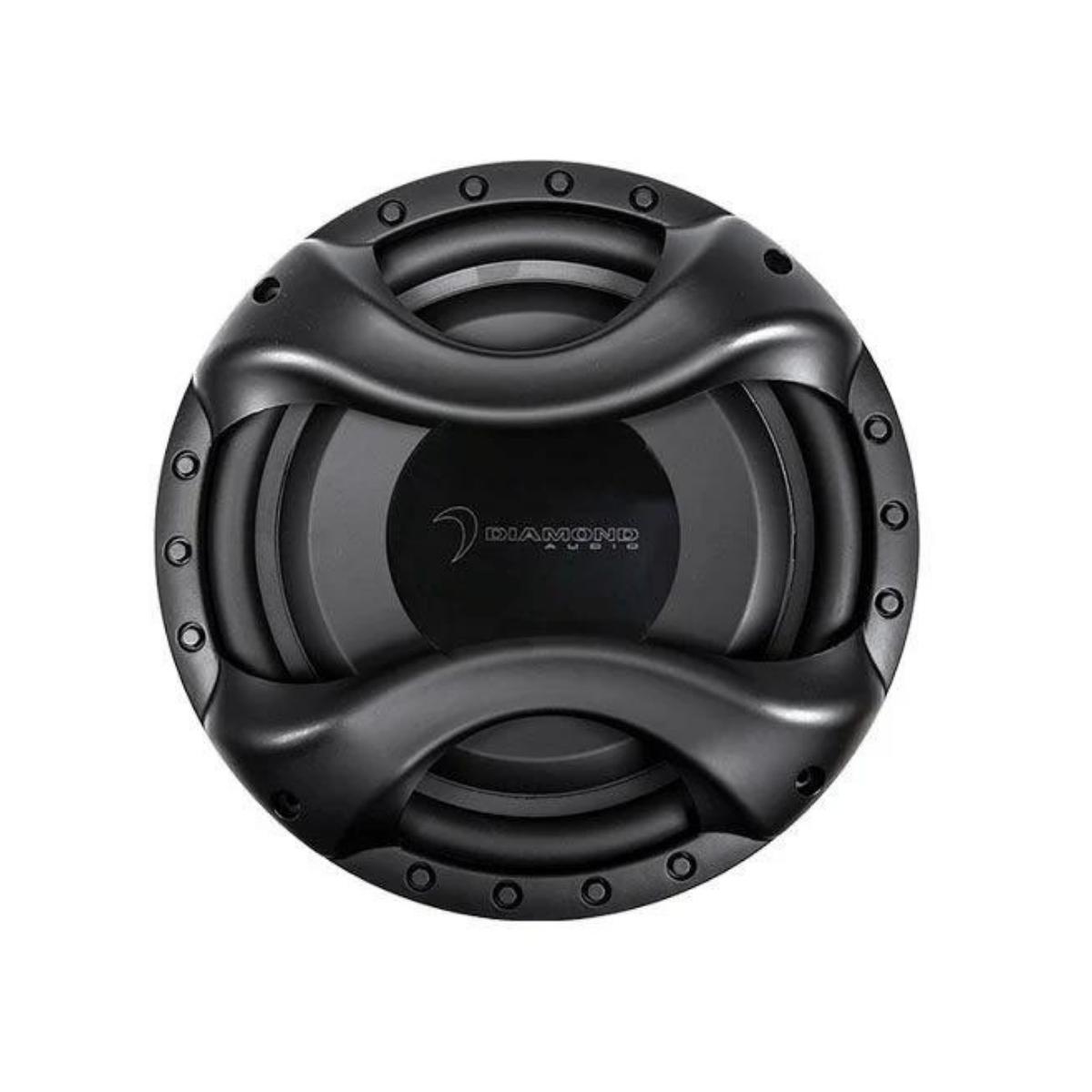

  • Plastic Grill Included

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Subwoofer
