By Diamond Audio

10" DMD Series Active Low Profile Subwoofer - DPRS10

$389.99
$389.99
Brand: Diamond Audio
SKU: DPRS10

Deep Bass in a Slim Profile

The slim DPRS10 fits tight spaces, delivering 120W of clean, extended bass with a 10" subwoofer and die-cast aluminum enclosure.

Elevate Your Factory Sound

Upgrade any factory system with the DPRS10’s ported design and passive radiator, offering a ready-made solution for deep, rich bass.

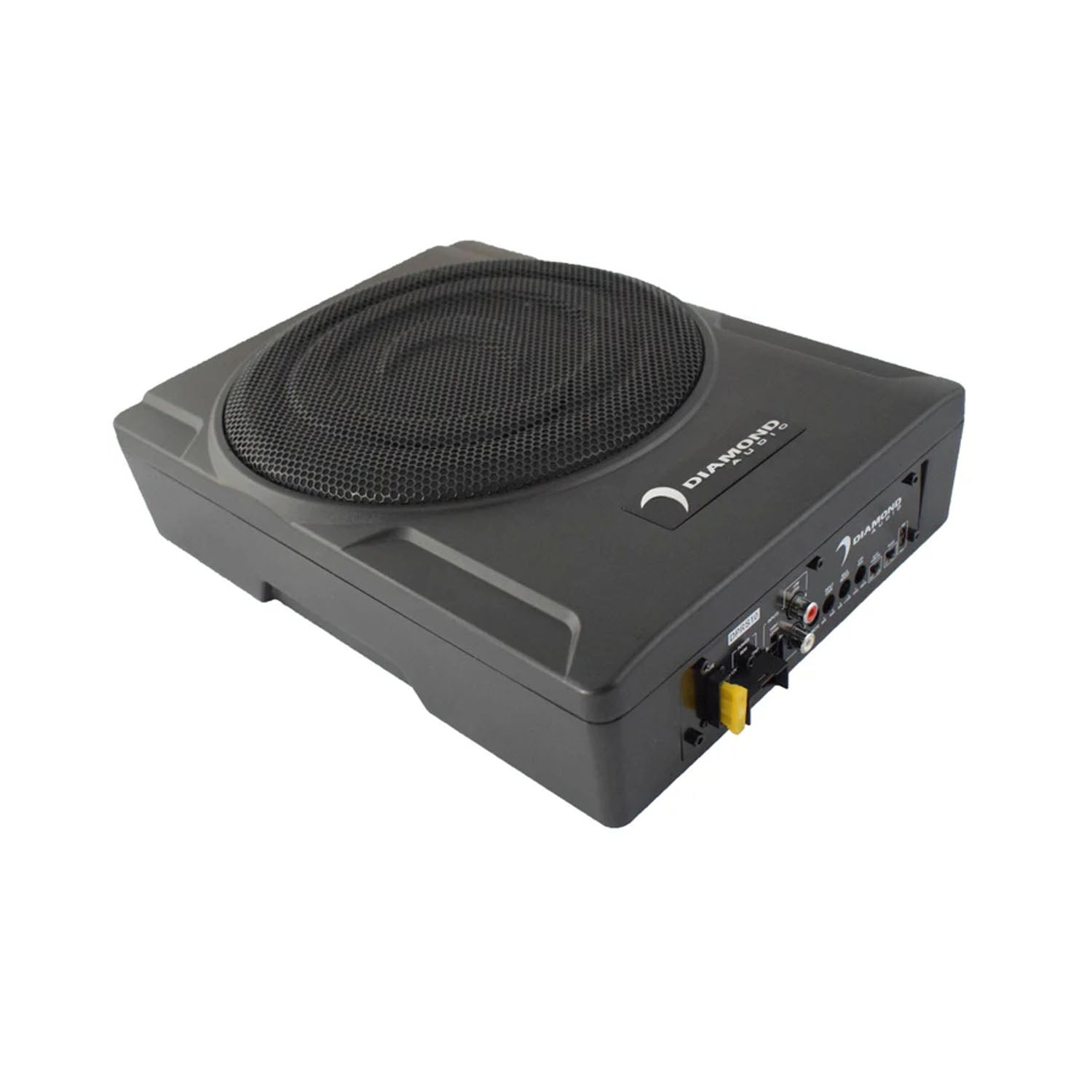

10" Active Low Profile Subwoofer

 The DPRS10 Active Low-Profile Subwoofer from Diamond Audio is a compact, all-in-one bass solution designed to deliver clean, extended low-frequency performance in vehicles where space is limited. Part of the DMD Series, the DPRS10 is engineered for effortless integration with both factory and aftermarket audio systems.

This powered subwoofer features a 10-inch driver driven by a 120-watt RMS amplifier, housed in a ported enclosure with an integrated passive radiator. This design enhances low-end output and efficiency, producing deep, rich bass with improved clarity and impact compared to traditional sealed enclosures.

Built for tight installations, the DPRS10 utilizes a rugged die-cast aluminum enclosure measuring just 12.2″ x 9″ x 3″. Its ultra-slim profile allows for discreet placement under seats or inside vehicle compartments without sacrificing performance or interior space. The rigid aluminum construction also helps reduce resonance and heat buildup for consistent, distortion-free bass.

Ideal for cars, trucks, and SUVs, the DPRS10 offers a simple, ready-to-install solution for adding powerful bass. Upgrade your system with the Diamond Audio DPRS10 and experience premium low-profile bass performance with maximum convenience.



Specifications

  • Power: 120 WRMS/300 WMAX
  • THD: <0.5%
  • Signal-to-noise ratio: >90dB
  • Frequency response: 20Hz-180Hz
  • Input sensitivity, high level: 1.0V
  • Input sensitivity, low level: 300V
  • Low Pass Filter: 50Hz-180Hz
  • Bass Boost: 0dB TO +12dB
  • Subsonic Filter: 20Hz
  • Subwoofer: 10” (4Ω)
  • Fuse rating: 20A
  • Dimensions (L x W x H) inches/mm: 12.2”(310) x 9”(230)x 3”(78)

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Subwoofer

Underseat Enclosures - Frequently Asked Questions

Q1: What are Underseat Enclosures designed for?
A: They are designed to deliver strong bass in tight spaces, making them ideal for cars, trucks, and SUVs with limited installation room.

Q2: Can they be installed under a vehicle seat?
A: Yes. Their slim, compact design is specifically suited for under-seat and other space-limited installations.

Q3: Can they work with factory audio systems?
A: Yes. Select powered enclosures support high-level inputs and OEM integration, making them suitable for factory audio upgrades.

Q4: Do they include built-in amplification?
A: Some configurations are powered with a built-in amplifier, while passive options can be paired with an external amplifier.

Q5: Why choose Diamond Audio Underseat Enclosures?
A: They combine space-saving installation, controlled bass, convenient integration, and durable construction for modern vehicle audio upgrades.
