By Diamond Audio

12" DMD Series Shallow Dual Voice Coil Subwoofer (4Ω) - DMD124SH

Weight: 10.0 lb
Regular price $263.99
Regular price Sale price $263.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DMD124SH
Regular price $263.99
Regular price Sale price $263.99

Big Bass, Zero Bulk!

Solve your space limitations with an ultra-shallow profile that performs just like a full-size subwoofer. Keep your cargo space without sacrificing powerful audio performance.

Engineered for Efficiency!

Designed to excel in compact sealed enclosures, the DMD Series delivers optimum bass response where others won't fit. Experience massive sound with a minimal footprint.

12" Shallow Dual Voice Coil Subwoofer (4Ω)

Get deep, powerful bass without sacrificing space with the Diamond Audio DMD124SH 12-inch shallow mount subwoofer, engineered for compact car audio systems, trucks, and custom installations. Featuring an ultra-slim 3-inch mounting depth, this 12" shallow subwoofer delivers impressive low-frequency performance where traditional subwoofers cannot fit.

As part of the trusted Diamond Audio DMD Series, the DMD124SH subwoofer is optimized for sealed enclosures, producing tight, controlled bass with excellent accuracy. Its dual 4-ohm voice coil configuration provides flexible wiring options, allowing seamless integration with a wide range of car audio amplifiers for maximum efficiency and output.

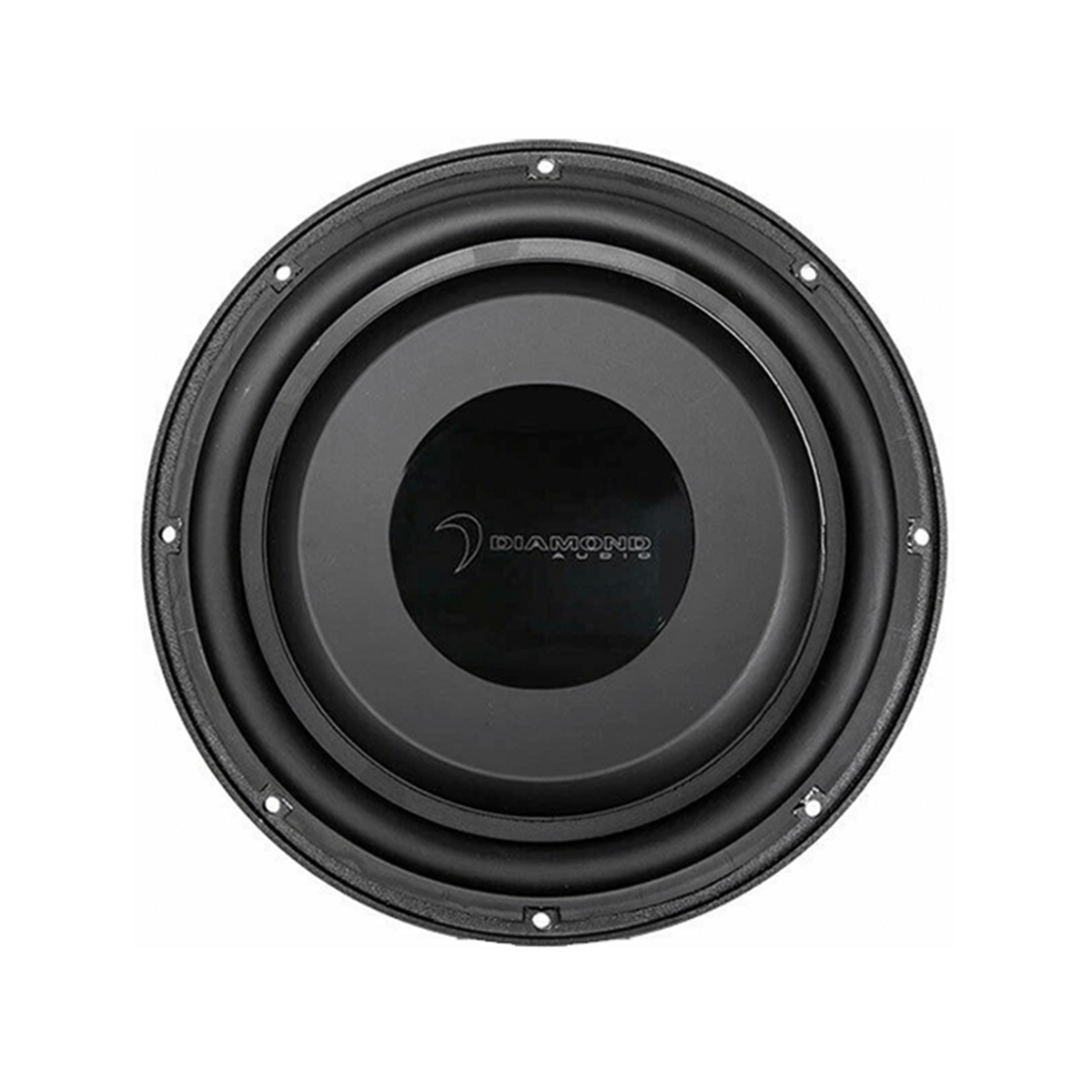

Built for durability and performance, this shallow mount subwoofer features a high-strength paper cone with an aluminum heatsink dust cap, improving thermal management and ensuring consistent bass output. The die-cast shallow frame provides strength while maintaining a low-profile design, making it ideal for under-seat enclosures or space-limited builds.

Advanced engineering enhancements such as a vented pole for improved cooling, Klippel optimized motor and suspension symmetry, and woven tinsel leads help reduce distortion and improve long-term reliability. With 300W RMS and 600W max power handling, the DMD124SH 12-inch subwoofer delivers deep, impactful bass with clarity and precision.

For maximum performance, pairing two DMD124SH shallow subwoofers in a compact enclosure allows you to achieve powerful, room-filling bass without sacrificing cargo space.

Key Features

12" shallow mount subwoofer with dual 4Ω voice coils

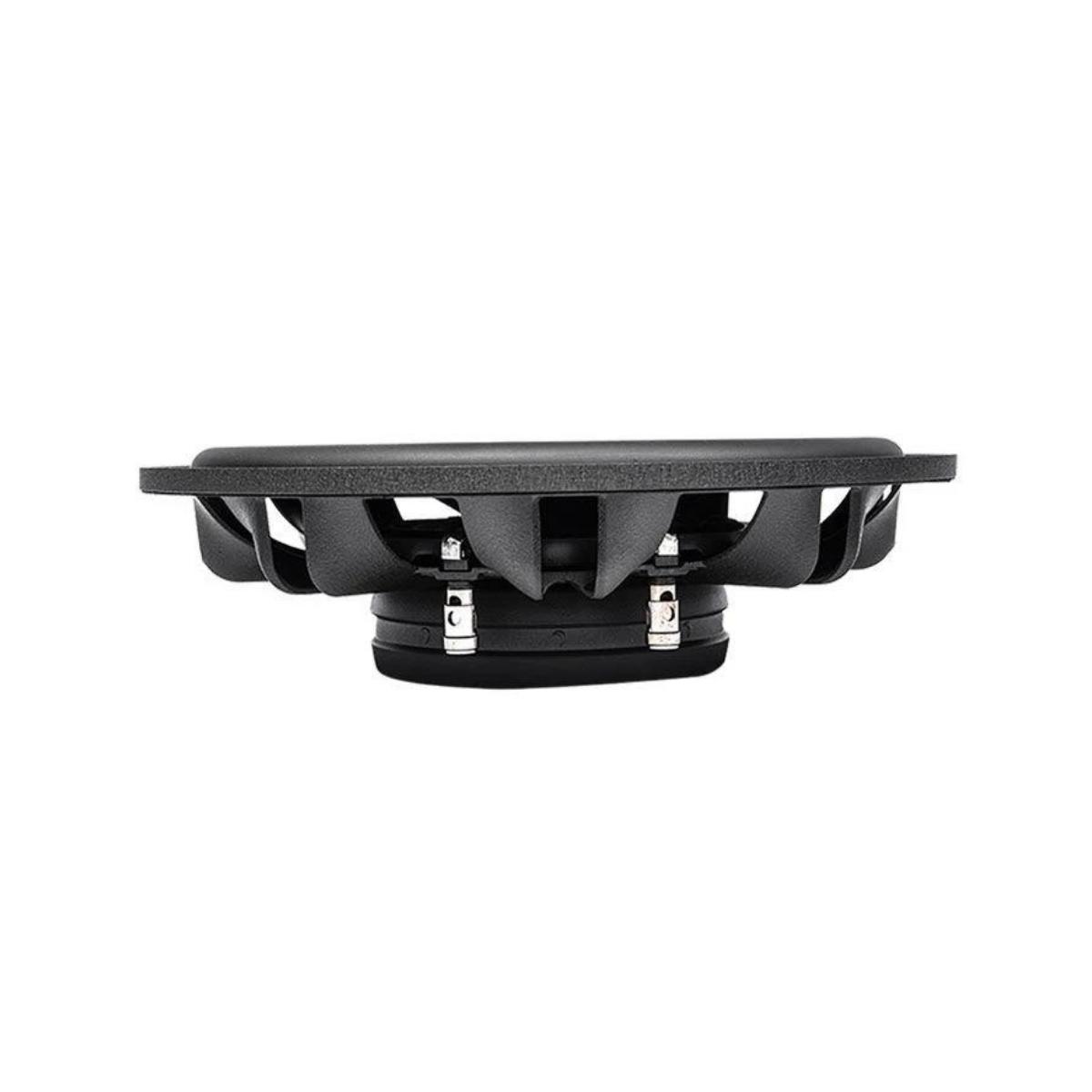

Ultra-slim 3-inch mounting depth for tight installations
300W RMS / 600W MAX power handling
Optimized for sealed enclosures with tight bass response
Aluminum heatsink dust cap for thermal control
Die-cast frame for strength and durability
Klippel optimized motor for precision performance

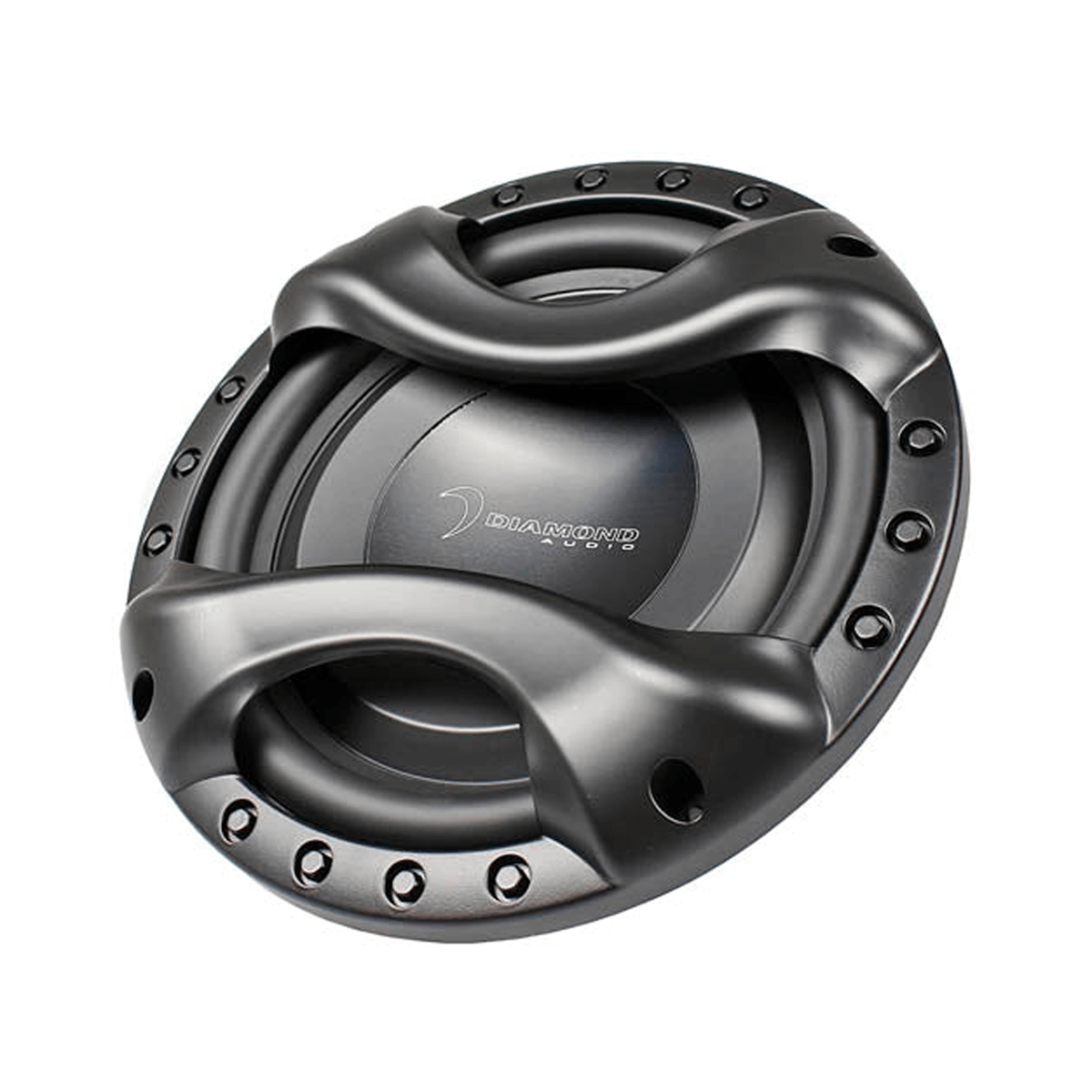

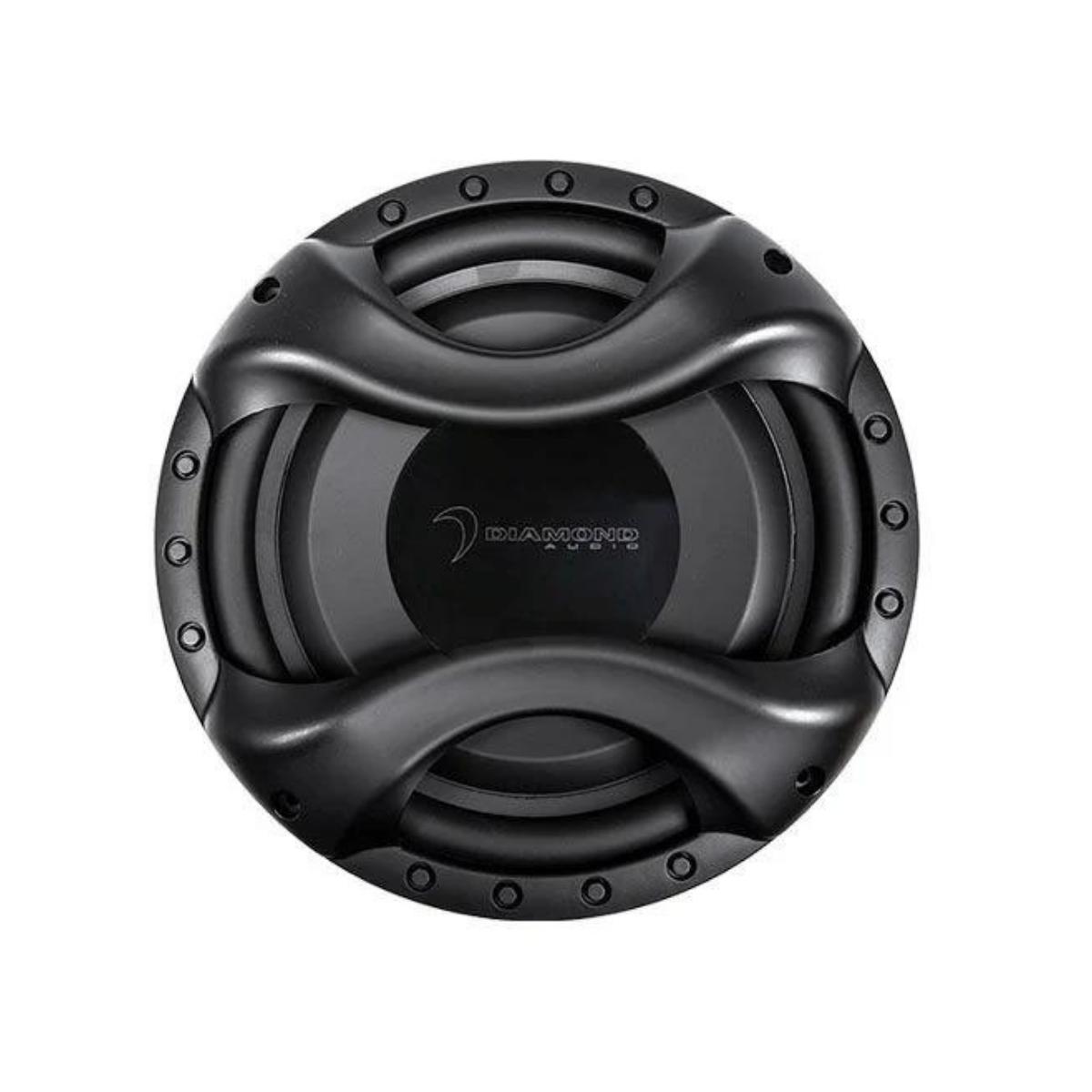

• Includes protective grill

The Diamond Audio DMD124SH subwoofer delivers powerful, space-saving bass, making it the perfect solution for high-performance, compact car audio systems



Specifications

THIELE/SMALL PARAMETERS

  • Power: 300W RMS/600W MAX
  • SPL(dB): 86.8
  • Re(Ω): 6.0
  • Qms: 9.0
  • Qes: 1.02
  • Qts: 0.91
  • Fs(Hz): 46.5
  • Vas(L): 31.0
  • Cms(mm/N): 0.075
  • Mms(g): 156.0
  • Sd(cm²): 0.0539
  • BL(T*M): 16.4
  • Xmax(mm): 8.8
  • Diameter: 12.83"(326mm)
  • Mounting Diameter: 11.06"(281mm)
  • Mounting Depth: 3"(76mm)
  • Magnet Diameter: 5.69"(144.5)

Specifications



  • Nominal-impedance-ohms

Type
