  3. DES Series 12" Dual Voice Coil Subwoofer (4Ω) - DES124
By Diamond Audio

DES Series 12" Dual Voice Coil Subwoofer (4Ω) - DES124

$269.99
$269.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DES124
$269.99
$269.99

Diamond Elite DES Series:

Advanced features for superior sound and flexible installation.

Elevate your audio with Diamond Elite DES Series

Experience cutting-edge engineering and superior design for unparalleled sound. Feel the difference.

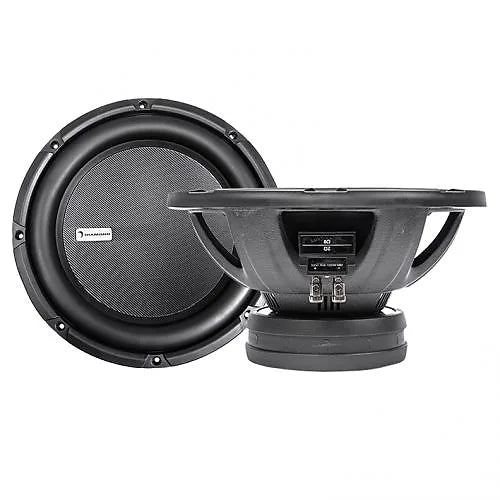

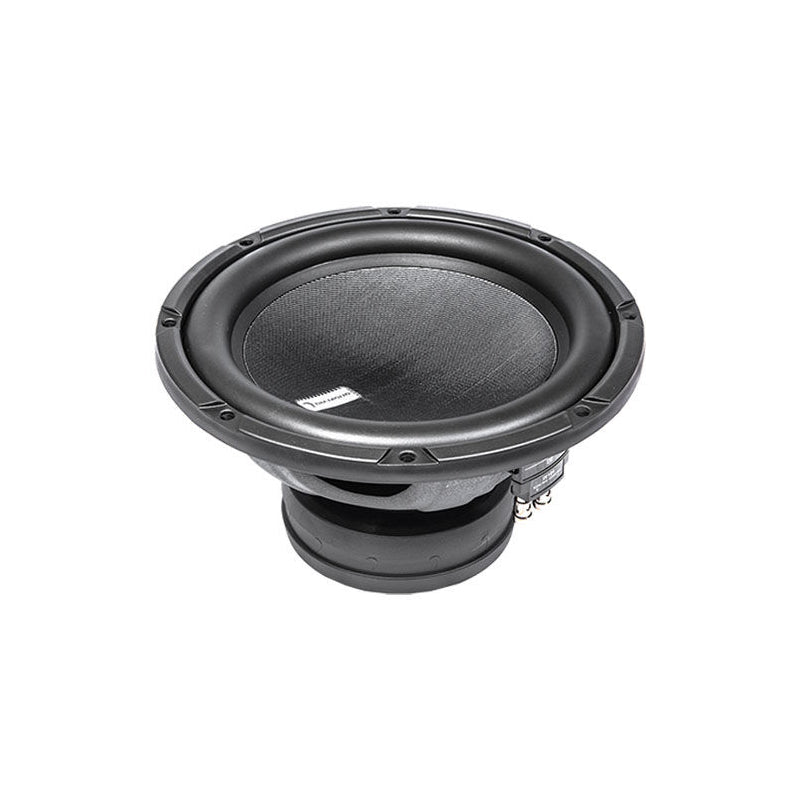

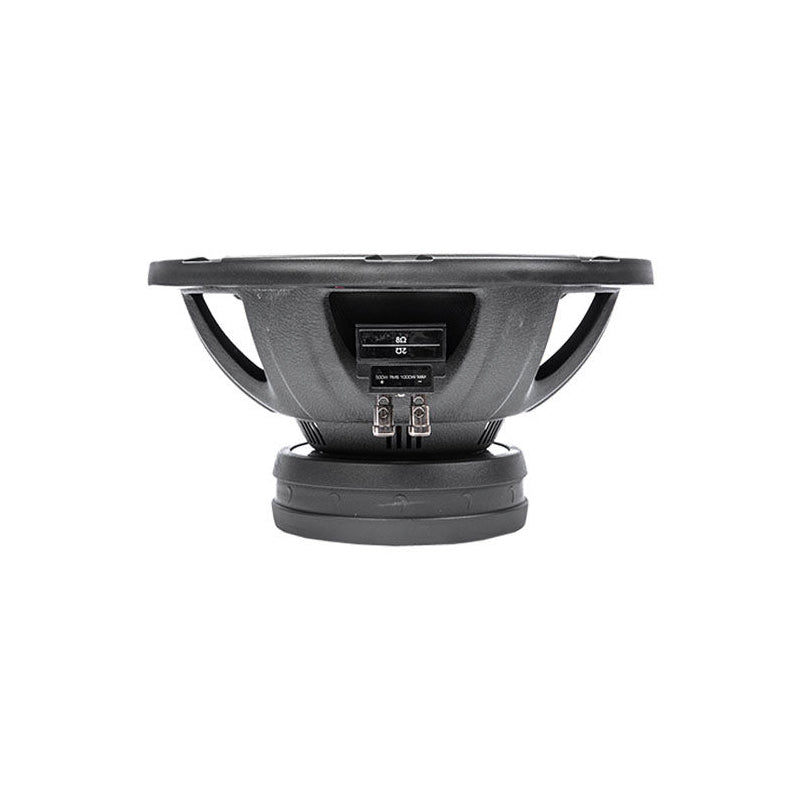

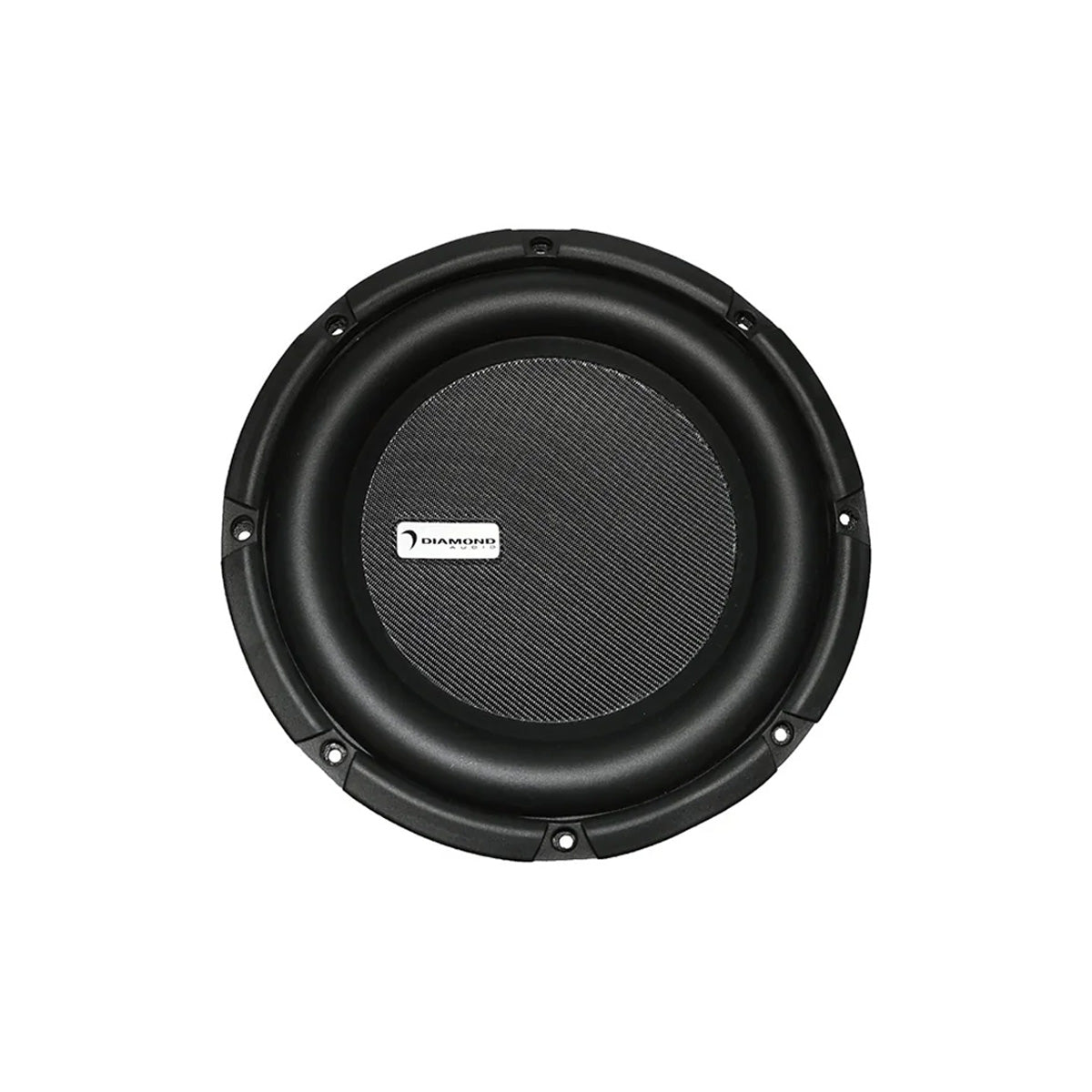

DES124 - DES Series 12" Dual Voice Coil Subwoofer (4Ω)

The Diamond Elite DES Series subwoofers epitomize quality craftsmanship and precision engineering, delivering the best performance in their class. Designed for versatility, these new DES subwoofers are perfect for a variety of enclosure designs, providing dynamic sound and that signature Diamond Audio bass, capable of withstanding long, extended listening sessions.

Constructed with a high-grade reinforced hybrid paper fiber cone structure, the DES subwoofers handle extreme power effortlessly. The popular impedance switch feature adds to their versatility, ensuring that these subwoofers meet your specific audio needs without disappointment.

Experience the unparalleled performance and durability of the Diamond Elite DES Series subwoofers. Upgrade your audio system with these meticulously engineered subwoofers and enjoy dynamic, powerful sound with exceptional reliability.

Specifications

THIELE/SMALL PARAMETERS

Parameter
  • Power: 500W RMS/1000W MAX
  • SPL(dB): 82.8
  • Re(Ω): 6.30
  • Qms: 9.0
  • Qes: 0.96
  • Qts: 0.87
  • Fs(Hz): 34.0
  • Vas(L): 30.0
  • Cms(mm/N): 0.08
  • Mms(g): 263
  • Sd(cm²): 0.050
  • BL(T*M): 19.3
  • Xmax(mm): 15.7
DIMENSIONS
  • Diameter: 12.57" (319.4mm)
  • Mounting Diameter: 11.0" (280.6mm)
  • Mounting Depth: 6.63" (168.5mm)
  • Magnet Diameter: 6.51" (165.2mm)

ENCLOSURES

SEALED
  • Vb (ft3): 0.80
  • F3 (Hz): 39
  • QTC: .81
  • Pe (W): 500
VENTED
  • Vb (ft3): 1.75
  • Fb/F3(Hz): 32/27
  • Port (Diameter x Length): 3.5" (88.9mm) x 12" (304.8mm)
  • Pe (W): 500

FEATURES

  • True Fiber Weave Paper Backed Parabolic Cone
  • High Grade Rolled Edged 6 Leg Black Powder Coat Stamped Frame
  • Oversized Chrome Push Terminals
  • Dual Mirror Image Spider With Woven Tinsel Leads
  • Black PVC Wrap Around Mounting Gasket
  • Vented Pole And Voice Coil Gap For Cooler Operation
  • Klippel Optimized Motor And Suspension Symmetry

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Motor vehicle subwoofers
