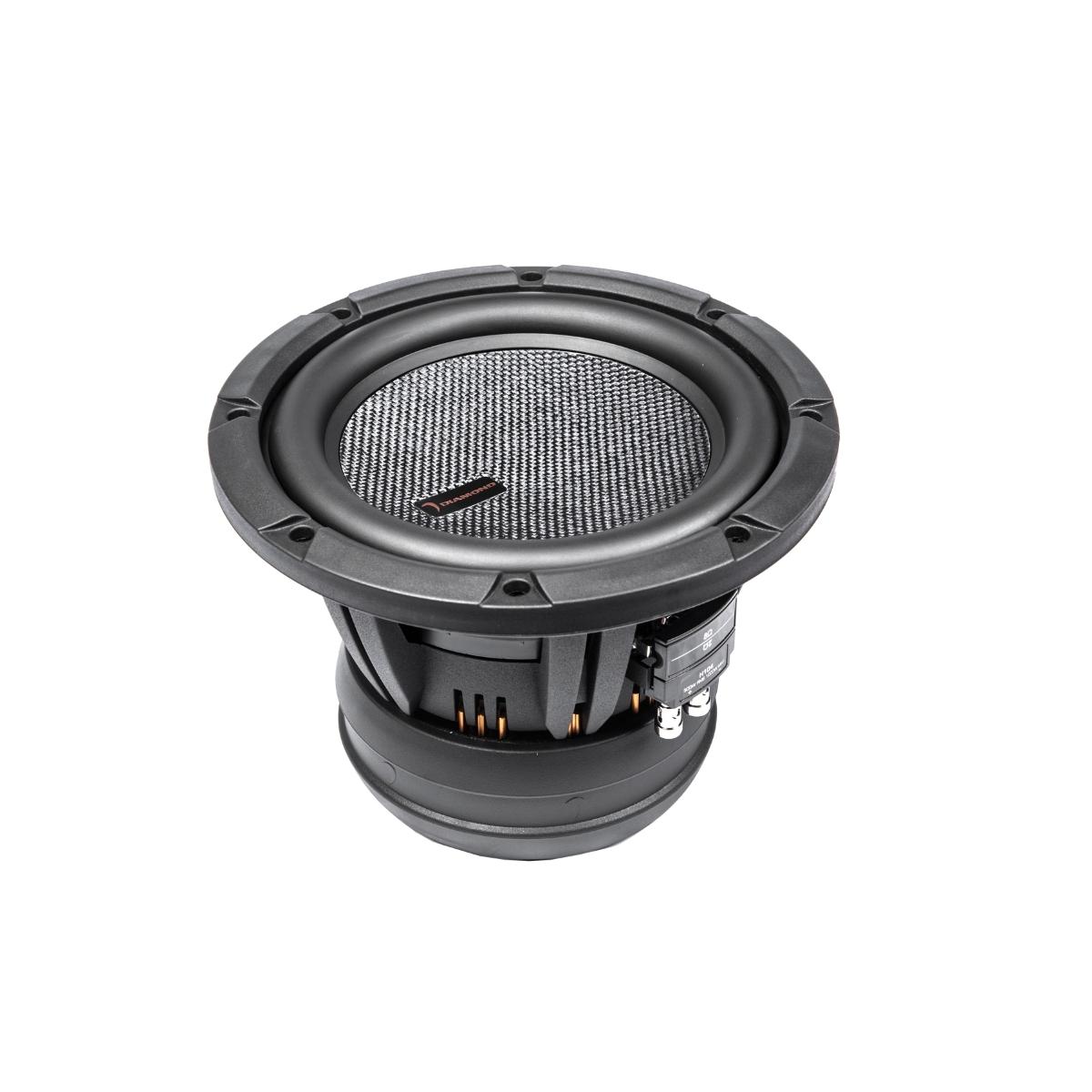

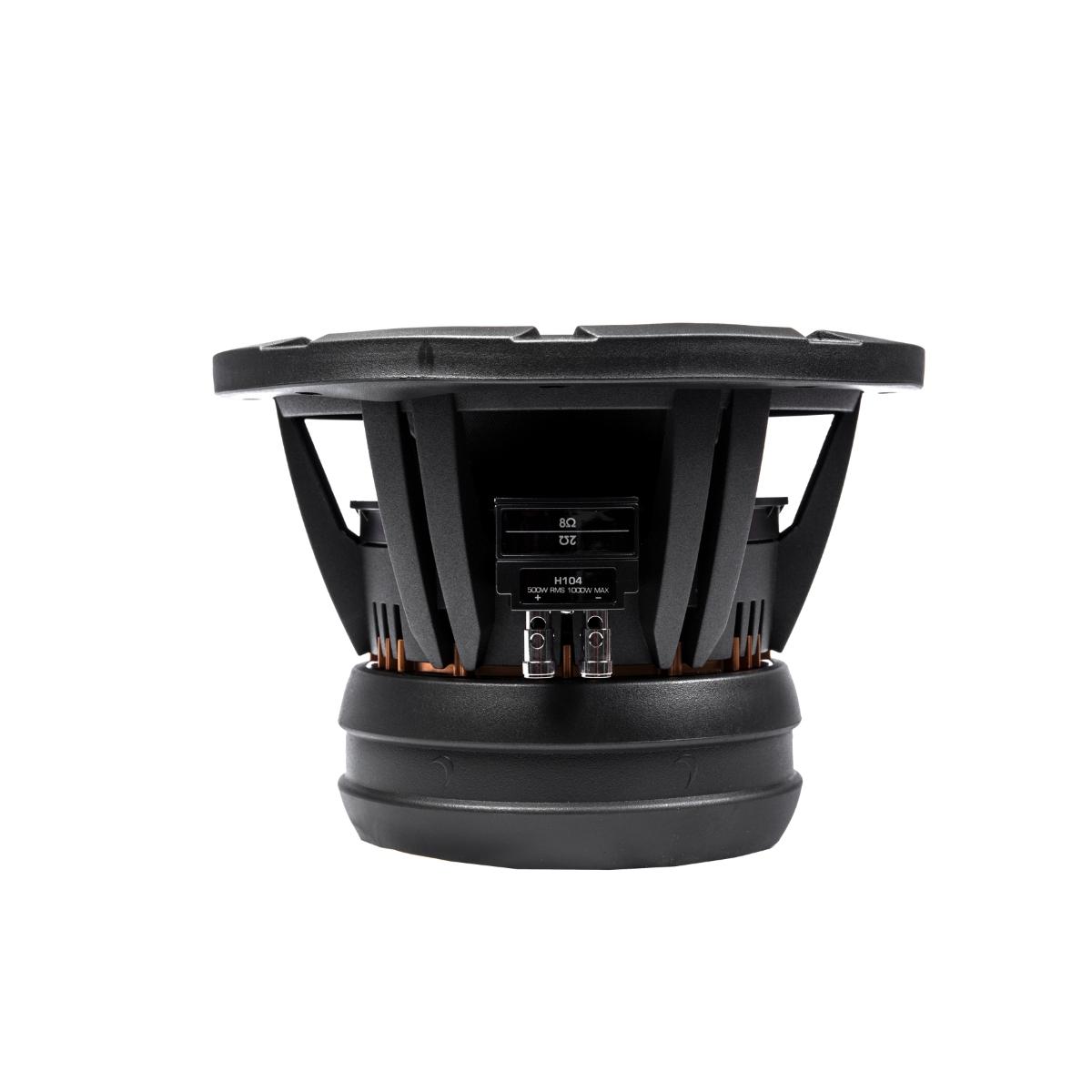

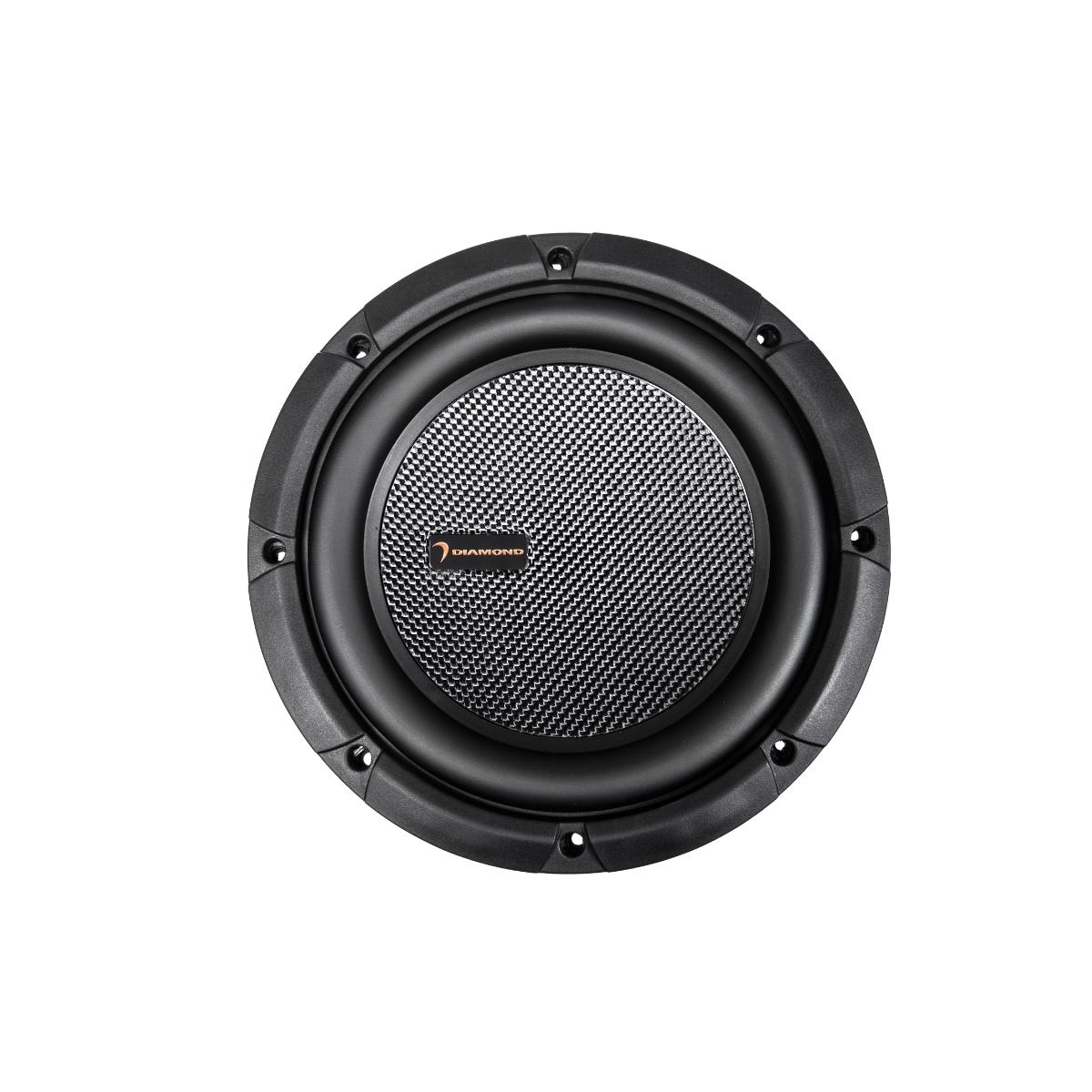

HEX 10" 500W RMS 4-Ohm Subwoofer

H104 - 500W RMS, 1000W MAX 4Ω Impedance 10 Inch / 250mm Subwoofer

HEX Series subwoofers share some of the advanced features and technologies utilized by our HEX PRO series subwoofers. Artfully designed using a cast aluminum frame basket, a unique solid core aluminum radial heat sink and 3” high temperature voice coils wound on a treated high-strength aluminum former, the HEX series thermal dissipation capabilities are far superior to the competition. The HEX series subwoofers employ an exotic fiber weave cone supported by a specially treated paper cone backing resulting in fast musical bass reproduction. HEX series high-output subwoofers offer world-class sound and performance that are designed to provide years of listening pleasure.

High-density, cast aluminum alloy deep dawn basket - Ridged, two-part treated paper/fiberglass laminated woofer cone - FEA optimized high-power motor with vented pole piece - Copper anodized aluminum elevated radiating heat sink - Impedance selection via high-power terminal - 3 “ high-temp copper voice coil on treated black high-strength aluminum former - Klippel® DA optimized motor and suspension symmetry

Features:

• 4Ω Impedance
• 500W RMS, 1000W MAX
• Dual Voice Coil
• Mounting Diameter: 9 “ / 228mm
• Mounting Depth: 7 “ / 178mm
