By Diamond Audio

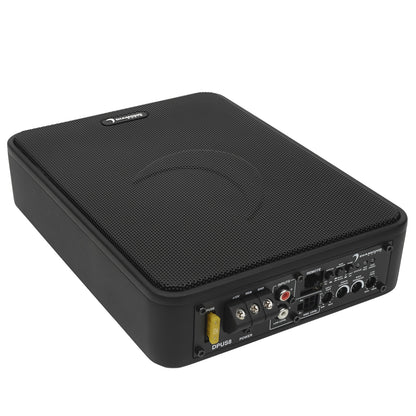

8" DMD Series Active Slim Subwoofer w/Bass Enhancement - DPUS8

$249.99
$249.99
Brand: Diamond Audio
SKU: DPUS8

Compact Power for Tight Spaces

The DPUS8 offers a high-performance solution for vehicles with limited space. Its compact design fits snugly under seats without sacrificing sound quality, featuring an 8" subwoofer and 100WRMS amplifier.

Boost Your OEM Audio Quality

The DPUS8 tackles common OEM audio signal issues with advanced features like dual bass controls, exclusive bass enhancement, and phase adjustments.

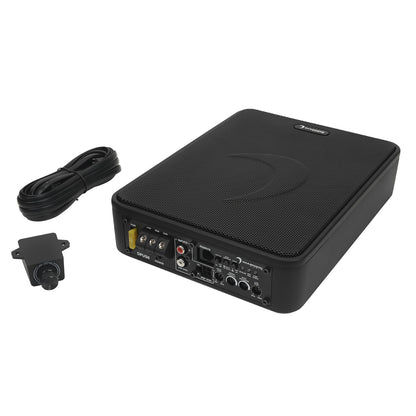

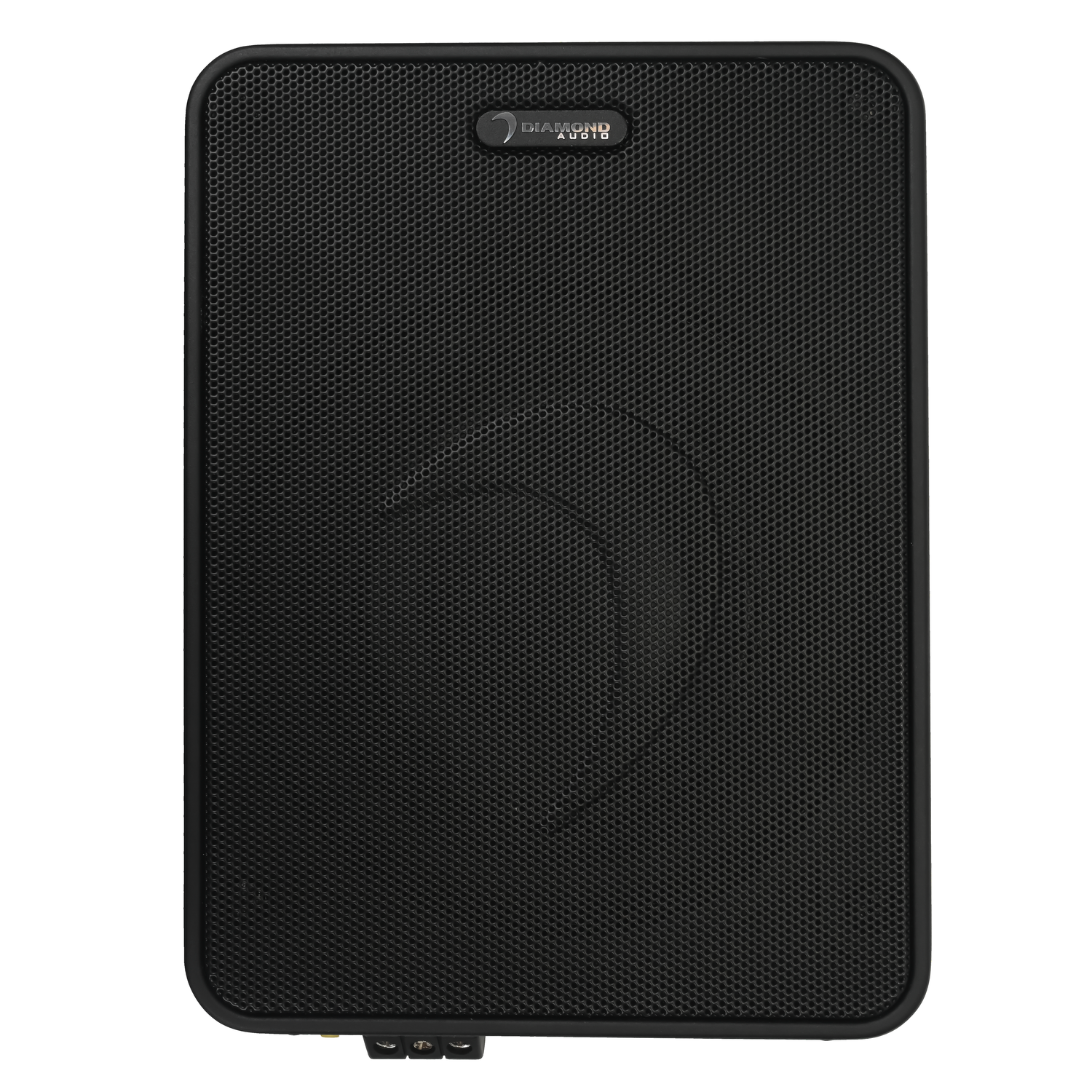

8" Slim Active Subwoofer w/Bass Enhancement

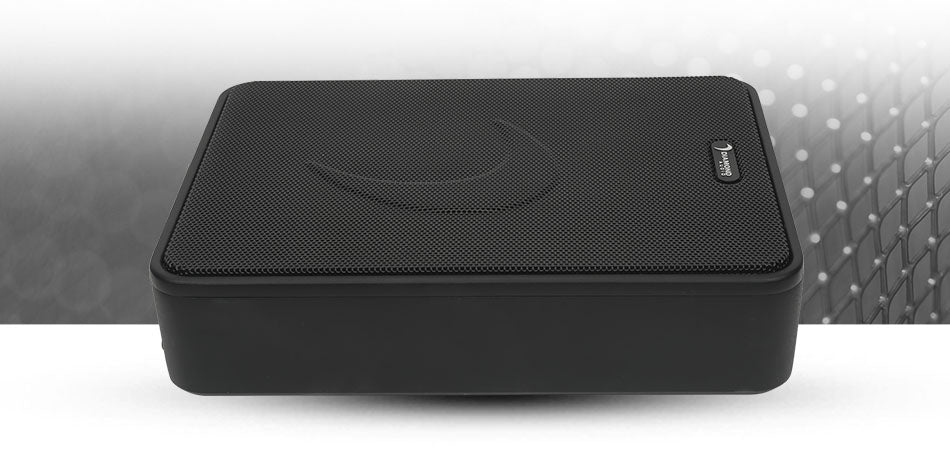

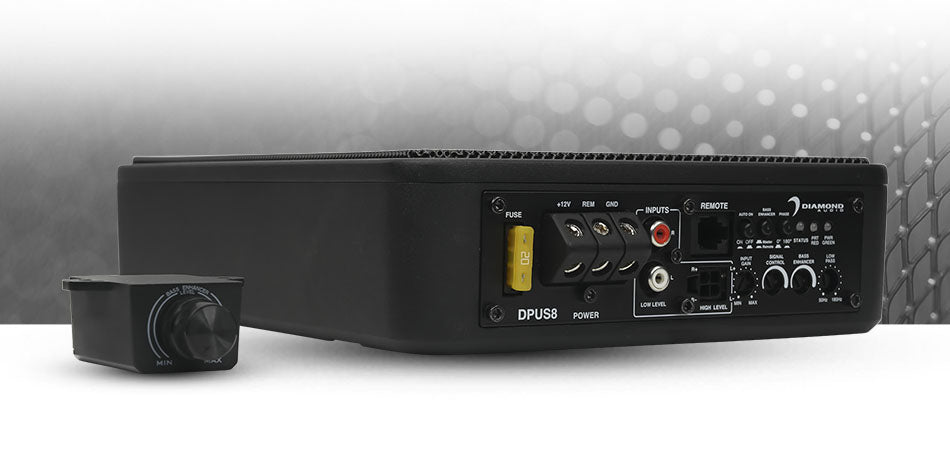

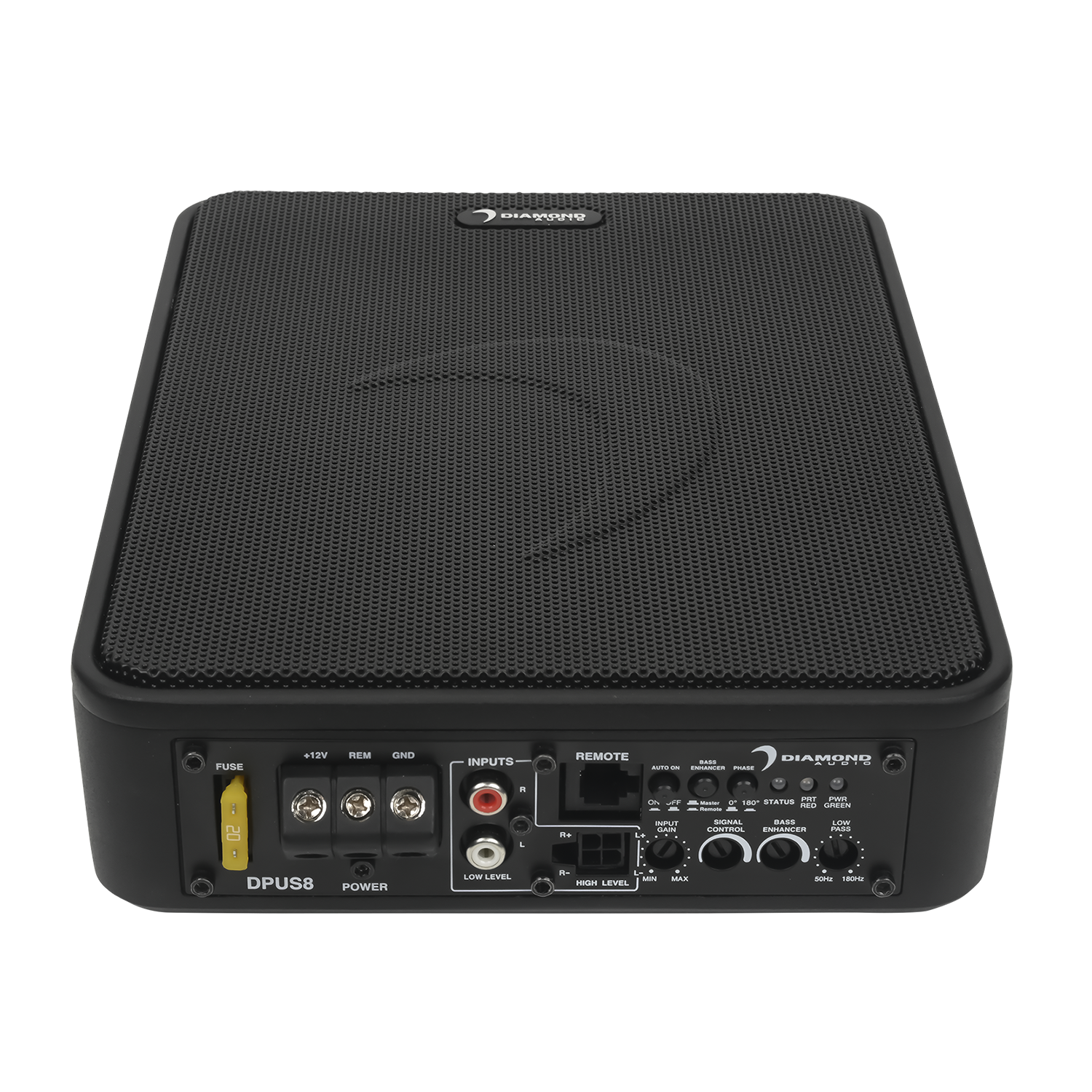

 The DPUS8 Slim Active Subwoofer from Diamond Audio is a compact, all-in-one bass solution designed for vehicles where space is limited but sound quality still matters. Part of the DMD Series under-seat enclosures, the DPUS8 delivers clean, controlled low-end performance while simplifying installation and OEM audio integration.

Engineered specifically for factory sound systems, the DPUS8 features high-voltage 20V line-level inputs and an intelligent auto turn-on circuit, allowing seamless connection to OEM radios without additional adapters. To address weak or compressed factory bass signals, Diamond Audio equips the DPUS8 with dual bass controls, including a traditional level control and Diamond’s exclusive bass enhancement circuit to restore depth, impact, and musical punch.

For precise system tuning, the DPUS8 includes adjustable low-pass and subsonic filters along with phase control, ensuring optimal bass response in a wide range of vehicles. Despite its ultra-slim design, the rigid enclosure houses an efficient 8-inch subwoofer powered by a 100-watt RMS amplifier, delivering impressive output without sacrificing interior space.

Ideal for cars, trucks, and SUVs, the DPUS8 is the perfect upgrade for clean, space-saving bass performance.



Specifications

• Power: 100WRMS/250W MAX
• Die Cast Aluminum Chassis/Enclosure
• Bass Enhancer: 0dB-16dB
• 20v Line Level Inputs

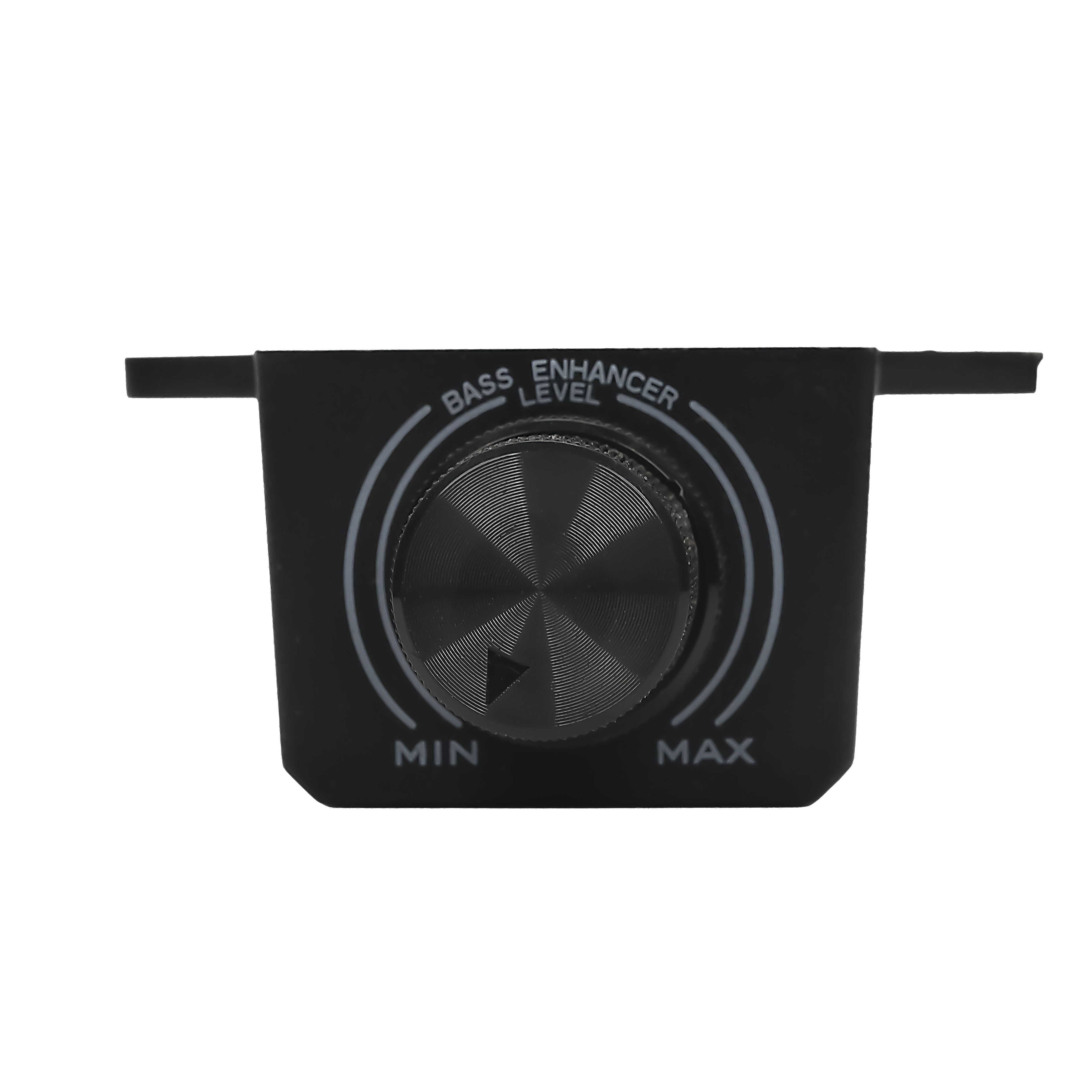

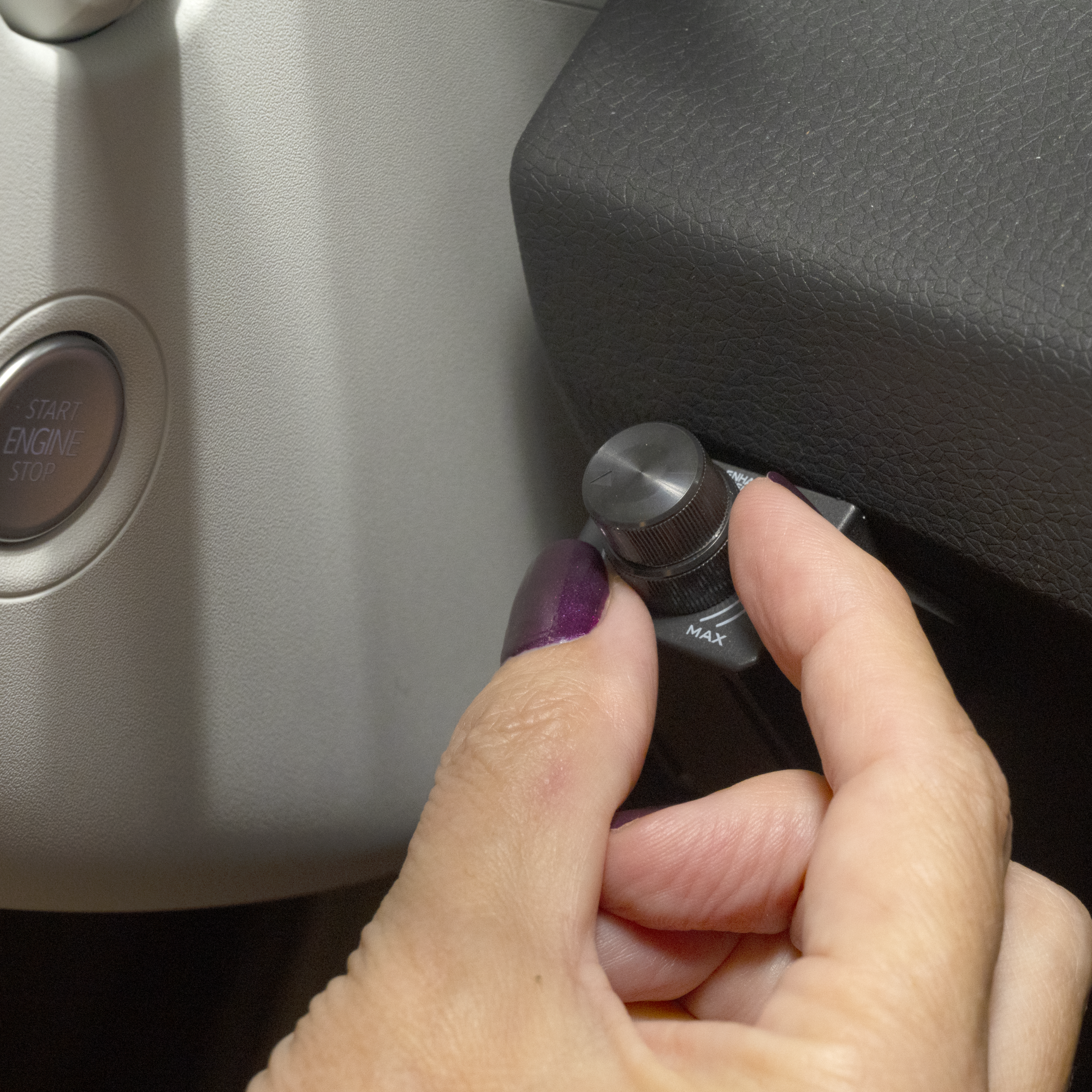

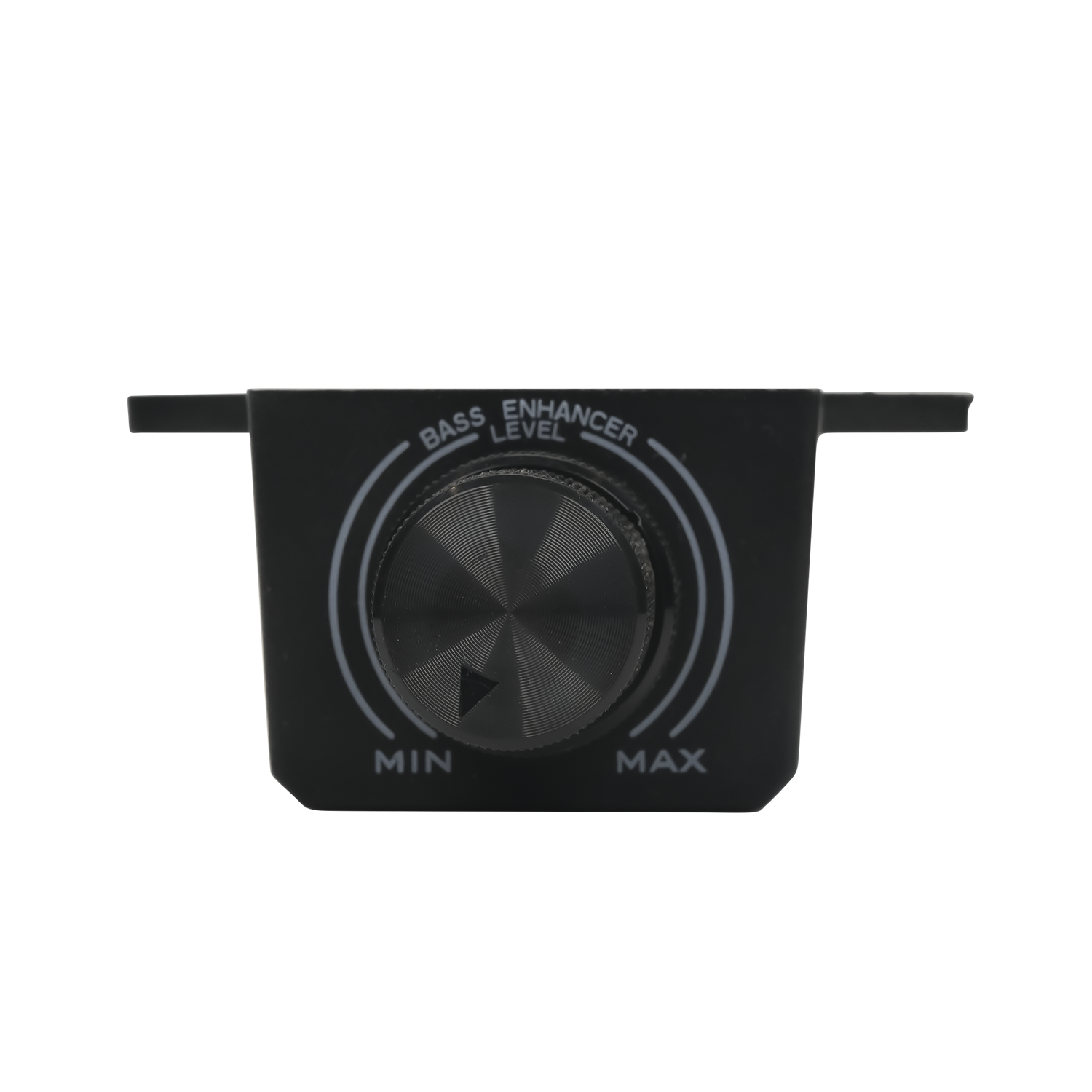

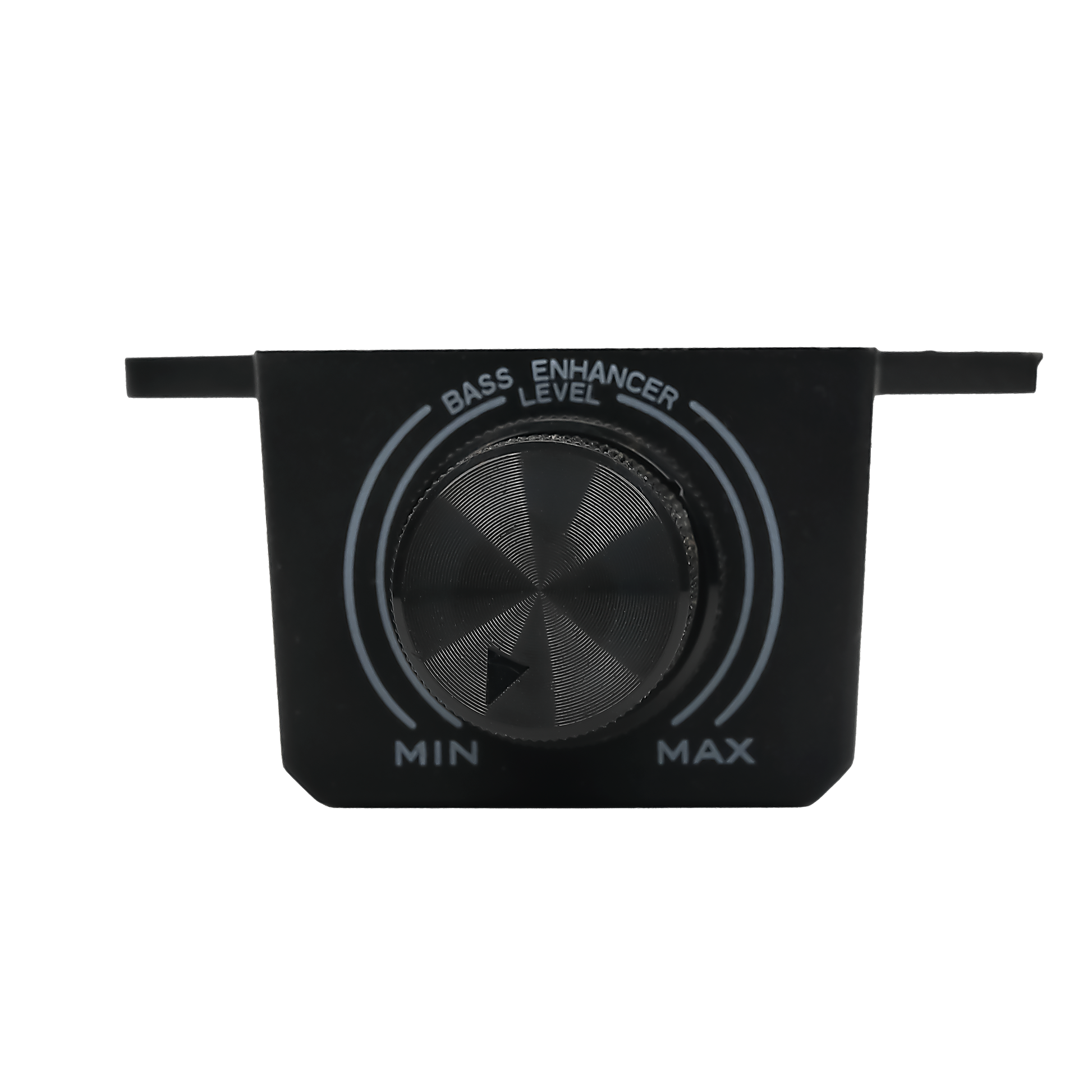

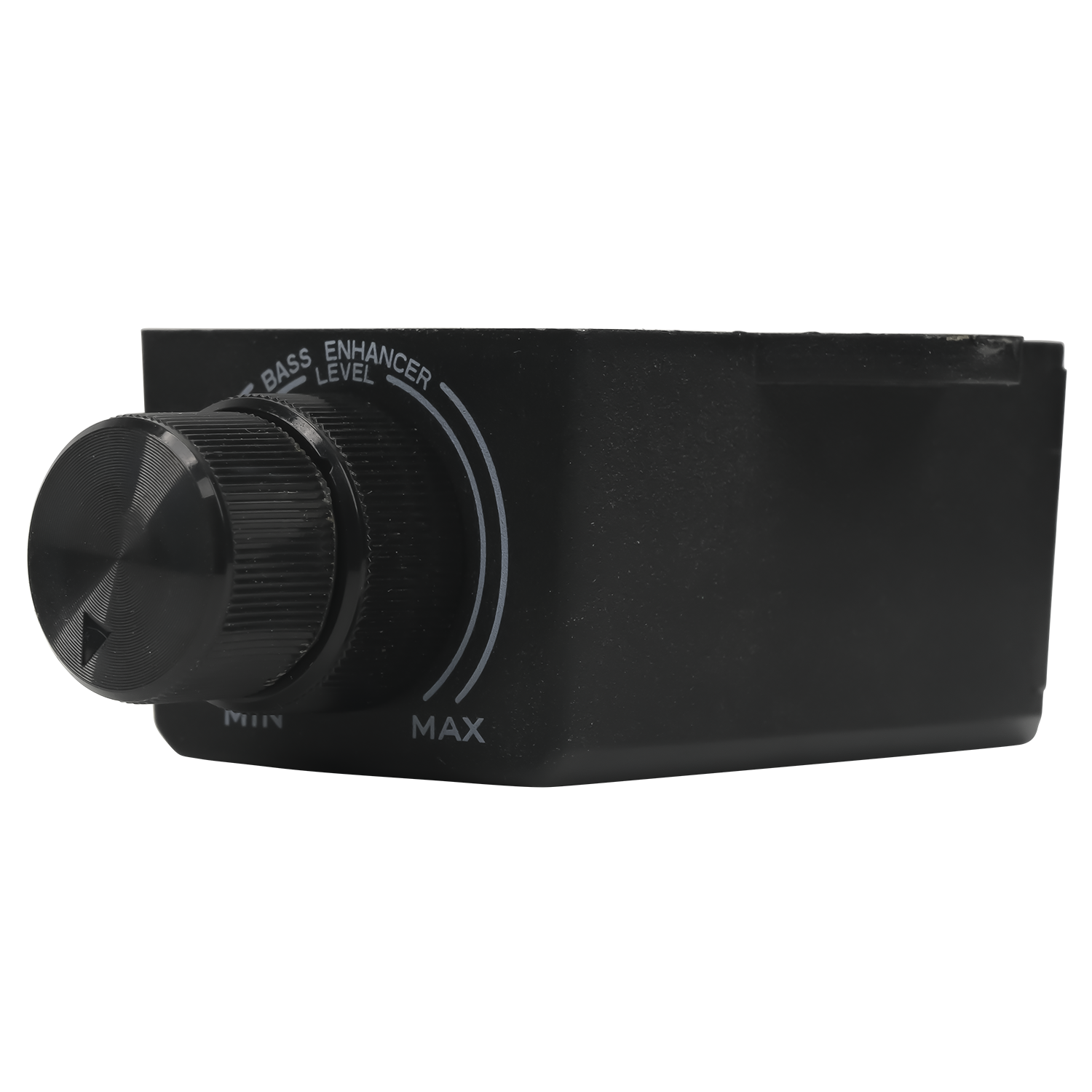

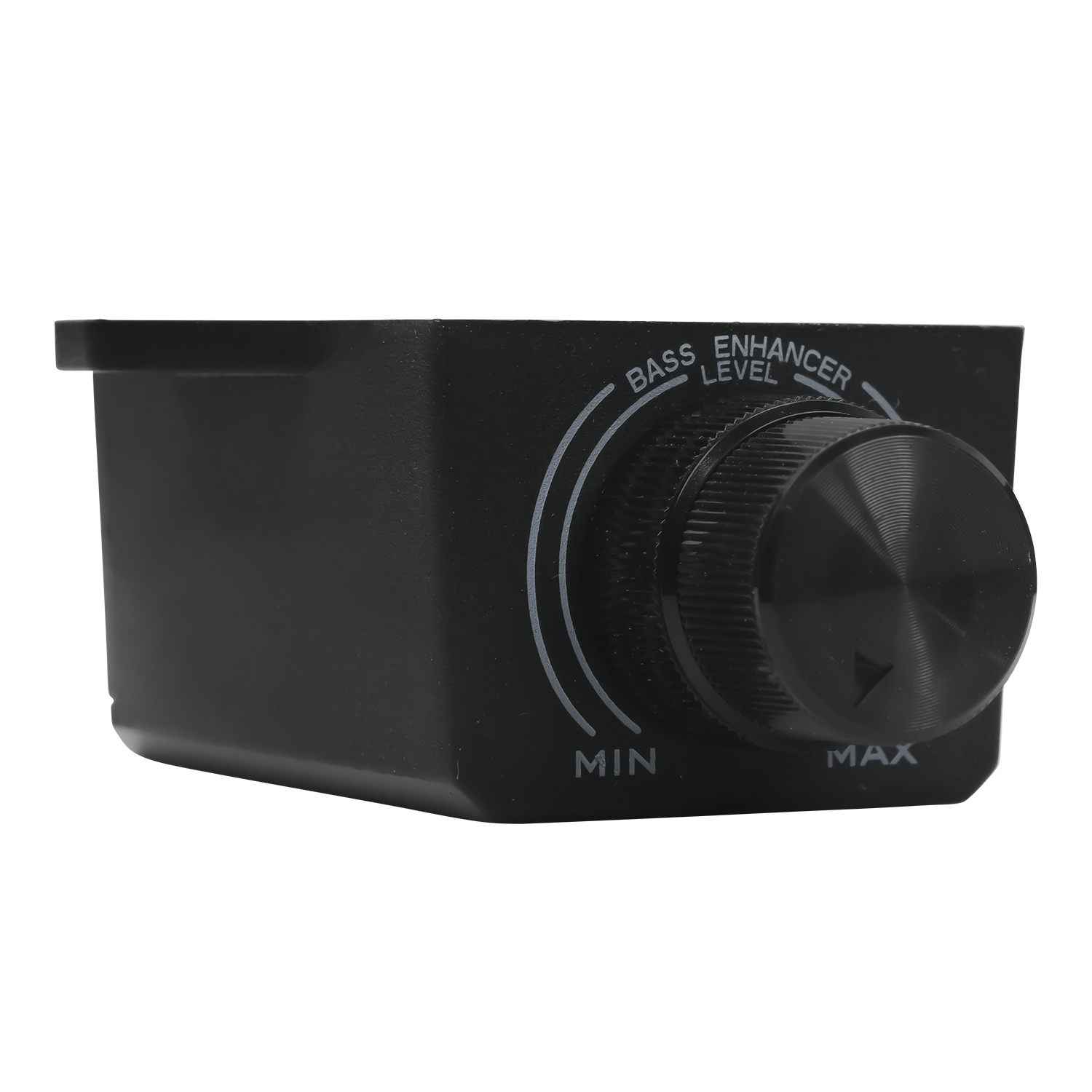

• Included: Remote Subwoofer Level Control
• Auto Turn On: On/Of
• P.W.M Power supply
• Adjustable Input Sensitivity
• Low Level and High-Level input
• Sub Sonic Filter:20Hz (fixed)
• LPF:50Hz-180Hz
• Status LED indicator: Power/Protect
• Thermal Protection Circuit.
• Short Protection Circuit.
• Overload Protection Circuit
• Dimensions (LxWxH): 9.65”x7.1”x2.84" (245mm x 180mm x 72mm)

Specifications

Brand

Diamond audio

Type

Subwoofer

Underseat Enclosures - Frequently Asked Questions

Q1: What are Underseat Enclosures designed for?
A: They are designed to deliver strong bass in tight spaces, making them ideal for cars, trucks, and SUVs with limited installation room.

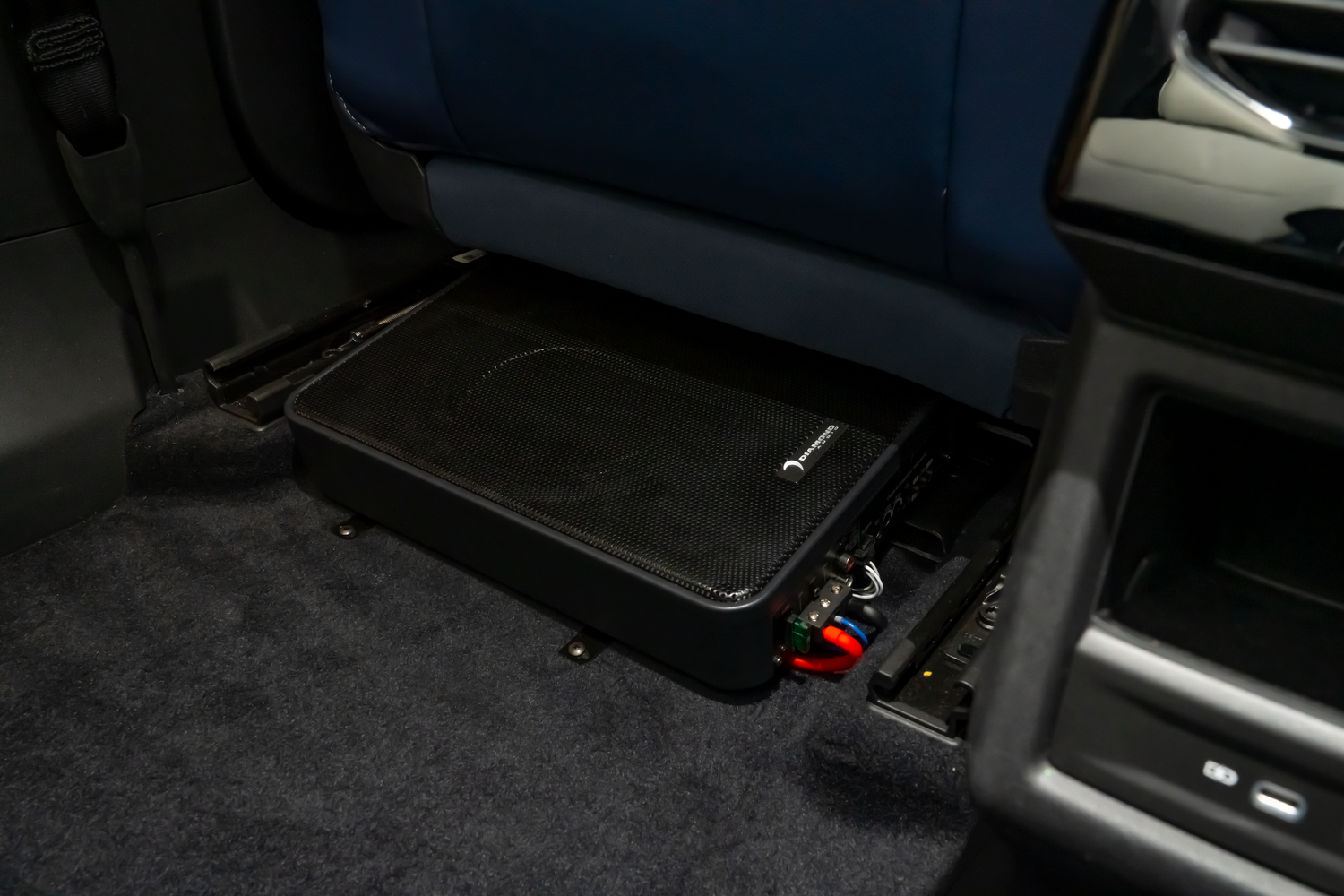

Q2: Can they be installed under a vehicle seat?
A: Yes. Their slim, compact design is specifically suited for under-seat and other space-limited installations.

Q3: Can they work with factory audio systems?
A: Yes. Select powered enclosures support high-level inputs and OEM integration, making them suitable for factory audio upgrades.

Q4: Do they include built-in amplification?
A: Some configurations are powered with a built-in amplifier, while passive options can be paired with an external amplifier.

Q5: Why choose Diamond Audio Underseat Enclosures?
A: They combine space-saving installation, controlled bass, convenient integration, and durable construction for modern vehicle audio upgrades.
