By Diamond Audio

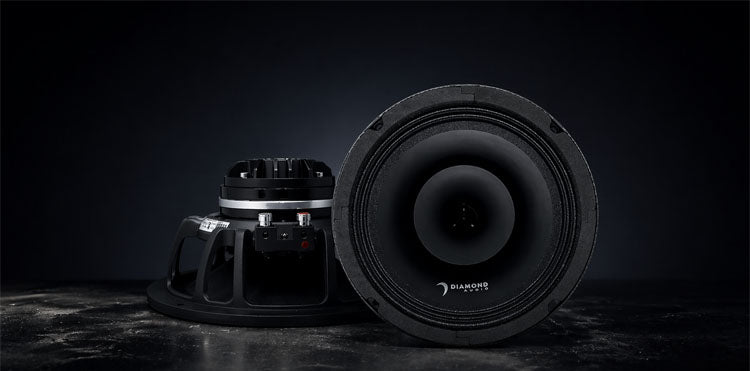

8" MP Series 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) - MP84

$549.99
$549.99
Brand: Diamond Audio
SKU: MP84

Unleash Extreme Audio Power!

Experience the ultimate high-output sound with Diamond Audio's MP Series. Engineered for maximum efficiency, these premium speakers utilize horn-style tweeters to effortlessly cut through wind and engine noise.

Built Tough for Any Adventure!

Crafted with heavy-duty cast aluminum baskets and replaceable tweeter diaphragms, the MP Series guarantees uncompromising durability. It’s the ultimate high-fidelity audio upgrade for your motorcycle, boat, or recreational vehicle.

MP Series 8" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω)

Discover the ultimate in audio performance with Diamond Audio’s MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles.

The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you’re on the water, the open road, or off the beaten path.

Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance.

Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure.

Whether you’re outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio’s MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you.

Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make – choose Diamond Audio for your next adventure!

Disclaimer

*** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***



Specifications

THIELE/SMALL PARAMETERS
Parameter
  • Power: 200W RMS/400W MAX
  • SPL(dB) MidBass: 95.2
  • SPL(dB) Tweeter: 107
  • Re(Ω): 3.2
  • Qms: 12.46
  • Qes: 0.42
  • Qts: 0.41
  • Fs(Hz): 69.43
  • Vas(L): 27.5
  • Cms(mm/N): 0.43
  • Mms(g): 12.3
  • Sd(cm²): 213.8
  • BL(T*M): 6.4
  • Xmax(mm): 1.0
  • Hi-pass Filter: 12dB 2nd Order Crossover
DIMENSIONS
  • Diameter: 8.31" (211mm)
  • Mounting Diameter: 7.09" (180mm)
  • Mounting Depth: 3.98" (101mm)
  • Total Depth: 4.25" (108mm)
  • Magnet Diameter: 4.06" (103mm)
FEATURES
  • NEO Magnet
  • Heavy Duty Steel Basket
  • Mid Driver: 2" Single Layer High Temp 4Ω Voice Coil
  • Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil
  • Frequency Response: 80Hz -18Khz
  • High Sensitivity 103dB 1W/1M
  • 12dB 2nd Order Filter Crossover

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Speakers

MP Speakers - Frequently Asked Questions

Q1: What are Diamond Audio MP Series speakers designed for?
A: They are designed for high-output audio on Harley Davidson® motorcycles, boats, UTVs, and recreational vehicles — applications where efficiency and loudness matter most.

Q2: What makes the MP Series so loud and efficient?
A: Each model is a 2-way full-range coaxial design with a 1" horn style tweeter. The horn projects sound farther and delivers high-decibel output while drawing minimal power from your amplifier.

Q3: Which size and impedance should I choose?
A: The series covers 6.5" (MP654 4Ω, MP652 2Ω), 6"x9" (MP694 4Ω, MP692 2Ω), and 8" (MP84 4Ω). Match the impedance to your amplifier — 2Ω models pull more power from the same amp, while 4Ω models suit standard multi-channel setups.

Q4: Are they waterproof?
A: They are water resistant, not waterproof. They handle rain and spray on the road or the water, but large amounts of water can damage them.

Q5: What happens if the tweeter wears out?
A: Every MP Series speaker uses a replaceable tweeter diaphragm. The MPRD replacement diaphragm fits MP652, MP654, MP692, MP694, MP82, MP84, and MP525, so you can restore high-frequency performance without replacing the entire speaker.

Q6: Why choose MP Series speakers?
A: They combine horn-loaded efficiency, a high-end cast basket, serviceable tweeter diaphragms, and Diamond Audio sound quality built to survive marine, motorcycle, and powersports environments.
