HXP124 - HEX Pro 12" 4Ω Dual Voice Coil Subwoofer 900W RMS

Weight: 0.0 lb
$929.99
$929.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: HXP124
HXP124 - HEX Pro 12" 4Ω Dual Voice Coil Subwoofer 900W RMS - HXP124 - Diamond Audio
$929.99
$929.99

Diamond Audio HEX Pro Series

The ultimate choice for audiophiles who demand unmatched sound quality and power.

Top-of-the-line features and user-friendly controls

Seamlessly blending advanced technology with convenience

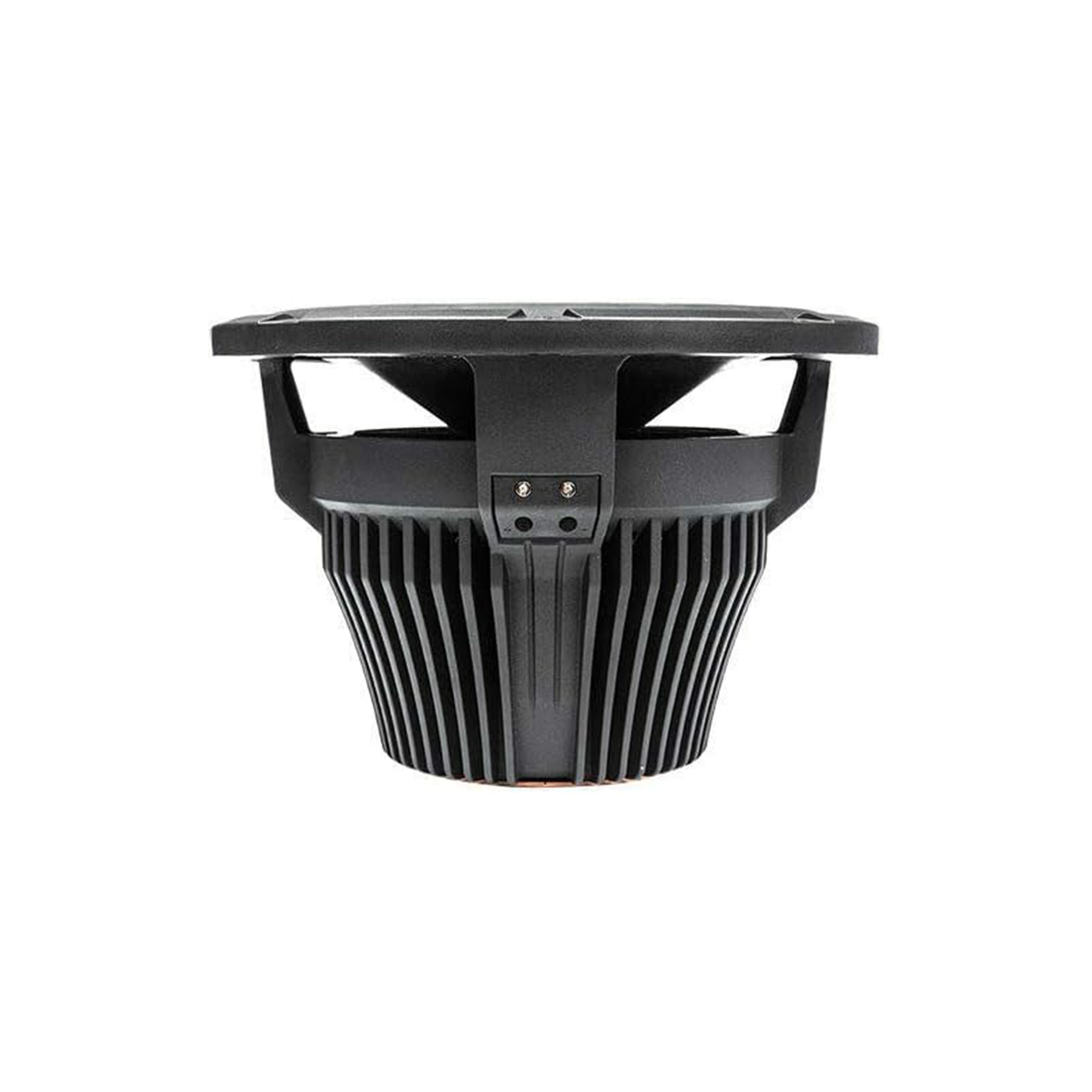

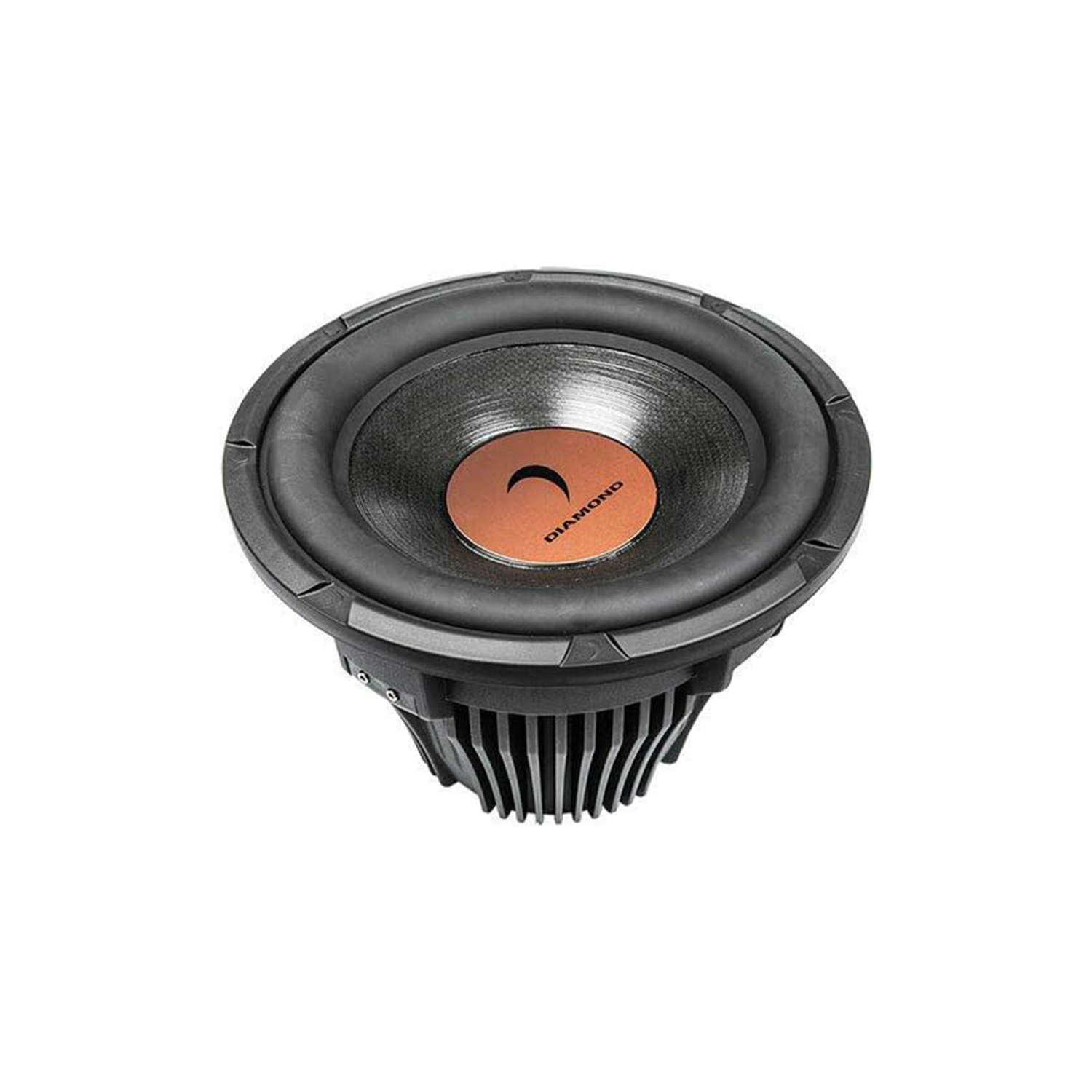

HXP124 -HEX Pro 12" 4 Ω Dual Voice Coil Subwoofer

 The HXP124 HEX PRO Series 12-inch subwoofer from Diamond Audio is engineered for enthusiasts and professionals who demand uncompromising bass performance, extreme durability, and precision sound control. Built as part of Diamond Audio’s flagship HEX PRO lineup, the HXP124 delivers competition-level output with advanced thermal management and musical accuracy.

At the core of the HXP124 is Diamond Audio’s patented TDX™ (Thermal Dyne Extreme) Technology, where the motor structure is seamlessly integrated into a rigid cast aluminum frame. This innovative design maximizes heat dissipation, allowing the subwoofer to play louder for longer at high SPL levels while reducing power compression and extending component life.

Featuring nearly 3 inches of linear excursion, the HEX PRO Series subwoofers are capable of producing massive low-frequency output while maintaining tight control and clarity. This high-excursion design enables deeper bass extension and a broader low-frequency range, delivering bass that is both aggressive and musical.

With a dual 4-ohm voice coil configuration for flexible wiring options, the HXP124 is ideal for high-performance car audio systems seeking extreme bass, reliability, and long-term performance. Experience bass engineered to dominate.



Specifications

TDX Technology ( Thermal Dyne eXtreme )
∙ Proprietary Composite Hex Cone Technology
∙ Nitrile Butadine Rubber ( NBR ) Surround
∙ Dual Progressive Poly-Aramid Composite Fiber Spider
∙ Integrated Radial Venting
∙ Aluminum Dust Cap
∙ Ultra-high Energy Neodymium Magnet Structure
∙ Vented Pole Piece
∙ 3” ( HXP10 ), 3 ½ “ ( HXP12 ), and 4” ( HXP15 ) Voice Coils
∙ Dual 4 or 2 ohm Voice Coils

FEATURES

  • Impedance: 4Ω
  • Power: 900W RMS/1800W MAX
  • Dual Voice Coil
  • Mounting Diameter: 11.1" (282mm)
  • Mounting Depth: 8" (203mm)
  • Magnet Diameter: 6.5” (165mm)
  • Displacement: 0.15 ft (4.24 liter)

THIELE/SMALL PARAMETERS

  • SPL (dB) @2.83v: 83.2
  • Z(Ω) (series): 8
  • Re (Ω) (series): 6.00
  • Qms: 2.8
  • Qes: 0.55
  • Qts: 0.46
  • Fs (Hz): 24.0
  • Vas (liters): 43.5
  • Sd (cm2): 487
  • BL (T*M): 24.0
  • Xmax (mm): 19
  • Pwr (W) nom/max: 900/1800
RECOMMENDED ENCLOSURES:

Sealed

  • Optimum Vb(ft): 0.75
  • F3(Hz): 39
  • Qtc: 0.71
  • Pe(W): 900
  • Large Vb(ft): 1.5
  • F3(Hz): 40
  • Qtc: 0.59
  • Pe(W): 800

Vented:

  • All Around: Vb(ft): 1.75
  • Fb/F3(Hz): 33/27
  • Port (Diameter X Length): 4”X16”
  • Pe(W): 900

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Motor vehicle subwoofers
