By Diamond Audio

98 - 13 Harley Davidson® Road Glide 4-Speaker System - DA9813RGTP1R

$2,499.99
$2,499.99
Brand: Diamond Audio
SKU: DA9813RGTP1R

Revitalize Your Legend: 1998-2013 Road Glide Tour Pack High-Performance Audio

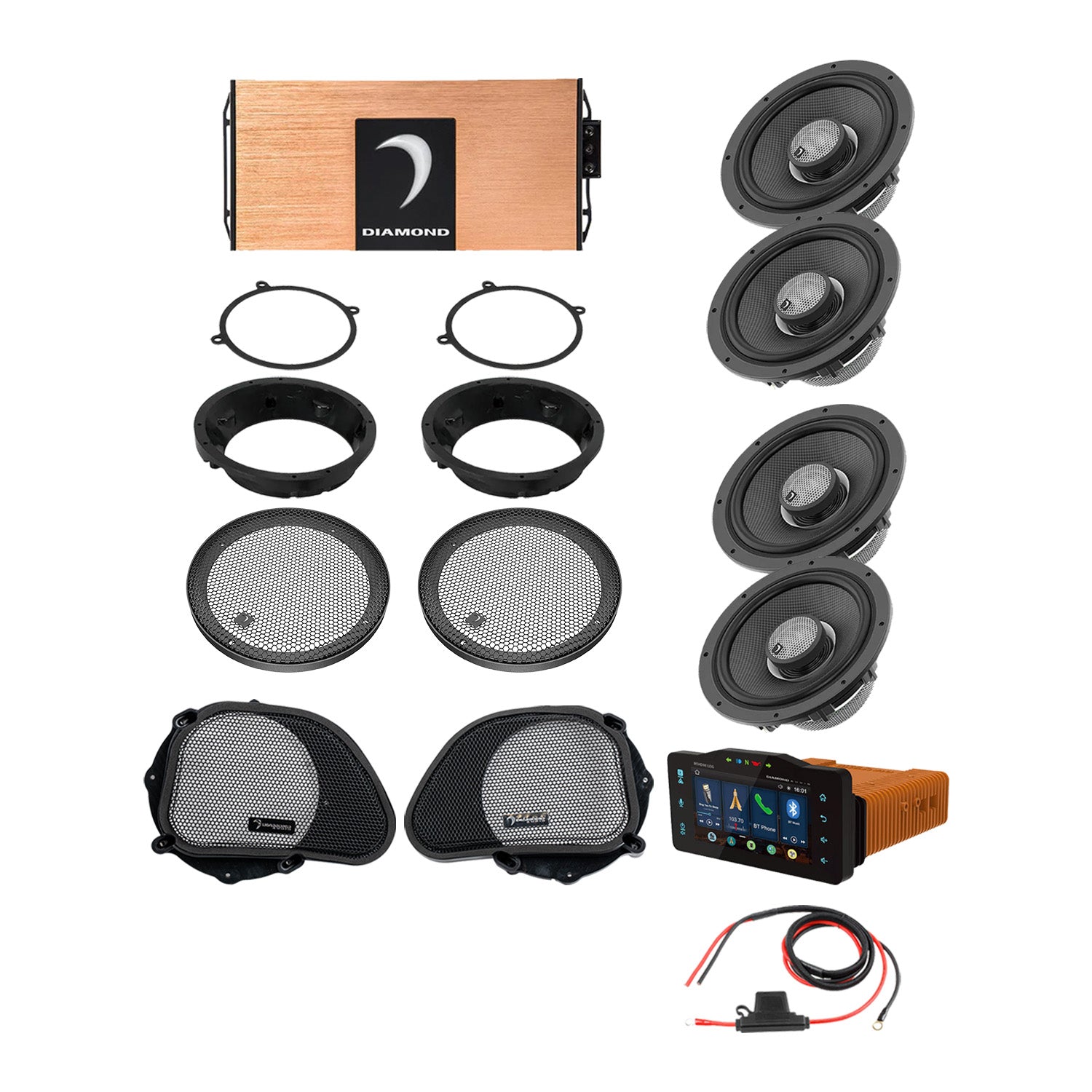

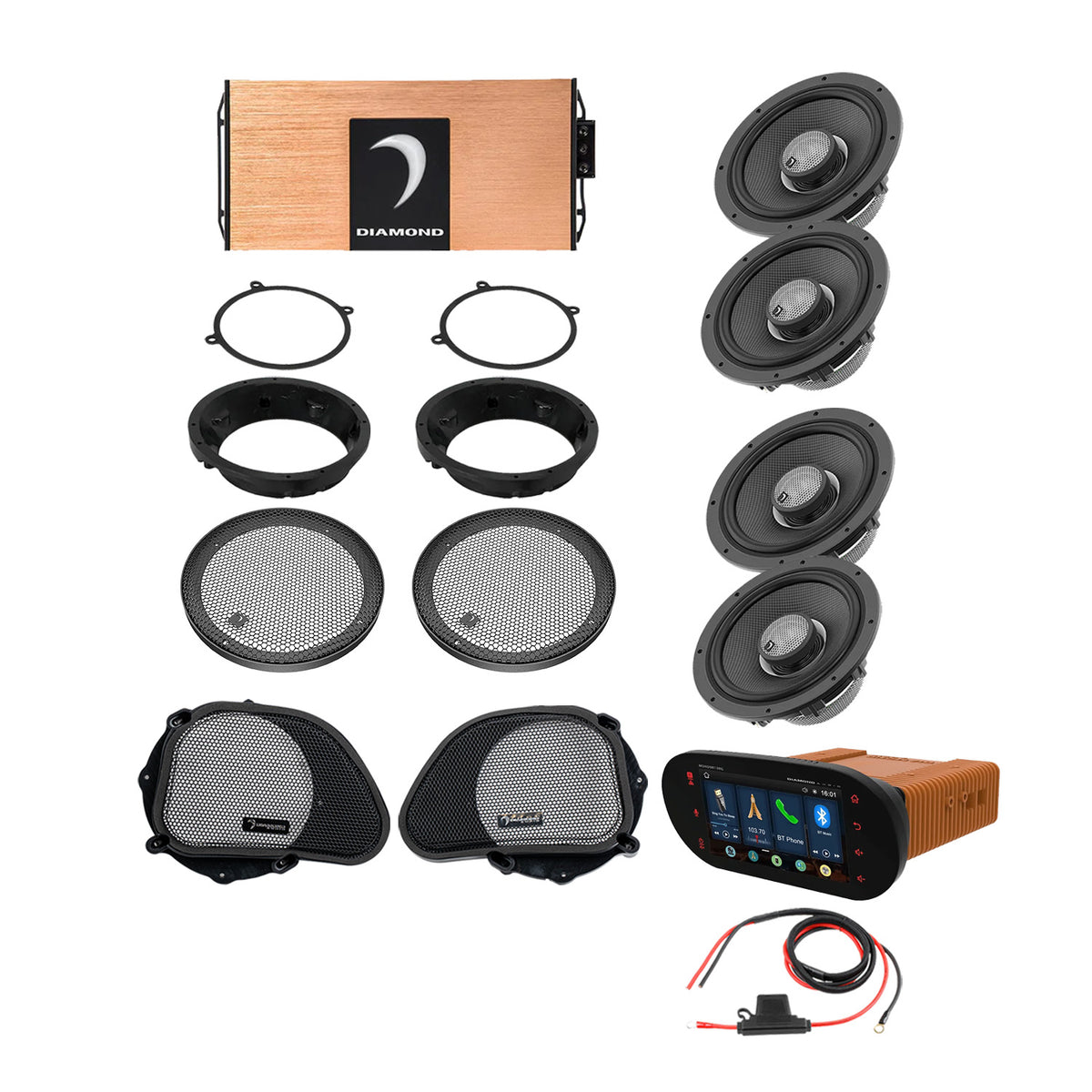

Introducing the Diamond Audio DA9813RGTP1R , the definitive flagship 4-speaker sound pack purpose-built for 1998–2013 Harley-Davidson Road Glide models equipped with a Tour Pack. This comprehensive "R-Series" system is the ultimate solution for elite riders seeking a total source-to-speaker revolution—merging high-definition digital media control with an immersive, 360-degree acoustic stage that remains crystal-clear even at triple-digit speeds.

The command center is the MSHD9813RG Plug-N-Play Digital Media Receiver , replacing the aging factory head unit to provide a high-voltage digital signal path, modern smartphone connectivity, and a full-color interface. The acoustic foundation features two pairs of our brand-new Motorsports HXM Black Series  speakers. Re-engineered with cutting-edge carbon fiber cones  and oversized high-output tweeters, these drivers deliver louder, cleaner, and more detailed sound—essential for cutting through wind and engine noise. To ensure a flawless fit, the kit includes DHDMCA adapter rings  for the fairing and 1/2" spacers  for the rear Tour Pack pods. Providing the muscle is the MICRO4V2 Series 4-Channel Class D amplifier , delivering the efficiency and dynamic headroom needed for crystal-clean loudness across the entire bike.

The DA9813RGTP1R  ensures total system integrity through the MSPWHR OFC Power Harness , utilizing 100% Oxygen-Free Copper. Finished with custom DHDRG13 fairing grilles  (Diamond Logo) and DHDRGU rear grills , this system ensures the cleanest signal path, flawless factory integration, and the ultimate high-performance audio experience for the modern rider on a classic machine.

  • Complete Source Overhaul:  Includes the MSHD9813RG head unit for full digital media control and superior signal processing over the obsolete OEM radio.
  • Full-Stage 4-Speaker Immersive Audio:  Complete upgrade for both the Sharknose fairing and rear Tour Pack pods for a total surround experience.
  • High-Velocity Carbon Fiber Definition:  Advanced cone technology ensures musical integrity and surgical detail even against aggressive environmental noise.
  • Pure Signal Path:  100% Oxygen-Free Copper (OFC) wiring and direct digital integration eliminate signal degradation and maximize amplifier efficiency.


Specifications

Core Components

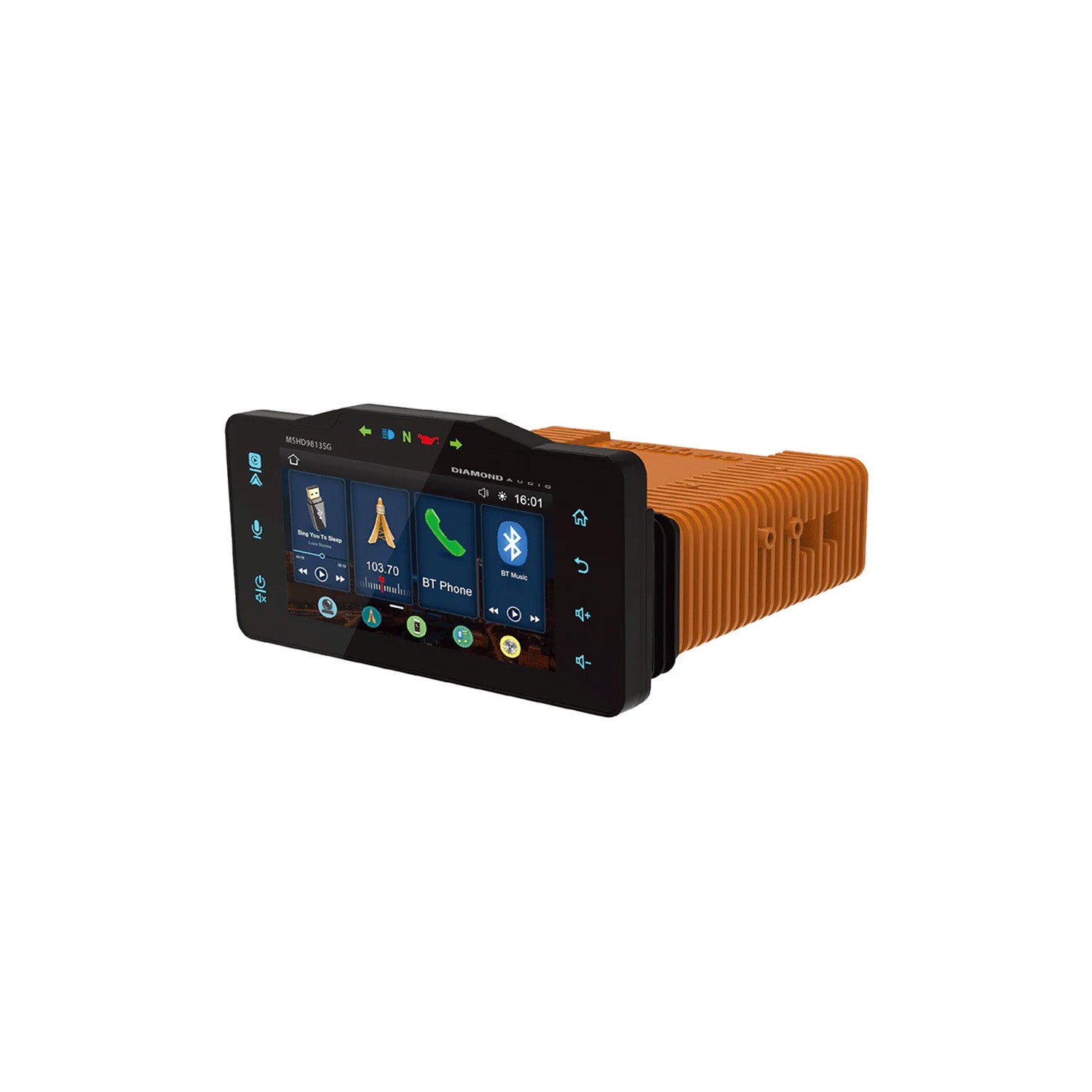

  • MSHD9813RG Receiver: 1998-2013 Harley-Davidson® Road Glide Plug-N-Play Digital Media Receiver.
  • MICRO4V2 Amplifier: MICROV2 Series 4-Channel Full Range Class D high-efficiency power plant.

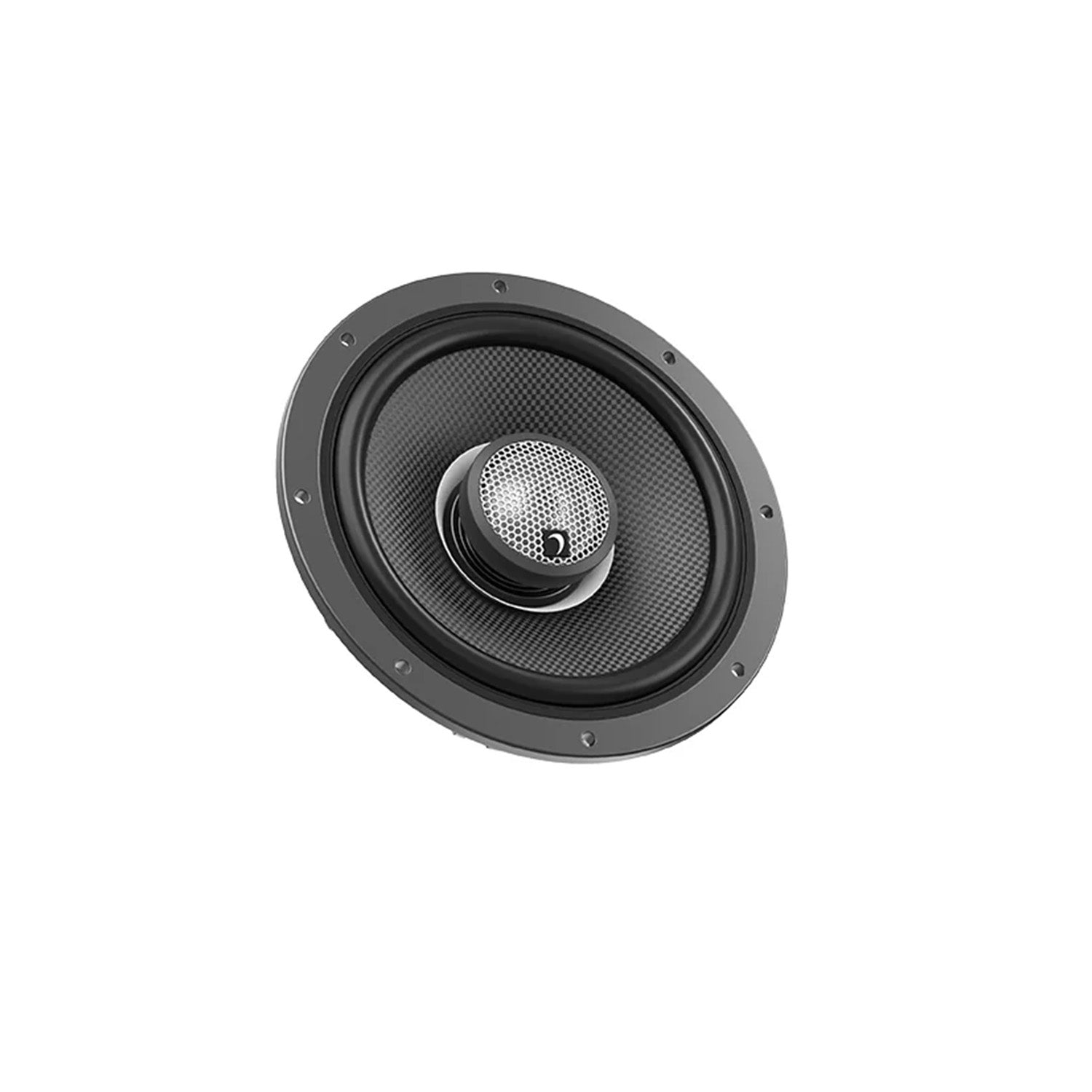

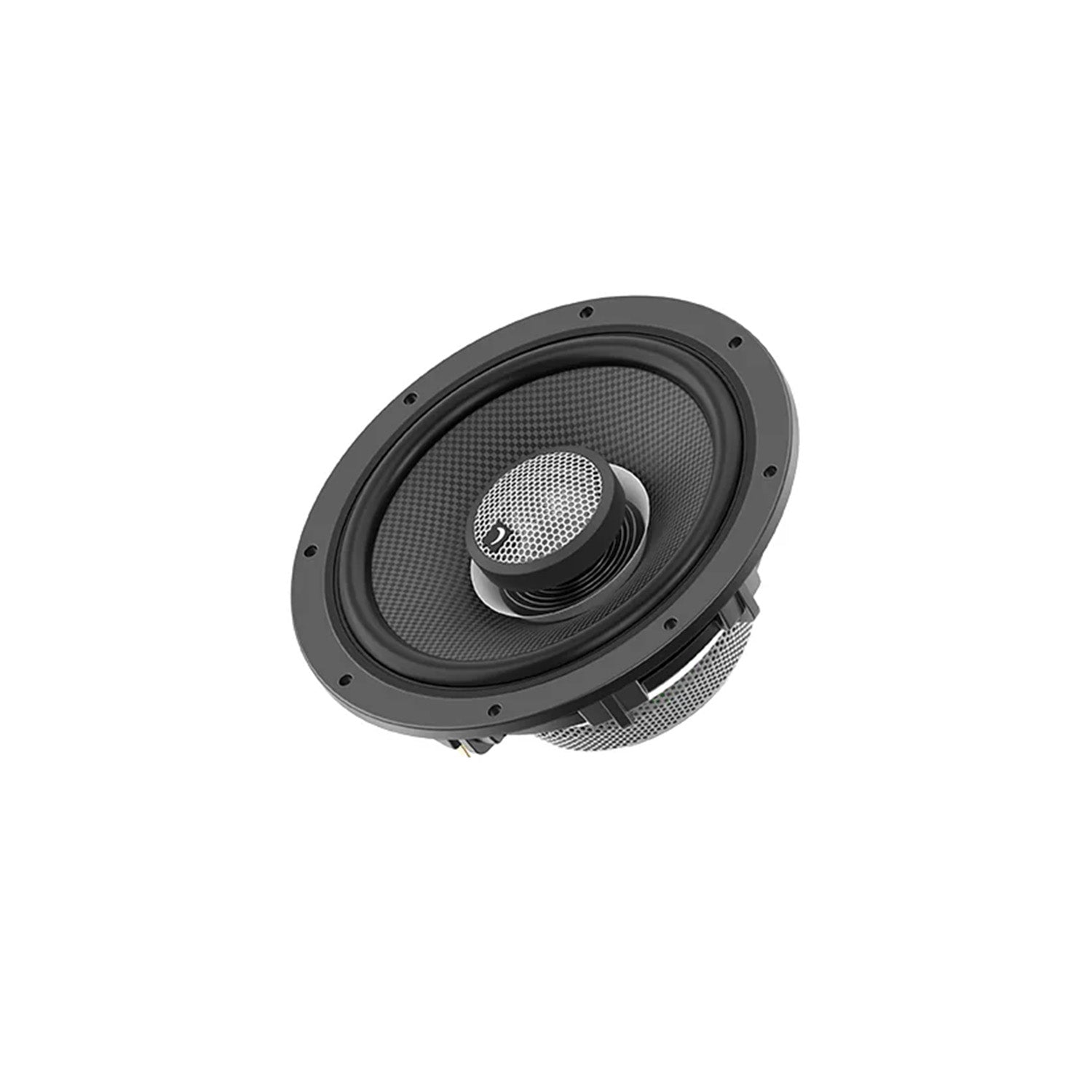

  • HXM65F2BK Speakers (x2 Pairs): Four 6.5" High-Performance Marine Coaxial (Black Series) 125W RMS (2Ω).

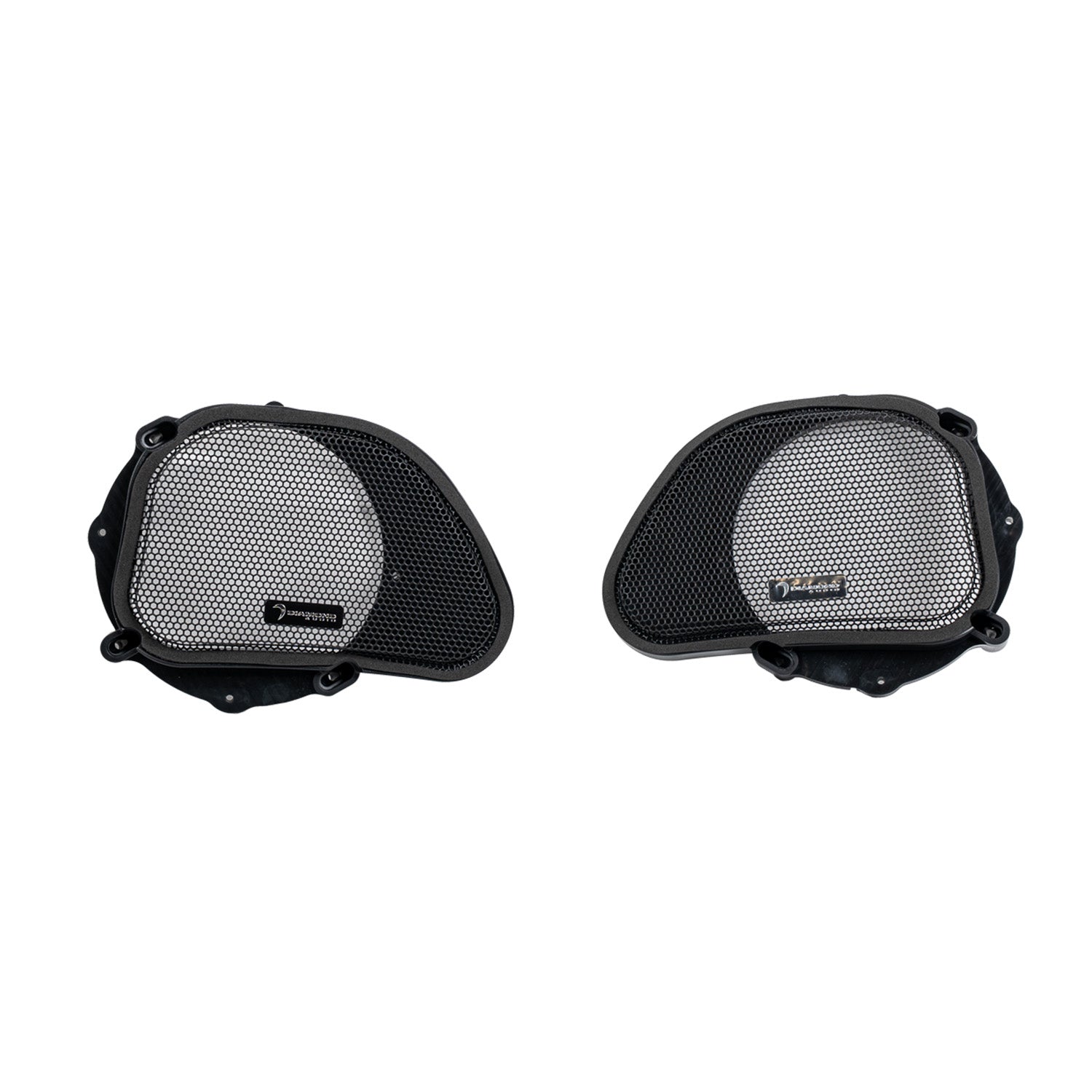

  • DHDRG13 Fairing Grilles: 1998-2013 Road Glide Replacement Fairing Grills with Diamond Logo.

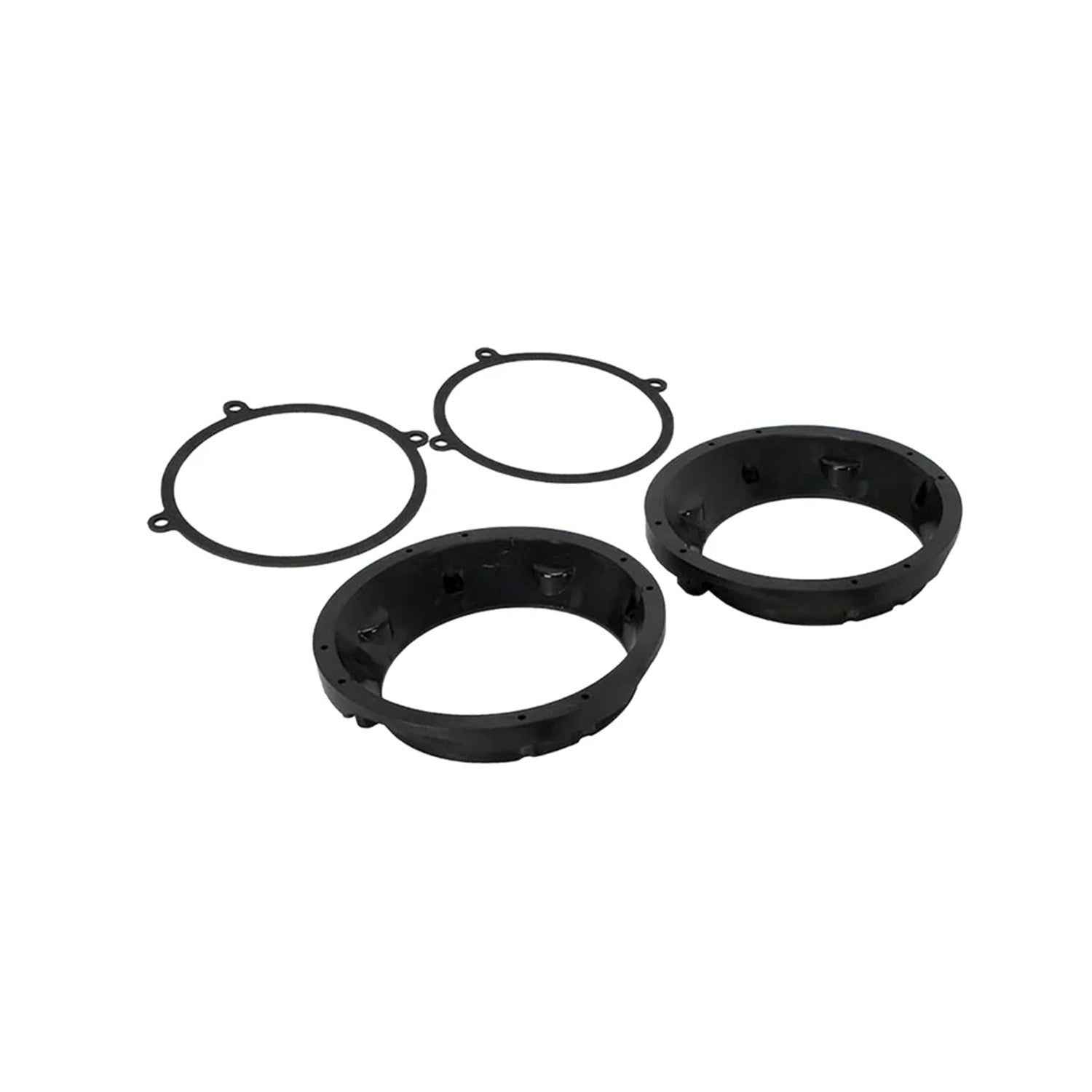

  • DHDMCA Adapter Rings: Harley-Davidson® Speaker Adapter Ring Kit (5.25" to 6.5" conversion).

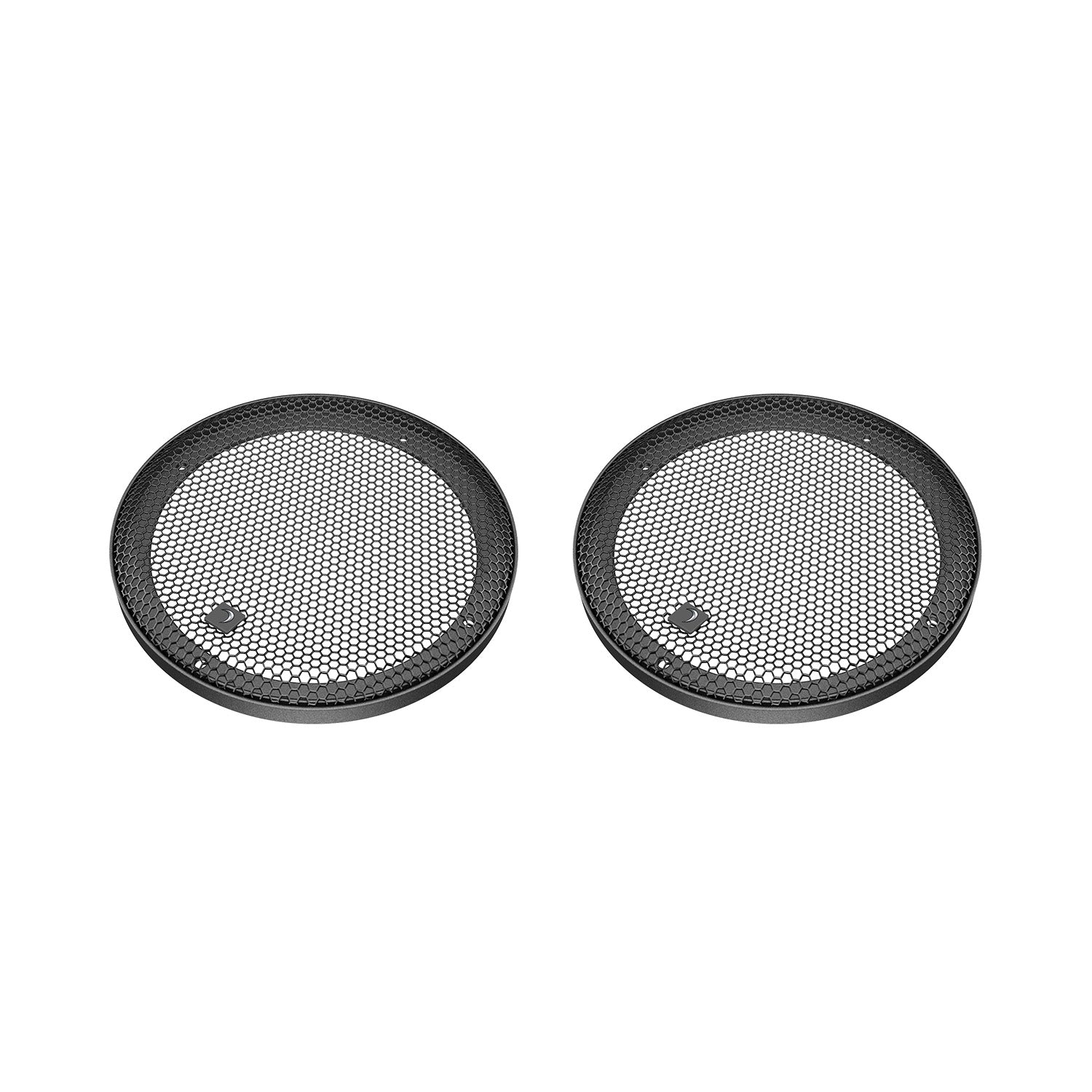

  • DHDRGU Pod Grilles: 2014-2023 Style Universal Speaker Grills (Adapted for Tour Pack pods).
  • MSPWHR Harness: MOTORSPORT Power/Ground Remote Harness Kit (100% OFC).
  • Hardware: Includes 1/2" Tour Pack spacers for precision rear speaker fitment.

Technical Performance

  • Source Connectivity: Full Digital Media Integration with high-voltage pre-amp outputs and smartphone mirroring.
  • Total System Power: High-efficiency 4-channel configuration optimized for balanced front/rear SPL and maximum clarity.
  • Driver Technology: Motorsports HXM Black Series featuring high-modulus Carbon Fiber cones for superior rigidity and transient response.
  • System Impedance: 2Ω (Optimized for maximum amplifier current delivery and efficiency).
  • Amplifier Topology: High-efficiency Class D Full Range with advanced thermal management.
  • Environmental Protection: IP65 Certified waterproof and UV-resistant motor assemblies.
  • Wiring Grade: 100% Oxygen-Free Copper (OFC) for zero signal loss and maximum conductivity.

Compatibility

  • Platform: 1998–2013 Harley-Davidson Road Glide / Ultra / CVO (FLTR / FLTRU / FLTRX).
  • Fairing Fitment: Includes required adapter rings for seamless 5.25" to 6.5" conversion.
  • Tour Pack Fitment: Includes required 1/2" spacers to accommodate high-performance motor structures in rear pods.
  • Controls: Retains factory handlebar control functionality via the MSHD9813RG interface.
