By Diamond Audio

98 - 13 Harley Davidson® Street Glide 4-Speaker System - DA9813SGSP4R

Regular price $3,109.99
Regular price Sale price $3,109.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DA9813SGSP4R
Regular price $3,109.99
Regular price Sale price $3,109.99

Revitalize Your Legend: 1998-2013 Street Glide High-Output Audio Evolution

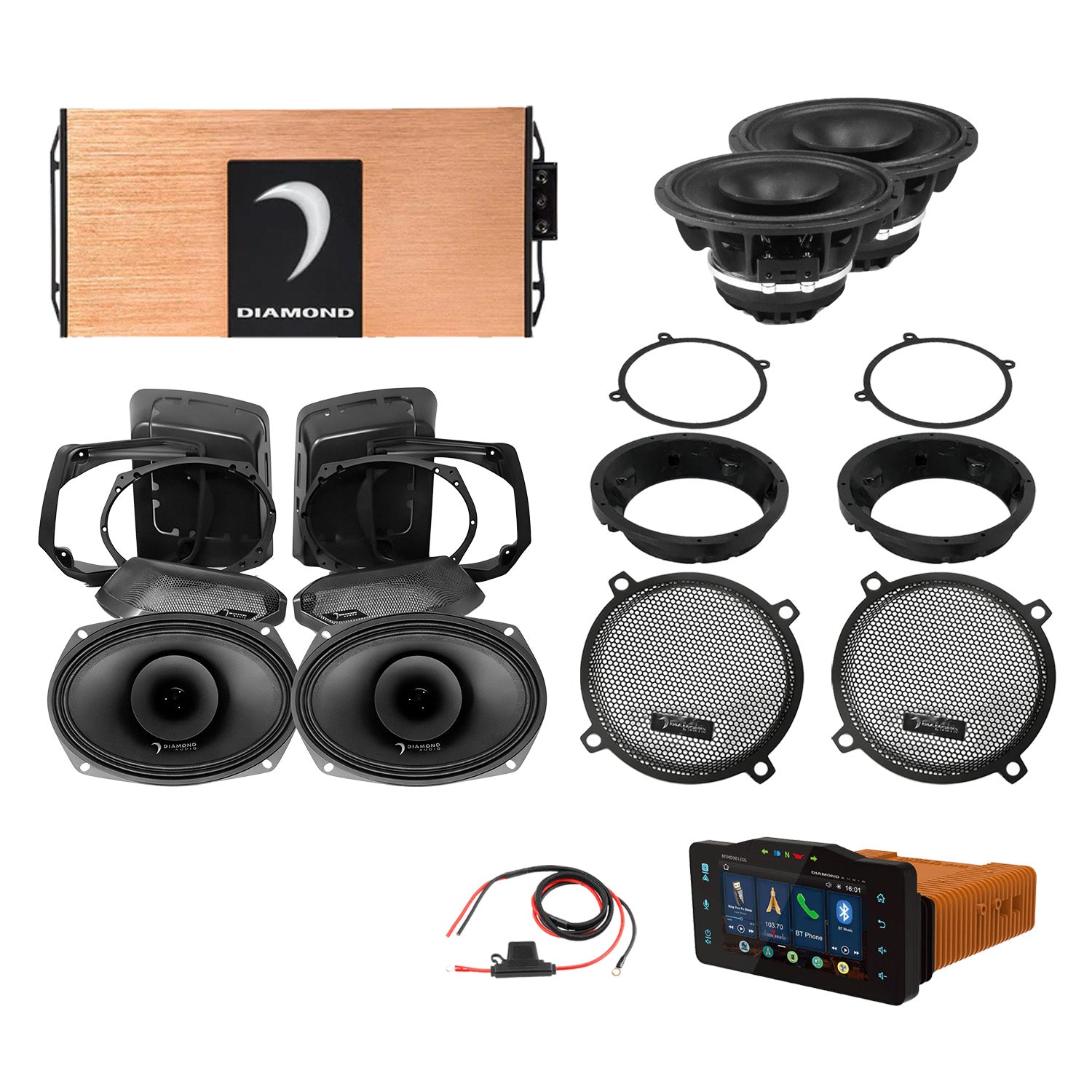

Introducing the Diamond Audio DA9813SGSP4R , the definitive flagship 4-speaker sound pack purpose-built for 1998–2013 Harley-Davidson Street Glide models. This comprehensive system is the ultimate solution for elite riders seeking a total source-to-speaker revolution—merging high-definition digital media control with an extreme-output acoustic stage that dominates the open road.

The command center is the MSHD9813SG Plug-N-Play Digital Media Receiver , replacing the aging factory head unit to provide a high-voltage digital signal path, modern smartphone connectivity, and a full-color interface. The acoustic powerhouse features our pro-audio MP Series speakers  in a complete 4-speaker configuration. Equipped with powerful integrated compression tweeters , these drivers are engineered for extreme projection and surgical detail—specifically designed to cut through intense wind and exhaust noise at high speeds. To bridge the gap between classic design and modern power, the kit includes DHDMCA adapter rings  for the fairing and the MSMP692LK13 Cut-In Lid Kit  for the saddlebags. Providing the muscle is the MICRO4V2 Series 4-Channel Class D amplifier , delivering the efficiency and dynamic headroom needed for crystal-clean loudness across the entire bike.

The DA9813SGSP4R  ensures total system integrity through the MSPWHR OFC Power Harness  and specialized '98-'13 Street Glide software . Finished with custom DHDSG13 fairing grilles , this system ensures the cleanest signal path, flawless factory integration, and the ultimate high-performance audio experience for the legendary Street Glide.

  • Complete Source Overhaul:  Features the MSHD9813SG head unit for full digital media control and superior signal processing over the obsolete OEM radio.
  • Extreme 4-Speaker Projection:  Full Fairing and Saddlebag upgrade utilizing MP Series compression drivers for maximum SPL and long-range throw.
  • Pro-Audio Highway Performance:  Engineered to maintain absolute musical integrity and massive volume at 80+ MPH against aggressive environmental noise.
  • Pure Signal Path:  100% Oxygen-Free Copper (OFC) wiring and direct digital integration eliminate signal degradation and maximize amplifier efficiency.


Specifications

Core Components

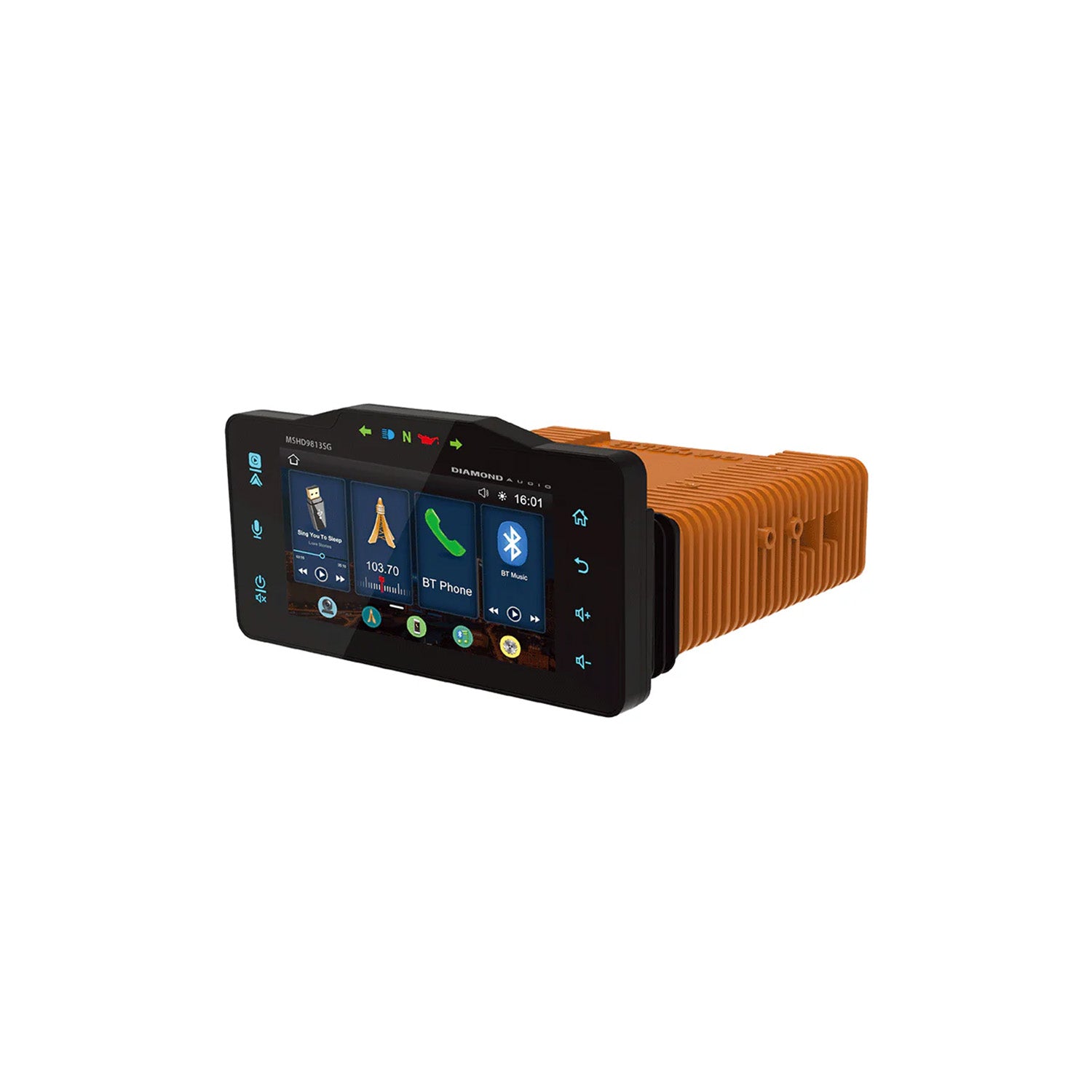

  • MSHD9813SG Receiver: 1998-2013 Harley-Davidson® Plug-N-Play Digital Media Receiver.
  • MICRO4V2 Amplifier: MICROV2 Series 4-Channel Full Range Class D high-efficiency power plant.

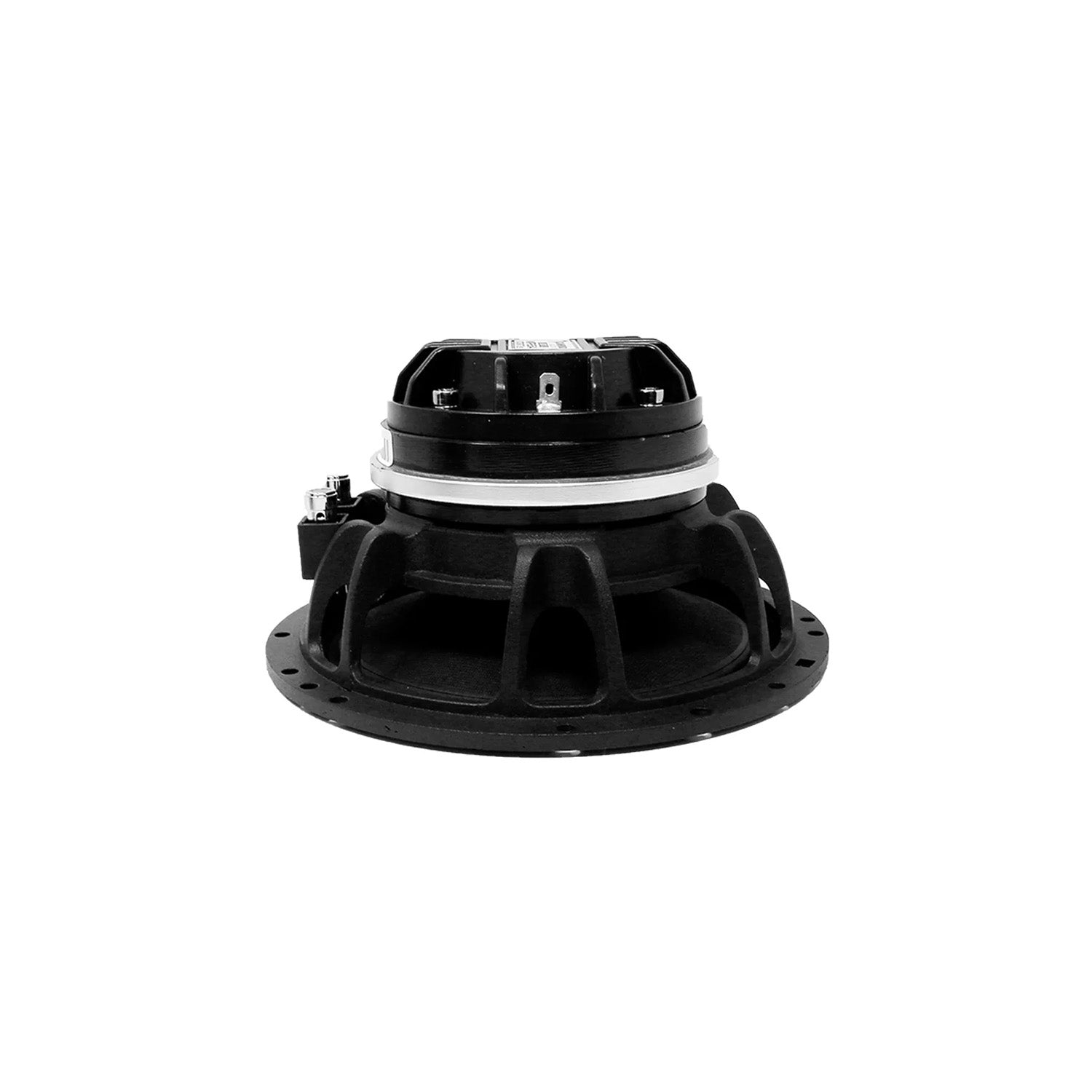

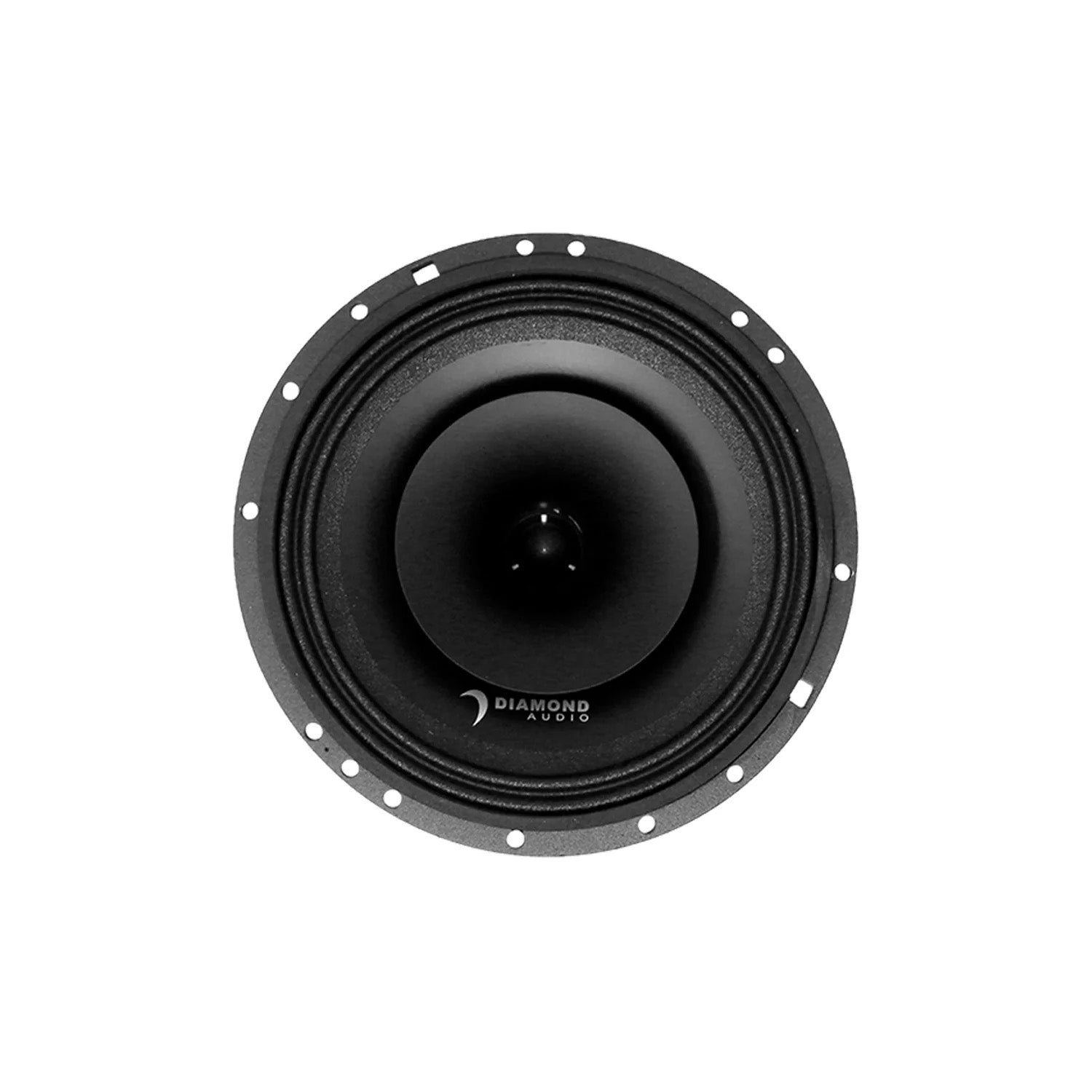

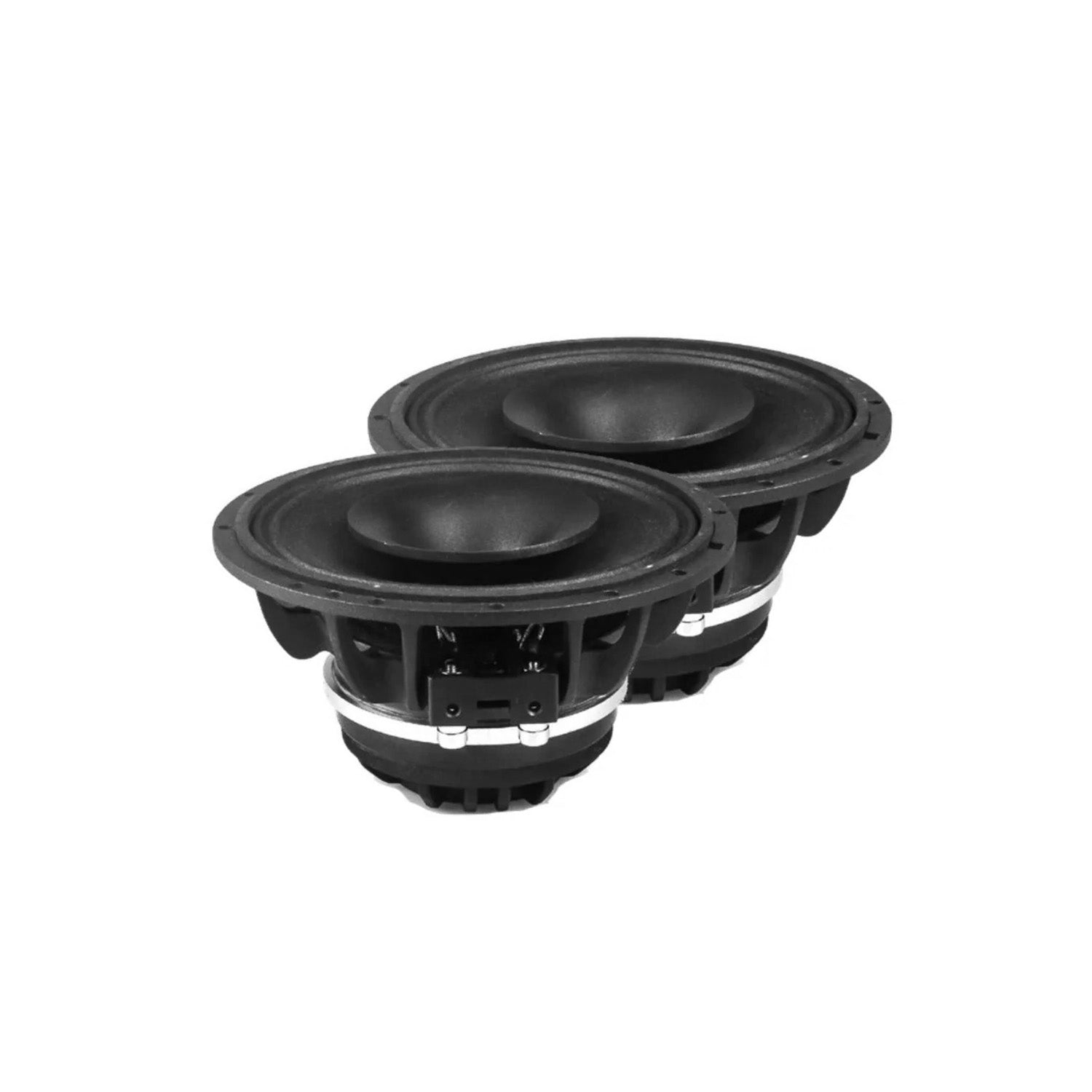

  • MP652 Speakers (Fairing): 6.5” 2-Way Full-Range Coaxial Speakers with Compression Tweeters (250W RMS / 2Ω).

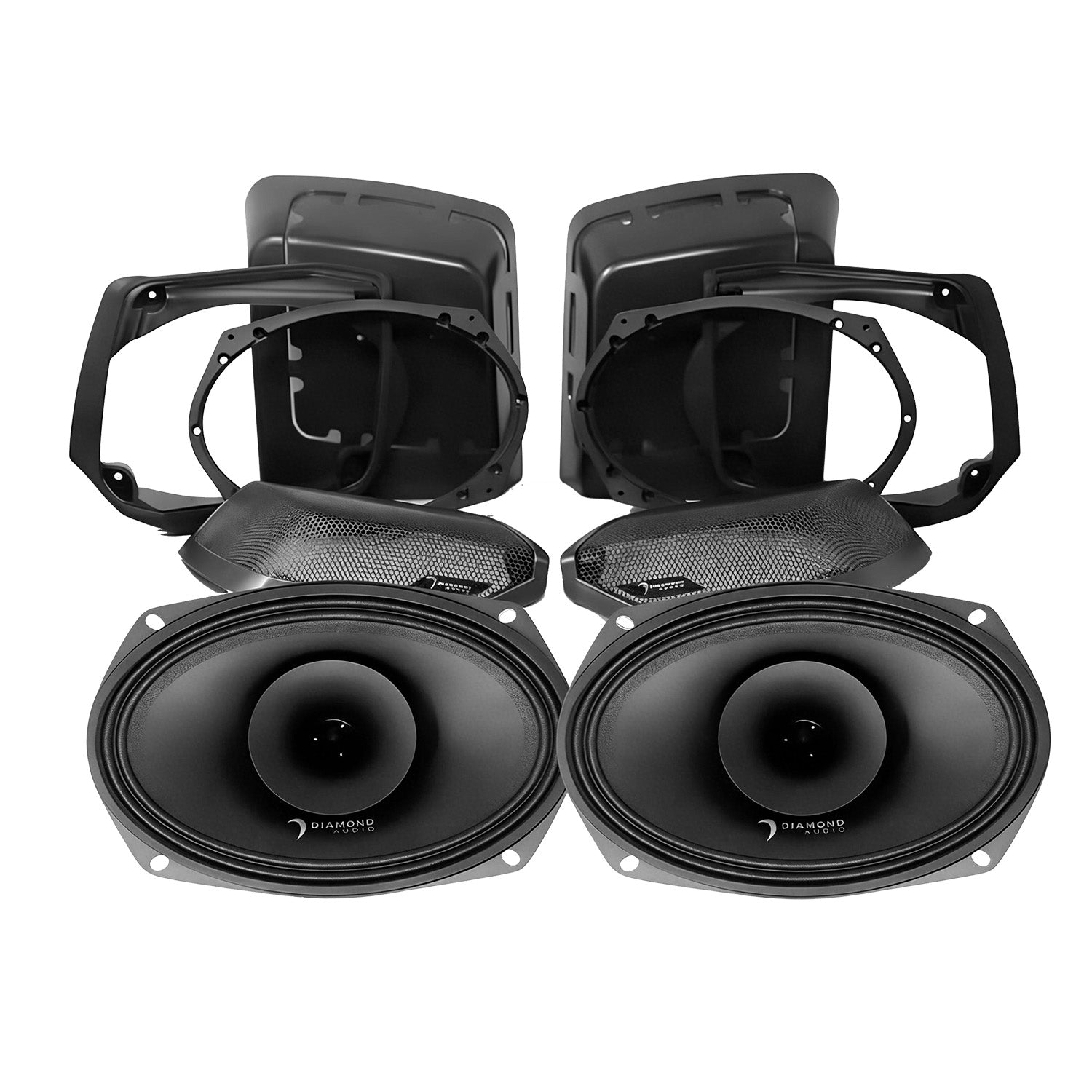

  • MSMP692LK13 (Lid Kit): 1998-2013 Harley Cut-In Lid Kit with MP692 6x9” Compression Coaxial Speakers.

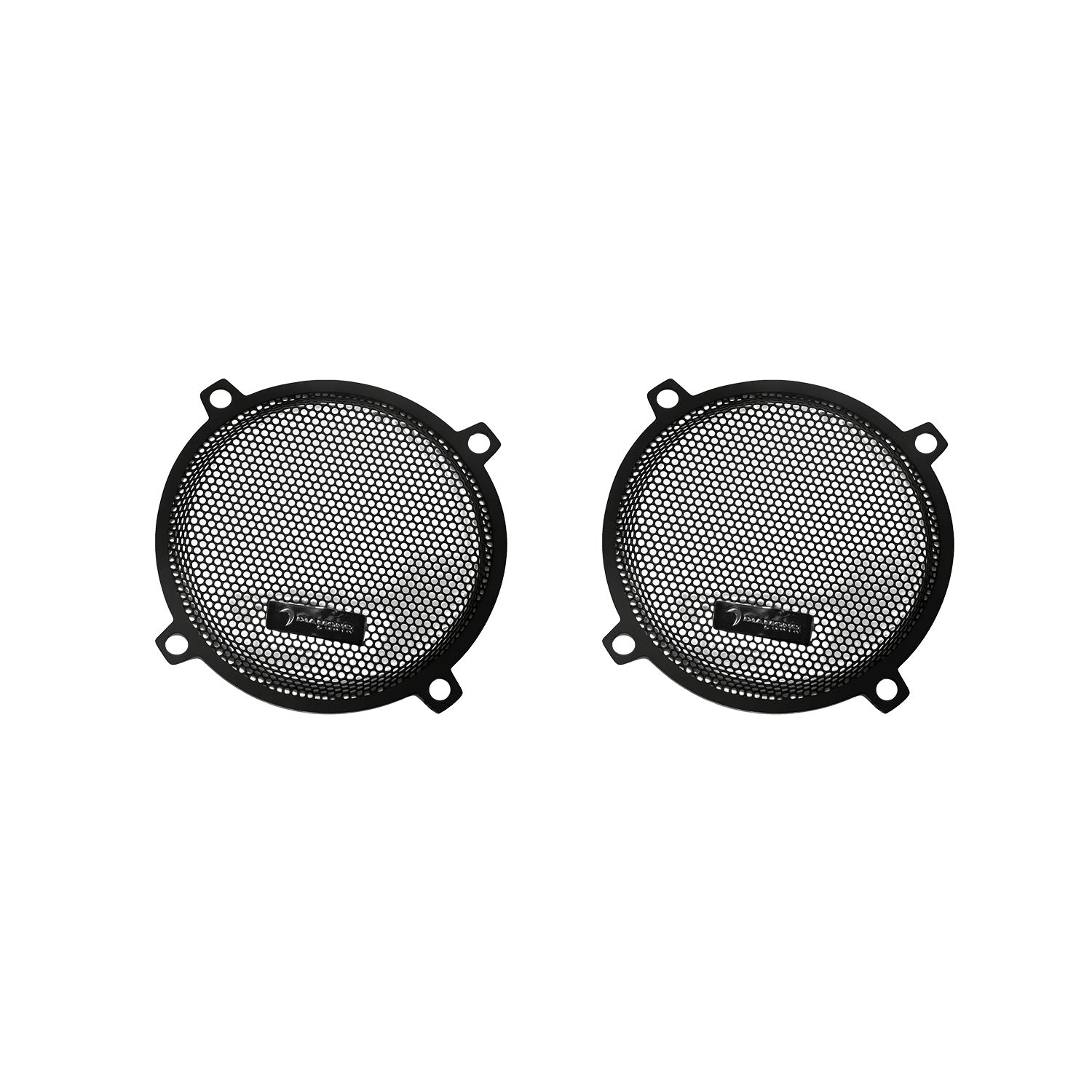

  • DHDSG13 Fairing Grilles: Custom Harley-Davidson® Street Glide Replacement Fairing Grills (Pair).

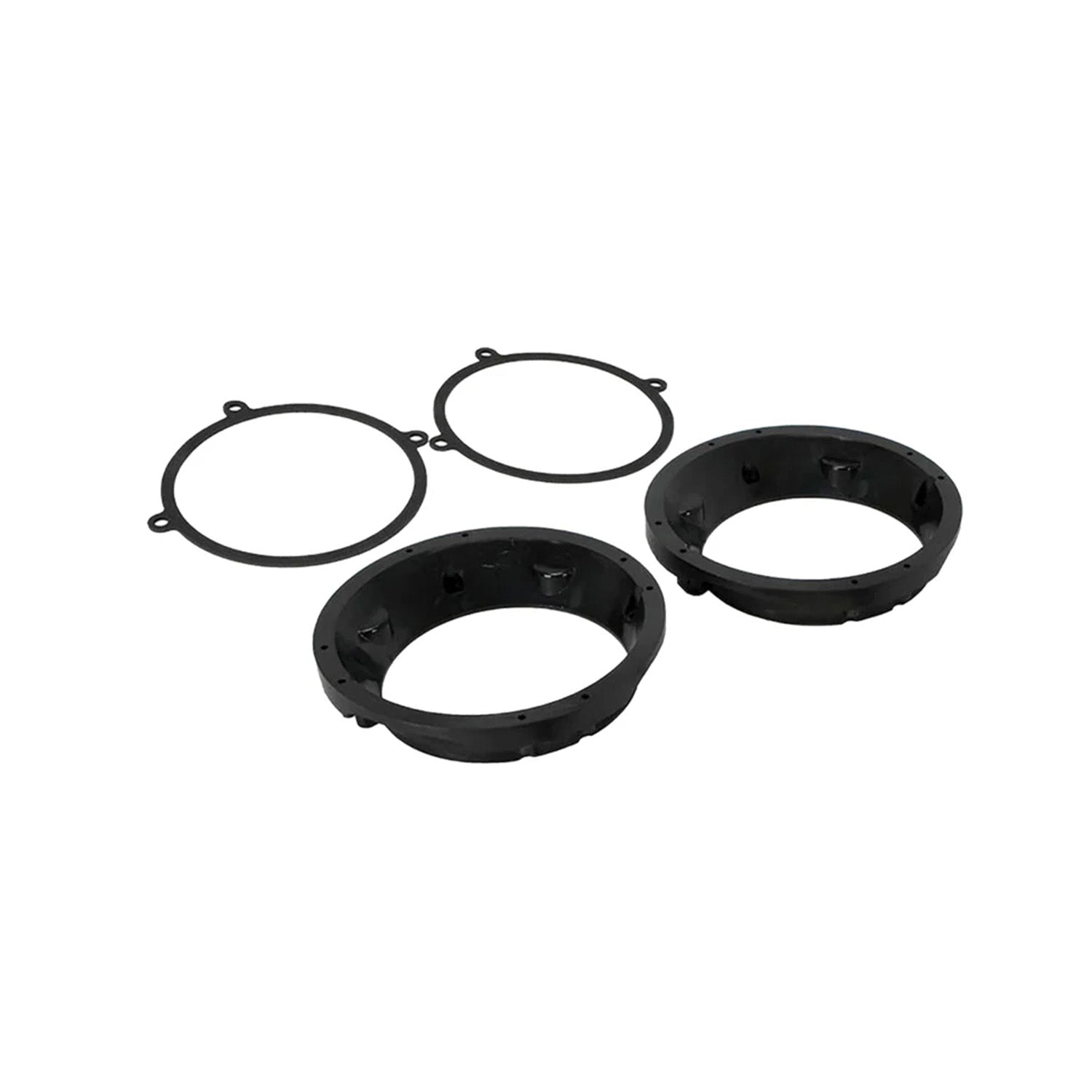

  • DHDMCA Adapter Rings: Harley-Davidson® Speaker Adapter Ring Kit (5.25" to 6.5" conversion).
  • MSPWHR Harness: MOTORSPORT Power/Ground Remote Harness Kit (100% OFC).
  • Integration Software: '98-'13 HD Street Glide specific digital integration software.

Technical Performance

  • Source Connectivity: Full Digital Media Integration with high-voltage pre-amp outputs and smartphone mirroring.
  • Total Power Handling: High-output 4-channel configuration optimized for 250W RMS per channel.
  • Tweeter Technology: Integrated High-Output Compression Drivers for extreme long-range projection.
  • System Impedance: 2Ω (Optimized for maximum amplifier current delivery and SPL).
  • Amplifier Topology: High-efficiency Class D Full Range with advanced thermal management.
  • Environmental Protection: IP65 Certified waterproof and UV-resistant motor assemblies.
  • Wiring Grade: 100% Oxygen-Free Copper (OFC) for zero signal loss and maximum conductivity.

Compatibility

  • Platform: 1998–2013 Harley-Davidson Street Glide (FLHX).
  • Fairing Fitment: Includes required adapter rings for 5.25" to 6.5" factory location upgrade.
  • Saddlebag Fitment: Precision cut-in lid kit for 1998-2013 factory saddlebags.
  • Controls: Retains factory handlebar control functionality via the MSHD9813SG interface.
  • Integration: Software-optimized for the unique acoustic environment of the classic Batwing fairing.
