By Diamond Audio

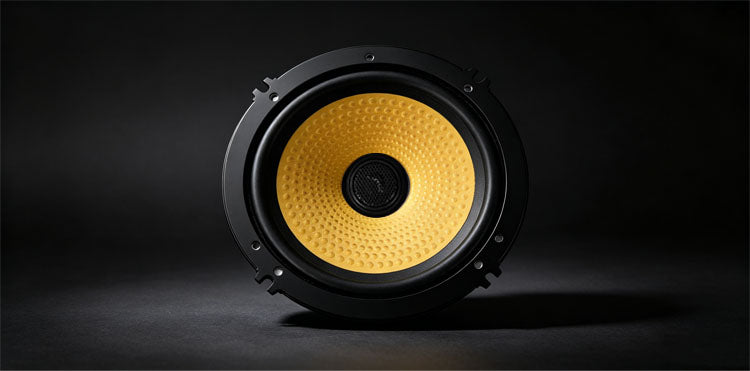

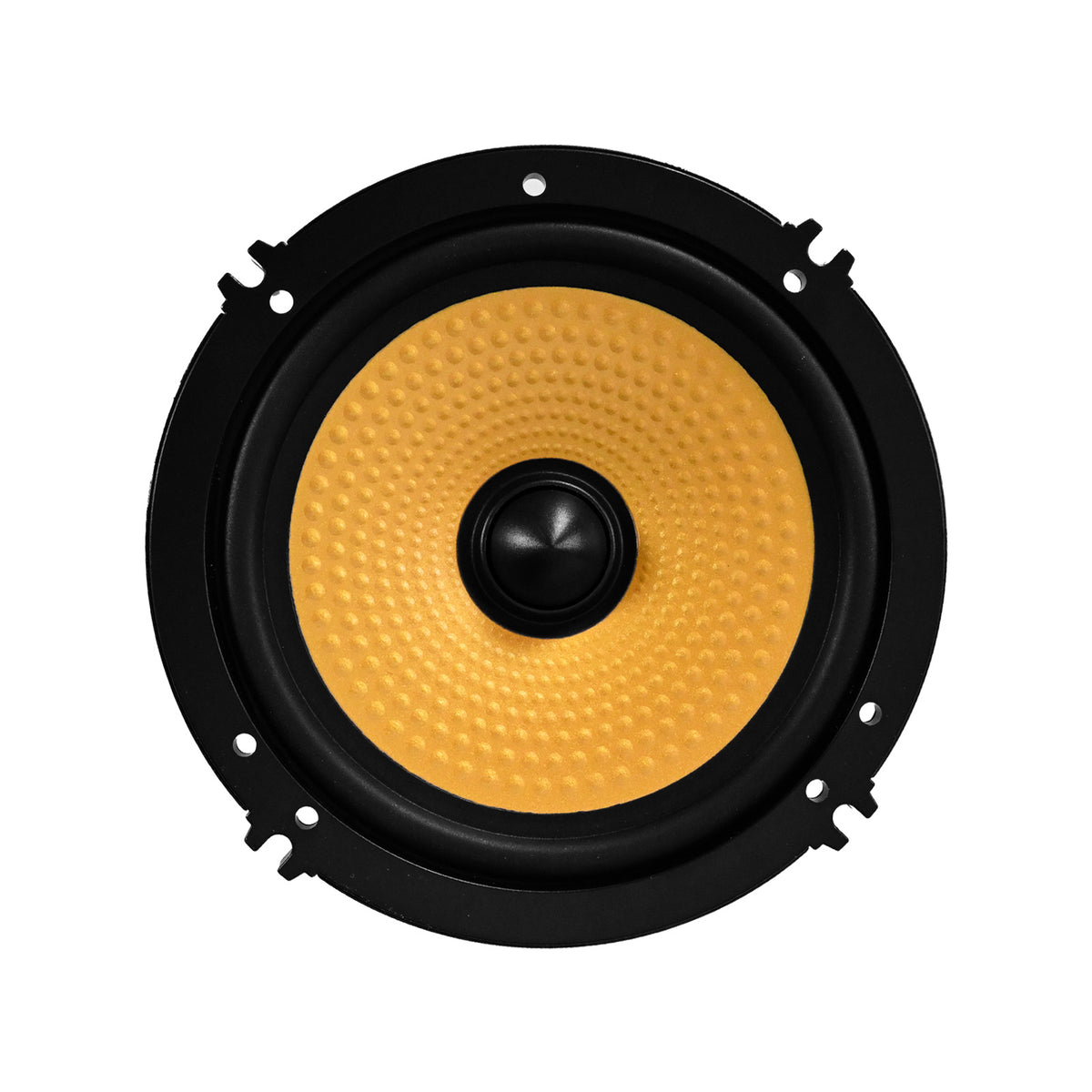

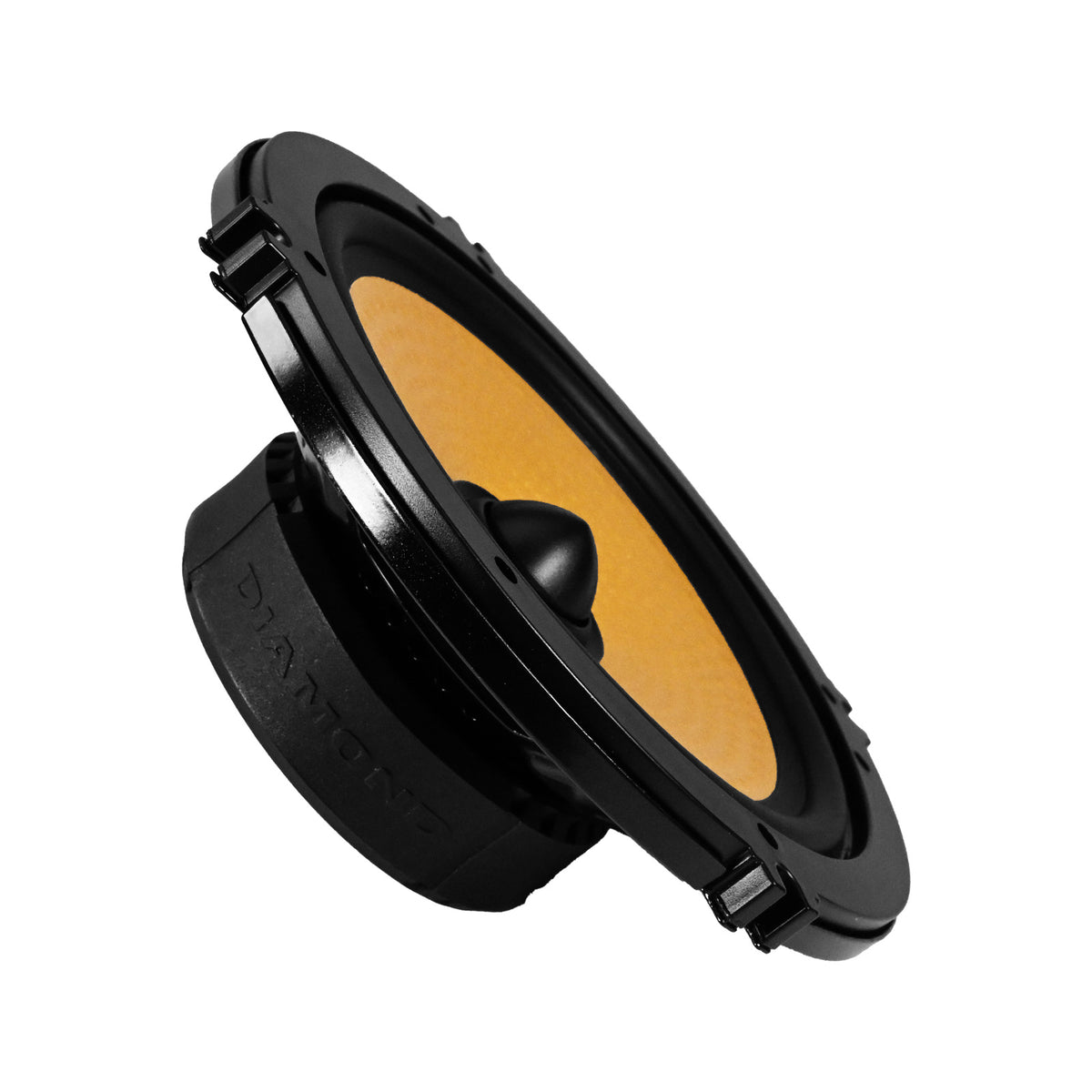

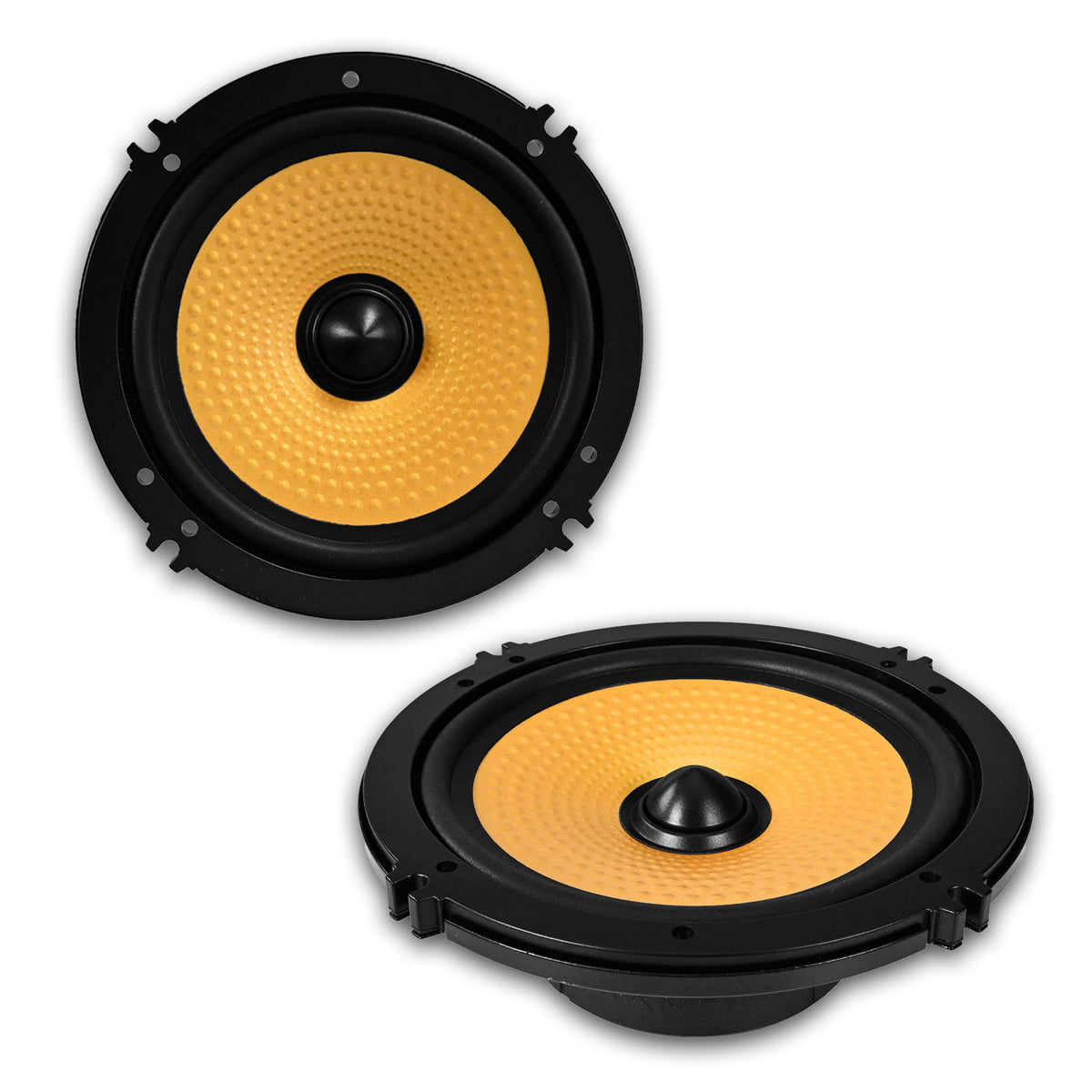

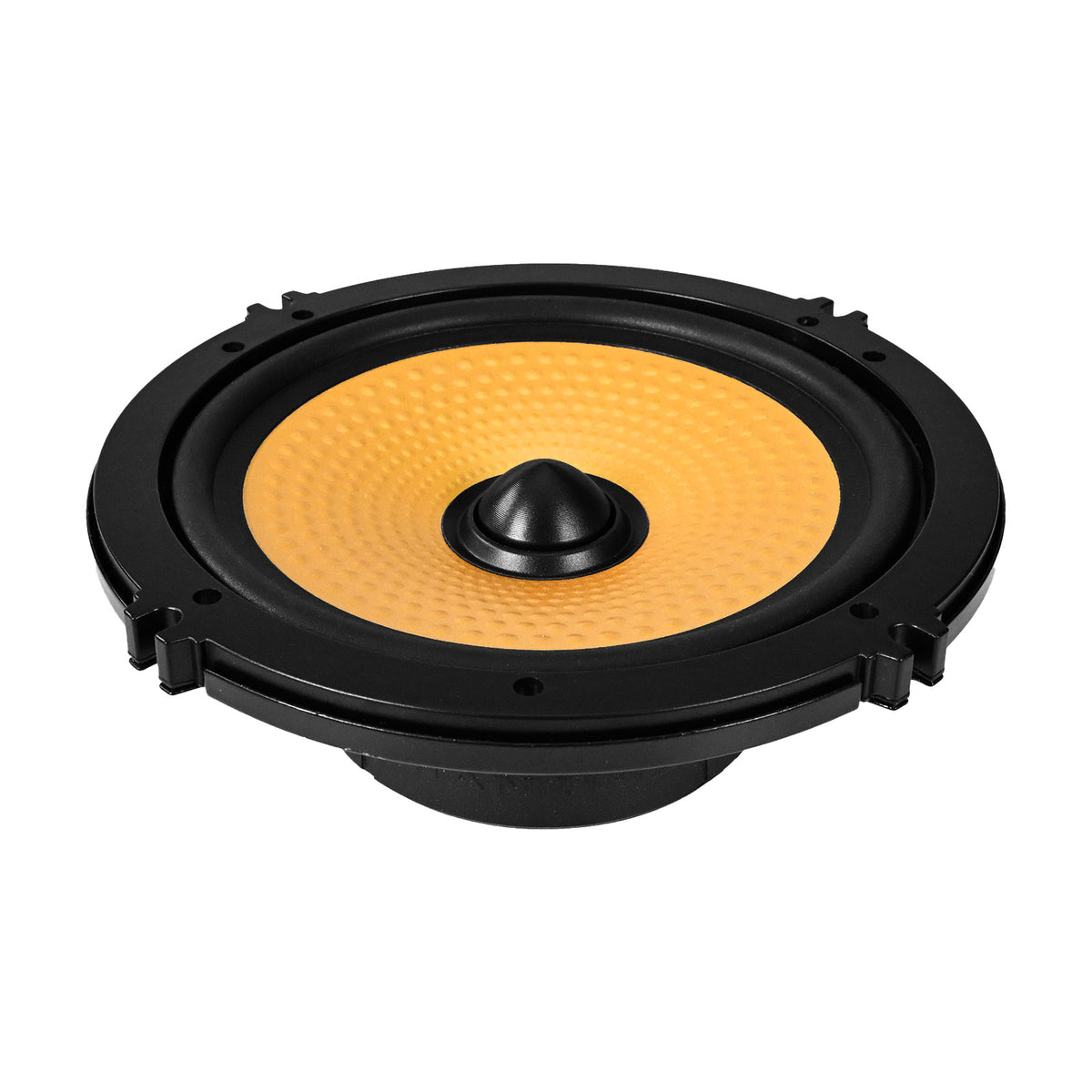

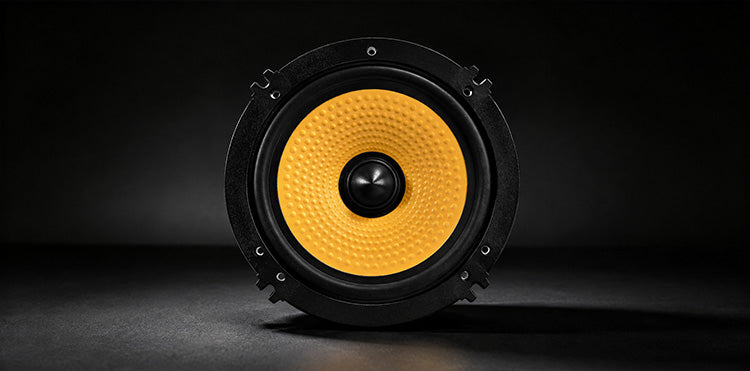

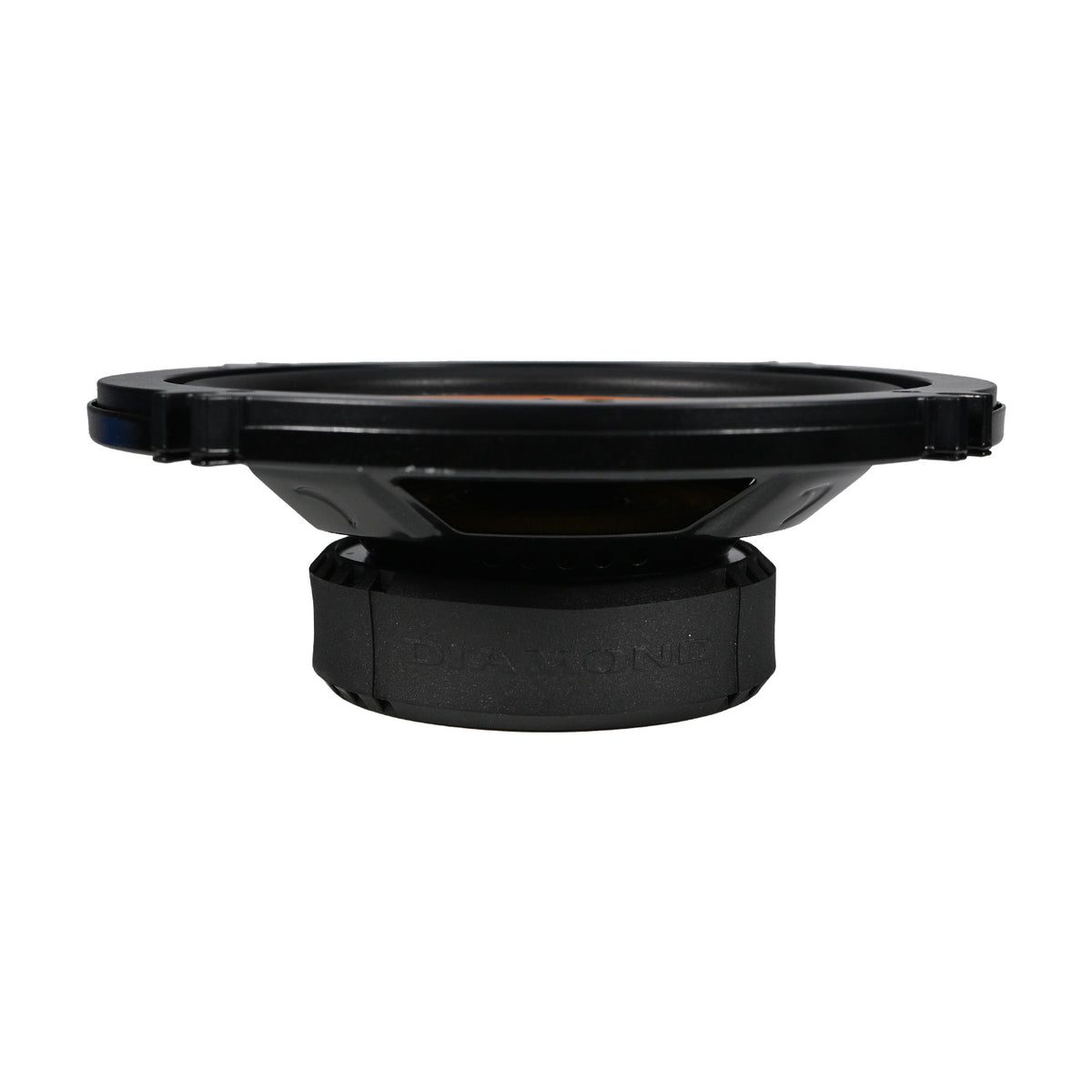

6.5" DMDX Series 2-Way Concentric Coaxial Speakers - DMDX65

$159.99
$159.99
Brand: Diamond Audio
SKU: DMDX65

Rediscover Every Detail

Your favorite tracks have hidden depths you’ve never heard. The DMDX Series unlocks every layer with surgical precision, turning your vehicle into a private, high-fidelity sanctuary for the road ahead.

The Invisible Revolution

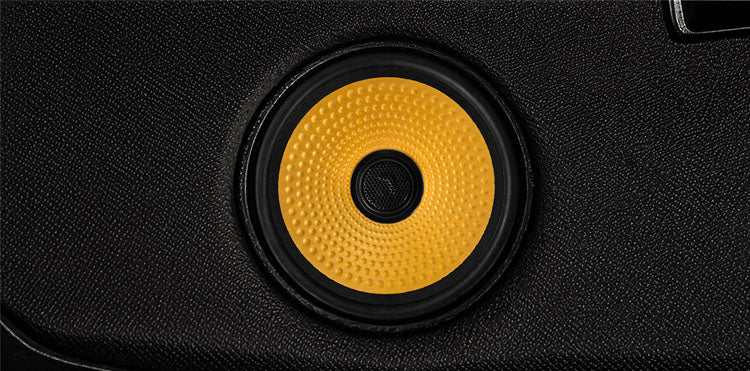

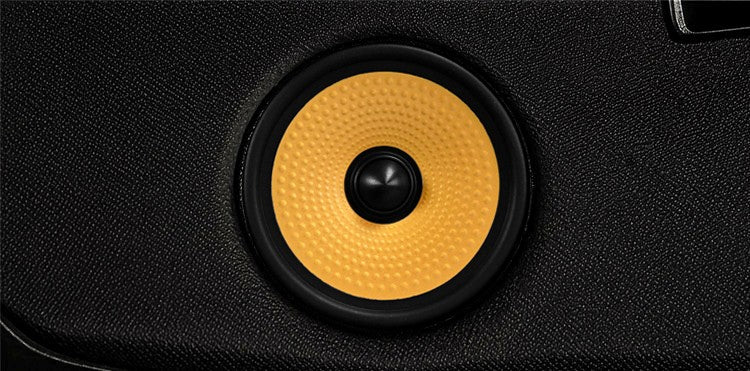

High-end audio shouldn't require a total cabin overhaul. Designed to fit factory locations perfectly, the DMDX Series delivers a massive acoustic leap while maintaining your vehicle’s clean, original aesthetic.

6.5" 2-Way Concentric Coaxial Speakers

Elevate your daily drive with the Diamond Audio DMDX65 6.5" 2-way concentric coaxial speakers, engineered for high-fidelity sound, modern design, and unbeatable value. Part of the innovative DMDX Series, these speakers deliver a refined listening experience that goes far beyond factory audio, offering clarity, balance, and dynamic performance at an affordable price.

The standout feature of the DMDX65 is its advanced concentric coaxial design, which aligns the tweeter and woofer on the same axis. This configuration creates a more natural soundstage, improved phase alignment, and enhanced imaging, allowing your music to feel more lifelike and immersive. From crisp highs to rich midrange and tight bass, every detail is delivered with precision.

With 45W RMS / 135W MAX power handling, these 6.5-inch coaxial speakers provide clean, distortion-free output, making them ideal for both factory head units and entry-level amplified systems. The 87dB sensitivity ensures efficient performance, delivering strong output even with modest power.

Engineered for everyday durability, the DMDX65 is built using premium materials and Diamond Audio’s proven design philosophy, ensuring consistent performance over time. The wide frequency response (60Hz–20kHz) captures the full spectrum of your music, delivering balanced sound across all genres.

Installation is quick and hassle-free thanks to the shallow 1.77-inch mounting depth and compact design, making the DMDX65 compatible with a wide range of vehicles. Whether upgrading door speakers or refreshing your entire system, these speakers are a perfect fit.

Key Features

• Model: DMDX65 – DMDX Series
• 6.5" 2-way concentric coaxial speakers
• 45W RMS / 135W MAX power handling
• Concentric design for improved imaging and soundstage
• Wide frequency response: 60Hz–20kHz
• High efficiency with 87dB sensitivity
• Shallow mount design for easy installation

The Diamond Audio DMDX65 delivers natural sound, precise detail, and everyday reliability, making it the perfect choice for drivers seeking an affordable, high-performance upgrade with true high-fidelity audio performance.



Specifications

  • Power Handling - Watts (RMS/Peak): 45W RMS / 135W MAX
  • Frequency Response (Hz): 60Hz-20KHz
  • Sensitivity (1W/1M): 87dB
  • Nominal Impedance (ohms): 4Ω
  • Free-Air Resonance (Hz): 70Hz
  • Nominal Diameter -inch (mm): 6.5" (165mm)
  • Mounting Depth-inch (mm): 1.77" (45mm)
  • Cut-Out Diameter -inch (mm): 4.84" (123mm)
  • Overall Diameter -inch (mm): 6.26" (159mm)
  • Overall Height -inch (mm): 2.13" (54.1mm)

Specifications

Brand

Diamond audio

Type

Motor vehicle speakers

DMDX Speakers - Frequently Asked Questions

Q1: What are DMDX Speakers designed for?
A: They are designed for factory speaker upgrades and affordable aftermarket car audio systems, with improved clarity, detail, and balanced performance.

Q2: What makes the DMDX Series different?
A: DMDX combines component and coaxial designs, durable construction, and optimized speaker engineering for a noticeable upgrade over factory audio.

Q3: Can DMDX Speakers be used with aftermarket amplifiers?
A: Yes. They are designed to work with both factory systems and aftermarket amplifiers, depending on the system setup.

Q4: Do DMDX Speakers improve sound staging?
A: Yes. Component configurations with separate tweeters and external crossovers can improve sound staging and imaging.

Q5: Why choose DMDX Speakers?
A: DMDX offers a balance of clear vocals, tight mid-bass, detailed highs, durability, and value for everyday audio upgrades.
