By Diamond Audio

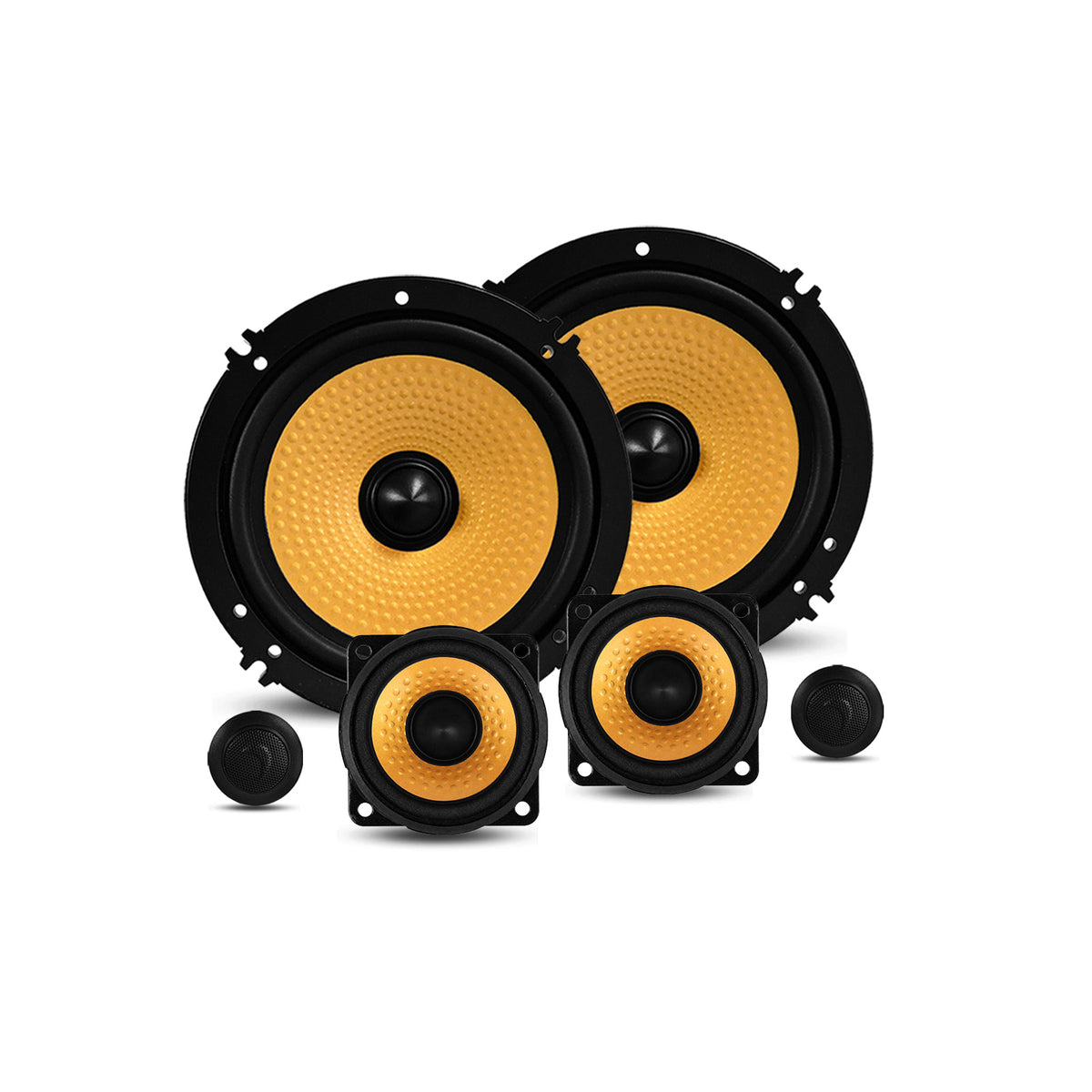

6.5" DMDX Series 3-Way Component Set + 2.5" + 20MM Tweeter - DMDX6525C

$379.99
$379.99
Brand: Diamond Audio
SKU: DMDX6525C

Rediscover Every Detail

Your favorite tracks have hidden depths you’ve never heard. The DMDX Series unlocks every layer with surgical precision, turning your vehicle into a private, high-fidelity sanctuary for the road ahead.

The Invisible Revolution

High-end audio shouldn't require a total cabin overhaul. Designed to fit factory locations perfectly, the DMDX Series delivers a massive acoustic leap while maintaining your vehicle’s clean, original aesthetic.

6.5" 3-Way Component Set

DMDX 3-WAY 6.5" + 2.5" + 20MM Tweeter Component Set

Elevate your listening experience with the Diamond Audio DMDX6525C 6.5" 3-way component speaker system, engineered for high-fidelity sound, precise imaging, and exceptional everyday value. Part of the innovative DMDX Series, this system is designed for drivers who want full-range performance, enhanced clarity, and immersive sound staging without the premium price tag.

The DMDX6525C features a true 3-way component design, including a 6.5-inch woofer, 2.5-inch midrange driver, and 20mm tweeter, each dedicated to its own frequency range. This advanced configuration delivers balanced, detailed audio with improved separation, allowing vocals, instruments, and bass lines to come through with lifelike accuracy.

With 45W RMS / 135W MAX power handling, the DMDX6525C provides clean, dynamic output with minimal distortion, making it ideal for both factory head units and entry-level amplified systems. The 87dB sensitivity ensures efficient performance, delivering strong output without requiring excessive power.

The wide frequency response (60Hz–20kHz) captures the full range of your music, from tight, responsive bass to crisp, sparkling highs. The addition of a dedicated 2.5" midrange driver significantly improves vocal clarity and midrange detail, creating a wide, immersive soundstage with precise imaging.

Built using premium materials and Diamond Audio’s proven engineering standards, the DMDX6525C is designed for durability and consistent performance. Its shallow 1.77-inch mounting depth and compact dimensions allow for easy installation in a wide variety of vehicles.

Key Features

• Model: DMDX6525C – DMDX Series
• 6.5" 3-way component system (woofer, midrange, tweeter)
• 45W RMS / 135W MAX power handling
• Dedicated 2.5" midrange for enhanced vocal clarity
• Wide frequency response: 60Hz–20kHz
• 87dB sensitivity for efficient performance
• Shallow mount design for easy installation

The Diamond Audio DMDX6525C delivers rich mids, crisp highs, and tight bass, making it the perfect upgrade for drivers seeking an affordable, high-performance 3-way component system with true high-fidelity sound.



Specifications

  • Power Handling - Watts (RMS/Peak): 45W RMS / 135W MAX
  • Frequency Response (Hz): 60Hz-20KHz
  • Sensitivity (1W/1M): 87dB
  • Nominal Impedance (ohms): 4Ω
  • Free-Air Resonance (Hz): 70Hz
  • Nominal Diameter -inch (mm): 6.5" (165mm)
  • Mounting Depth-inch (mm): 1.77" (45mm)
  • Cut-Out Diameter -inch (mm): 4.84" (123mm)
  • Overall Diameter -inch (mm): 6.26" (159mm)
  • Overall Height -inch (mm): 2.13" (54.1mm)

Specifications

Brand

Diamond audio

Type

Motor vehicle speakers

DMDX Speakers - Frequently Asked Questions

Q1: What are DMDX Speakers designed for?
A: They are designed for factory speaker upgrades and affordable aftermarket car audio systems, with improved clarity, detail, and balanced performance.

Q2: What makes the DMDX Series different?
A: DMDX combines component and coaxial designs, durable construction, and optimized speaker engineering for a noticeable upgrade over factory audio.

Q3: Can DMDX Speakers be used with aftermarket amplifiers?
A: Yes. They are designed to work with both factory systems and aftermarket amplifiers, depending on the system setup.

Q4: Do DMDX Speakers improve sound staging?
A: Yes. Component configurations with separate tweeters and external crossovers can improve sound staging and imaging.

Q5: Why choose DMDX Speakers?
A: DMDX offers a balance of clear vocals, tight mid-bass, detailed highs, durability, and value for everyday audio upgrades.
