By Diamond Audio

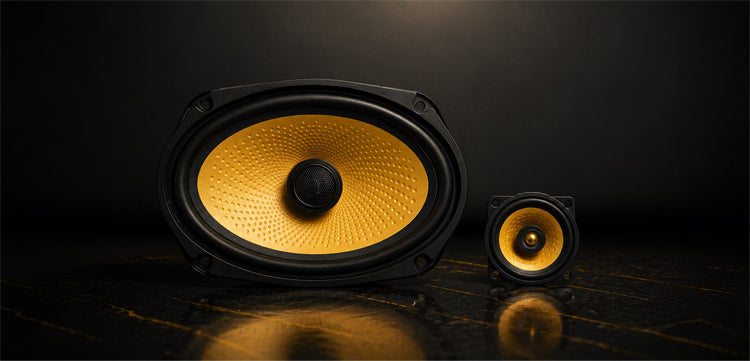

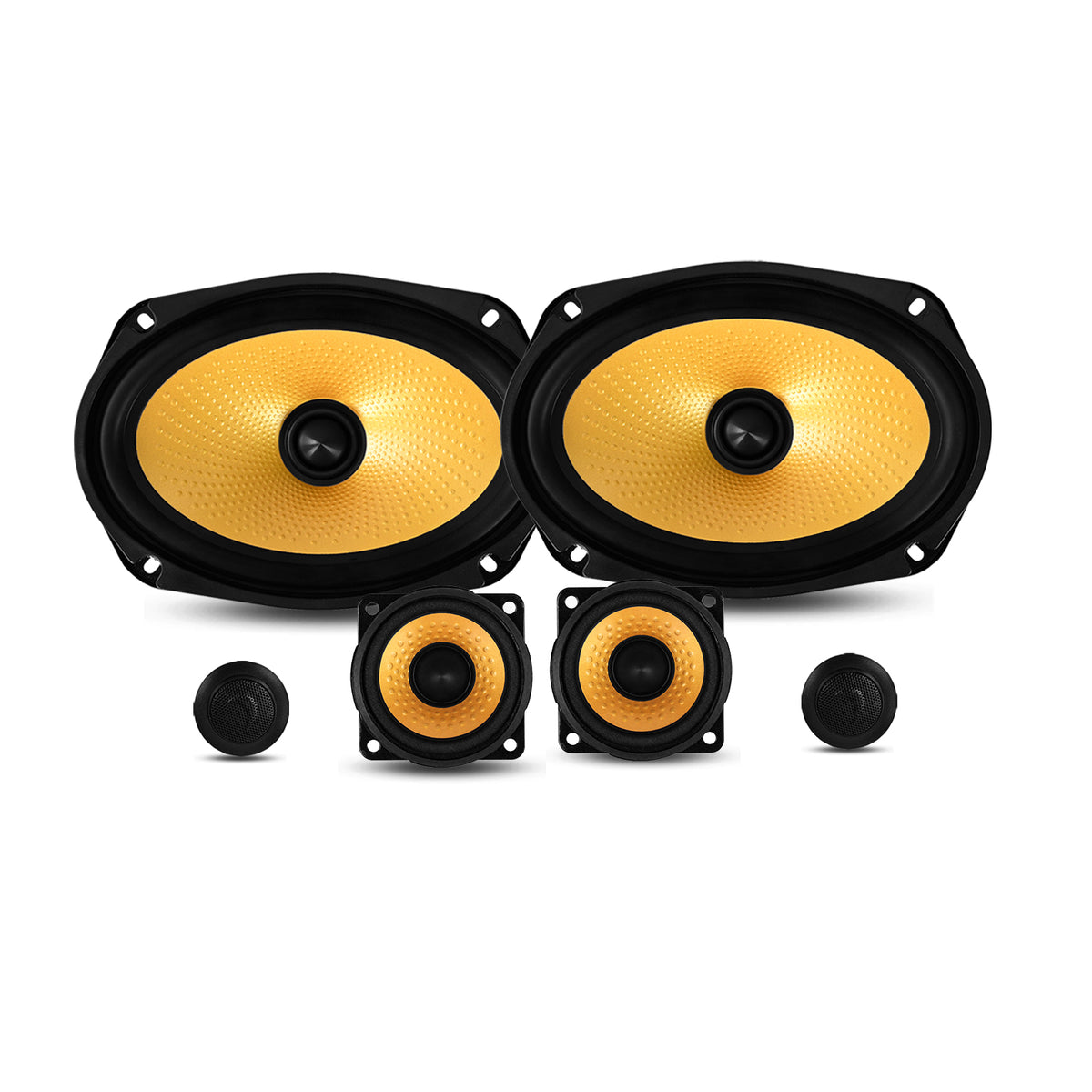

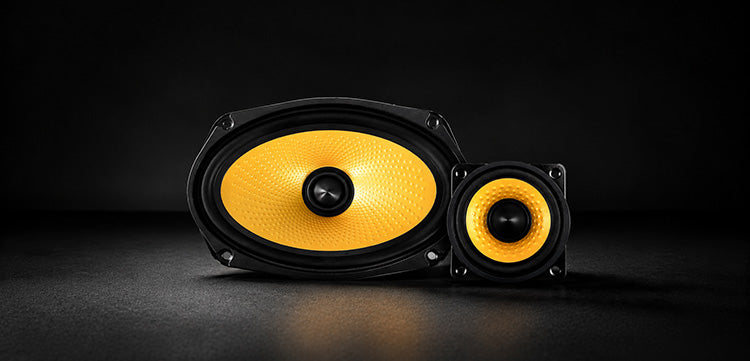

6" x 9" DMDX Series 3-Way Component Set - DMDX6925C

$429.99
$429.99
Brand: Diamond Audio
SKU: DMDX6925C

Rediscover Every Detail

Your favorite tracks have hidden depths you’ve never heard. The DMDX Series unlocks every layer with surgical precision, turning your vehicle into a private, high-fidelity sanctuary for the road ahead.

The Invisible Revolution

High-end audio shouldn't require a total cabin overhaul. Designed to fit factory locations perfectly, the DMDX Series delivers a massive acoustic leap while maintaining your vehicle’s clean, original aesthetic.

6" x 9" 3-Way Component Set

6"x 9"/2.5"/20MM TWEETER - High-Fidelity Sound • Affordable Upgrade • Everyday Value

Unlock a new level of depth and precision with the Diamond Audio DMDX6925C 6"x9" 3-way component speaker system, engineered for high-fidelity sound, dynamic performance, and exceptional value. As part of the advanced DMDX Series, this system is designed for enthusiasts who want full-range audio, superior imaging, and immersive sound staging without the premium price.

The DMDX6925C features a true 3-way component configuration, including a 6"x 9" woofer, 2.5" midrange driver, and 20mm tweeter, working together to deliver complete frequency coverage with exceptional clarity and balance. Each driver is optimized for its specific range, resulting in crisp highs, detailed midrange, and tight, controlled bass that brings your music to life.

With 65W RMS / 195W MAX power handling, this system provides clean, powerful output with minimal distortion, making it ideal for both factory upgrades and amplifier-driven builds. The 88dB sensitivity ensures efficient performance, allowing your system to achieve strong volume and clarity without excessive power requirements.

The extended frequency response (50Hz–20kHz) captures every detail of your music, from deep low-end bass to sparkling high frequencies. The addition of a dedicated midrange driver enhances vocal clarity and instrument separation, creating a wide, lifelike soundstage with precise imaging.

Engineered with premium materials and Diamond Audio’s proven design philosophy, the DMDX6925C offers long-lasting durability and consistent performance. Its 3.17-inch mounting depth and versatile dimensions make it suitable for a wide range of vehicles, including cars, trucks, and custom installations.

Key Features

• Model: DMDX6925C – DMDX Series
• 6"x 9" 3-way component speaker system (woofer, midrange, tweeter)
• 65W RMS / 195W MAX power handling
• Dedicated 2.5" midrange for enhanced vocal clarity
• Wide frequency response: 50Hz–20kHz
• 88dB sensitivity for efficient output
• Expanded soundstage with precise imaging

The Diamond Audio DMDX6925C delivers deep bass, rich mids, and crisp highs, making it the ultimate upgrade for drivers seeking affordable, high-performance 3-way component speakers with true high-fidelity sound.





Specifications

  • Power Handling - Watts (RMS/Peak): 65W RMS / 195W MAX
  • Frequency Response (Hz): 50Hz-20KHz
  • Sensitivity (1W/1M): 88dB
  • Nominal Impedance (ohms): 4Ω
  • Free-Air Resonance (Hz): 68Hz
  • Nominal Diameter -inch (mm): 6"x9" (152x228mm)
  • Mounting Depth-inch (mm): 3.17" (80.6mm)
  • Cut-Out Diameter -inch (mm): 8.68"x5.93" (220.5x150.5mm)
  • Overall Diameter -inch (mm): 9.29"x6.4" (236x162.6mm)
  • Overall Height -inch (mm): 3.54" (90mm)

Specifications

Brand

Diamond audio

Type

Motor vehicle speakers
