By Diamond Audio

6" x 9" DMDX Series 2-Way Component Set - DMDX69C

$279.99
$279.99
Brand: Diamond Audio
SKU: DMDX69C

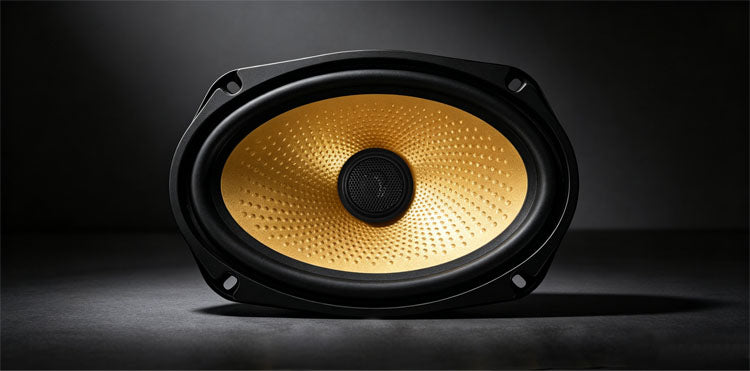

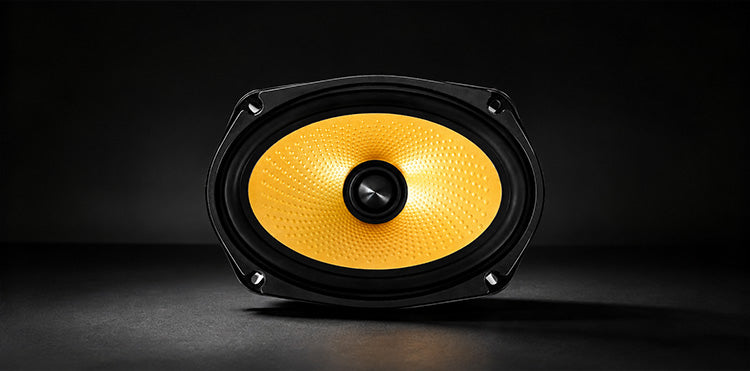

Rediscover Every Detail

Your favorite tracks have hidden depths you’ve never heard. The DMDX Series unlocks every layer with surgical precision, turning your vehicle into a private, high-fidelity sanctuary for the road ahead.

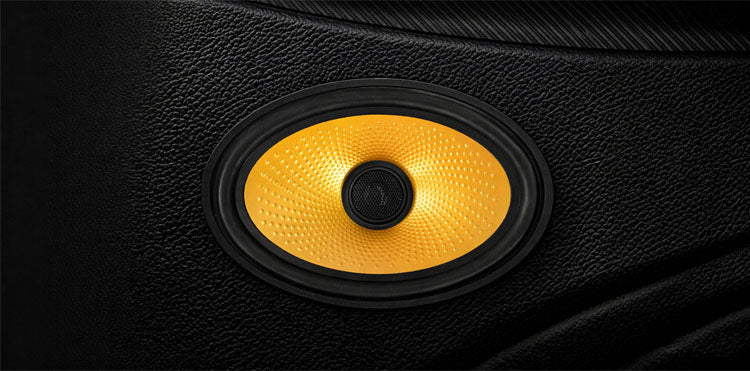

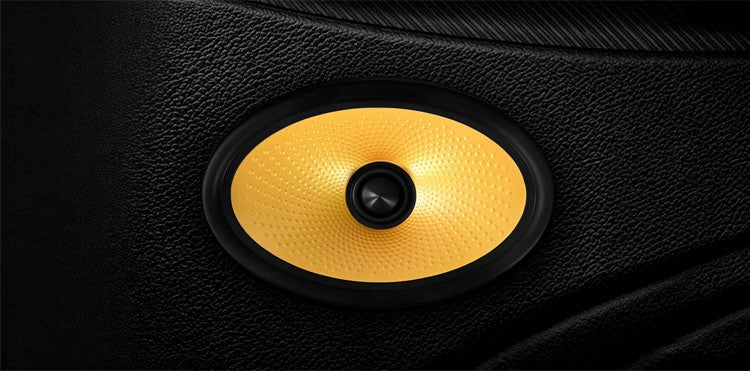

The Invisible Revolution

High-end audio shouldn't require a total cabin overhaul. Designed to fit factory locations perfectly, the DMDX Series delivers a massive acoustic leap while maintaining your vehicle’s clean, original aesthetic.

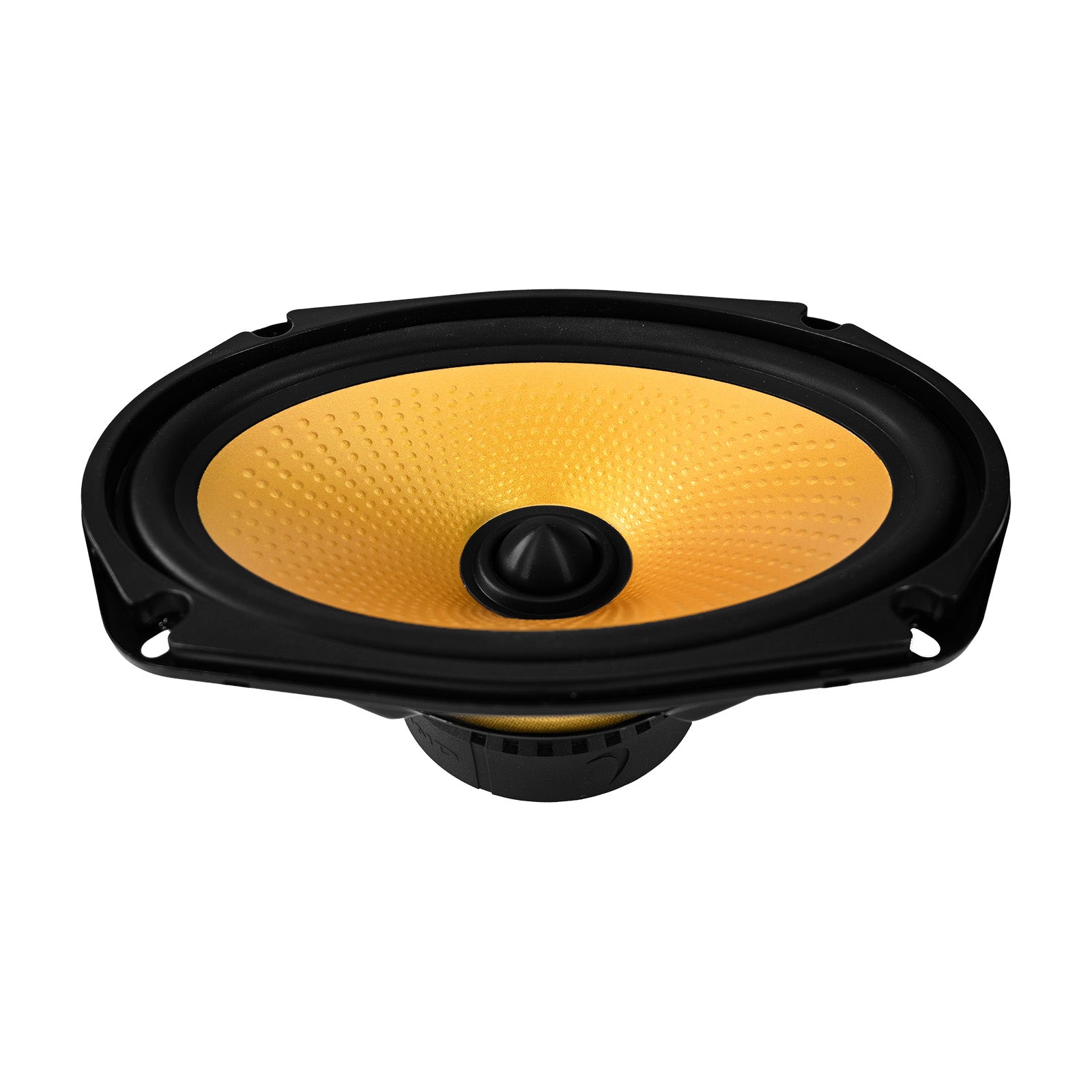

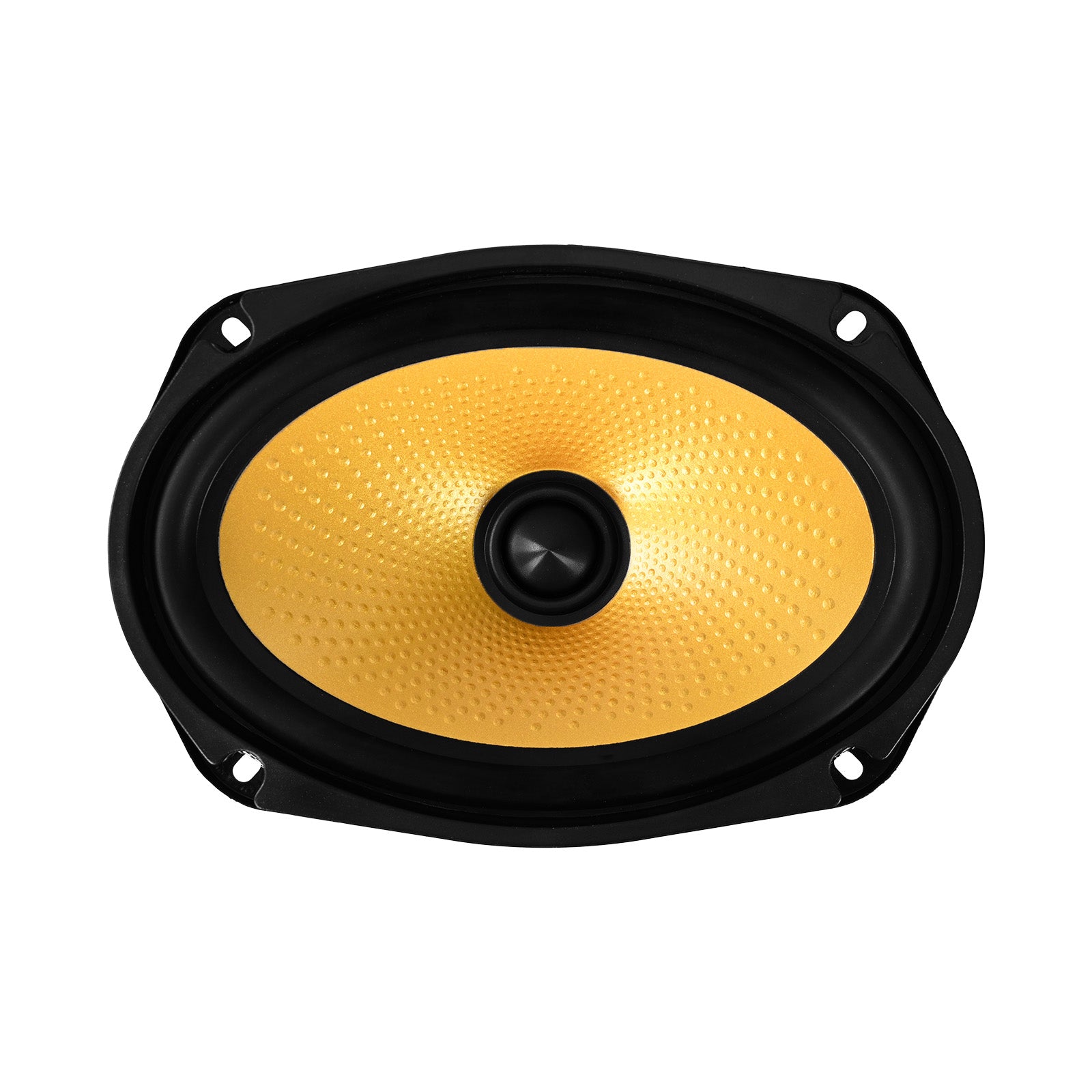

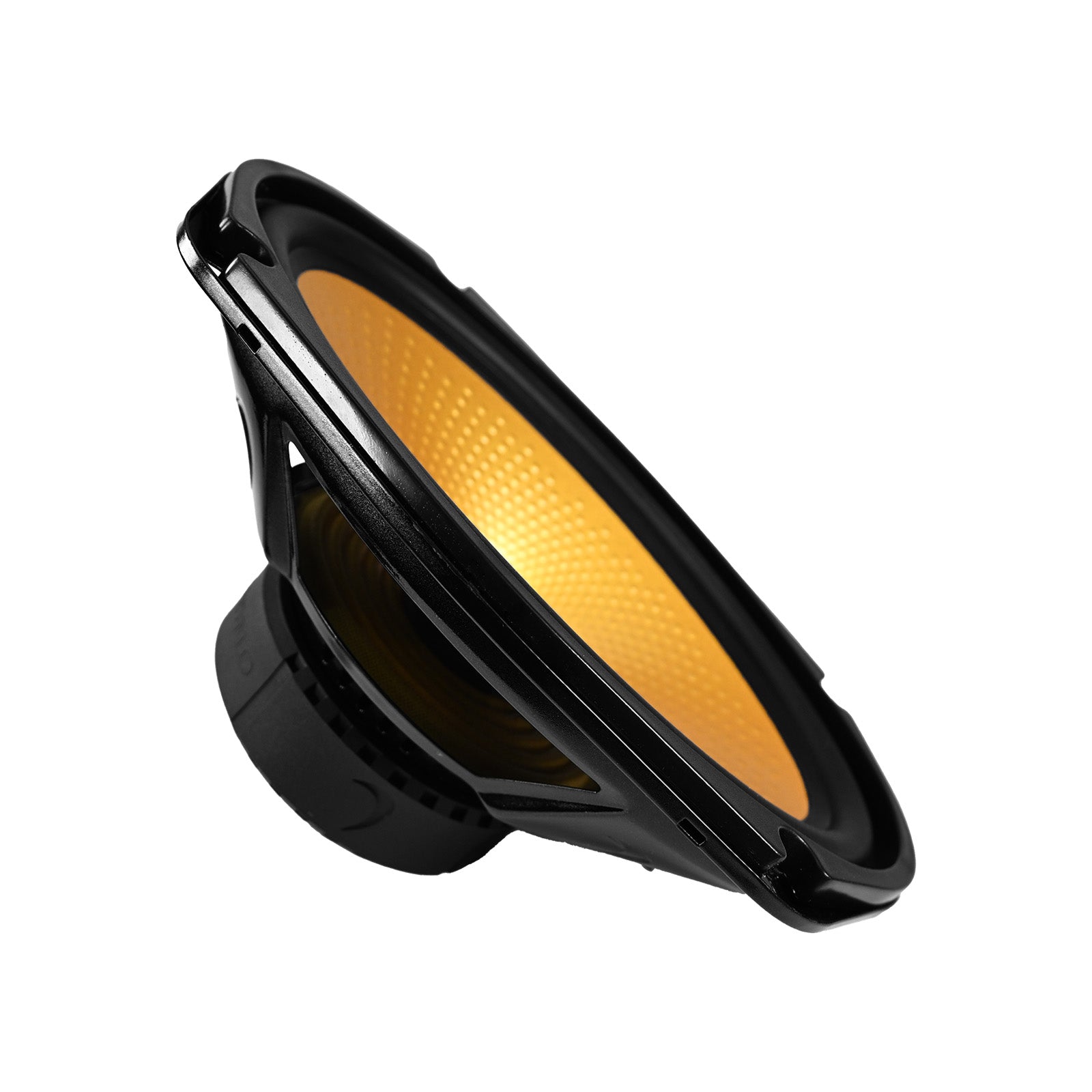

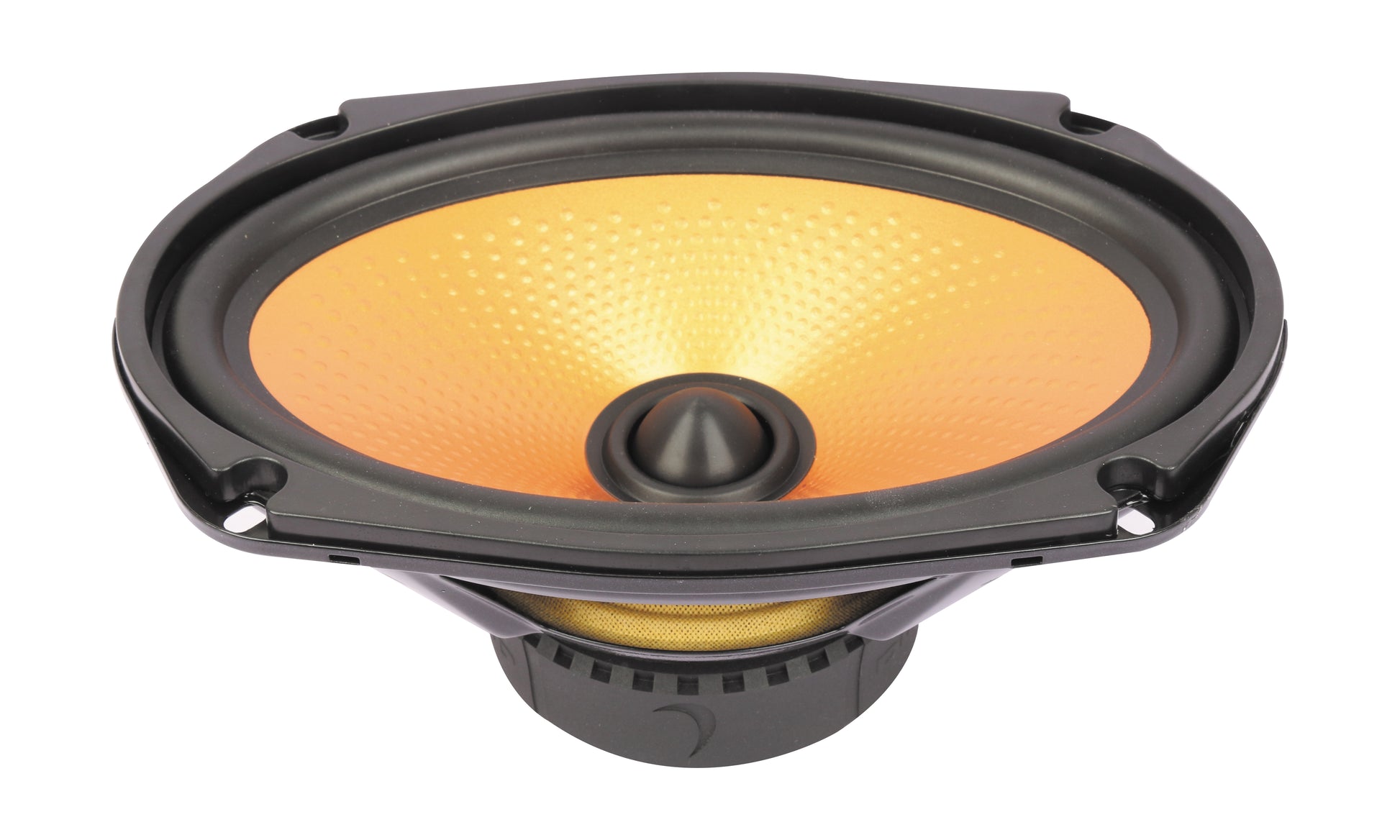

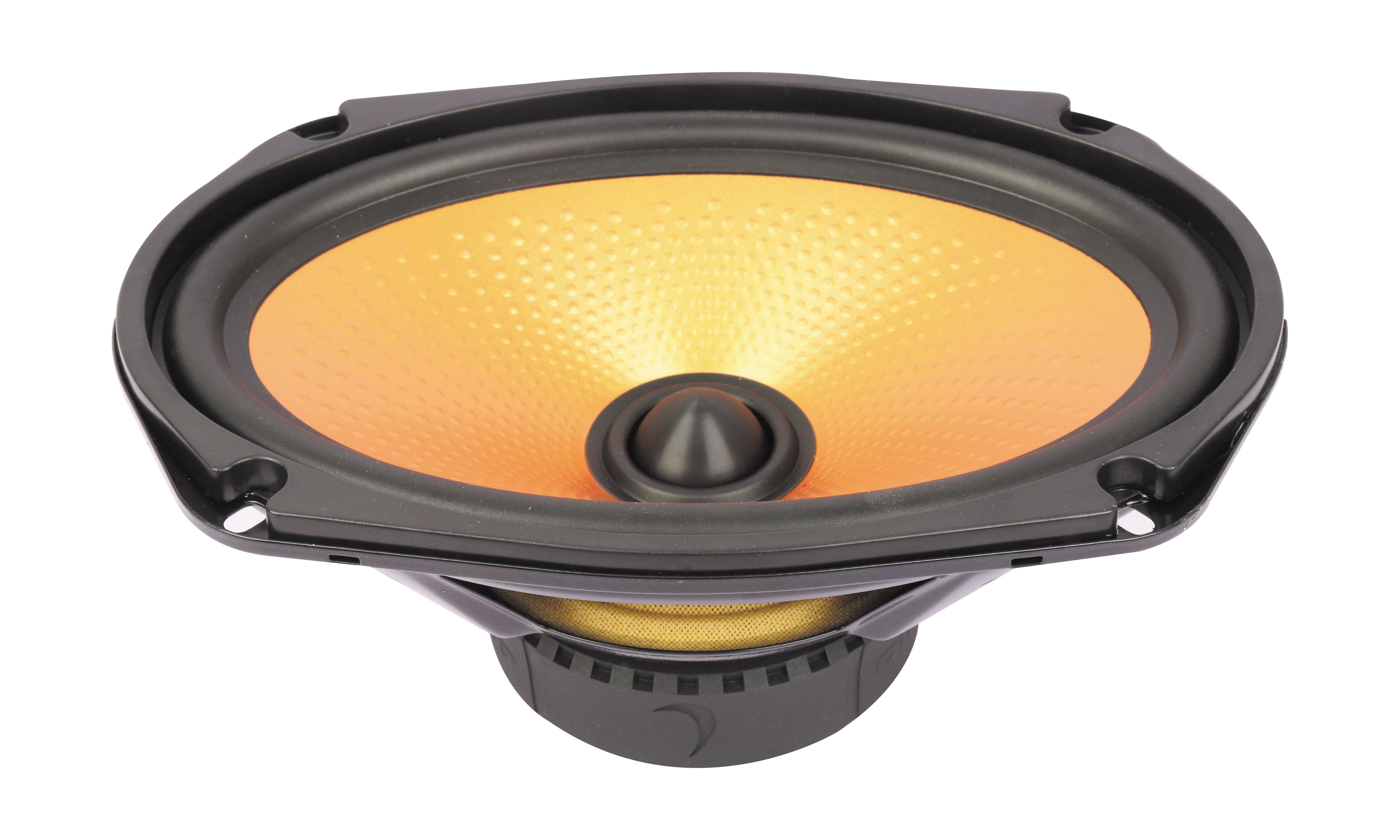

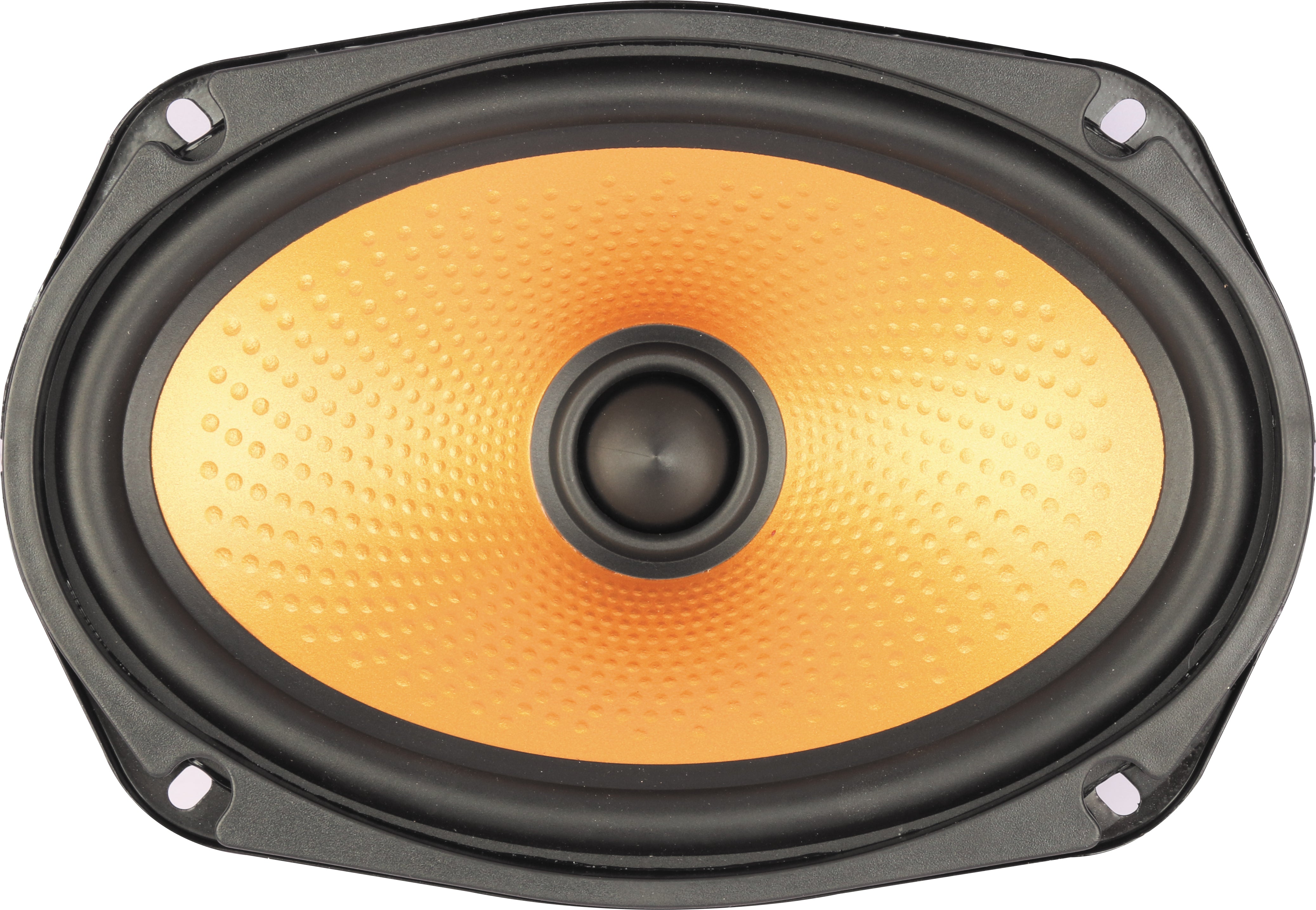

6"x 9" 2-Way Component Set

Step into a wider, more immersive soundstage with the Diamond Audio DMDX69C 6"x 9" 2-way component speaker system, engineered for high-fidelity performance, dynamic output, and exceptional value. As part of the advanced DMDX Series, this component set is built for drivers who want premium sound quality without the premium price.

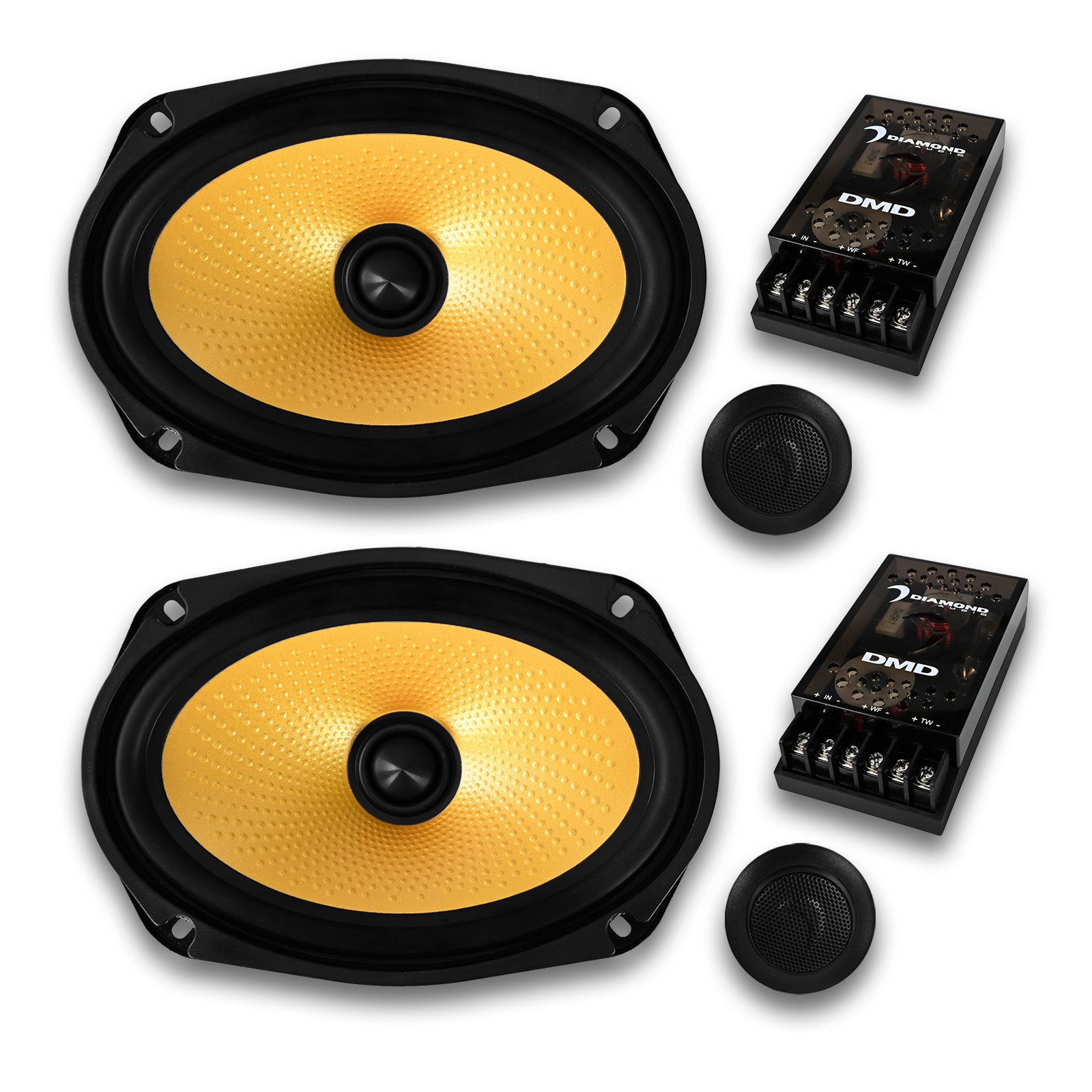

Featuring a dedicated 6"x 9" woofer and separate tweeter, the DMDX69C allows for optimized speaker placement, dramatically improving stereo imaging and overall soundstage. This component design creates a more natural and lifelike listening experience, where vocals are centered, instruments are clearly defined, and every detail is brought forward with precision.

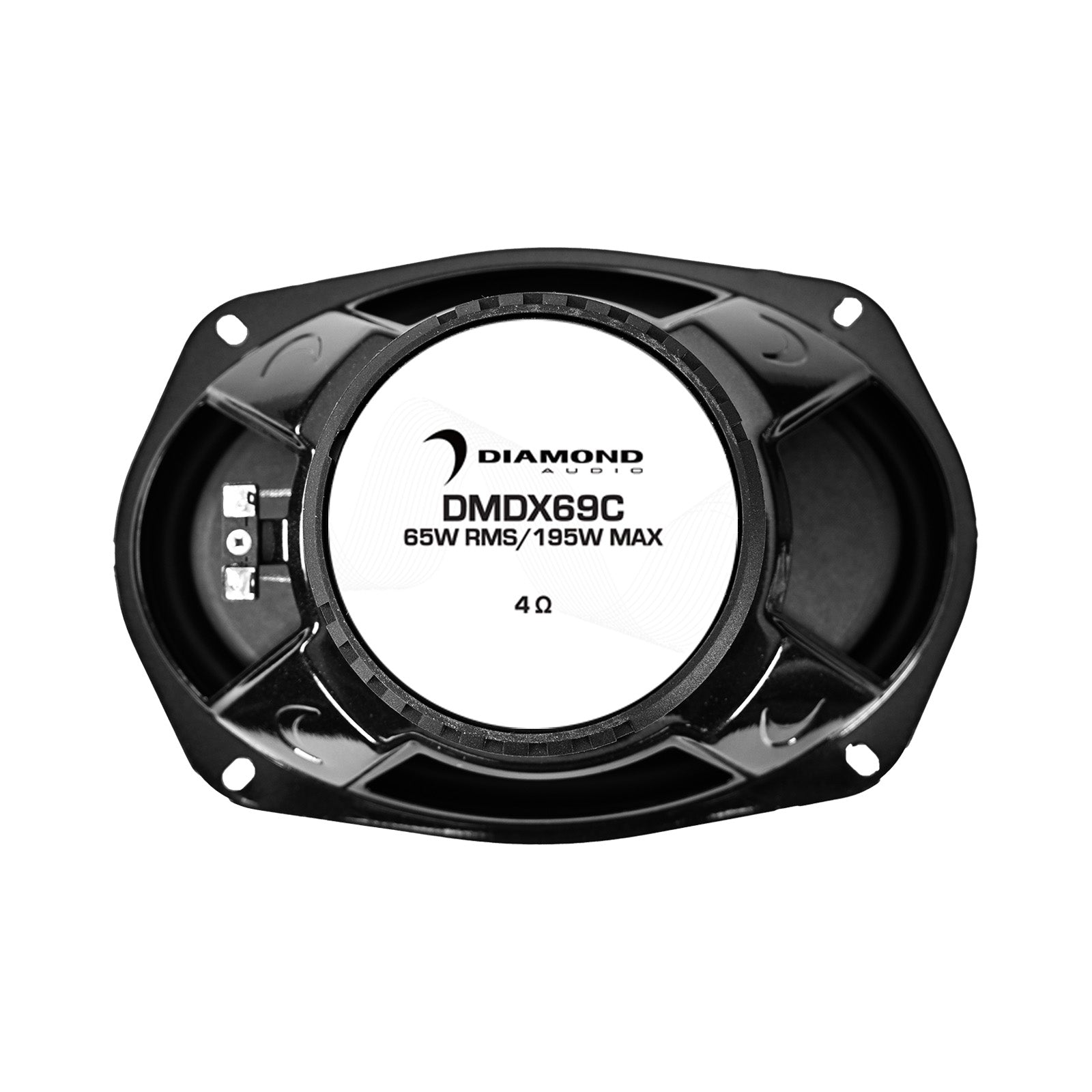

With 65W RMS / 195W MAX power handling, the DMDX69C delivers clean, powerful sound with minimal distortion, making it ideal for both factory systems and amplified setups. The 88dB sensitivity ensures efficient performance, allowing you to achieve strong output without excessive power demands.

The wide frequency response (50Hz–20kHz) provides deep, punchy bass, rich midrange clarity, and crisp high-frequency detail, ensuring a balanced and engaging audio experience across all genres. Whether you're listening to bass-heavy tracks or vocal-driven music, the DMDX69C reproduces sound with accuracy and energy.

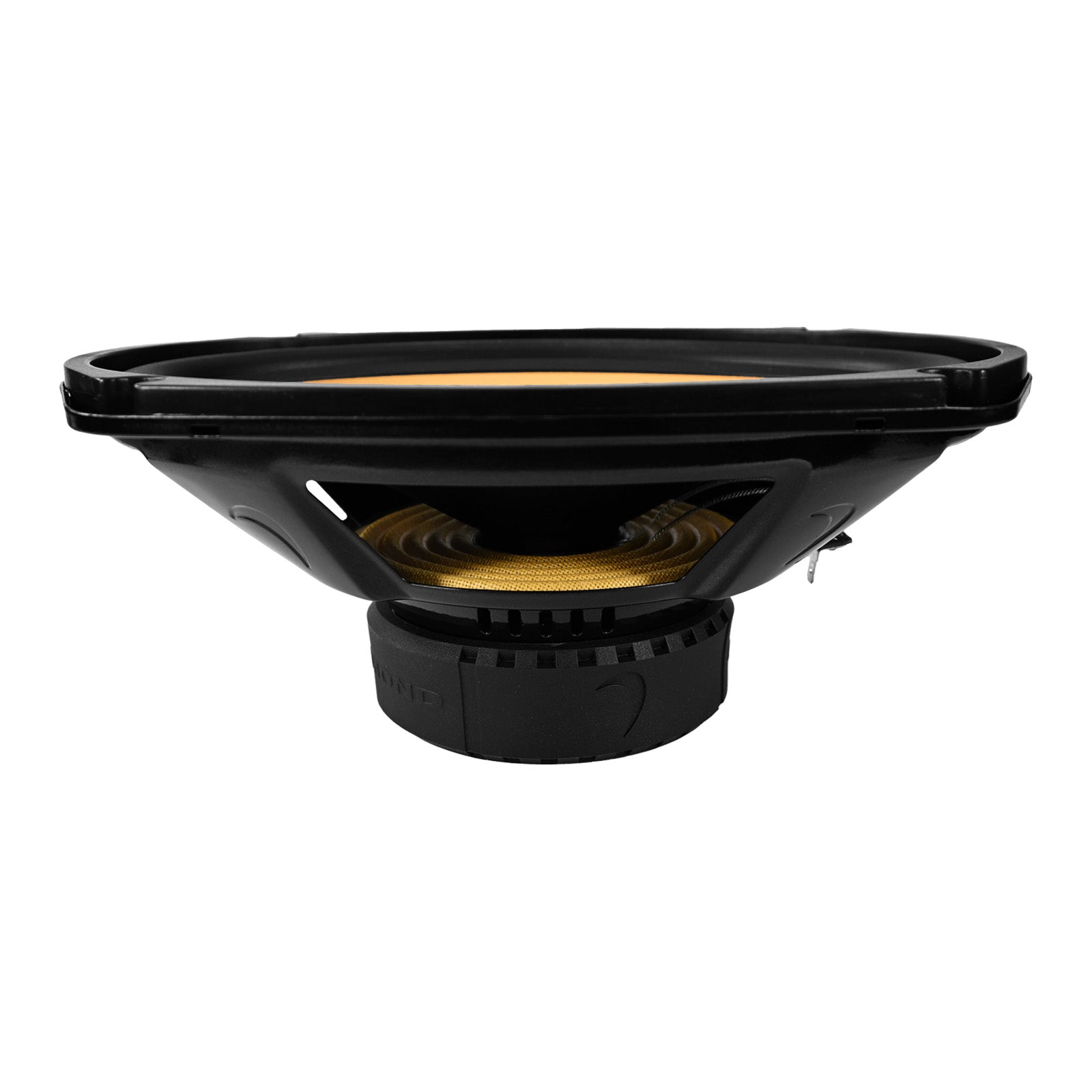

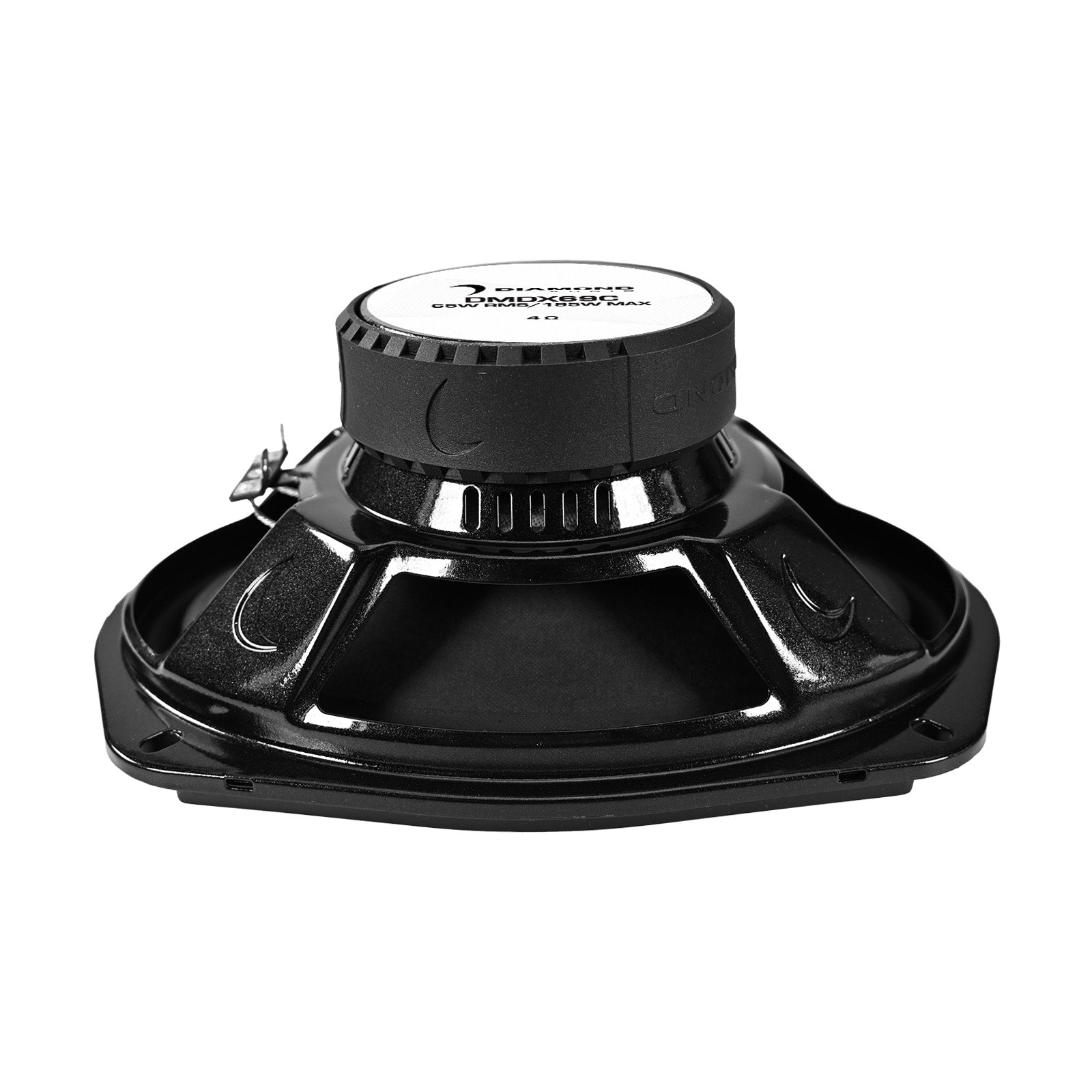

Engineered using premium materials and Diamond Audio’s proven design philosophy, these speakers are built for durability and long-term performance. The 3.17-inch mounting depth and versatile dimensions make installation simple in a wide range of vehicles, including cars, trucks, and SUVs.

Key Features

• Model: DMDX69C – DMDX Series
• 6"x 9" 2-way component speaker system
• 65W RMS / 195W MAX power handling
• Separate tweeter for enhanced imaging and soundstage
• Wide frequency response: 50Hz–20kHz
• 88dB sensitivity for efficient output
• Ideal for OEM upgrades and custom audio builds

The Diamond Audio DMDX69C delivers deep bass, precise highs, and expansive sound staging, making it the perfect upgrade for drivers seeking affordable, high-performance component speakers with true high-fidelity sound.



Specifications

  • Power Handling - Watts (RMS/Peak): 65W RMS / 195W MAX
  • Frequency Response (Hz): 50Hz-20KHz
  • Sensitivity (1W/1M): 88dB
  • Nominal Impedance (ohms): 4Ω
  • Free-Air Resonance (Hz): 68Hz
  • Nominal Diameter -inch (mm): 6"x9" (152x228mm)
  • Mounting Depth-inch (mm): 3.17" (80.6mm)
  • Cut-Out Diameter -inch (mm): 8.68"x5.93" (220.5x150.5mm)
  • Overall Diameter -inch (mm): 9.29"x6.4" (236x162.6mm)
  • Overall Height -inch (mm): 3.54" (90mm)

Specifications

Brand

Diamond audio

Type

Motor vehicle speakers

DMDX Speakers - Frequently Asked Questions

Q1: What are DMDX Speakers designed for?
A: They are designed for factory speaker upgrades and affordable aftermarket car audio systems, with improved clarity, detail, and balanced performance.

Q2: What makes the DMDX Series different?
A: DMDX combines component and coaxial designs, durable construction, and optimized speaker engineering for a noticeable upgrade over factory audio.

Q3: Can DMDX Speakers be used with aftermarket amplifiers?
A: Yes. They are designed to work with both factory systems and aftermarket amplifiers, depending on the system setup.

Q4: Do DMDX Speakers improve sound staging?
A: Yes. Component configurations with separate tweeters and external crossovers can improve sound staging and imaging.

Q5: Why choose DMDX Speakers?
A: DMDX offers a balance of clear vocals, tight mid-bass, detailed highs, durability, and value for everyday audio upgrades.
