By Diamond Audio

8" DMDX Series 2-Way Concentric Coaxial Speakers - DMDX8

$189.99
$189.99
Brand: Diamond Audio
SKU: DMDX8

Rediscover Every Detail

Your favorite tracks have hidden depths you’ve never heard. The DMDX Series unlocks every layer with surgical precision, turning your vehicle into a private, high-fidelity sanctuary for the road ahead.

The Invisible Revolution

High-end audio shouldn't require a total cabin overhaul. Designed to fit factory locations perfectly, the DMDX Series delivers a massive acoustic leap while maintaining your vehicle’s clean, original aesthetic.

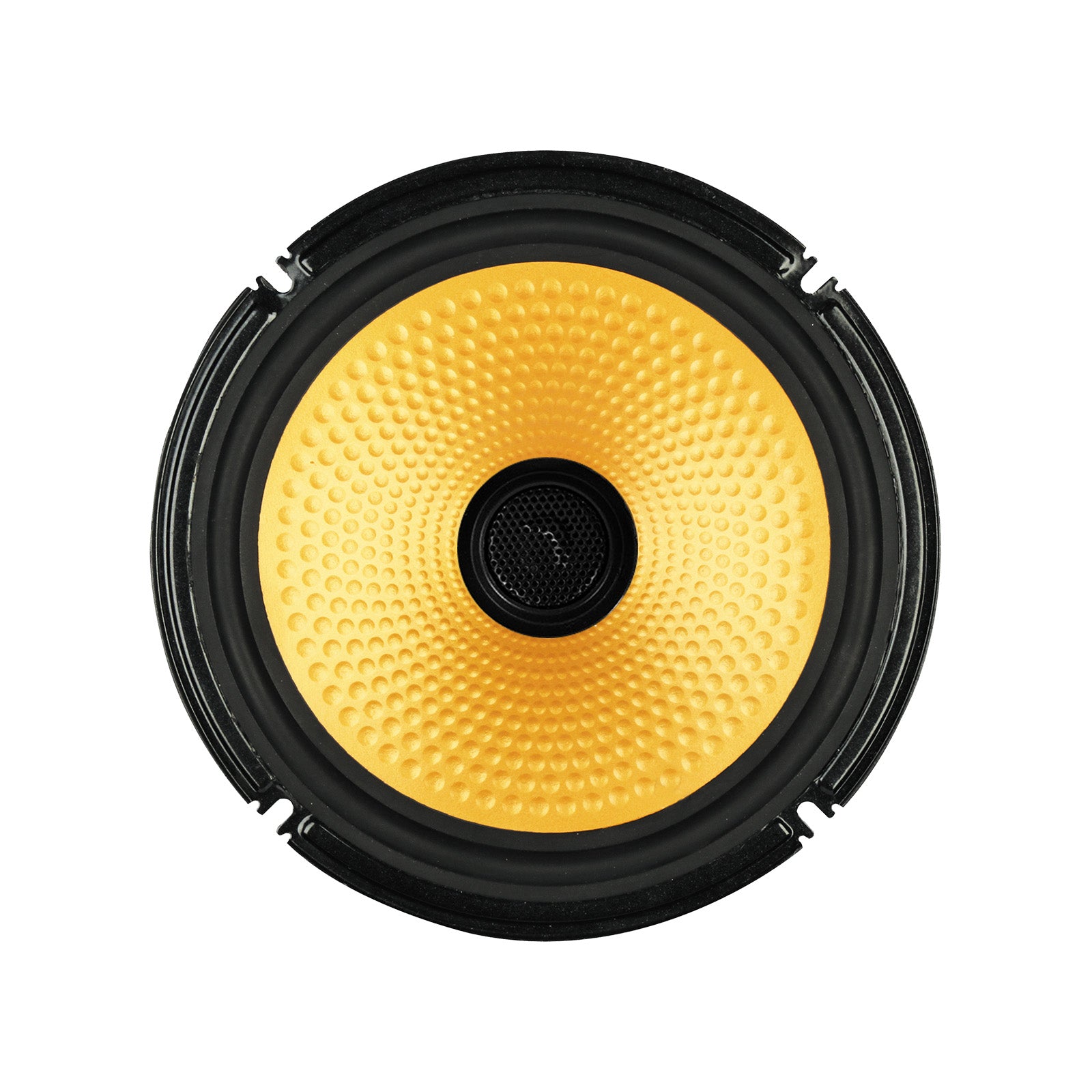

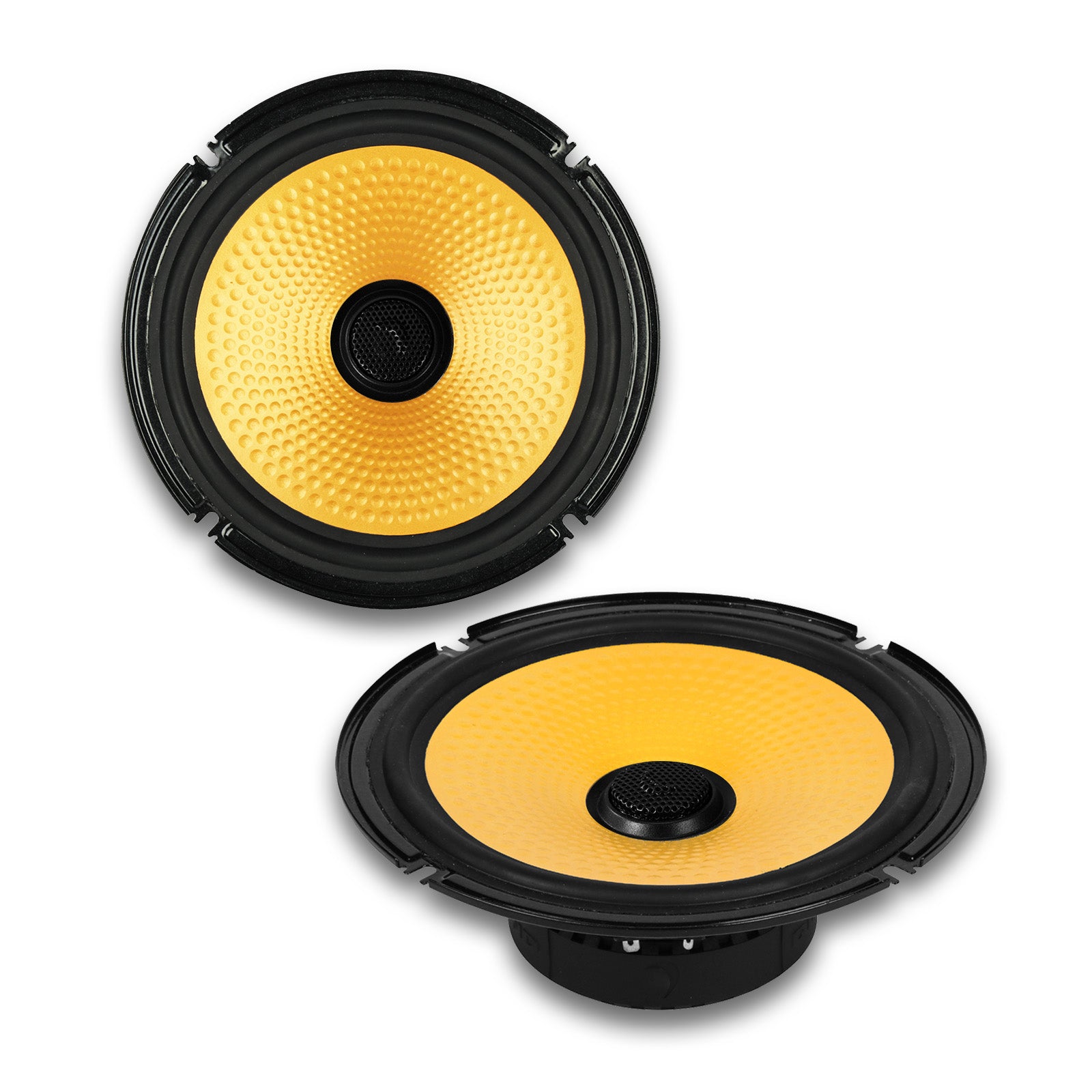

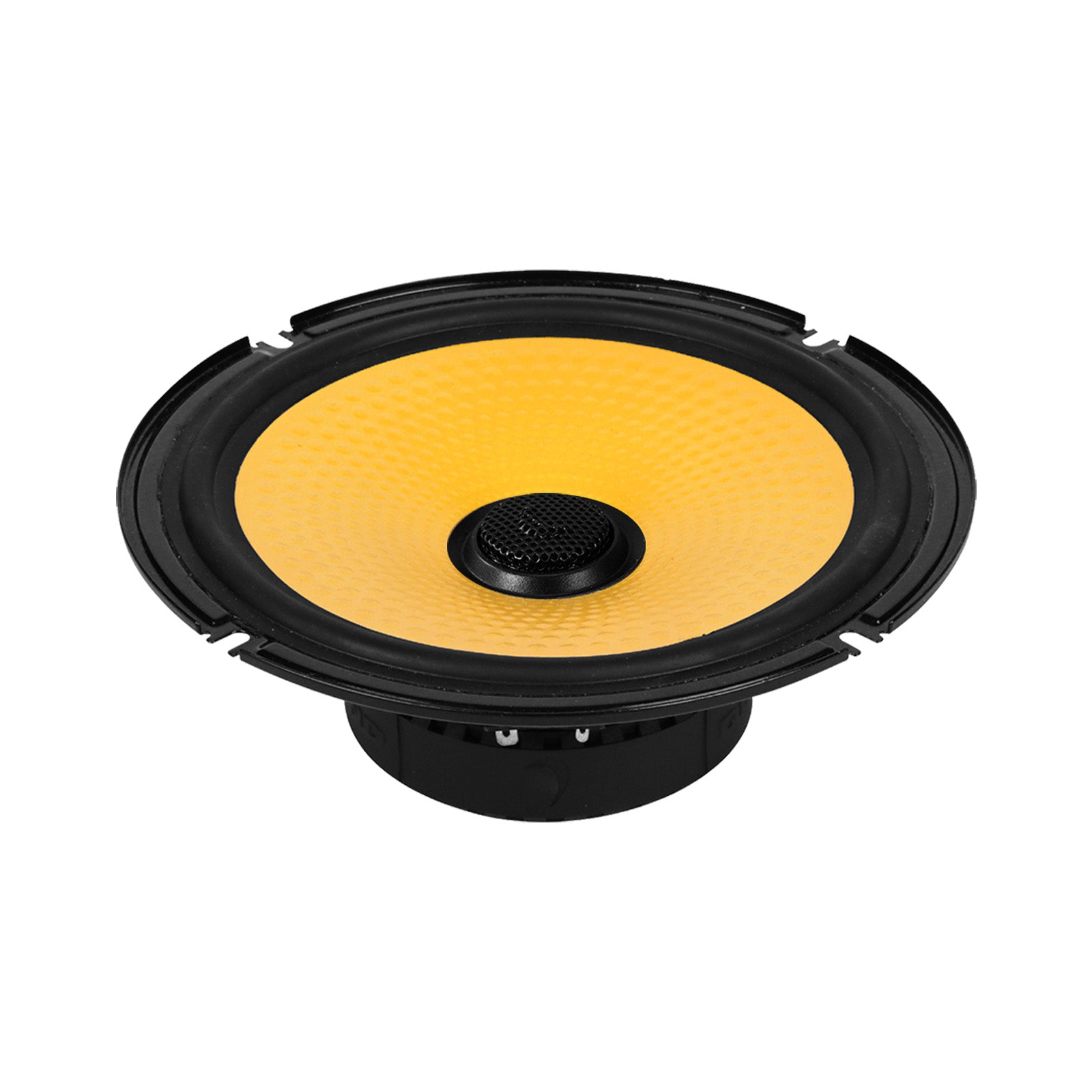

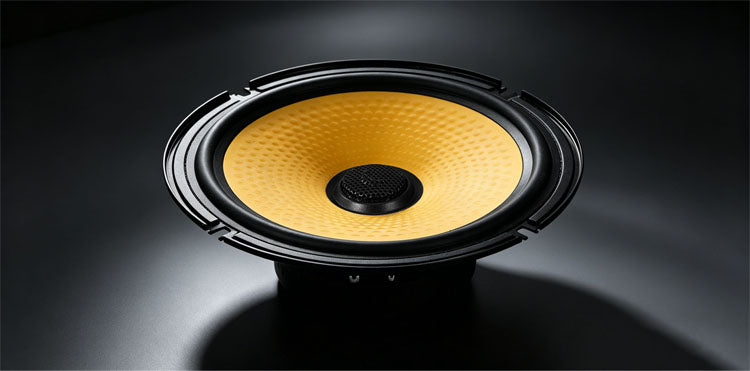

8" 2-Way Concentric Coaxial Speakers

Turn up the volume on your driving experience with the Diamond Audio DMDX8 8" 2-way concentric coaxial speakers, built for powerful output, high-fidelity sound, and exceptional everyday value. Part of the advanced DMDX Series, these speakers are designed for drivers who want bigger sound, deeper bass, and improved clarity without stepping into premium pricing territory.

At the core of the DMDX8 is its concentric coaxial design, aligning the tweeter and woofer on the same axis to deliver superior phase accuracy, enhanced imaging, and a more natural soundstage. This results in crisp highs, detailed midrange, and strong, responsive bass, creating a balanced and immersive listening experience across all music genres.

With 65W RMS / 195W MAX power handling, these 8-inch coaxial speakers provide clean, dynamic output with minimal distortion, making them ideal for both factory head units and amplified systems. The 87dB sensitivity ensures efficient performance, allowing your system to play louder with less power.

Engineered with premium materials and Diamond Audio’s proven design philosophy, the DMDX8 offers long-lasting durability and consistent sound performance. The wide frequency response (60Hz–20kHz) captures the full spectrum of your music, delivering a rich and engaging audio experience.

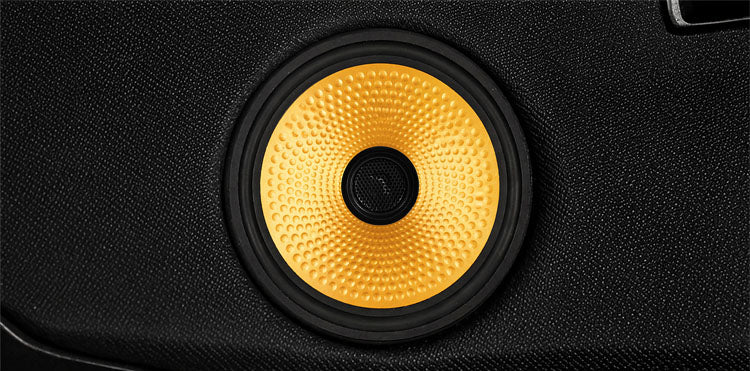

Despite their larger size, the DMDX8 features a shallow 1.77-inch mounting depth, making installation simple in a variety of vehicles. Whether upgrading door speakers, rear decks, or custom installs, these speakers offer flexibility and ease of integration.

Key Features

• Model: DMDX8 – DMDX Series
• 8" 2-way concentric coaxial speakers
• 65W RMS / 195W MAX power handling
• Concentric design for improved imaging and soundstage
• Wide frequency response: 60Hz–20kHz
• 87dB sensitivity for efficient output
• Shallow mount design for easy installation

The Diamond Audio DMDX8 delivers big, bold sound with precision and clarity, making it the perfect upgrade for drivers seeking an affordable, high-performance 8-inch speaker solution with true high-fidelity audio performance.



Specifications

  • Power Handling - Watts (RMS/Peak): 65W RMS / 195W MAX
  • Frequency Response (Hz): 60Hz-20KHz
  • Sensitivity (1W/1M): 87dB
  • Nominal Impedance (ohms): 4Ω
  • Free-Air Resonance (Hz): 70Hz
  • Nominal Diameter -inch (mm): 8" (203mm)
  • Mounting Depth-inch (mm): 1.77" (45mm)
  • Cut-Out Diameter -inch (mm): 7.84" (123mm)
  • Overall Diameter -inch (mm): 8.26" (159mm)
  • Overall Height -inch (mm): 2.13" (54.1mm)

Specifications

Brand

Diamond audio

Type

Motor vehicle speakers

DMDX Speakers - Frequently Asked Questions

Q1: What are DMDX Speakers designed for?
A: They are designed for factory speaker upgrades and affordable aftermarket car audio systems, with improved clarity, detail, and balanced performance.

Q2: What makes the DMDX Series different?
A: DMDX combines component and coaxial designs, durable construction, and optimized speaker engineering for a noticeable upgrade over factory audio.

Q3: Can DMDX Speakers be used with aftermarket amplifiers?
A: Yes. They are designed to work with both factory systems and aftermarket amplifiers, depending on the system setup.

Q4: Do DMDX Speakers improve sound staging?
A: Yes. Component configurations with separate tweeters and external crossovers can improve sound staging and imaging.

Q5: Why choose DMDX Speakers?
A: DMDX offers a balance of clear vocals, tight mid-bass, detailed highs, durability, and value for everyday audio upgrades.
