By Diamond Audio

DMD Series 12" Active Slim Subwoofer w/Bass Enhancement - DPUS12

Weight: 25.0 lb
Regular price $499.99
Regular price Sale price $499.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: DPUS12
Regular price $499.99
Regular price Sale price $499.99

Deep Bass in a Slim Profile

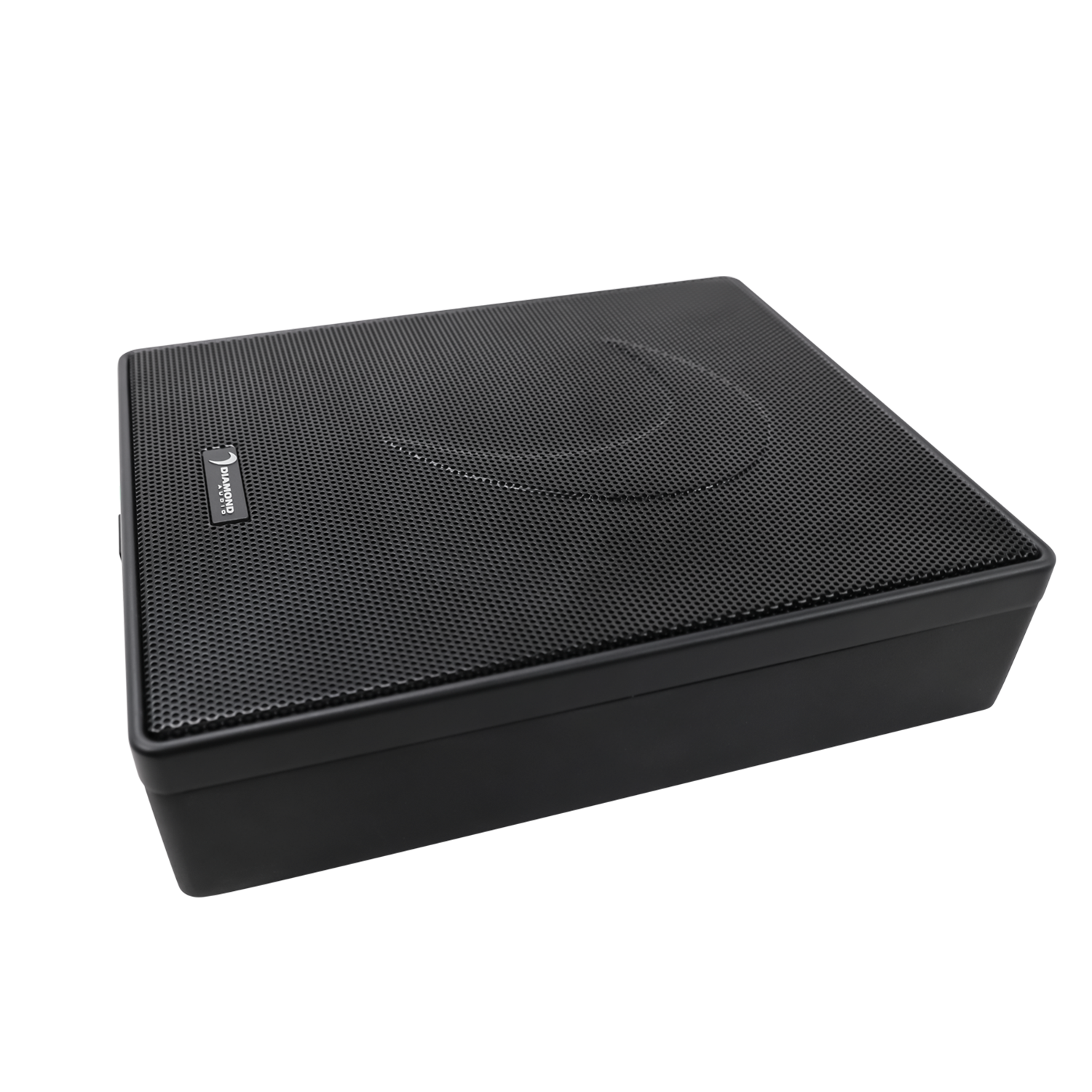

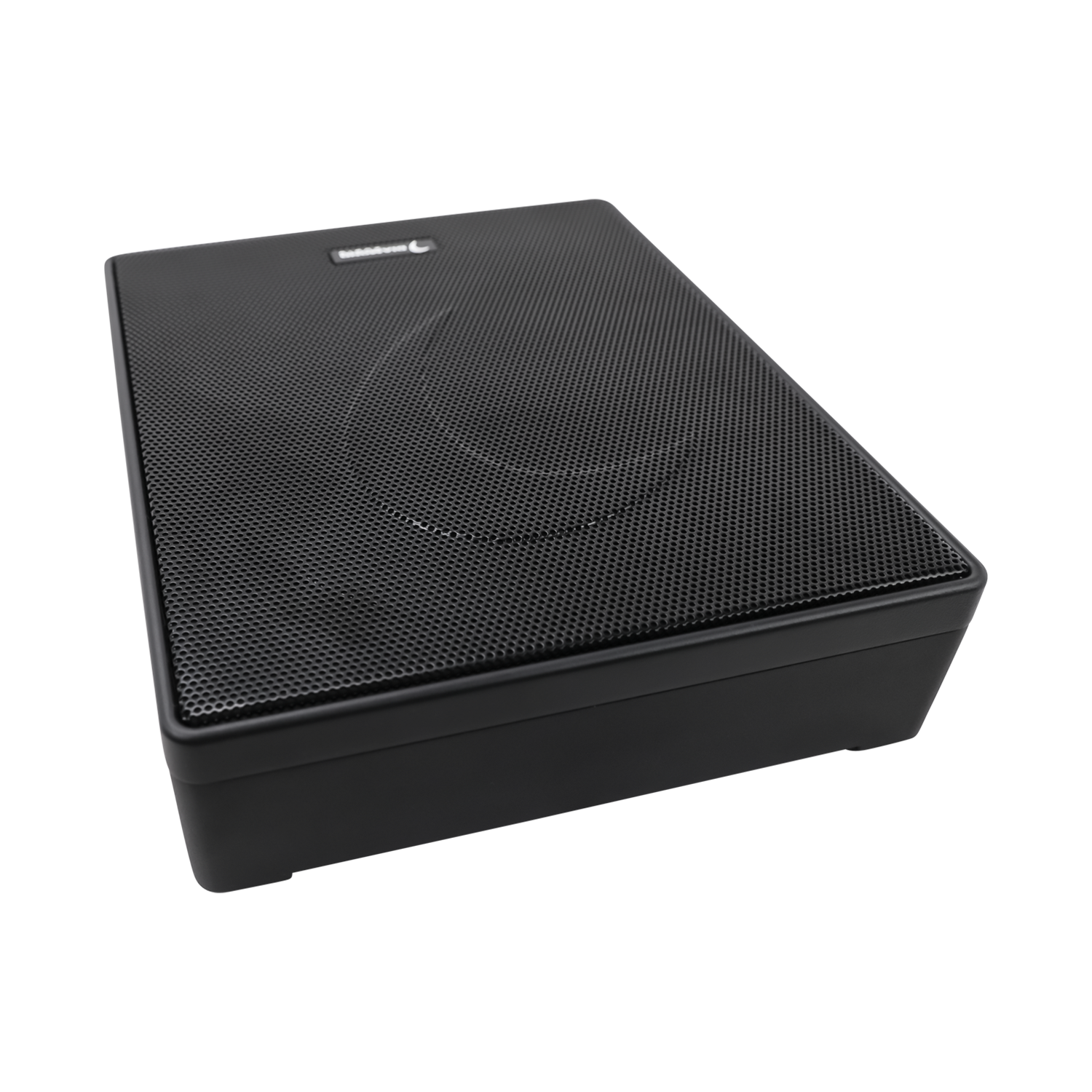

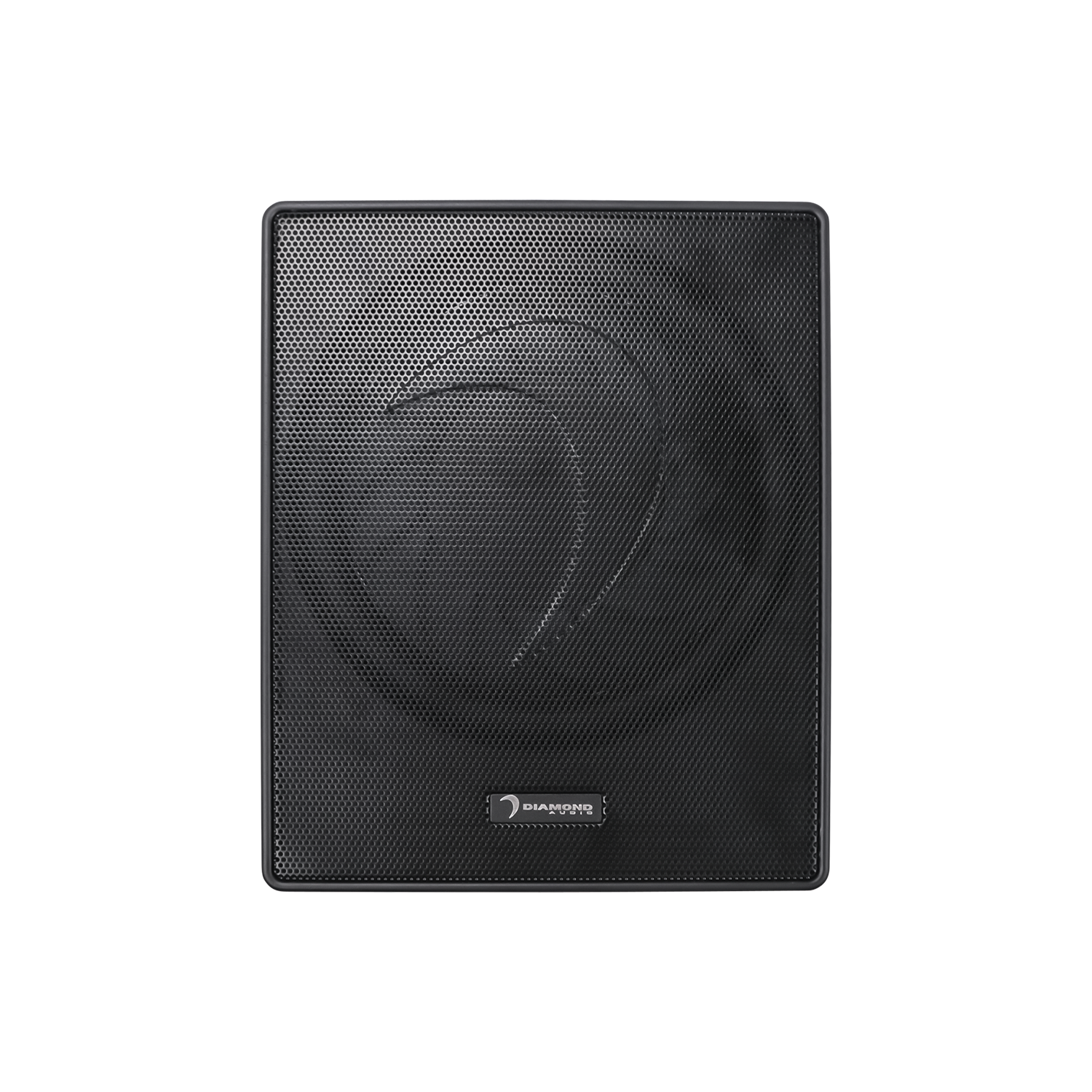

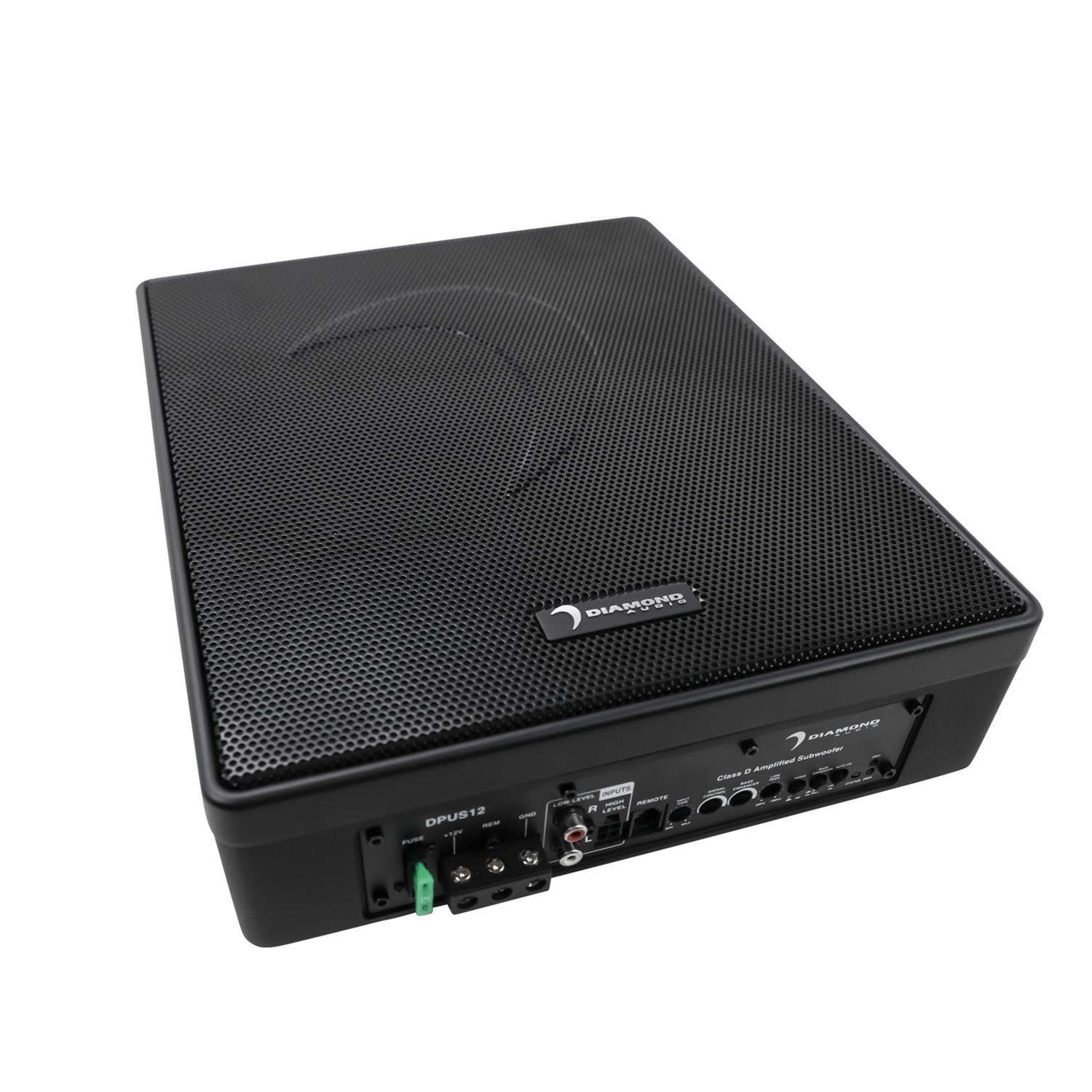

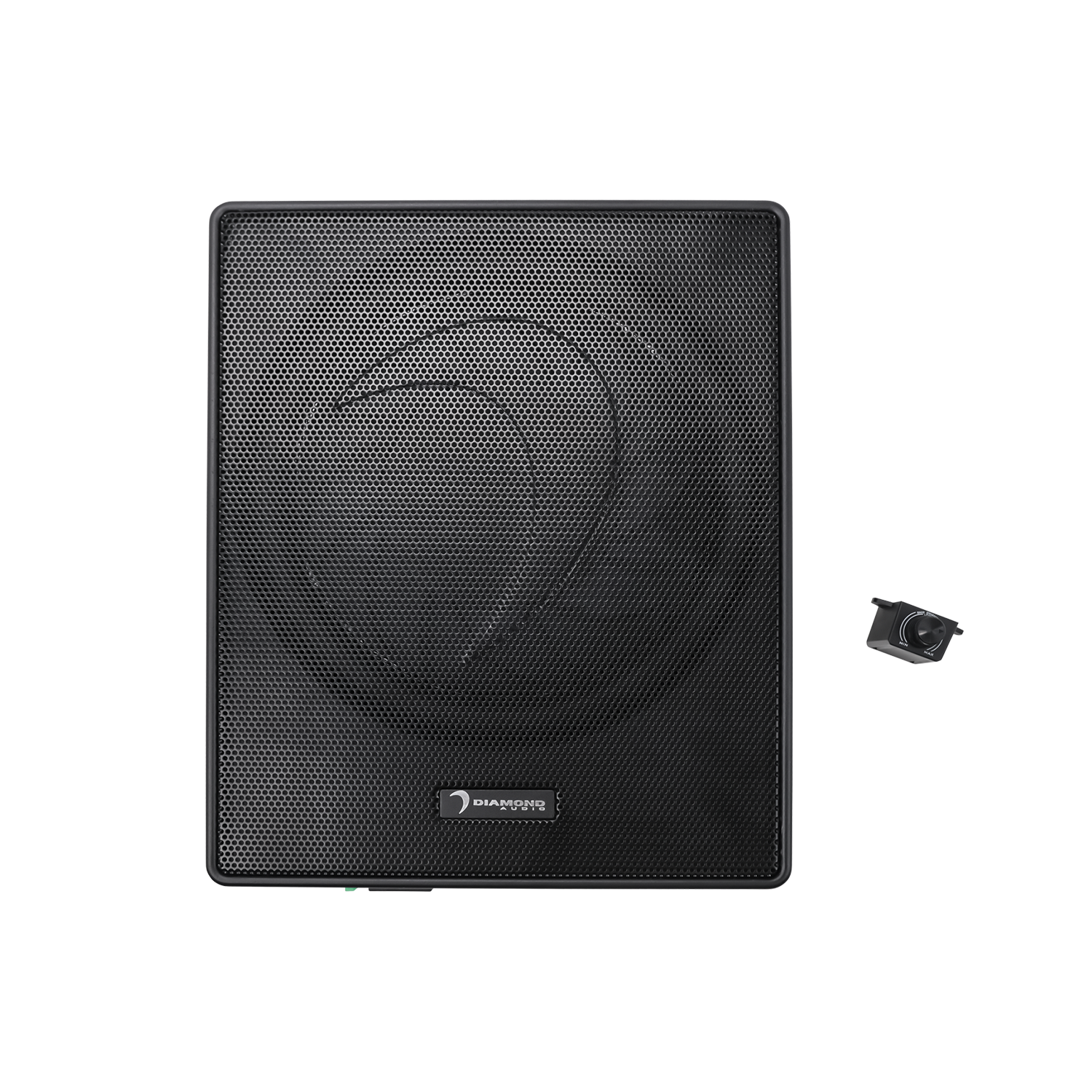

The cast-aluminum DPUS12 fits under seats, delivering impressive output from a 12” subwoofer while saving space with its compact design.

Elevate Your Factory Sound

Featuring 20V inputs and exclusive bass enhancement, the DPUS12 simplifies installation and optimizes factory signals for a premium audio experience.

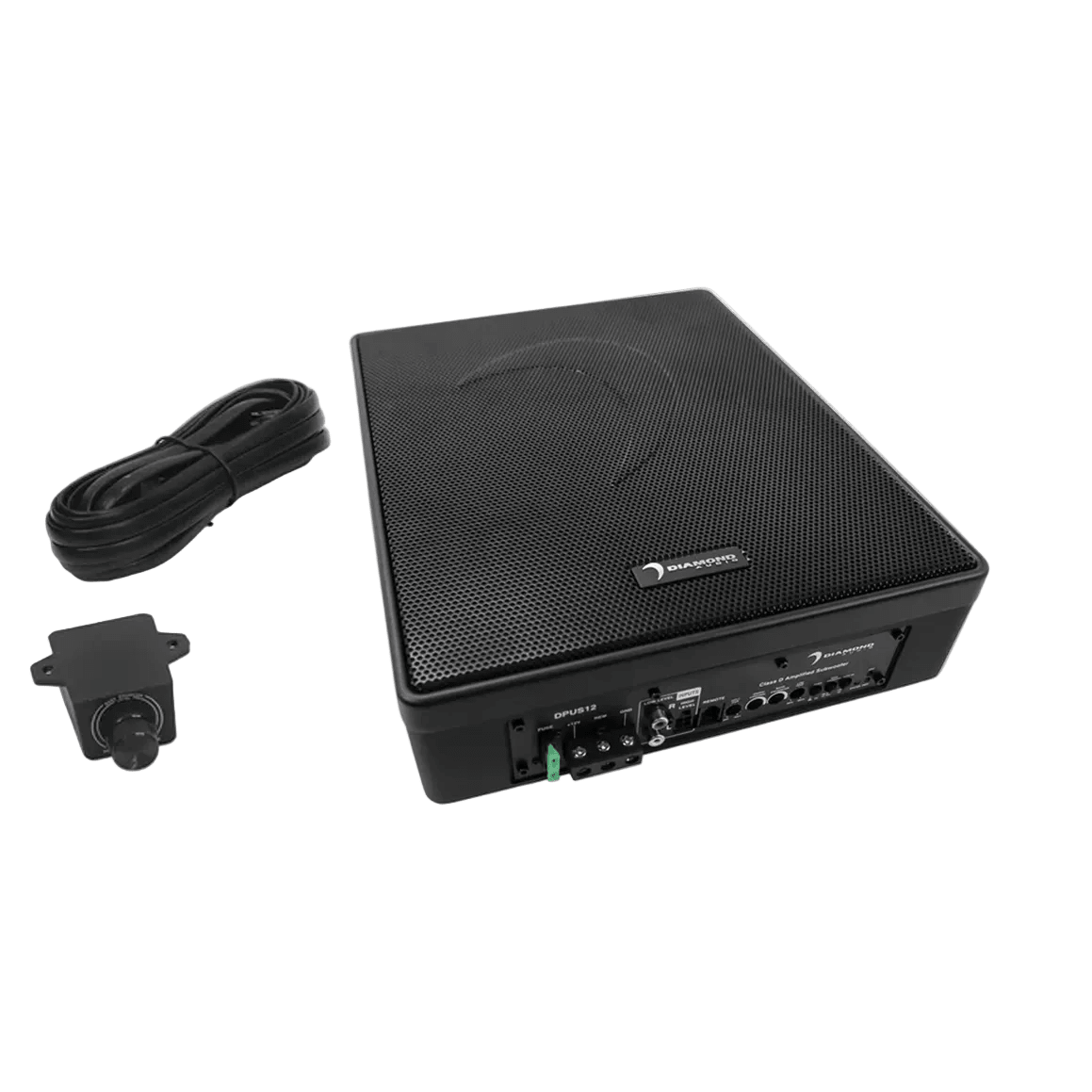

DMD Series 12" Active Slim Subwoofer w/Bass Enhancement - DPUS12

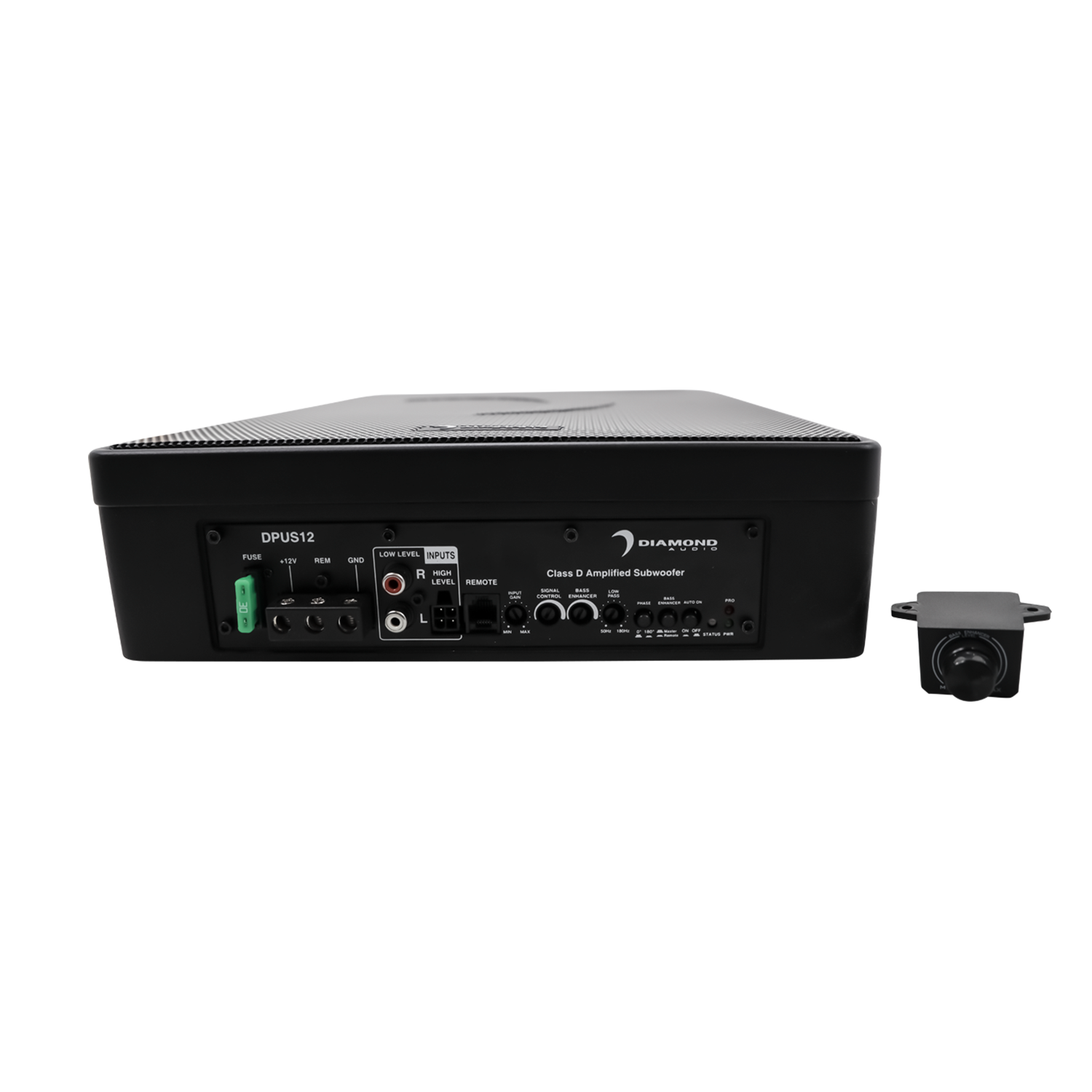

Diamond Audio’s line of under-seat enclosures, boasts unique features designed to simplify installation, alleviate space concerns and are compatible with OEM audio signal outputs. The DPUS12 offers 20V line-level inputs for OEM integration. To combat poor OEM signal quality, the DPUS12 features dual bass controls, one for level and the second with Diamond Audio's exclusive bass enhancement control. The DPUS12 also includes the standard low pass, subsonic filters, and phase adjustments.

Notably, the enclosure/amplifier housing is remarkably compact, yet solid with its cast aluminum construction, ensuring it fits a wide range of applications while delivering impressive output from the onboard 12” subwoofer. This compact design reassures you that the DPUS12 powered subwoofer will not only enhance your audio experience but also saves valuable space in your vehicle. It is designed to fit under seats and can also be mounted if needed.



Specifications

  • 12" Subwoofer
  • Super Slim Design
  • Power: 200W RMS / 400W MAX
  • Die Cast Aluminum Chassis/Enclosure

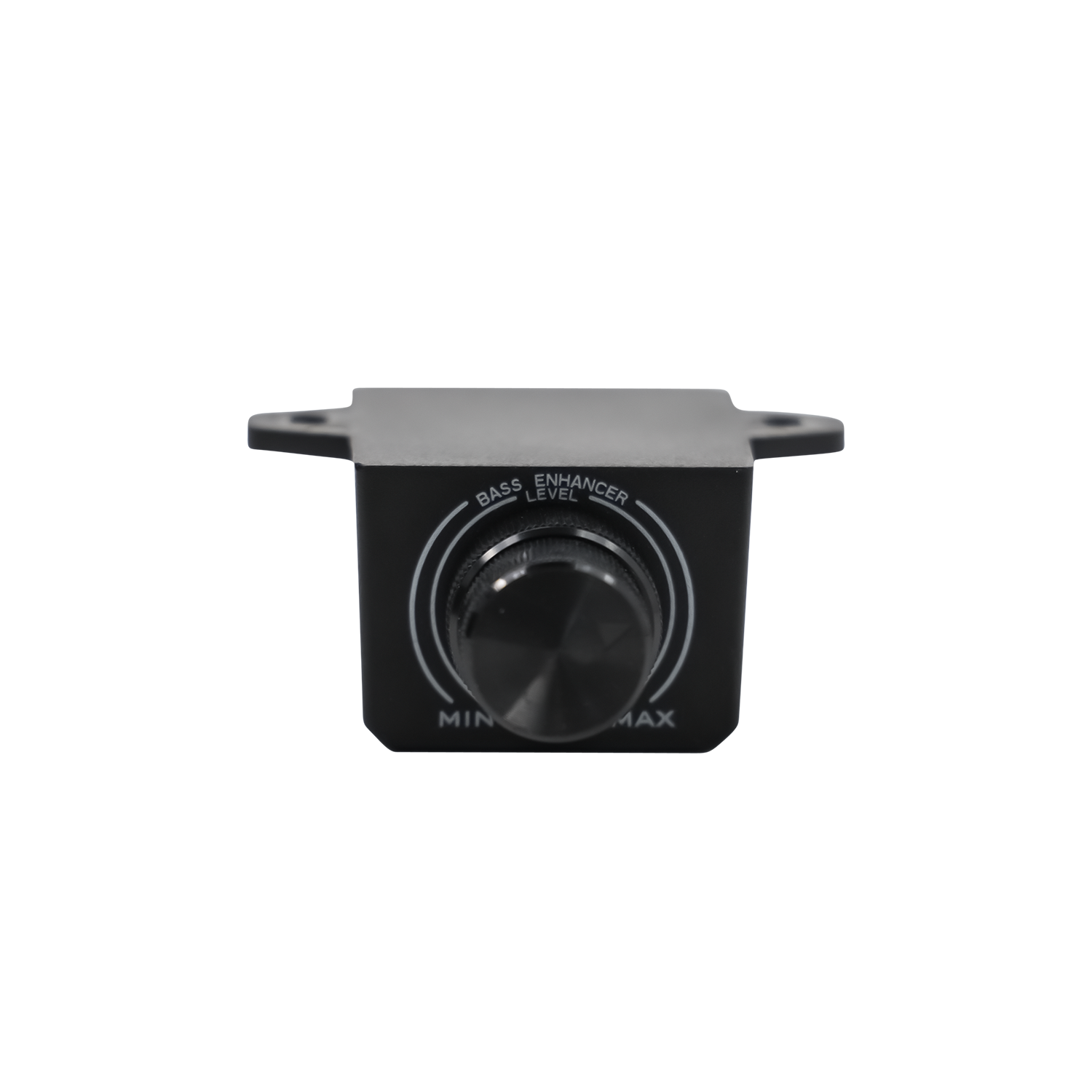

  • Dual Remote for Diamond BASS Enhancement Engine (DBEE)
  • DBEE Signal Bandwidth Adjustment
  • DBEE Level Adjustment: 0-16 dB
  • 20V High Level and Low Level Inputs
  • Auto Turn-On Circuit
  • P.W.M Power supply
  • Adjustable Input Sensitivity
  • Sub Sonic Filter: 20Hz (fixed)
  • LPF: 50Hz - 180Hz
  • Power / Protect / Status LED indicator
  • Thermal Protection Circuit
  • Short Protection Circuit
  • Overload Protection Circuit
  • Dimensions: L 13.58" x W11.10" x H 3.17" (L 345 x W 282 x H 80.5 mm)

Specifications
