    HDTSR14 - BREAK OUT HARNESS FOR MSHD14 WHEN 10CH OF 5V RCA OUTPUTS ARE REQUIRED

    $109.99
    $109.99
    Shipping calculated at checkout.
    Brand: Diamond Audio
    SKU: HDTSR14
    $109.99
    $109.99

    HDTSR14 - BREAK OUT HARNESS FOR MSHD14 WHEN 10CH OF 5V RCA OUTPUTS ARE REQUIRED

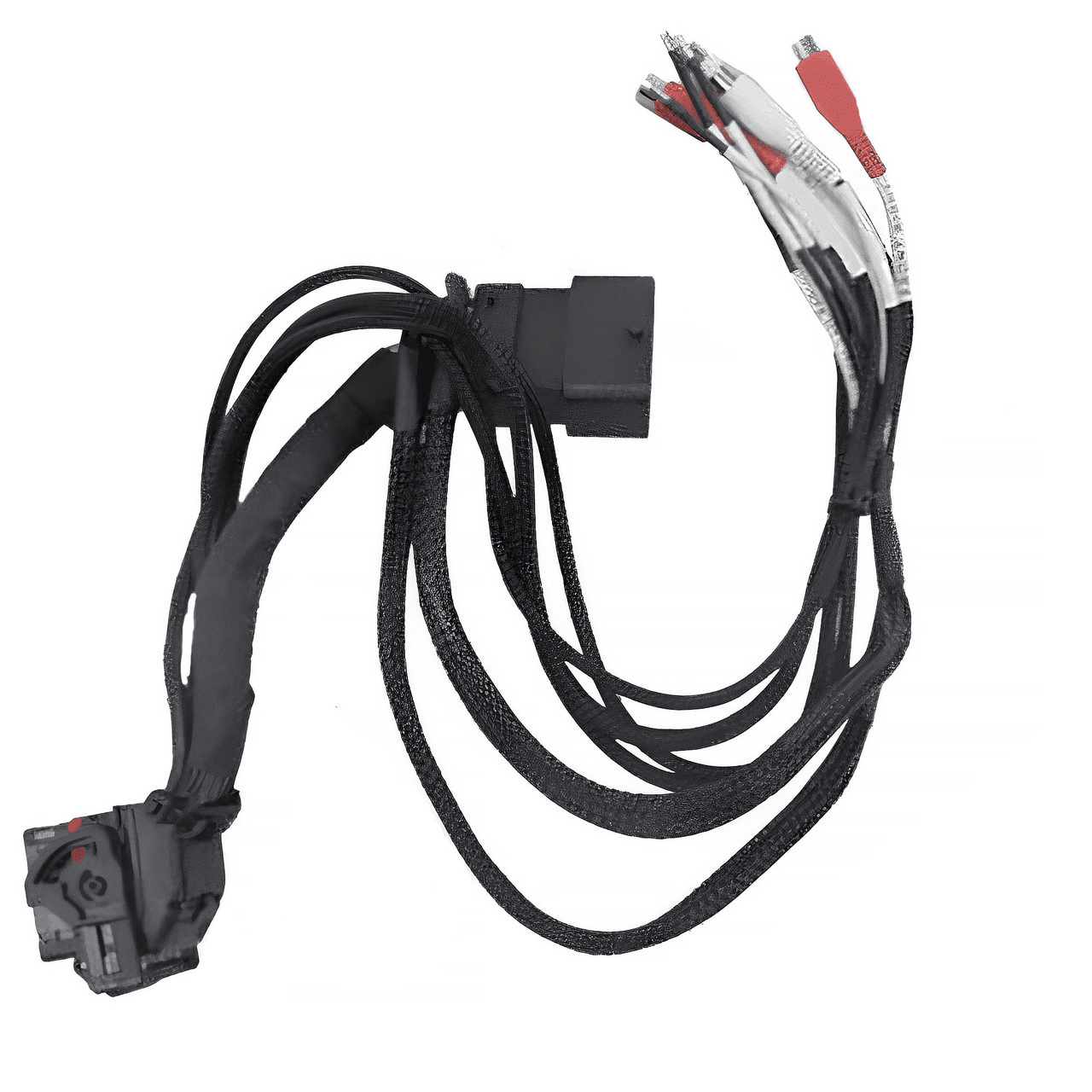

    The HDTSR14 harness is designed to connect to the MSHD14 and provide additional (4-ch) RCA pre-outs.  The \”T”\ split in the harness is to
    be used when more amplifier channels are needed than the 6 provided by the radio’s low level outputs.  This harness allow you to utilize the
    extra DSP channels built into the receiver.

    No re-pinning of the factory harness is required.  The harness is designed to plug into the factory connectors.

    ***Signal, Input/Output Harness***
    • Includes four additional RCA connectors for amplifier integration.
    *NOTE:  This is still a high-level signal.  Please make sure your amplifier can handle high-level input using RCA jacks.
    • Includes an output speaker wire harness.

    Specifications

    ***Signal, Input/Output Harness***

    • Includes four additional RCA connectors for amplifier integration.

    *NOTE:  This is still a high-level signal.  Please make sure your amplifier can handle high-level input using RCA jacks.

    • Includes an output speaker wire harness.
