HXM800.4D - HXM Series 4-Channel 800W Full Range Class D Amplifier

$589.99
$589.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: HXM800.4D
800W RMS Full Range 4 Channel Class D Marine Amplifier
$589.99
$589.99

Diamond Audio MOTORSPORT Series

Premium sound, built tough.

Compact powerhouses

Class D technology for unmatched RMS output.

HXM800.4D - HXM Series 4-Channel Full Range Class D Amplifier

Introducing the MOTORSPORT Series Amplifiers from Diamond Audio – designed to deliver exceptional sound quality while enduring the toughest outdoor elements. Engineered with superior full-range Class D Digital Technology, these amplifiers generate impressive RMS power within a compact footprint.

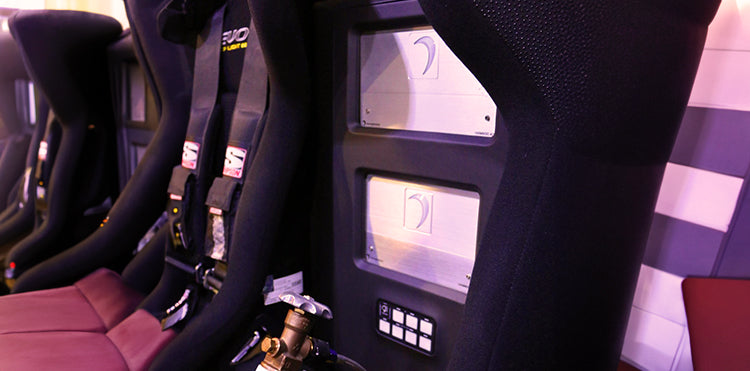

Perfect for boats, UTVs, motorcycles, or any mobile audio application, MOTORSPORT amplifiers bring the renowned Diamond Audio listening experience to outdoor settings. Their water-resistant construction and conformal-coated multi-layer circuit boards ensure reliability in marine applications and harsh environments.

Enjoy noise-free operation with balanced differential inputs, and benefit from full-range digital Class D technology with DirectFET power MOSFET output stage. The 12dB per octave adjustable crossovers and phase control allow for precise system tuning, while top-mounted controls provide convenient adjustment.

Simplifying installation, the selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit. When quality, precision, and performance are essential, look no further than the MOTORSPORT Series Amplifiers from Diamond Audio. Upgrade your outdoor audio system today and experience unparalleled sound and durability.

Specifications

POWER RATING

  • RMS Power (2Ω): 200W X 4
  • RMS Power (4Ω): 120W X 4
  • Bridged (Mono 1Ω): N/A
  • Bridged (Mono 2Ω): N/A
  • Bridged (Mono 4Ω): 400W X 2 (4Ω ONLY)

POWER SUPPLY

  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0V-17.0V (DC)
  • Idle Current: (0.7A)

DISTORTION

  • THD 4 (1KHz @4Ω): 0.05%
  • S/N Ratio (A weighted @1W): -77.4dBA
  • S/N Ratio (A weighted @FP): -97.4dBA

INPUT SENSITIVITY

  • Low Input Level: 0.2mV-10.0V
  • High Input Level: Up to 25W RMS

INPUT IMPEDANCE

  • Low Input Level: 22KΩ
  • High Input Level: N/A

OUTPUT STAGE

  • Output Impedance: 0.047Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12dB/Oct)

  • Variable High-Pass: 40Hz-400Hz
  • Variable Low-Pass: 40Hz-400Hz
  • Variable Sub-Sonic: N/A

FUSE RATINGS

  • ATC: N/A

DIMENSIONS

  • L x W x H: 9.3" x 5.27 x 1.75 (234mm x 133.9mm x 44.5mm)

FEATURES

  • Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
  • Full Range Class D IR Chipset

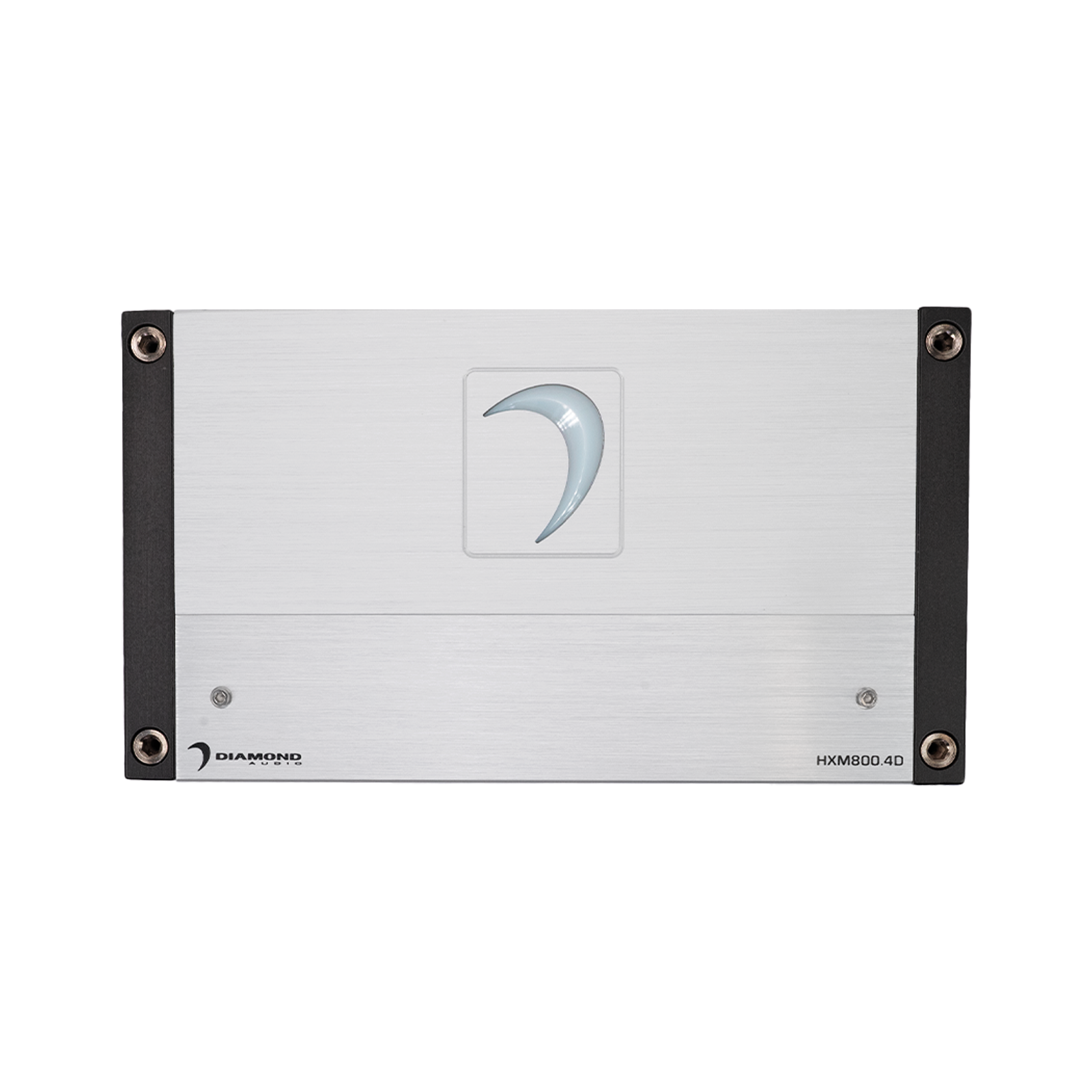

  • Illuminated Logo / Fully Concealed Mounting
  • Output Clip Indicators for Precise Set-Up
  • Fine Tuned Fully Variable Crossovers and Phase Control

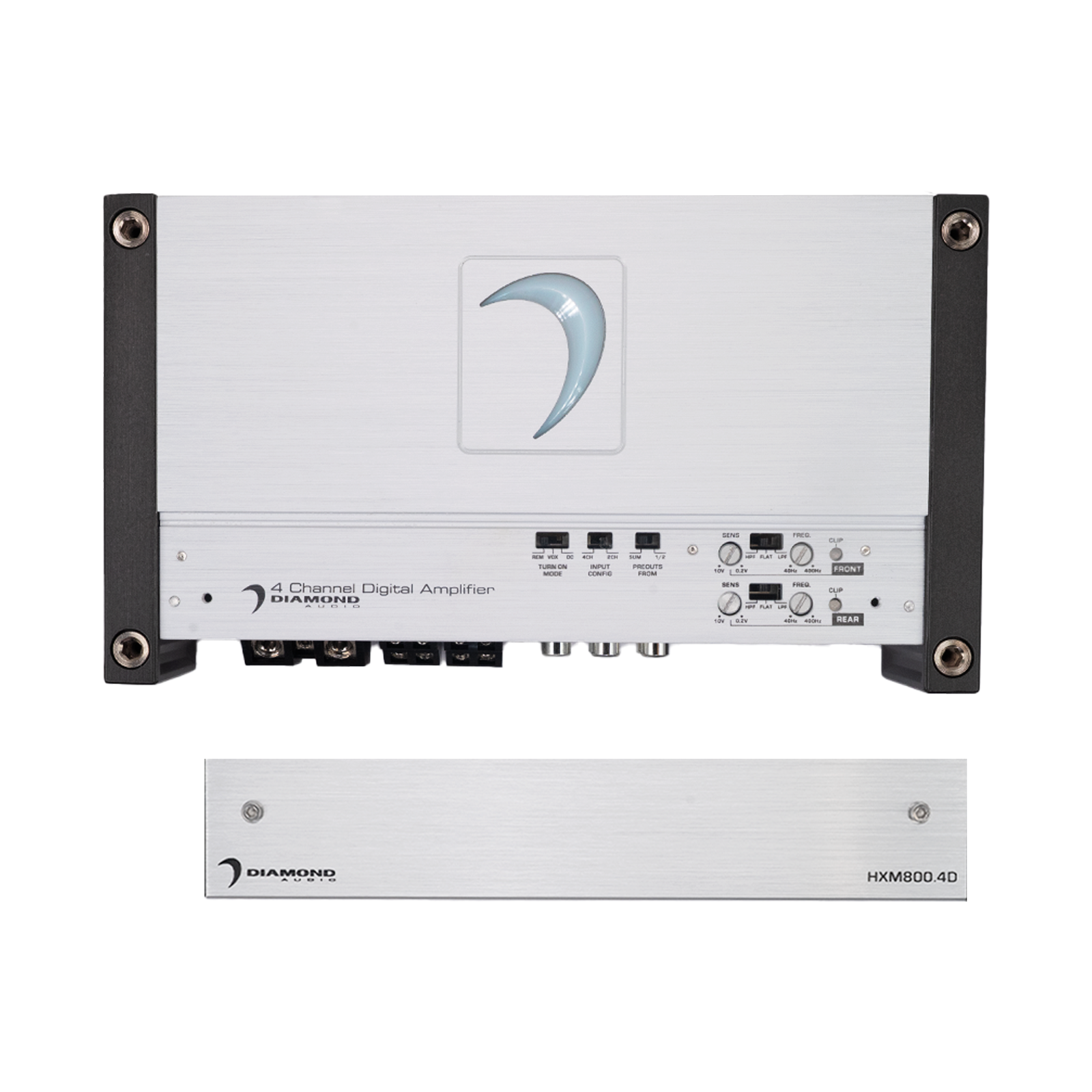

  • Top Mounted Controls for Convenient Amplifier Adjustment

Specifications

Brand

Diamond audio

Type

Motor vehicle amplifier
