By Diamond Audio

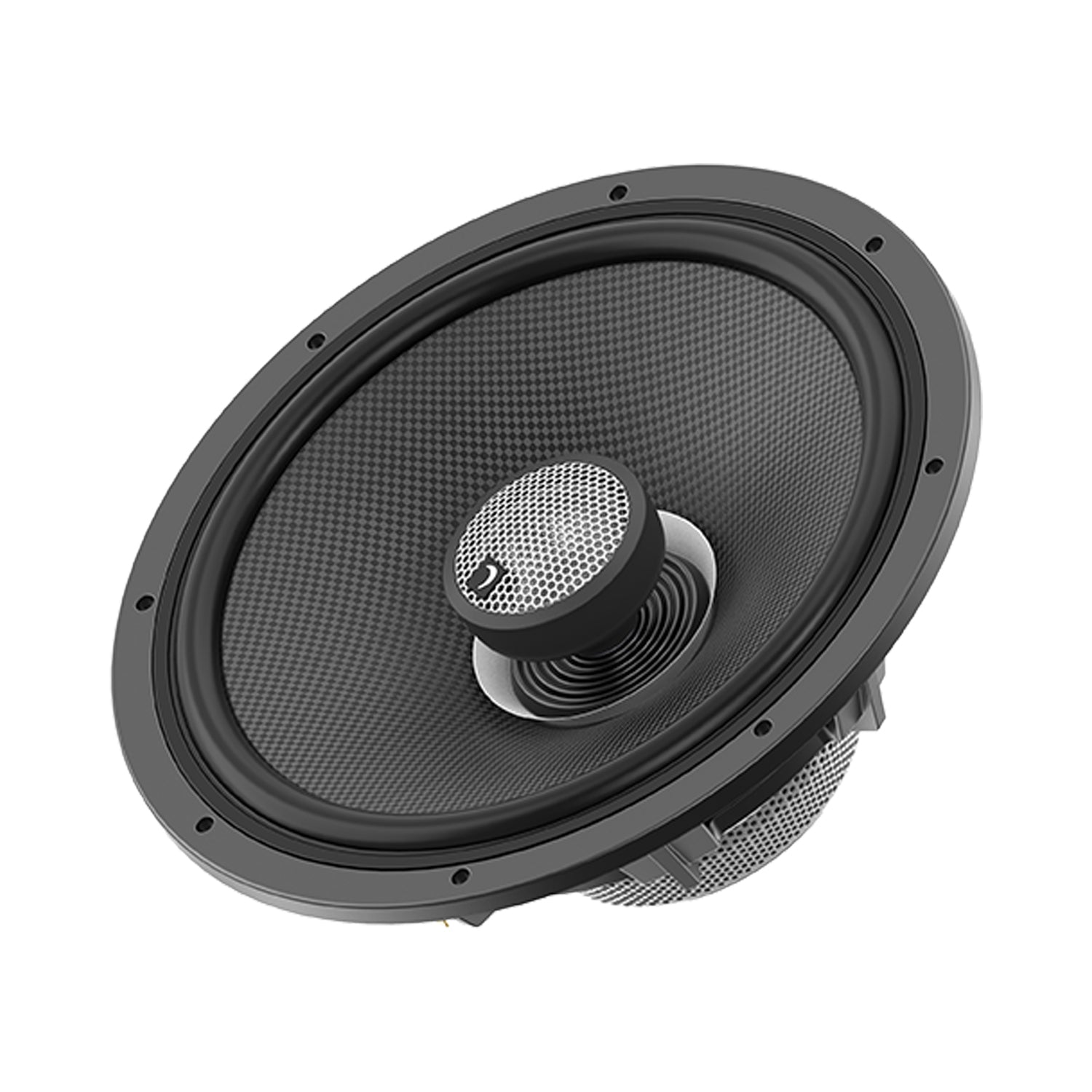

8" 2-Way High 0utput Marine Speaker (4Ω) - HXM8F4BK

$599.99
$599.99
Brand: Diamond Audio
SKU: HXM8F4BK

Next-Level Power: The Black Series Evolution!

The HXMFBK Series redefines high-output performance by blending legendary engineering with advanced carbon fiber cones. Experience deeper bass and crisp, impactful highs designed to dominate even the loudest outdoor environments.

Rugged Durability Meets Extraordinary Sound!

Engineered for the extreme, the HXMFBK Series features fiber-reinforced composite baskets and oversized titanium tweeters. Upgrade your marine or motorsports adventure with class-leading acoustics built to withstand the elements flawlessly.

8" - 4Ω High 0utput, Waterproof, Carbon Cone, Oversized Tweeter

Diamond Audio’s is proud to release it’s new and improved HXMF Black Series Coaxial Drivers. Building on the features of the HXM and HXMF platforms, the new HXMFB series increases performance where it counts. Higher output, more impactful bass response, and more high-end with new larger 1.5” Titanium tweeters. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary HXM and HXMF series to expand it with the new HXMFB Series, combining the best features of the HXM and HXMF drivers and improving both the output performance and low-end response. Available in both 2Ω and 4Ω models to really optimize system design. The result? Class-leading sound quality, exceptional output, and that trademark Diamond Audio quality.


These drivers’ elements are crafted to the highest standards, from the premium voice coils and advanced Neodymium motor structures to the rock-solid fiber-reinforced composite basket design, oversized titanium tweeters, and carbon fiber cones. These speakers don’t just play music — they transform your listening experience into something extraordinary. Don’t settle for ordinary sound. If you’re looking for quality, high-performance speakers for your next Marine or Motorsports application. Choose Diamond Audio’ss HXMB Series Coaxial Drivers — because your music deserves the best.



Specifications

SPEAKER SIZE - 8"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (Ω) [SERIES]: 1.9
QMS: 3.873
QES: 0.472
QTS: 0.421
FS (HZ): 83
VAS (L): 16.072
CMS (MM/N): 0.23
MMS (G): 16.04
SD (M2): 221.671
BL (T*M): 5.797
XMAX (MM): 3.25
POWER HANDLING RMS: 175
POWER HANDLING MAX: 600
MOUNTING DEPTH: IN.(MM):3.11" (78.9MM)
CUT OUT DIAMETER IN.(MM):7.02" (178.38MM)
OVER ALL DIAMETER IN.(MM):8.31" (211MM)
OVER ALL HEIGHT IN.(MM):3.56" (90.32MM)

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Motor vehicle speakers

HXM Speakers - Frequently Asked Questions

Q1: What are HXM Speakers designed for?
A: They are designed for marine and motorcycle audio systems, especially boats, personal watercraft, and Harley-Davidson motorcycles.

Q2: Are HXM Speakers suitable for outdoor environments?
A: Yes. They feature UV-resistant cones, waterproof surrounds, and corrosion-resistant components for demanding outdoor use.

Q3: Can HXM Speakers handle high volume levels?
A: Yes. They are engineered for high efficiency and strong power handling, helping deliver clear sound at higher volume levels.

Q4: Are HXM Speakers suitable for motorcycles?
A: Yes. They are designed to work in motorcycle fairings and saddlebag installations, while also supporting marine applications.

Q5: Why choose HXM Speakers?
A: HXM combines weather resistance, high output, clear sound, and durable construction for marine and powersports audio systems.
