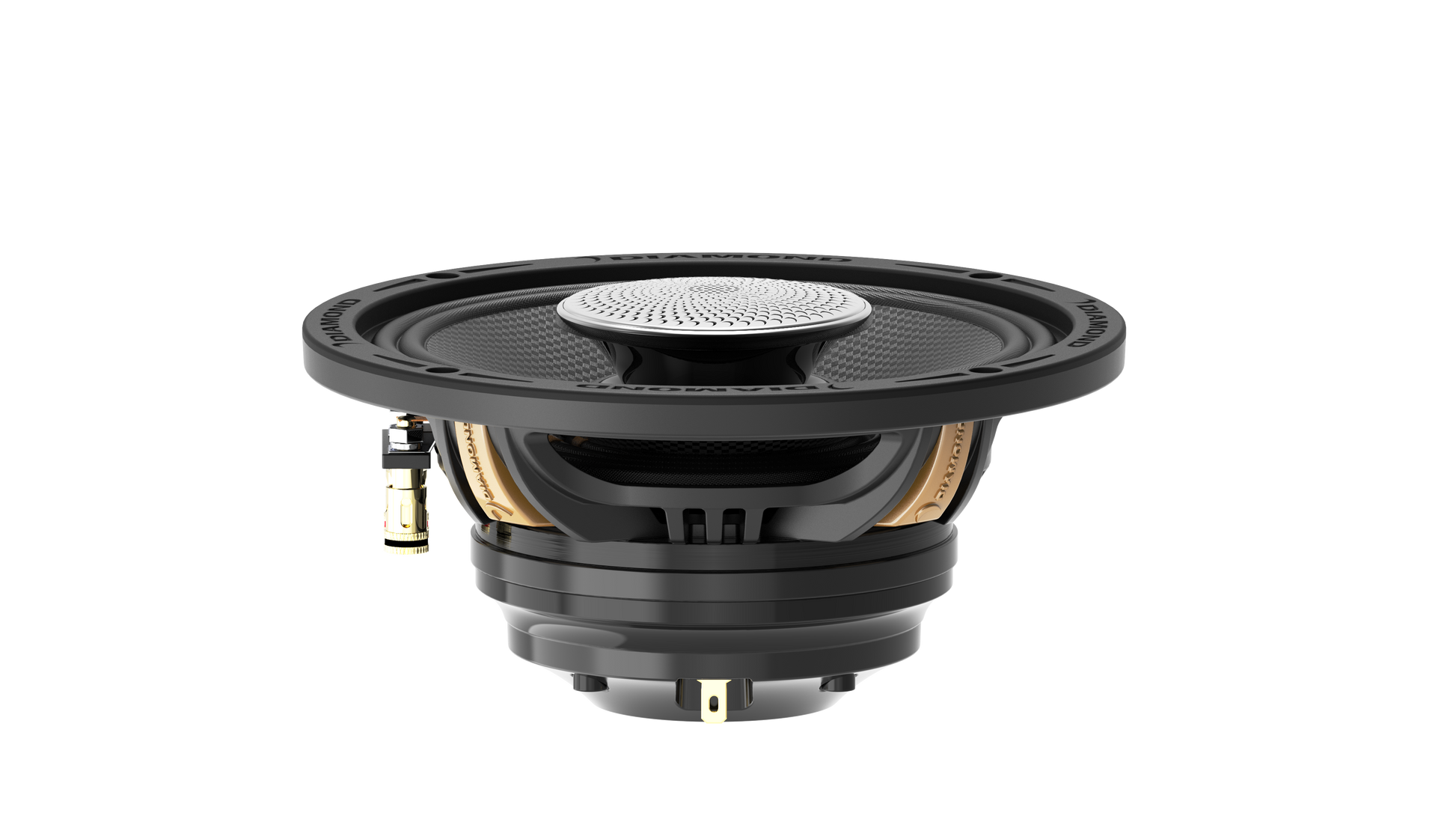

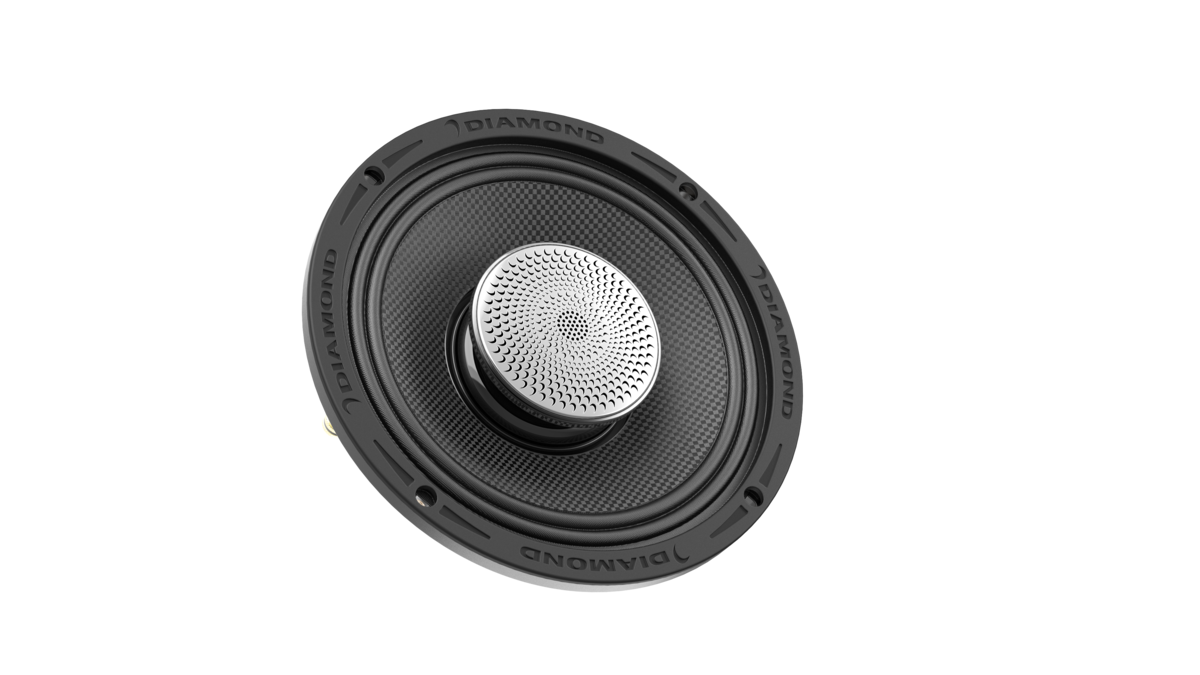

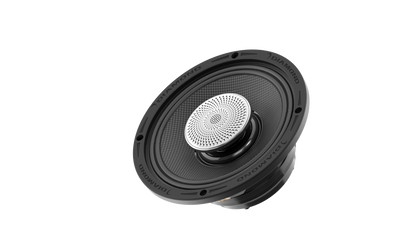

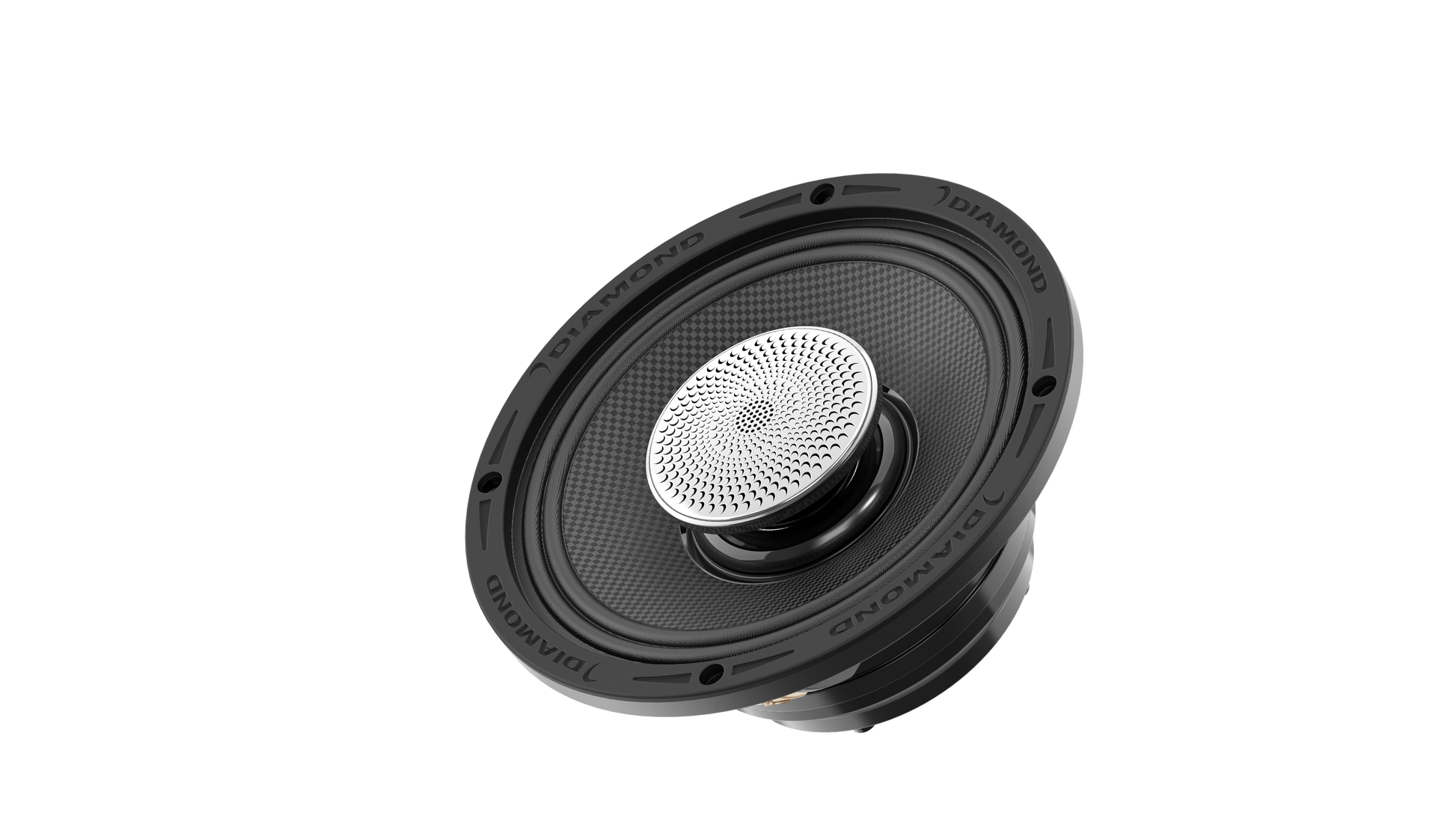

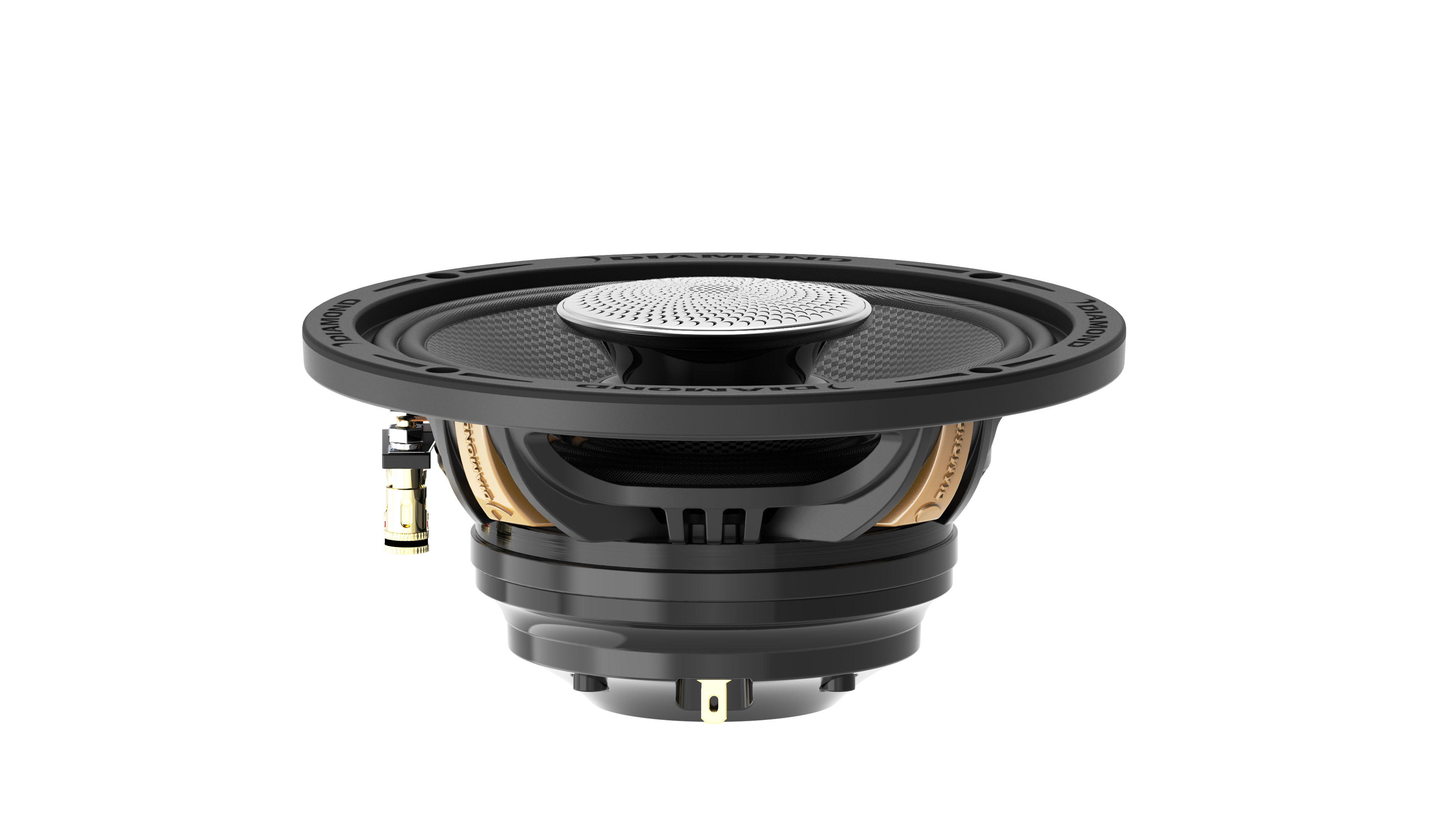

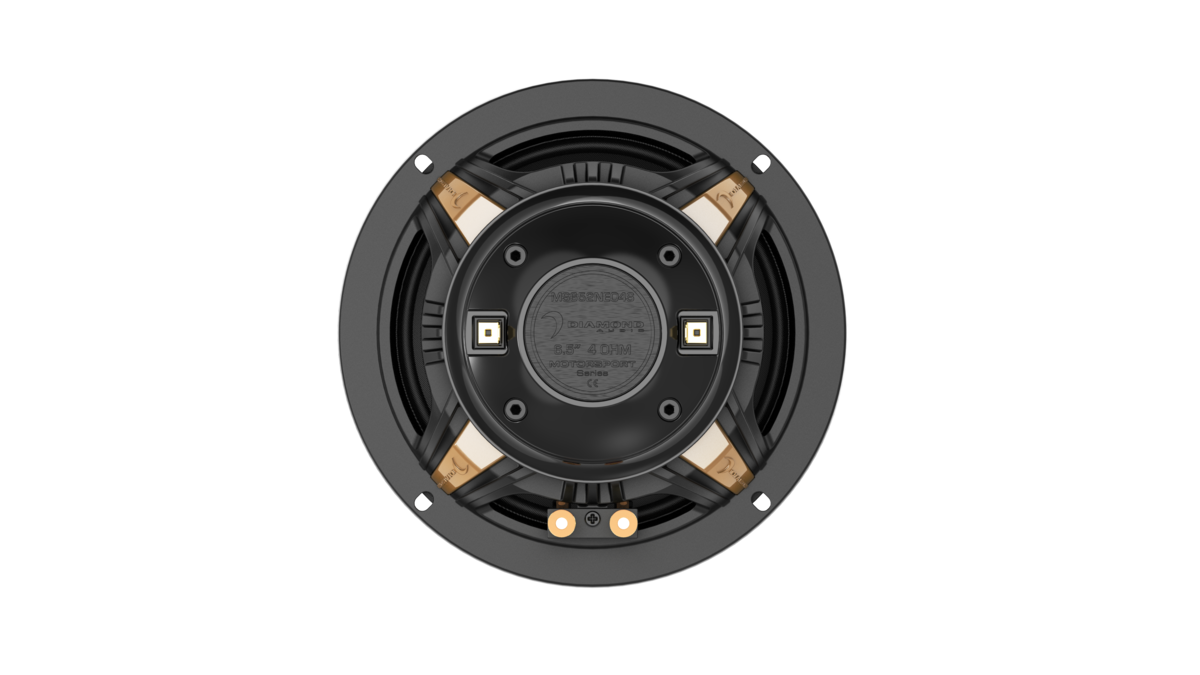

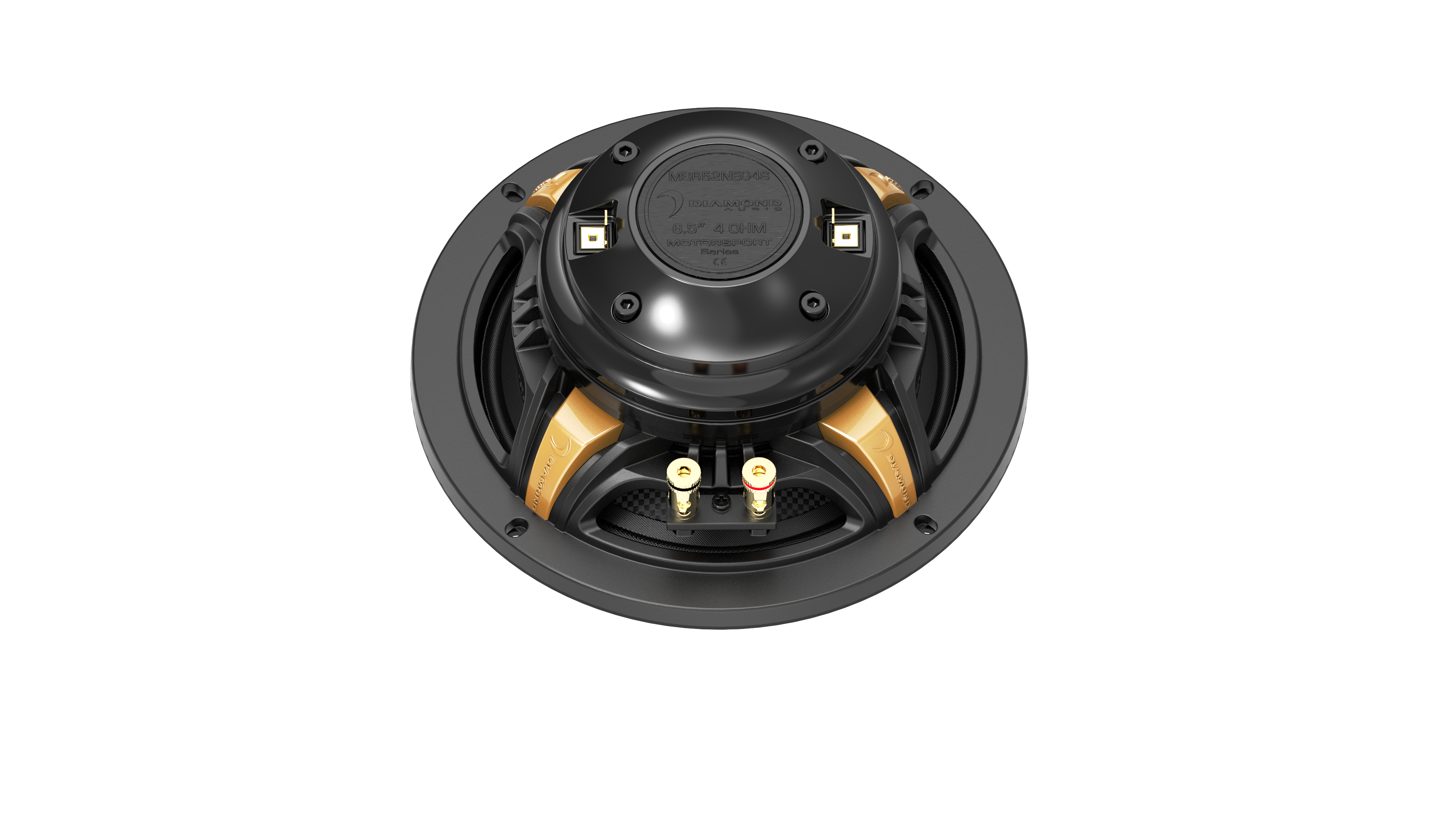

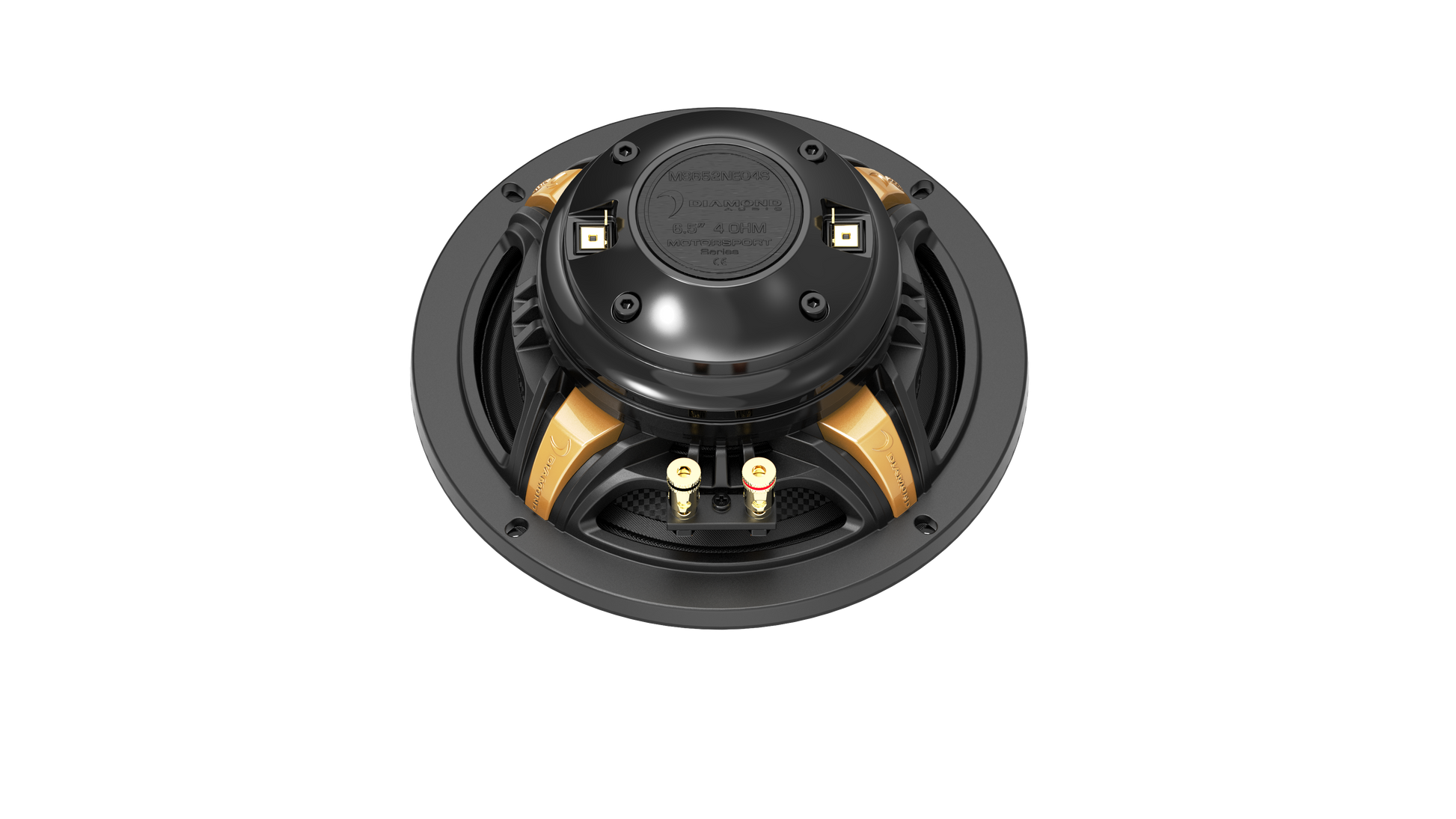

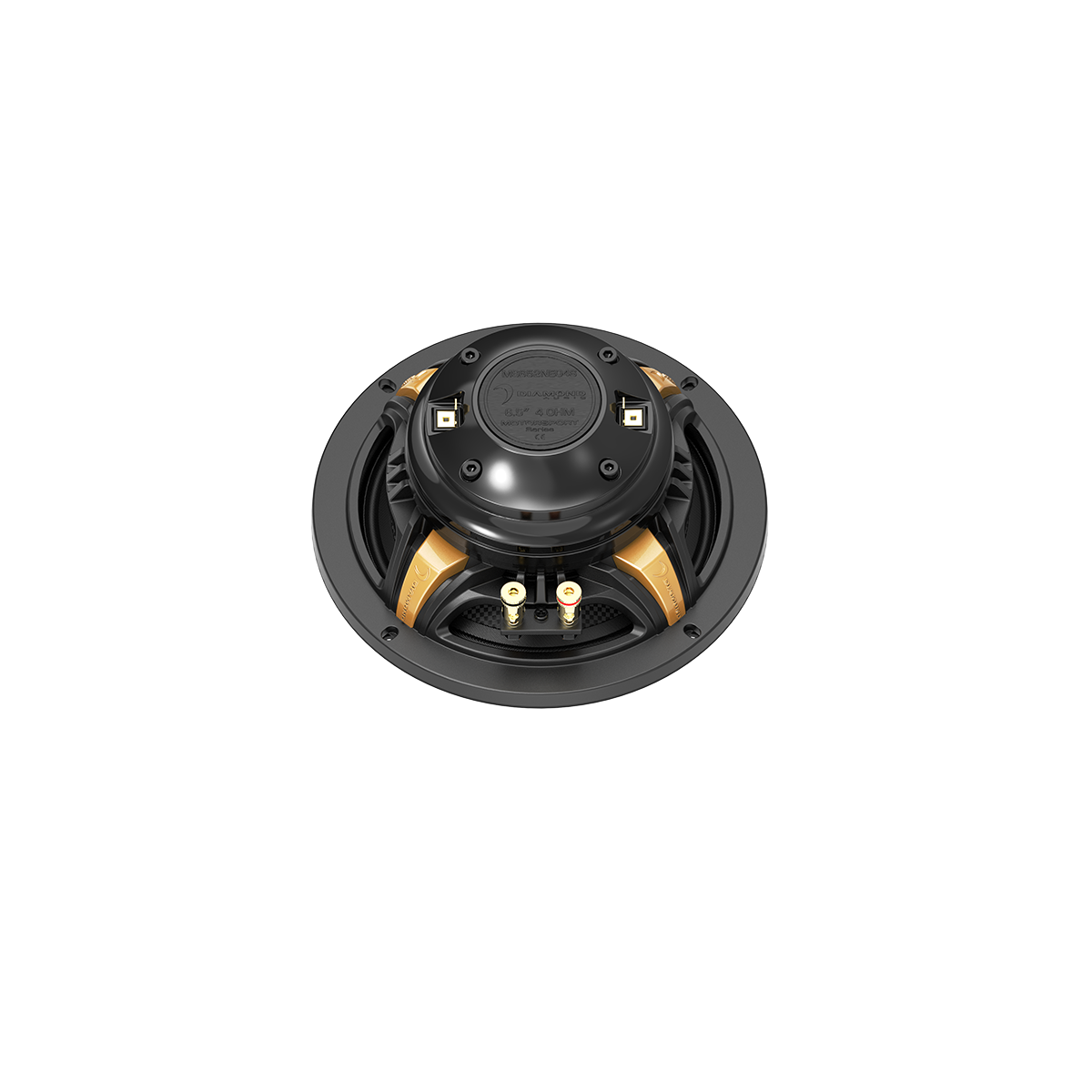

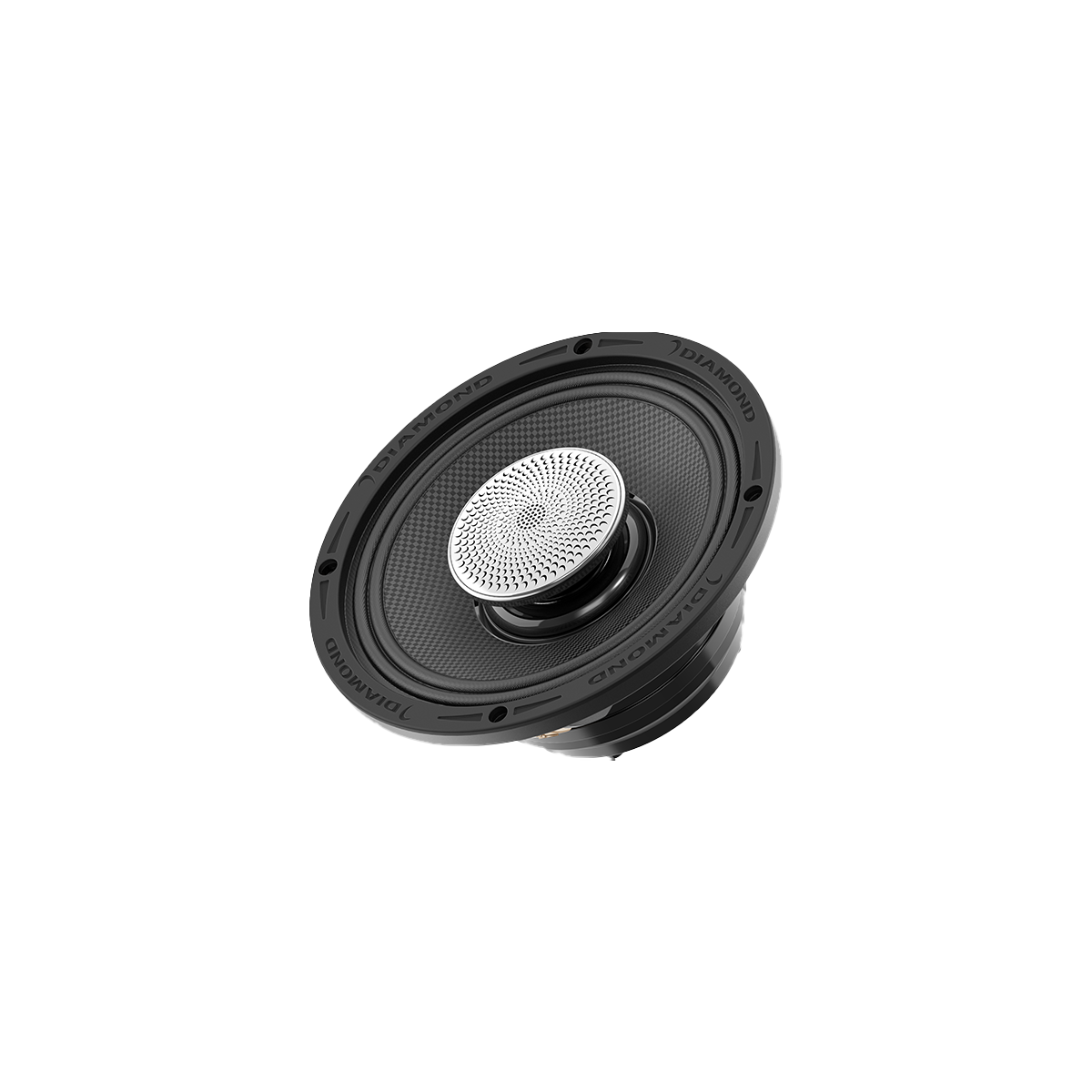

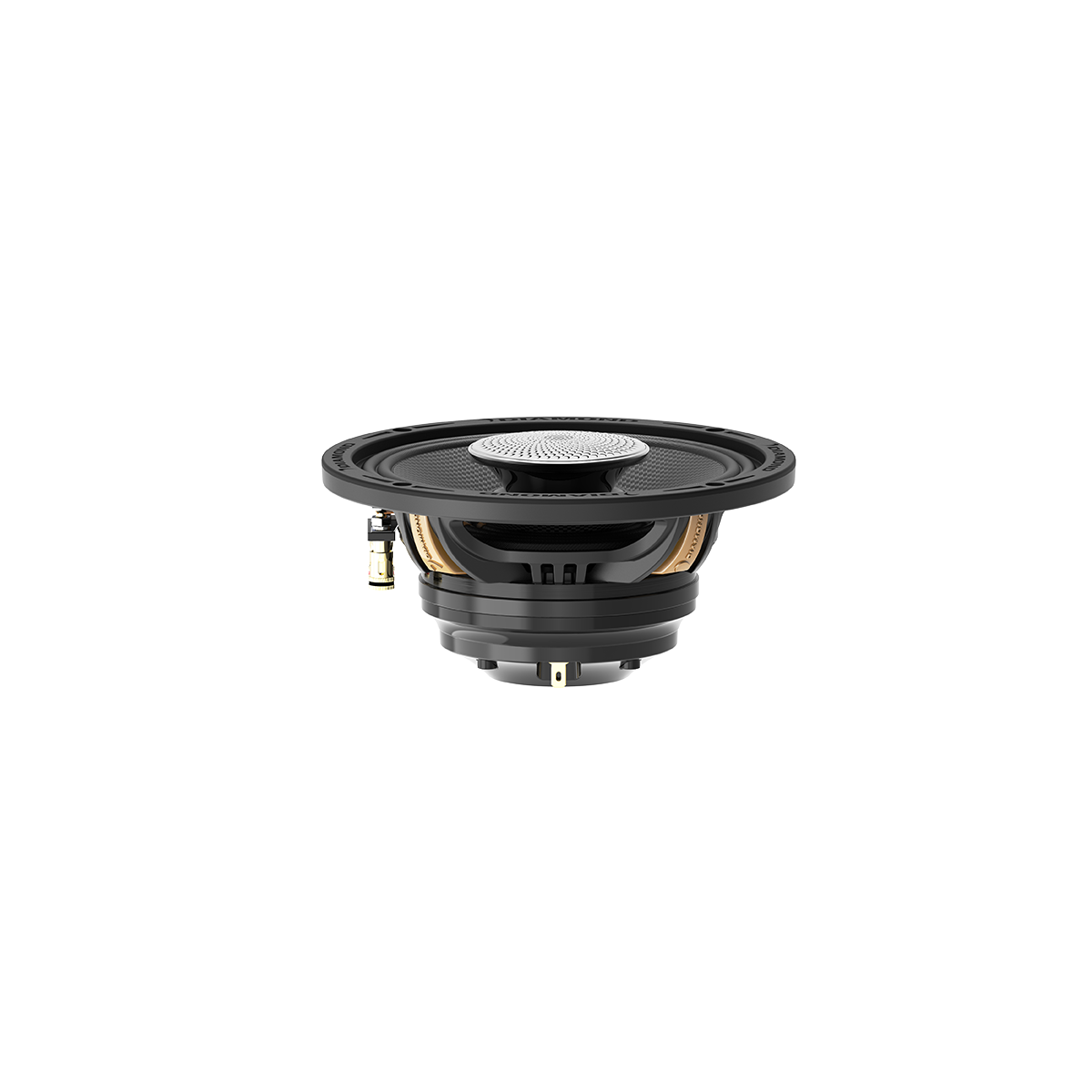

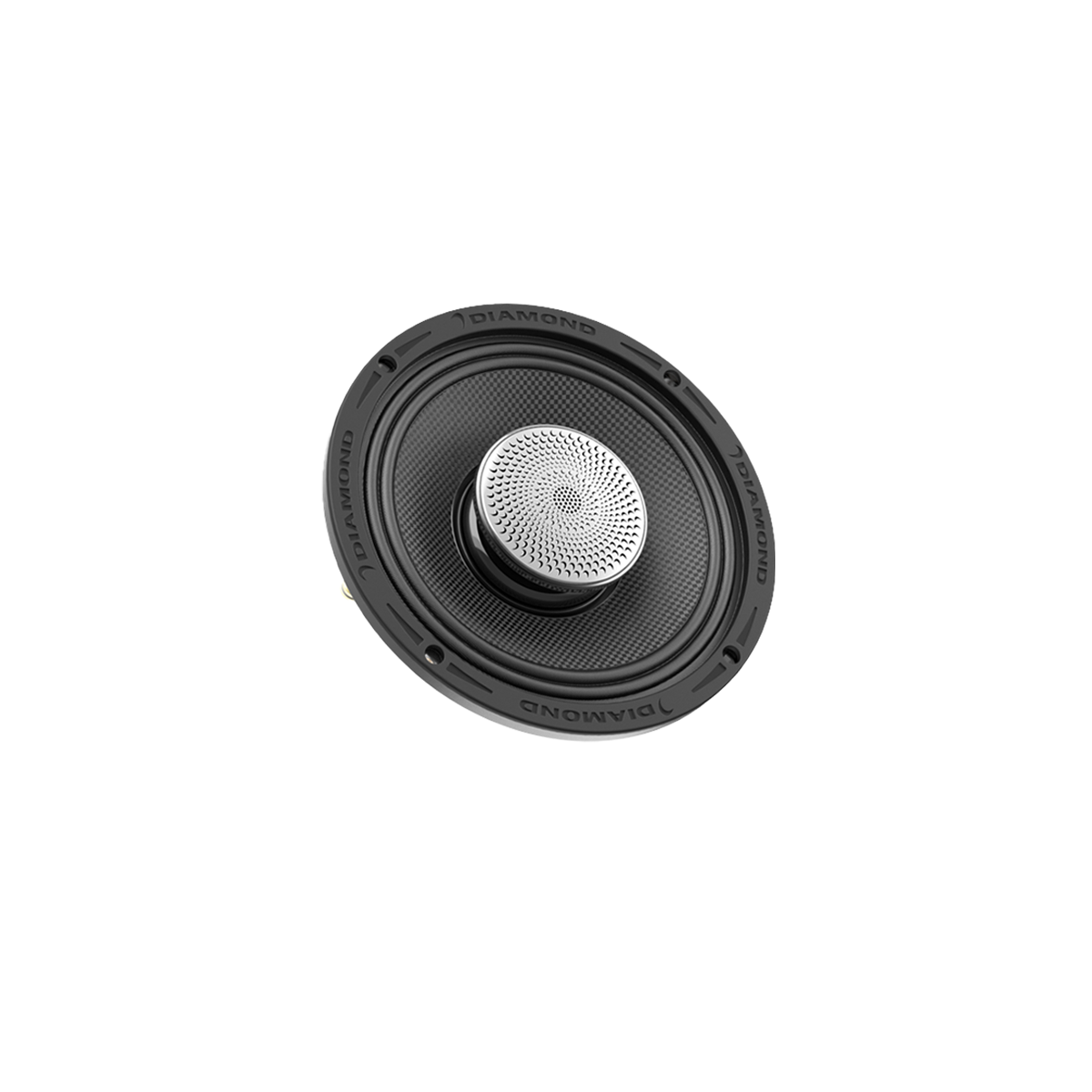

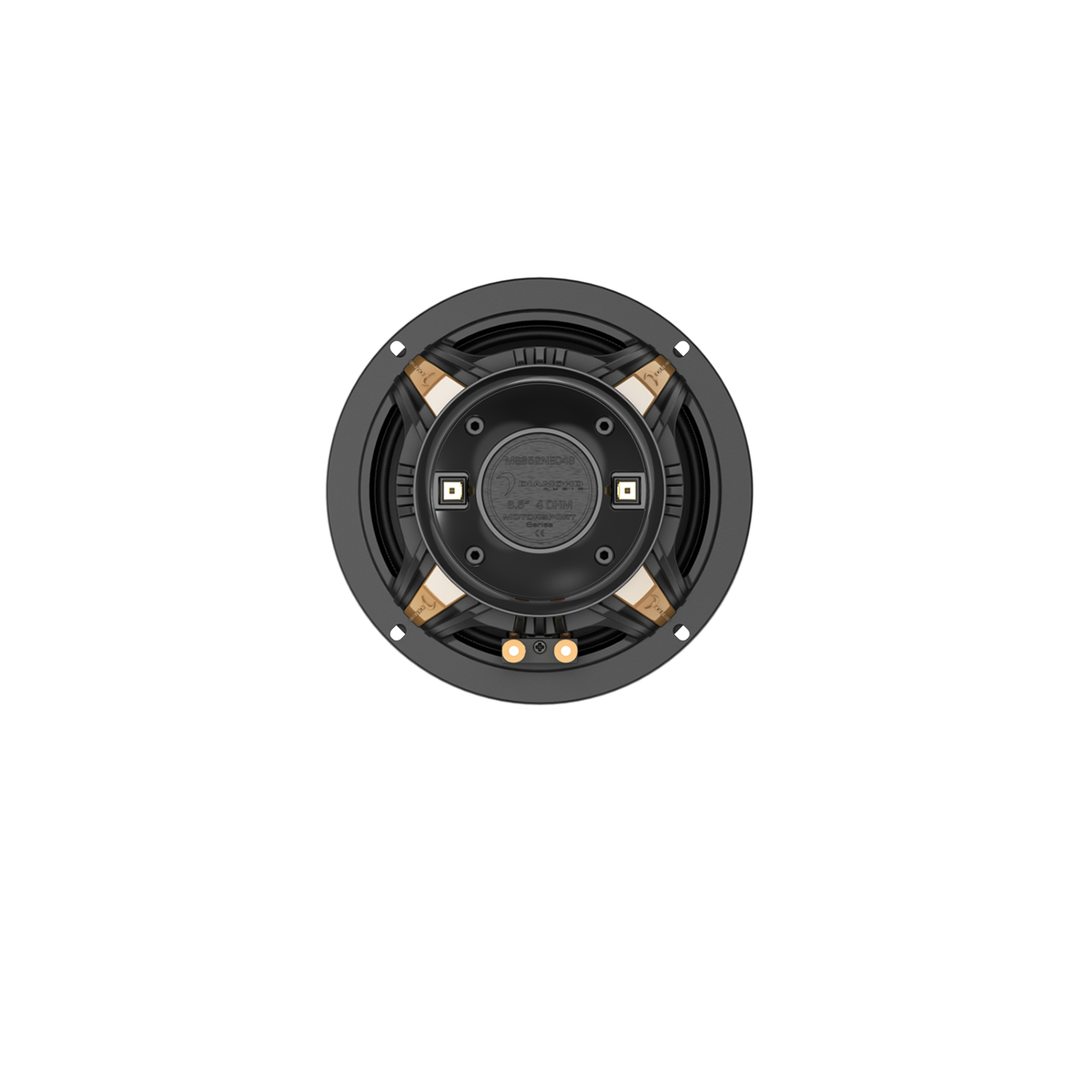

MS652NEO4S - 6.5" 2-WAY CO-AXIAL SHALLOW MOUNT NEO SPEAKERS (4Ω)

Regular price $849.99
Regular price Sale price $849.99
Shipping calculated at checkout.
Brand: Diamond Audio
SKU: MS652NEO4S
Regular price $849.99
Regular price Sale price $849.99

Step into the future of sound with Diamond Audio’s NEO Series Coaxial Drivers — the pinnacle of audio innovation. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary Coaxial horn driver with our latest NEO Series, combining the best features of our NEO midbass and midrange drivers with our exclusive waterproof horn technology. The result? Unparalleled sound quality, exceptional output, and effortless installation.

Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don’t just play music — they transform your listening experience into something extraordinary. If you’ve heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance.

Don’t settle for ordinary sound. Choose Diamond Audio’s NEO Series Coaxial Drivers — because your music deserves the best.

Specifications

SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - DUAL
FIELD SERVICABLE VOICE COIL - YES
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE
BASKET MATERIAL - CAST ALUMINIUM
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 93
RE (Ω) [SERIES]: 3.2
QMS: 10.357
QES: 0.67
QTS: 0.629
FS (HZ): 151
VAS (L): 2.756
CMS (MM/N): 0.094
MMS (G): 11.728
SD (M2): 143.14
BL (T*M): 7.289
XMAX (MM): 1.2
POWER HANDLING RMS: 200
POWER HANDLING MAX: 400
MOUNTING DEPTH: IN.(MM):2.74"" (69.50MM)
CUT OUT DIAMETER IN.(MM):5.63"" (143MM)
OVER ALL DIAMETER IN.(MM):6.29"" (159.68MM)
OVER ALL HEIGHT IN.(MM):3.38"" (85.9MM)
