By Diamond Audio

6"x 9" MSNEO Series High Output Neo Midrange Speakers (4Ω) - MS69NEO

$829.99
$829.99
Brand: Diamond Audio
SKU: MS69NEO

Meet the Crown Jewel!

Introducing the Diamond Audio MSNEO Series—the pinnacle of our speaker lineup. Where premium craftsmanship meets superior audio performance, elevate your listening experience to regal heights.

The Pinnacle of Perfection!

Diamond Audio's MSNEO Series stands as the crown jewel of their brand. These top-of-the-line speakers showcase the finest in audio engineering, utilizing cutting-edge materials and innovative design to deliver unmatched sound quality and performance. Experience audio excellence like never before.

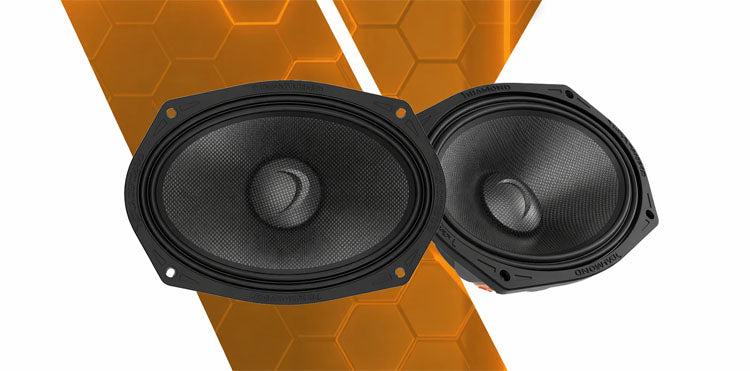

6"x 9" High Output Neo Midrange Speakers (4Ω)

Command the road with precision and power using the Diamond Audio MS69NEO 6"x9" high output neo midrange speakers (4Ω)—a premium solution engineered for motorcycle audio, powersports systems, and high-performance car audio builds. As part of the elite MSNEO Series, these speakers are designed to deliver exceptional midrange clarity, extreme output, and cutting-edge durability in demanding environments.

At the heart of the MS69NEO is a waterproof DUPONT™ Kevlar cone, built to withstand harsh outdoor conditions while delivering tight, accurate midrange response. This advanced cone material provides outstanding strength and responsiveness, ensuring vocals and instruments cut through with authority, even at high speeds.

Driven by a high-efficiency neodymium motor structure, these 6x9 midrange speakers produce impressive output with minimal power input. With 350W RMS / 700W MAX power handling and a 96dB sensitivity rating, the MS69NEO delivers loud, clean sound that easily overcomes wind noise, engine vibration, and open-air riding conditions.

The frequency response of 90Hz–10kHz ensures rich midrange detail with punchy mid-bass performance, making these speakers ideal for systems focused on clarity and projection. A 2-inch US-manufactured high-temperature voice coil enhances durability and allows consistent performance under continuous high-power operation.

Constructed with a heavy-duty cast aluminum basket, the MS69NEO offers superior structural strength and vibration resistance, ensuring long-term reliability in rugged environments. Its optimized mounting depth of 3.09 inches allows for flexible installation in fairings, doors, and custom enclosures.

Key Features

• Model: MS69NEO
• 6"x9" high output midrange speakers (4Ω)
• 350W RMS / 700W MAX power handling
• 96dB sensitivity for extreme output
• DUPONT™ Kevlar waterproof cone
• Neodymium motor for high efficiency
• 2” high-temp voice coil for durability
• Cast aluminum basket for rugged performance
• Optimized for motorcycle and powersports audio

The Diamond Audio MS69NEO 6x9 midrange speakers deliver aggressive output, crystal-clear vocals, and premium durability—making them the ultimate upgrade for high-output audio systems that demand clarity, volume, and performance without compromise.



Specifications

THIELE/SMALL PARAMETERS

  • Power: 350W RMS/700W RMS
  • SPL(dB): 96
  • Re(Ω): 3.2
  • Qms: 9.971
  • Qes: 0.558
  • Qts: 0.528
  • Fs(Hz): 90
  • Vas(L): 10.7
  • Cms(mm/N): 0.177
  • Mms(g): 17.5
  • Sd(cm²): 0.0207
  • BL(T*M): 7.785
  • Xmax(mm): 1.2
  • Frequency Response: 90Hz-10kHz
  • Diameter: 9.193" x 6.378" (233.5mm x 162mm)
  • Mounting Diameter: 8.583" x 5.748" (218mm x 146mm)
  • Mounting Depth: 3.091" (78.5mm)
  • Magnet Diameter:

Specifications

  • Nominal-impedance-ohms

    4Ω

Brand

Diamond audio

Type

Motor vehicle speakers
