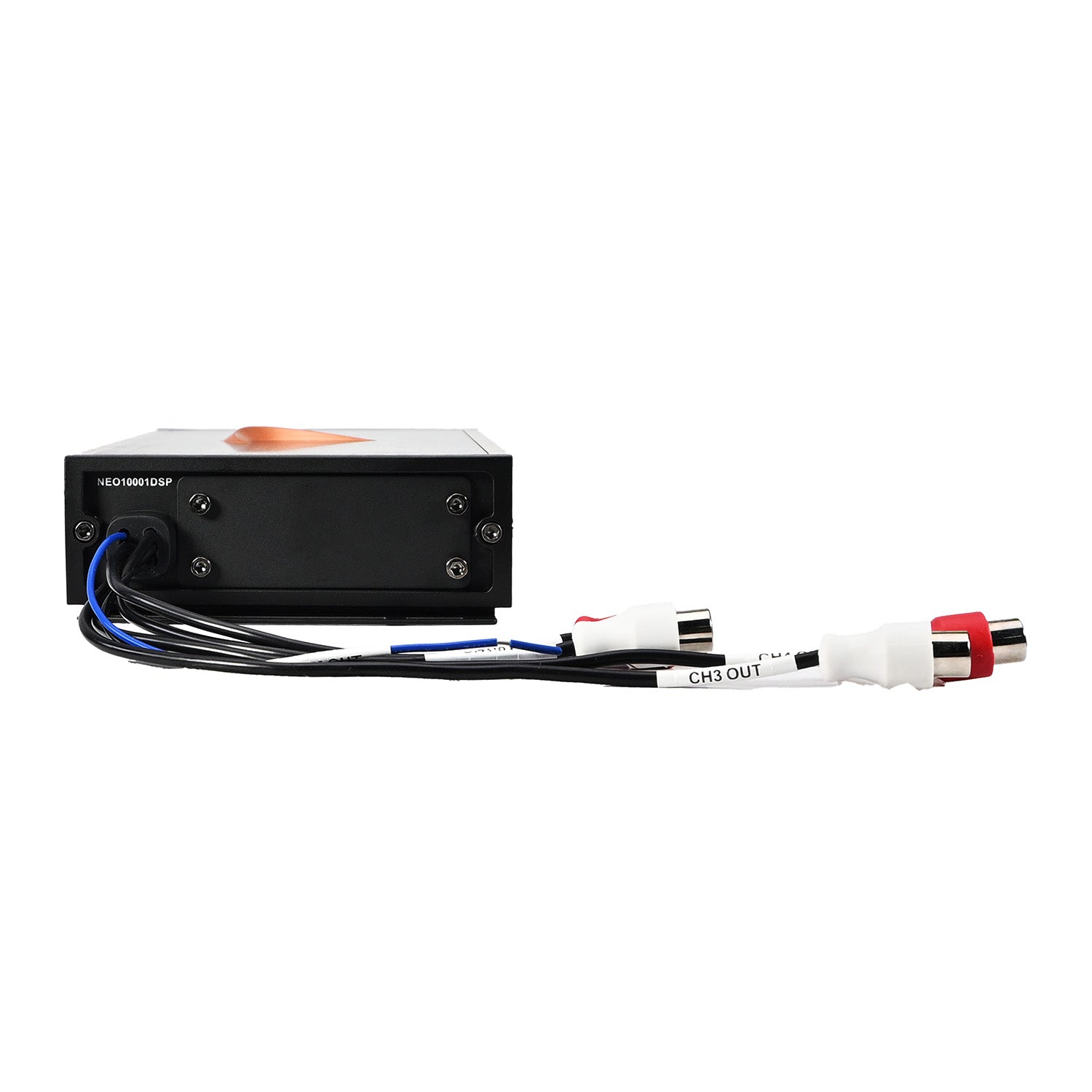

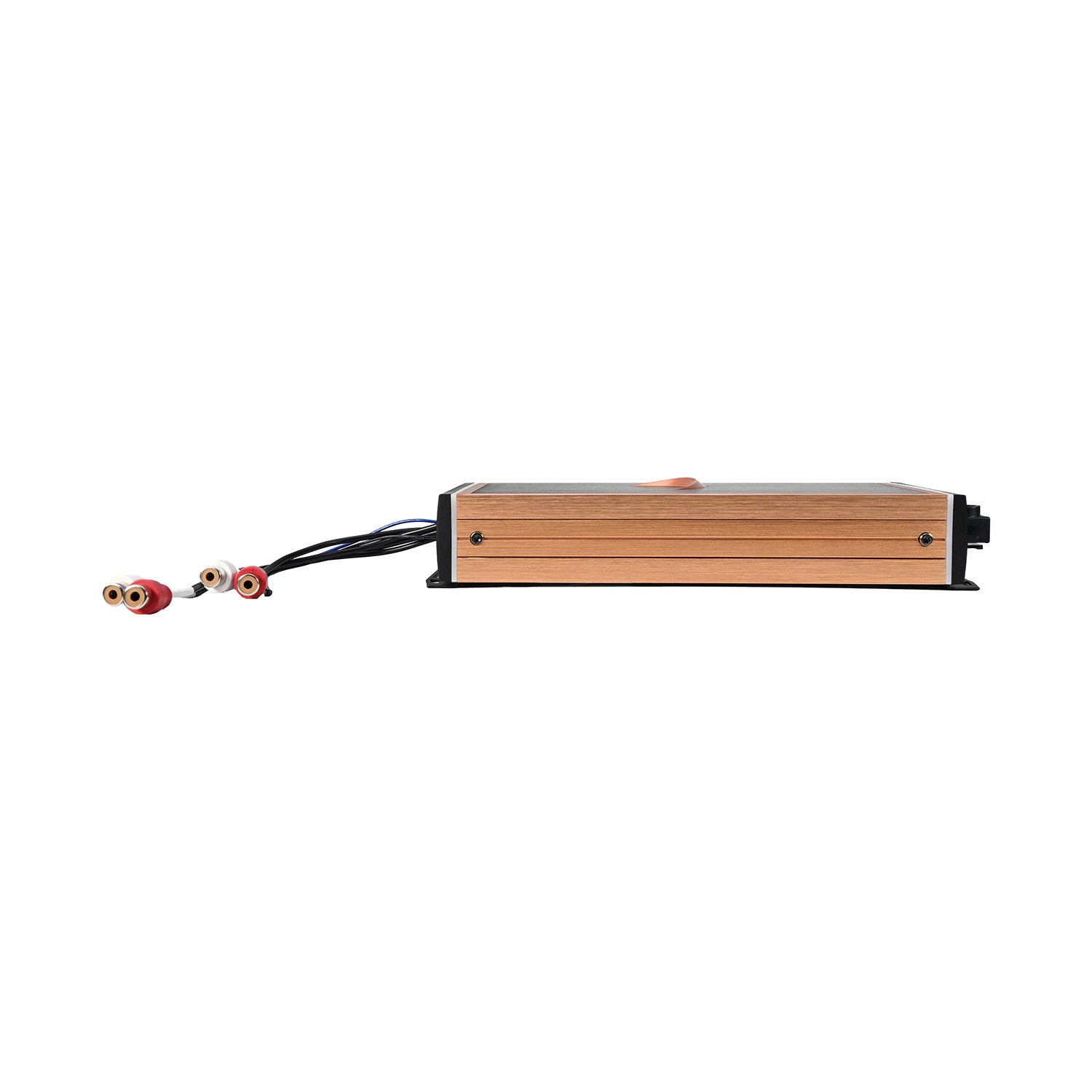

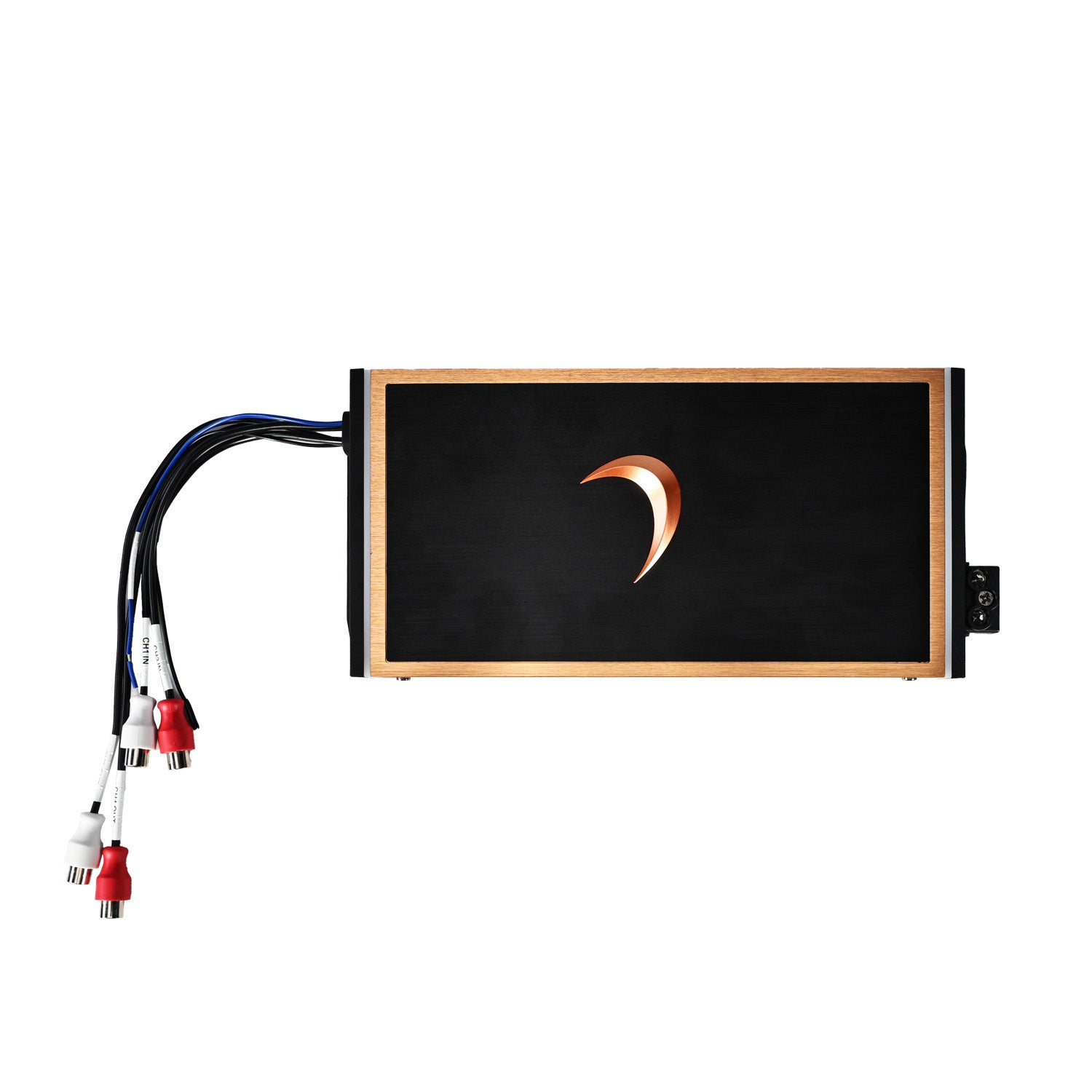

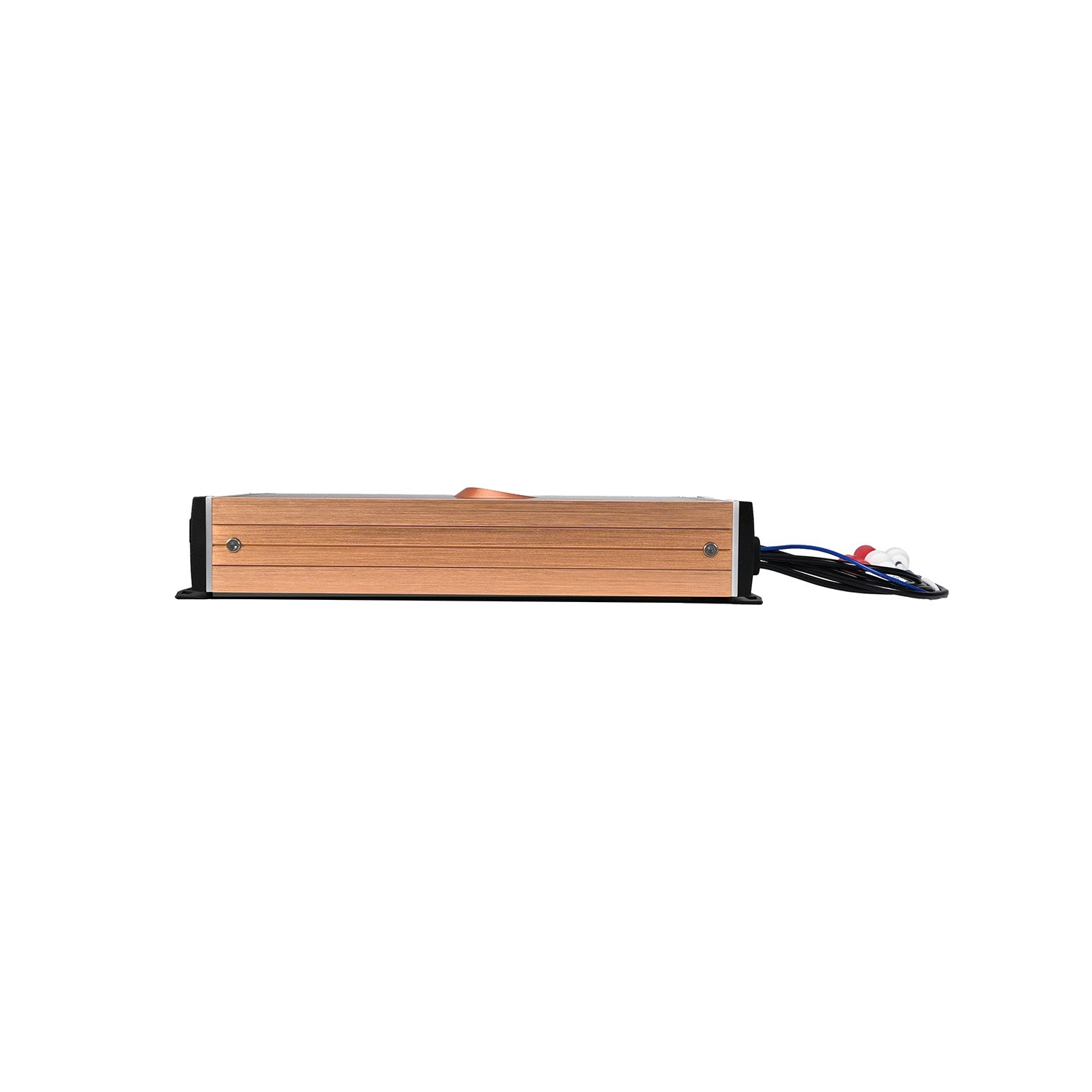

NEO10001DSP - 1000W RMS CLASS D Monoblock Amplifier

Refined Power Meets Precision Control

The Diamond Audio NEO10001DSP is the definitive solution for audiophiles seeking the perfect balance of raw power and sophisticated tuning. As a high-efficiency Class D Monoblock amplifier , it delivers a robust 1000W RMS at 1Ω , providing the dependable strength needed for high-performance subwoofers while maintaining the pure sonic clarity Diamond Audio is known for.

Advanced Full DSP Integration

Unlike standard monoblock amplifiers, the NEO10001DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ , precise crossovers, time delay , and channel linking, you have total command over your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to calibrate your system for any acoustic environment.

Seamless OEM & EV Integration

Designed for the modern vehicle landscape, the NEO10001DSP excels in integration with onboard 4CH DSP. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Versatile & Rugged Engineering

Built to perform in diverse environments, the NEO10001DSP features a marine-ready , water-resistant chassis , making it an ideal choice for both high-end car audio and powersports installations . The compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation even in tight spaces.

App Control & Bluetooth Streaming

The NEO10001DSP comes equipped with built-in Bluetooth streaming, enabling seamless wireless audio playback alongside its studio-grade DSP performance. Looking ahead, a dedicated companion app is coming soon, which will bring wireless control and monitoring of your amplifier directly to your smartphone—adding an extra layer of smart, connected convenience to the NEO Series experience.

Key Features:

• Full 4CH DSP integration: 2CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
  • Up to 20V signal inputs (High/Low level 20V – 0.4V)
  • Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
  • EV friendly voltage compatibility (8V – 17V)
• Bluetooth Audio streaming direct to amplifier

• Control via IOS or Android App (coming soon)
• Marine ready, water-resistant chassis
• Staggered RCA connections for clean installations

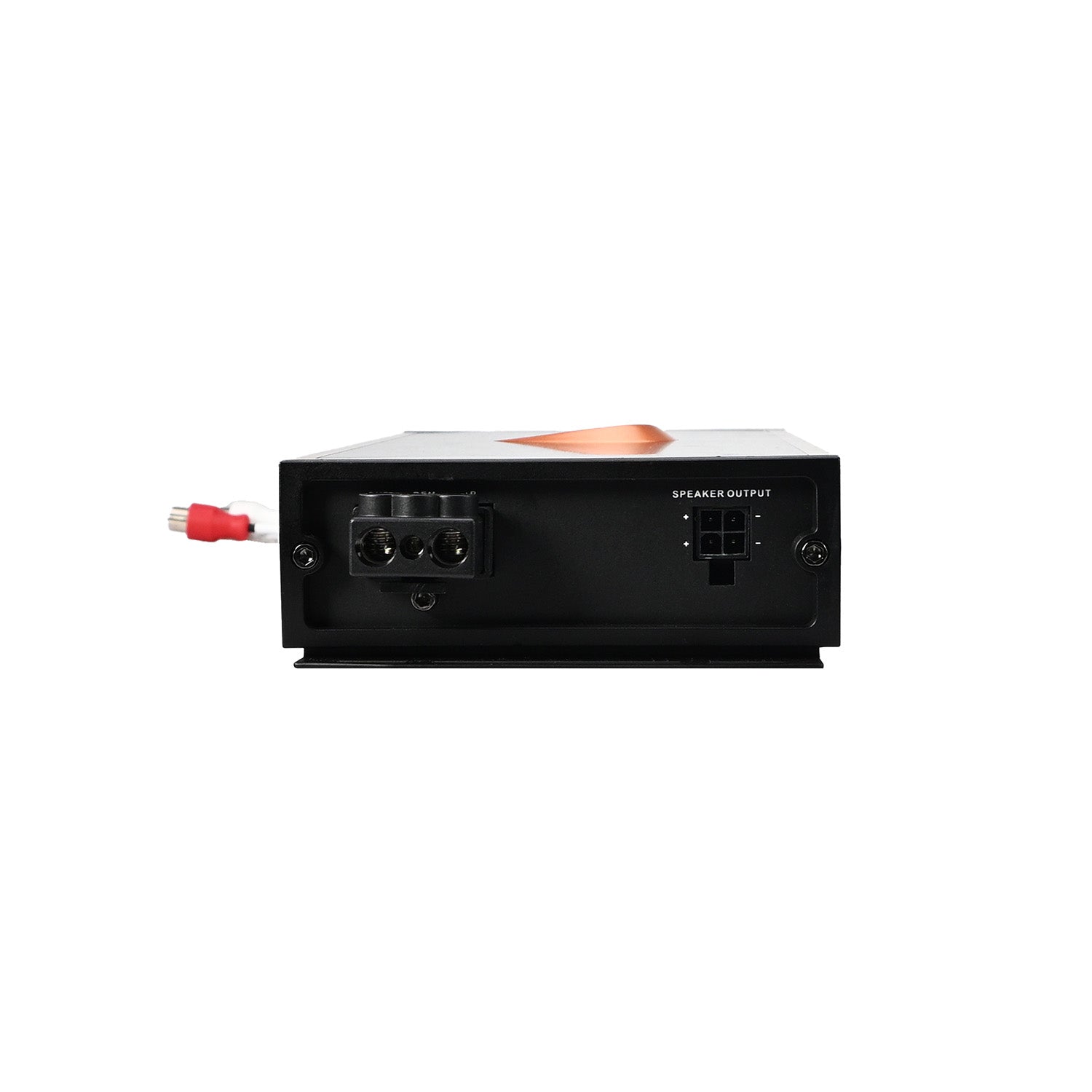

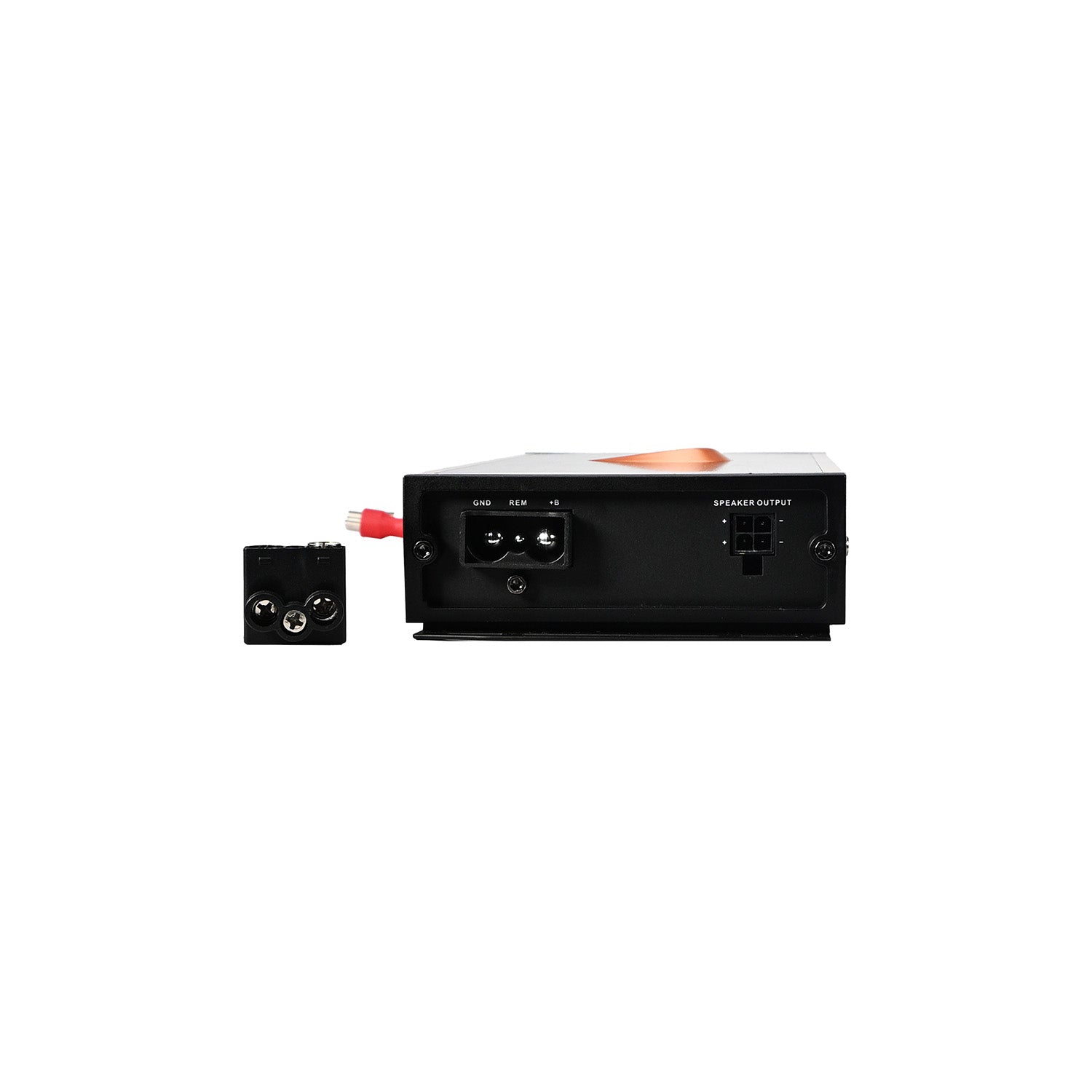

• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)

PC SOFTWARE DOWNLOAD

TECH NOTE: POWER UP AMPLIFIER FOR PROGRAMMING- SELECT ACC POSITION FOR AUTO TURN-ON
