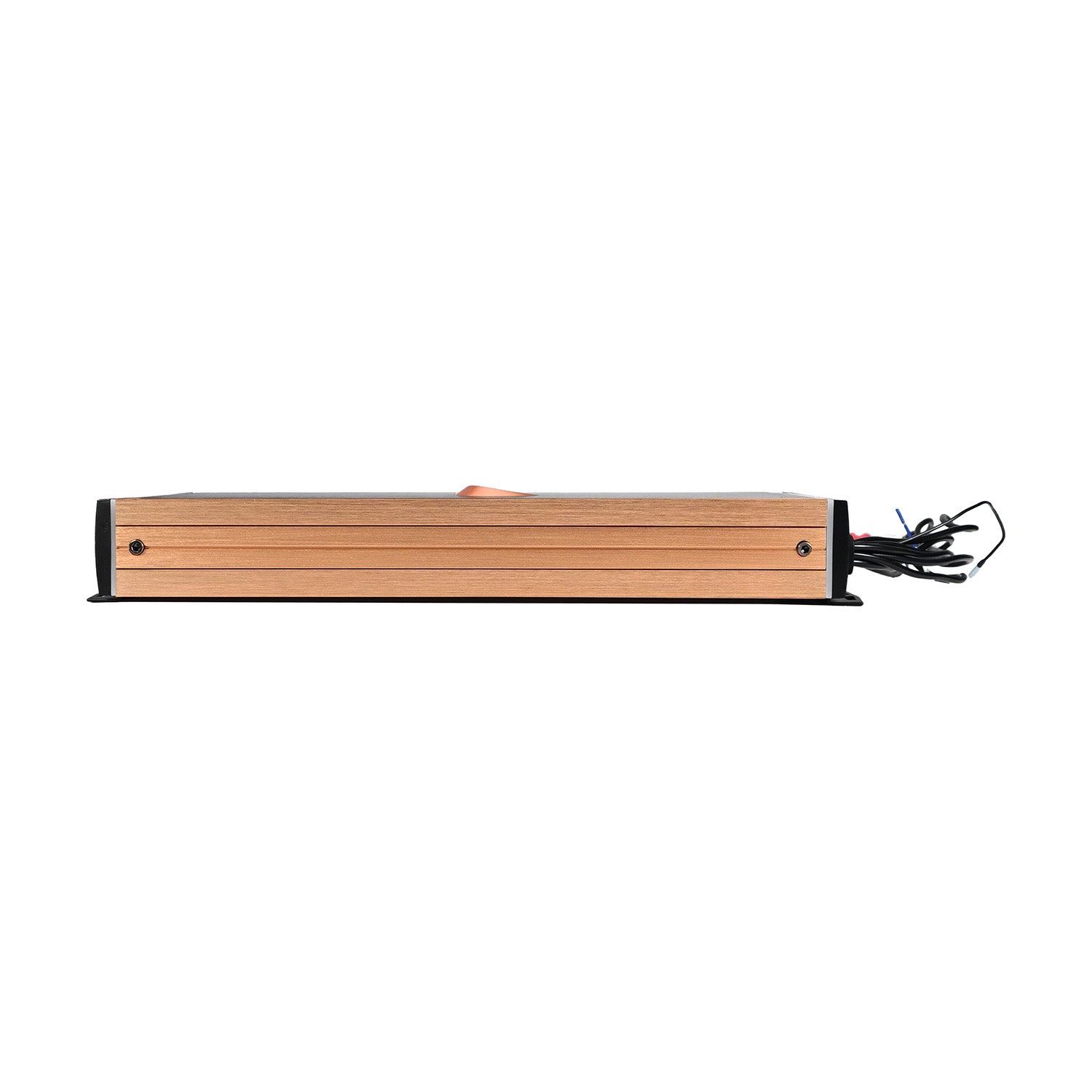

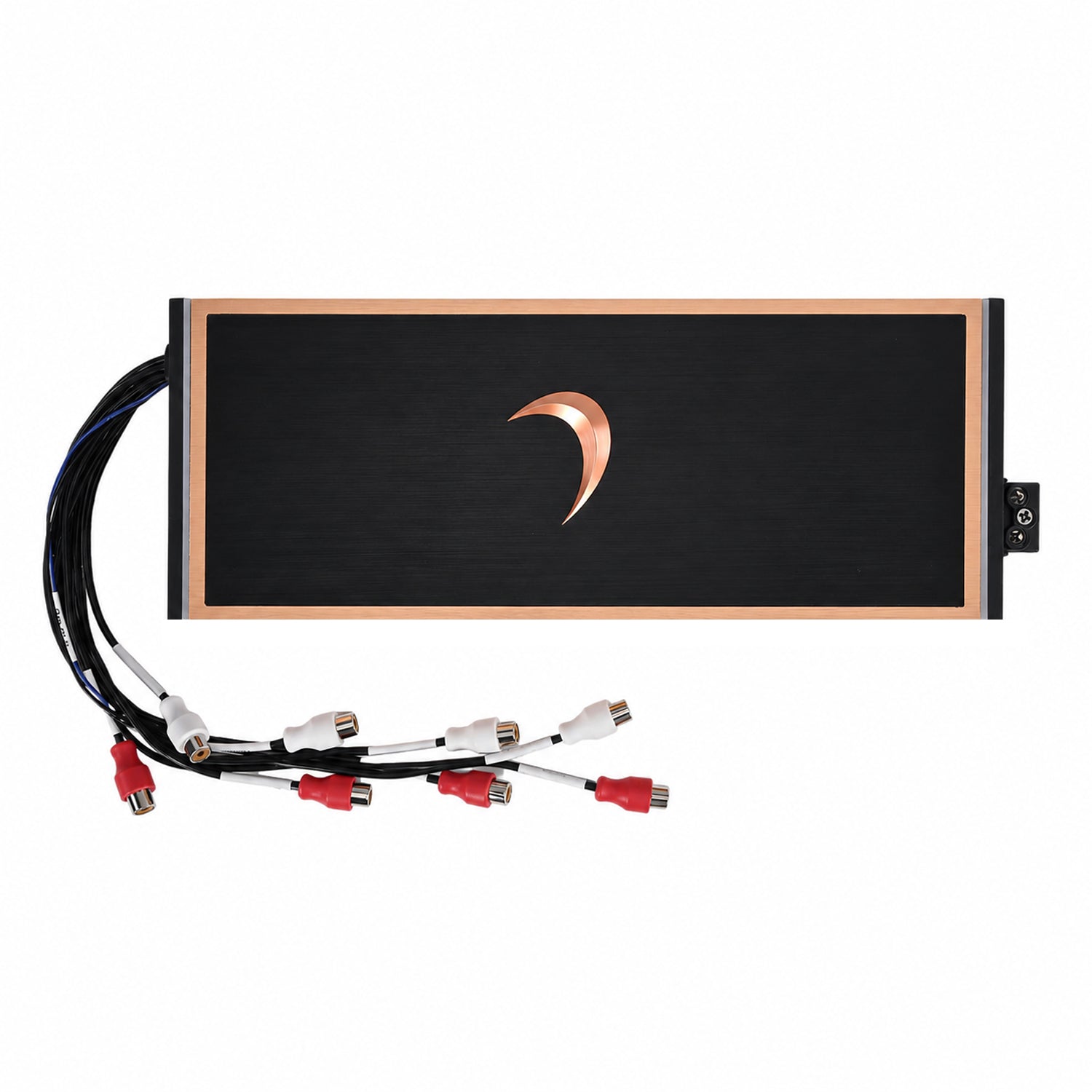

NEO15006DSP - 1500W RMS Class D 6-Channel Amplifier

Extensive System Power Meets Precision Control

The Diamond Audio NEO15006DSP is the ultimate solution for audiophiles seeking the perfect balance of multi-channel flexibility and sophisticated tuning. As a high-efficiency Class D 6-Channel amplifier , it delivers a massive 1500W RMS total output , providing the dependable strength needed to drive complete active systems or high-output multi-speaker setups, with the ability to bridge channels to 500W x 3 @ 4Ω —all while maintaining the pure sonic clarity Diamond Audio is known for.

Advanced Full DSP Integration

Unlike standard multi-channel amplifiers, the NEO15006DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over every aspect of your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to meticulously calibrate complex 6-channel configurations for any acoustic environment.

Seamless OEM & EV Integration

Designed for the modern vehicle landscape, the NEO15006DSP excels in integration. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Versatile & Rugged Engineering

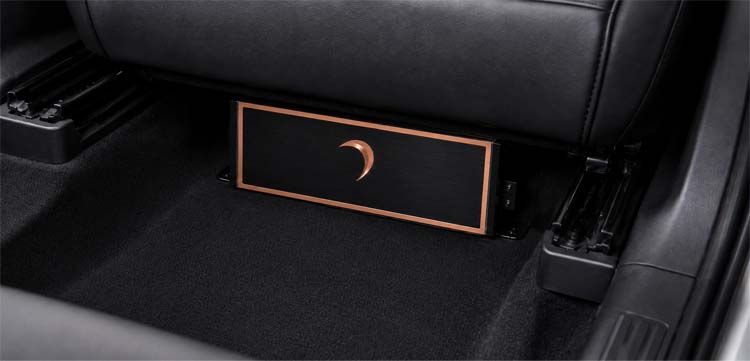

Built to perform in diverse environments, the NEO15006DSP features a marine-ready, water-resistant chassis , making it an ideal choice for high-end car audio, marine, and powersports installations . Despite its expanded 6-channel capability , the compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation in any high-performance audio setup.

Key Features:

• Full DSP integration: 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
  • Up to 20V signal inputs (High/Low level 20V – 0.4V)
  • Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
  • EV friendly voltage compatibility (8V – 17V)
• Marine ready, water-resistant chassis
• Staggered RCA connections for clean installations

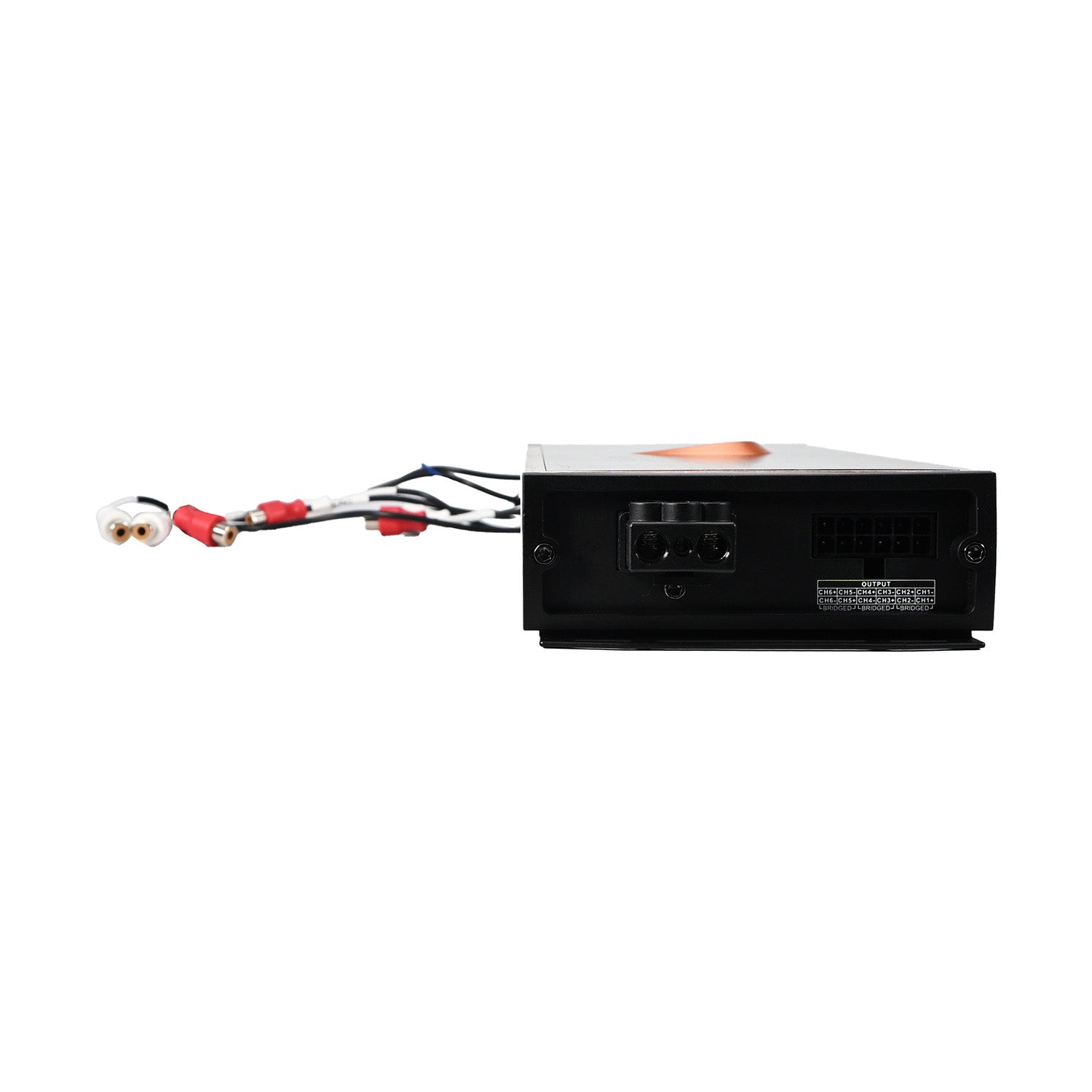

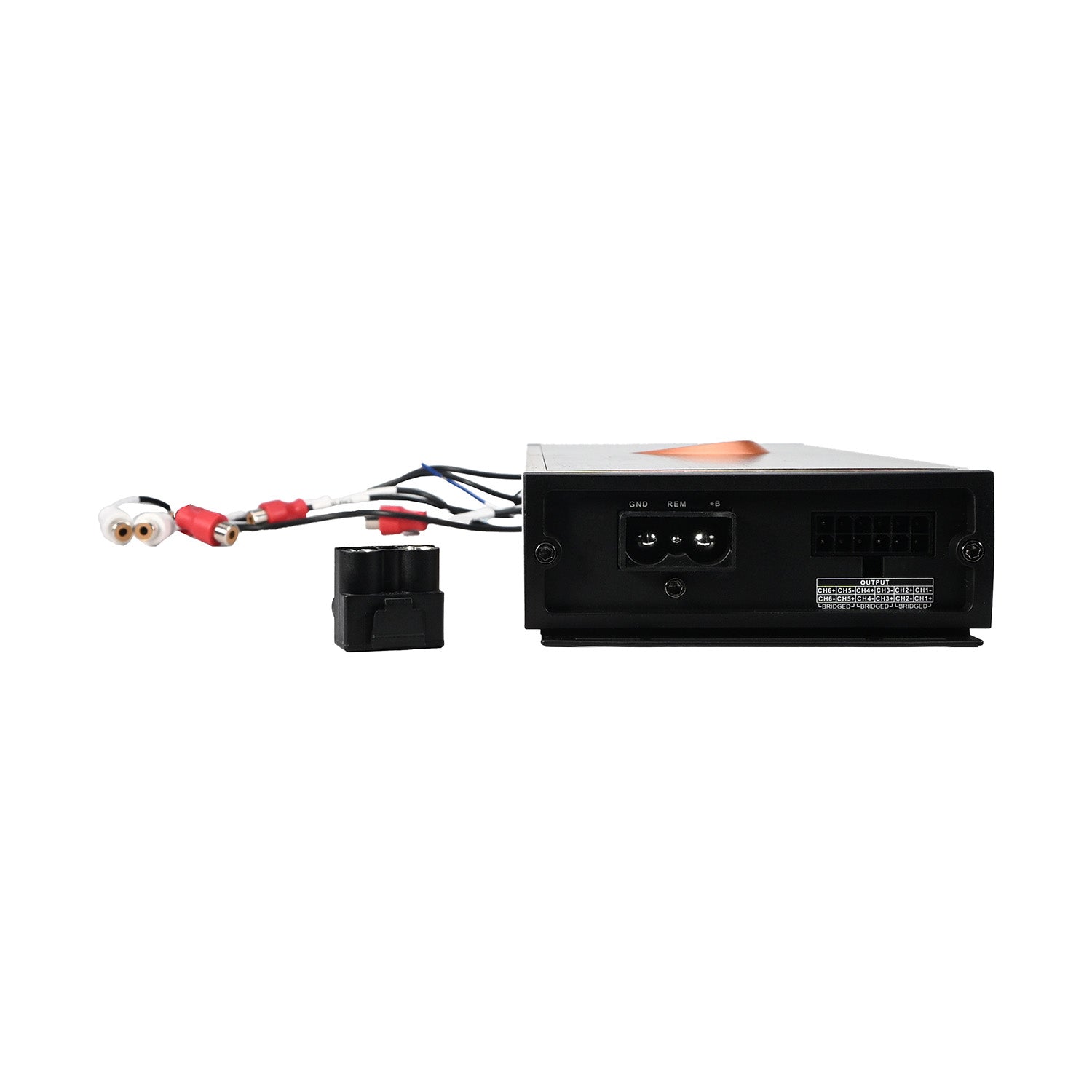

• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)



  PC SOFTWARE DOWNLOAD

  TECH NOTE: POWER UP AMPLIFIER FOR PROGRAMMING- SELECT DC POSITION FOR AUTO TURN-ON

  Amplifier Power Calculator

  Measured Output Power - Match gain to either RMS output of the amplifier or the speaker, whichever is lower.

  Enter measured AC voltage:

  Load	Power (Watts)
  4Ω	0 W
  2Ω	0 W
  1Ω	0 W

  Formula: Watts = Voltage² ÷ Resistance

  Voltage Target Calculator - Match gain to either RMS output of the amplifier or the speaker, whichever is lower.

  Enter desired output power:

  Load	Target Voltage
  4Ω	0 V
  2Ω	0 V
  1Ω	0 V

  Formula: Voltage = √(Watts × Resistance)
