By Diamond Audio

12" Active Slot Vented Subwoofer Enclosure (2Ω) - DESMB12A

$649.99
$649.99
Brand: Diamond Audio
SKU: DESMB12A

Unmatched Performance and Versatility

Experience the pinnacle of audio excellence with the Diamond Elite DES Series subwoofers. Engineered for optimal performance and crafted with precision, these subwoofers adapt to any enclosure design while delivering dynamic sound and signature Diamond Audio bass. Built to endure long listening sessions, they feature a robust hybrid paper fiber cone and an impedance switch for ultimate flexibility, ensuring your audio needs are met effortlessly.

Compact Power for Every Space

Introducing the Diamond Audio Microbox subwoofer system, designed for impressive bass output in a compact form. Featuring preloaded 12” DES series subwoofers, these Microboxes are constructed from high-strength MDF with advanced bracing and secure fastening, eliminating leaks and distortion for pure bass performance. Ideal for those seeking powerful sound without sacrificing space, the Microbox delivers high-quality audio in any setting.

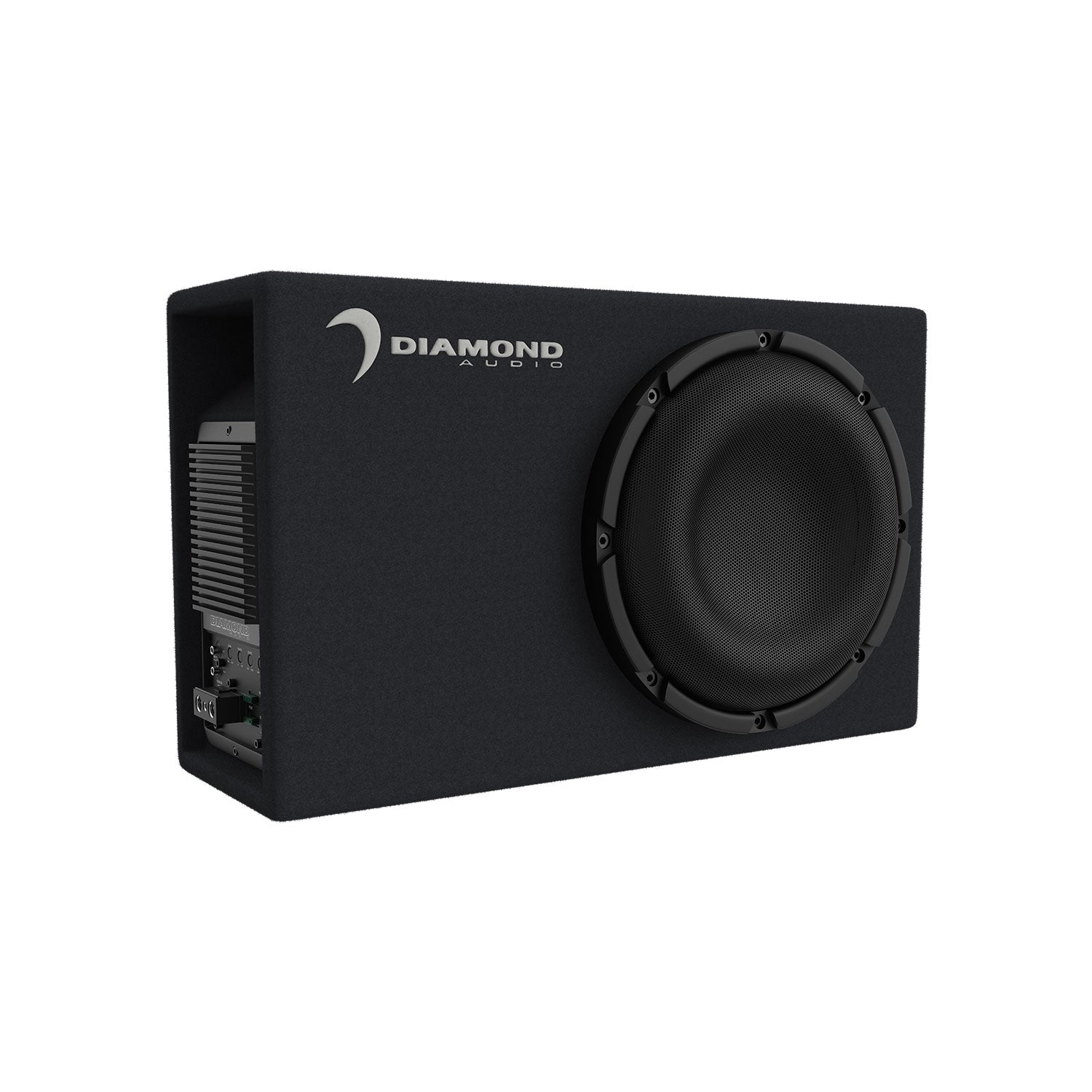

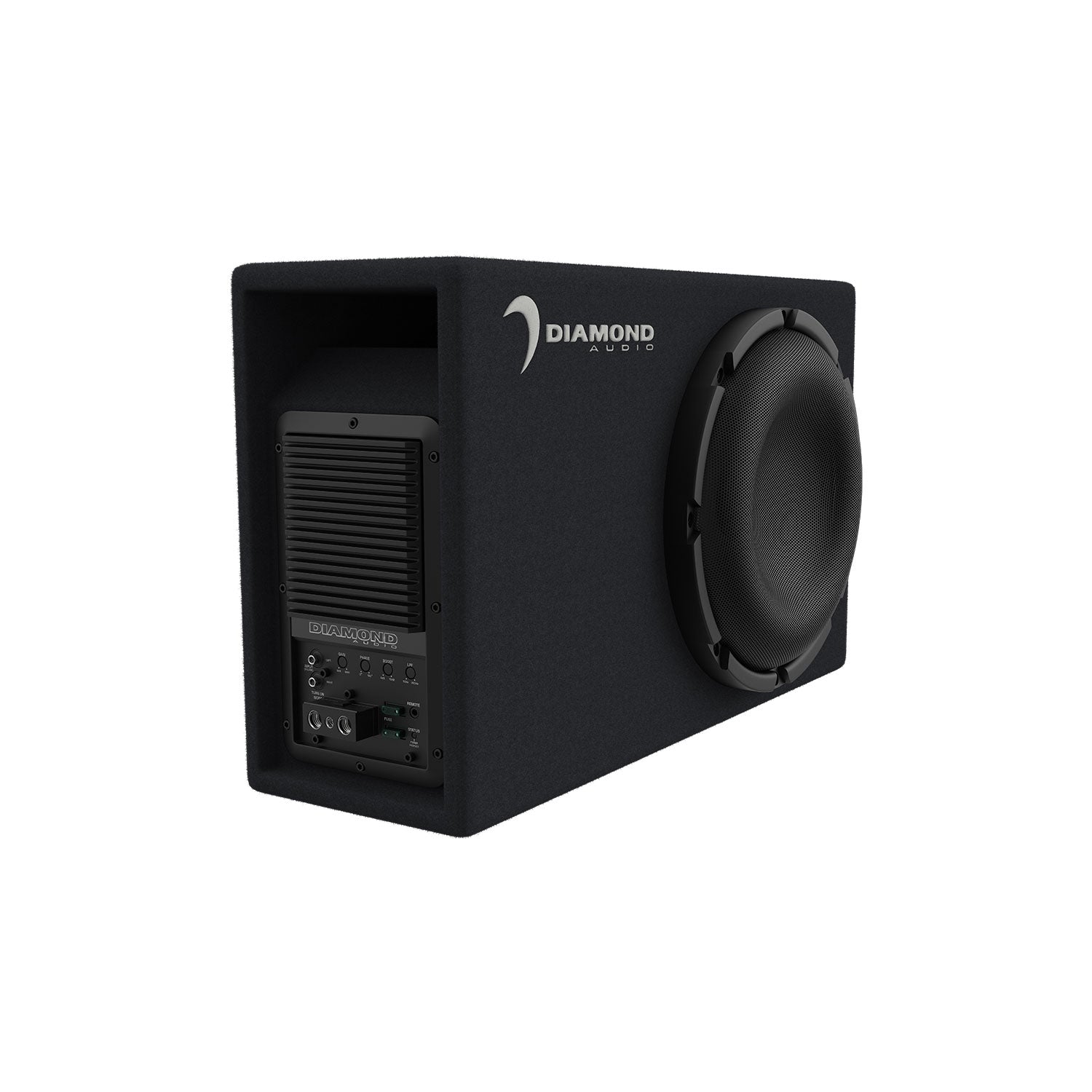

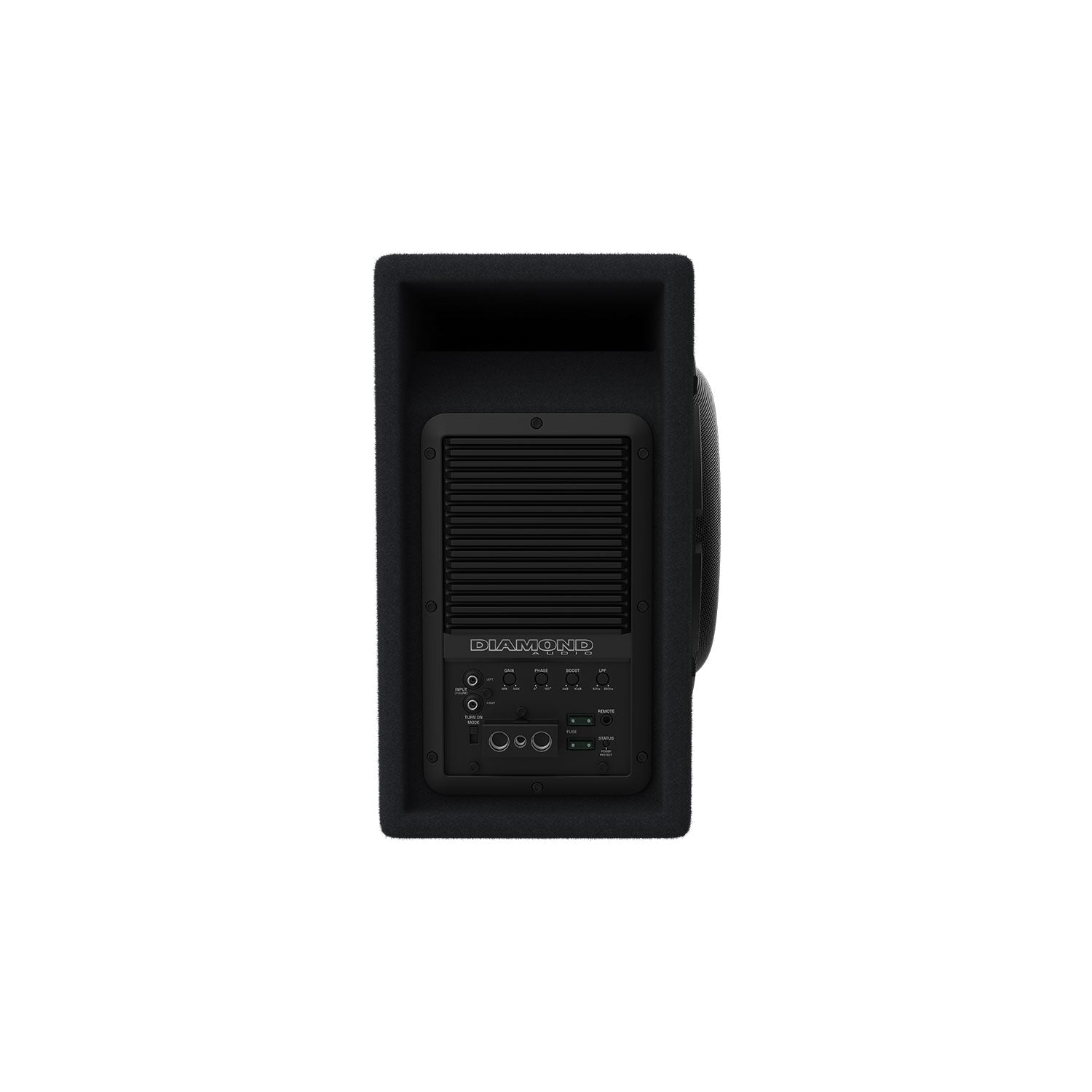

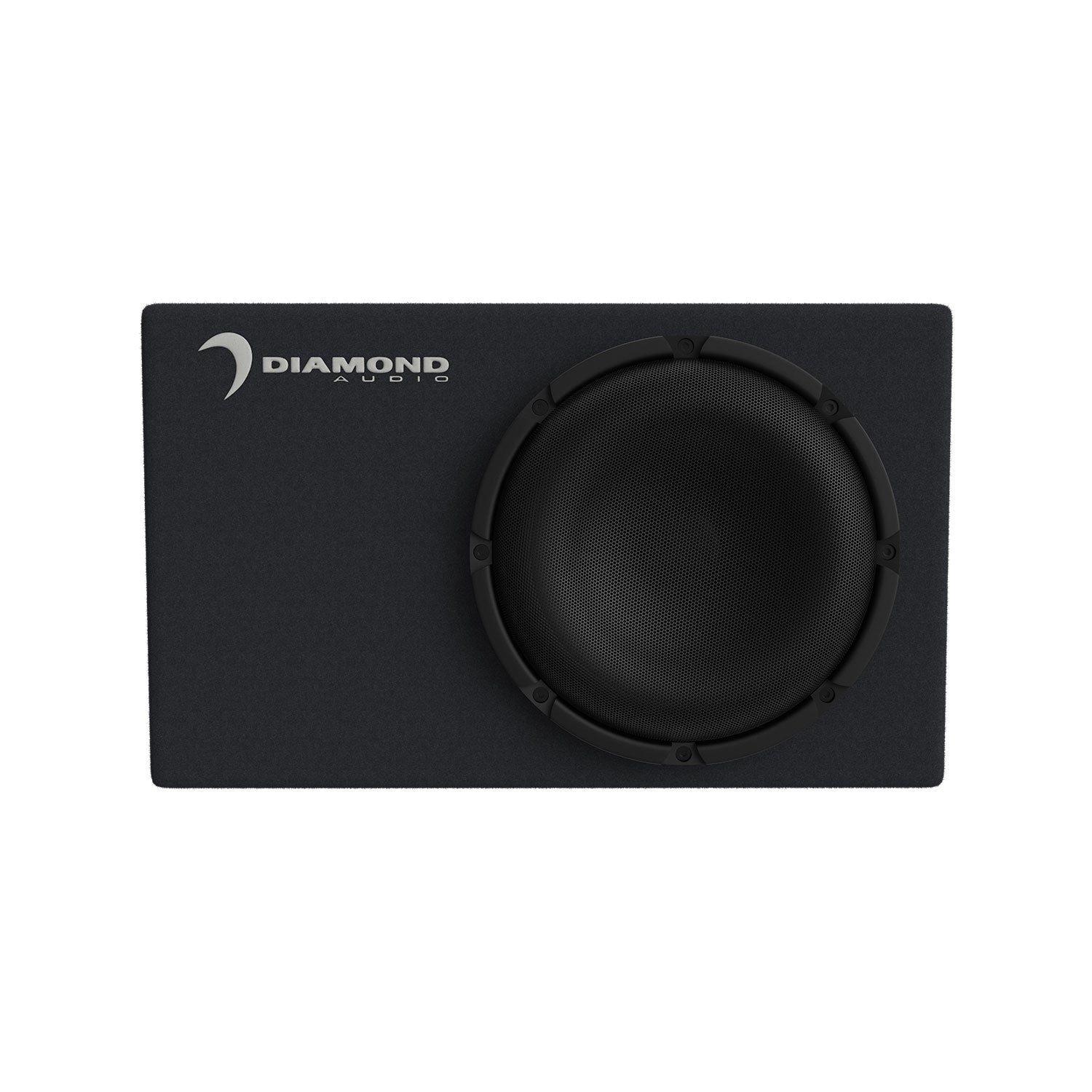

12" Active Slot Vented Subwoofer Enclosure (2Ω)

The DESMB12A Active Slot-Vented Subwoofer Enclosure from Diamond Audio delivers powerful, controlled bass performance in a compact, ready-to-install design. Part of the Diamond Elite DES Series, this active subwoofer system reflects premium craftsmanship and precision engineering, offering dynamic low-frequency output with the signature Diamond Audio sound.

At its core is a high-performance 12-inch DES Series subwoofer featuring a reinforced hybrid paper fiber cone designed to handle demanding power levels while maintaining accuracy and durability during extended listening sessions. The slot-vented enclosure enhances low-end efficiency and output, producing deeper, harder-hitting bass compared to sealed designs.

The DESMB12A is housed in a rigid, high-strength MDF enclosure with extensive internal bracing and lock-tight fastening to eliminate unwanted resonance, air leaks, and distortion. Its compact Microbox-style footprint makes it ideal for vehicles where space is limited but strong bass impact is still desired.

With an optimized 2-ohm configuration and an integrated active design, the DESMB12A simplifies installation while delivering impressive output. For enthusiasts seeking premium bass performance in a space-efficient package, the DESMB12A is the ultimate all-in-one subwoofer solution.



Specifications

  • Power Handling (Subwoofer):500W RMS/1000W MAX
  • 12" 2Ω Active Slot Vented Subwoofer
  • 500 Watt Class-D Amplifier
  • Bass Boost: 0 to +18dB
  • Twin T-Filter (narrow Q)
  • LPF Filter: 50Hz-250Hz
  • Phase: Variable 0°-180­°
  • PWM MOSFET Power Supply/Thermal
  • Dimensions (LxDxH) 24"x11"x14.4" (609mm x 277mm x 368mm)

Specifications

  • Nominal-impedance-ohms

    2Ω

Brand

Diamond audio

Type

Subwoofer

MICROBOX Subwoofers - Frequently Asked Questions

Q1: What are MicroBOX Subwoofers designed for?
A: They are designed to deliver powerful bass in a compact enclosure, making them ideal for vehicles with limited interior space.

Q2: Can MicroBOX save cargo space?
A: Yes. Their low-profile, space-saving design is suitable for under-seat, behind-seat, or compact trunk installations.

Q3: Are MicroBOX systems powered or passive?
A: The series includes both powered and passive subwoofer enclosures, offering flexible system configurations.

Q4: Can MicroBOX work with factory audio systems?
A: Yes. They can be integrated into factory and aftermarket audio systems, depending on the configuration.

Q5: Why choose Diamond Audio MicroBOX?
A: MicroBOX combines compact installation, controlled bass, durable construction, and convenient system integration for modern vehicles.
